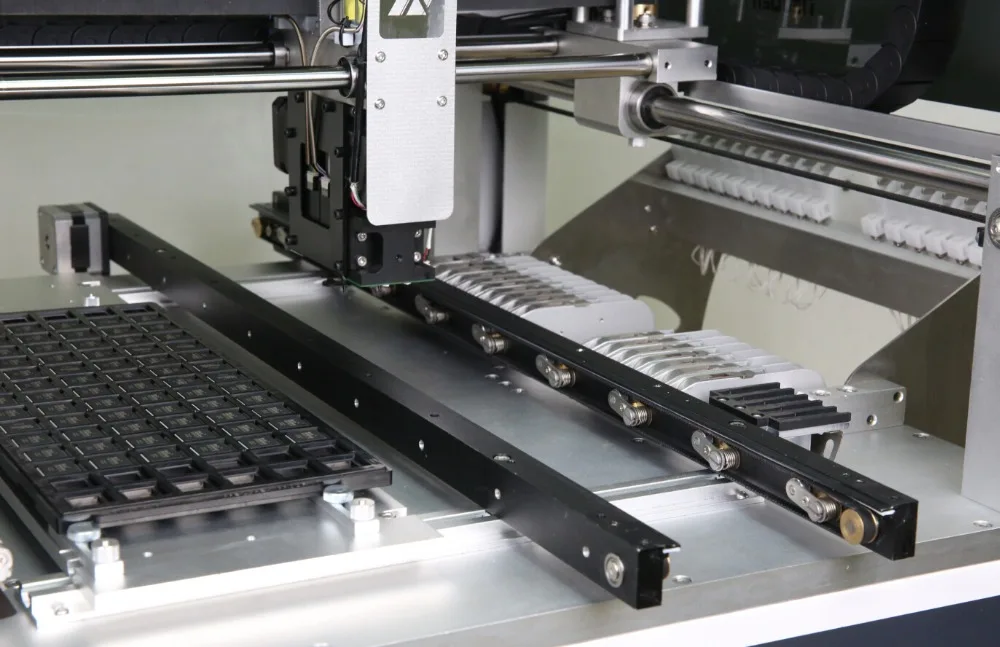

Neoden Pick And Place Machine NeoDen4 SMT With Vision PCB Making Assembly Auto Conveyor Assembly Line Conveyor Belt

Share on (60712450349):


Price:RUB 573,749.99

Quantity:


Product Overview

Description

First


Product Description


Model
NeoDen4
Machine Style

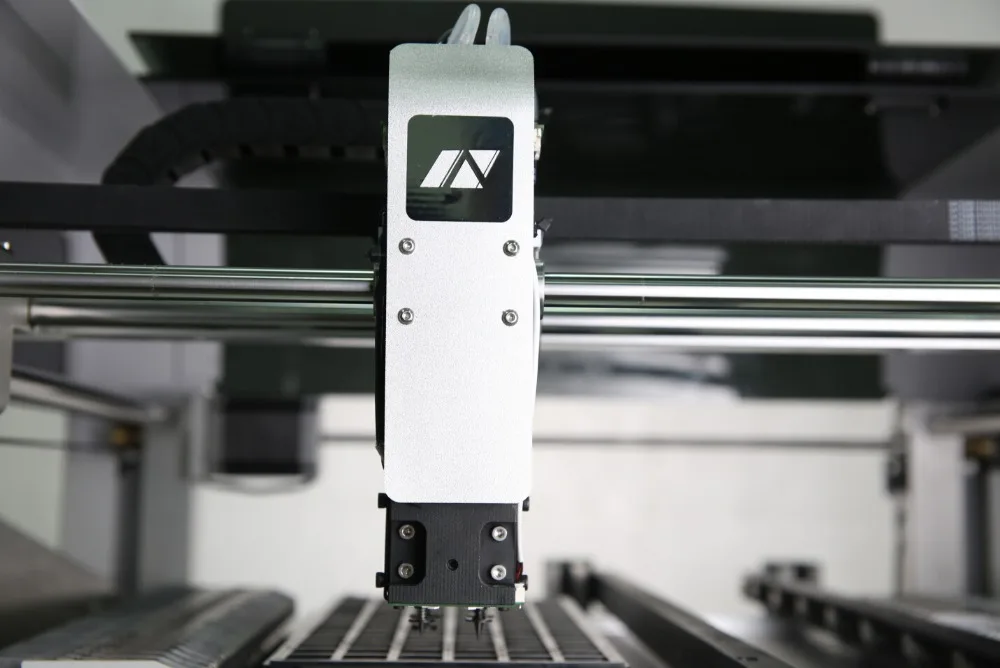

Single gantry with 4 heads
Alignment
Stage Vision
Placement Rate
Vision on:5,000CPH
Vision off:10,000CPH(Optimum)

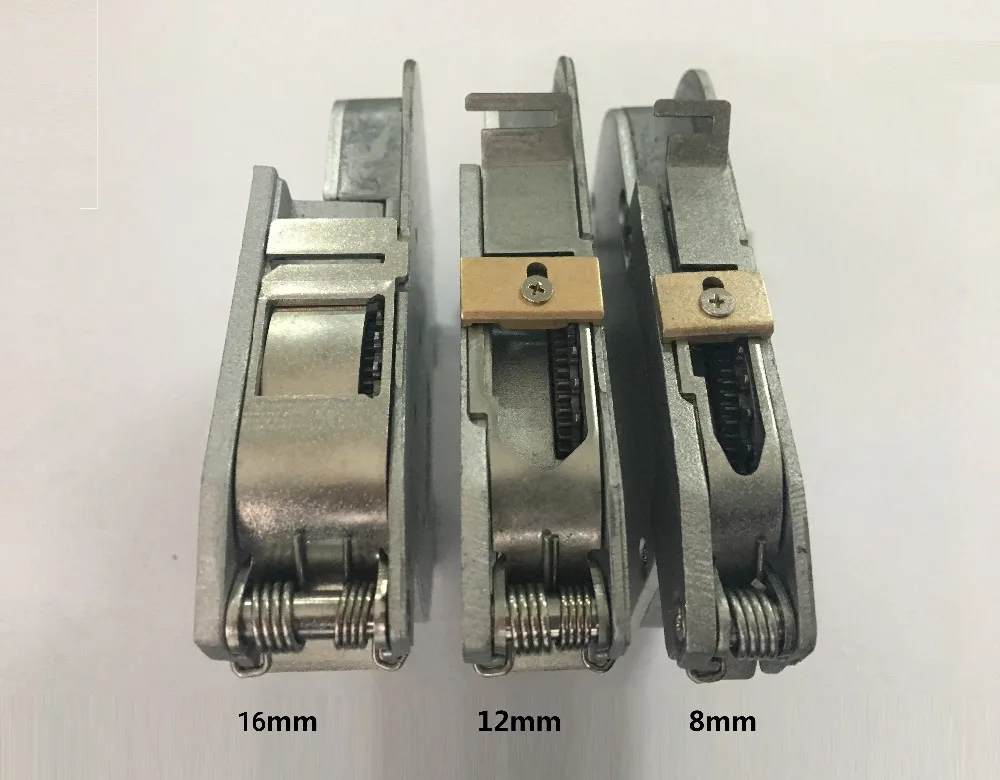

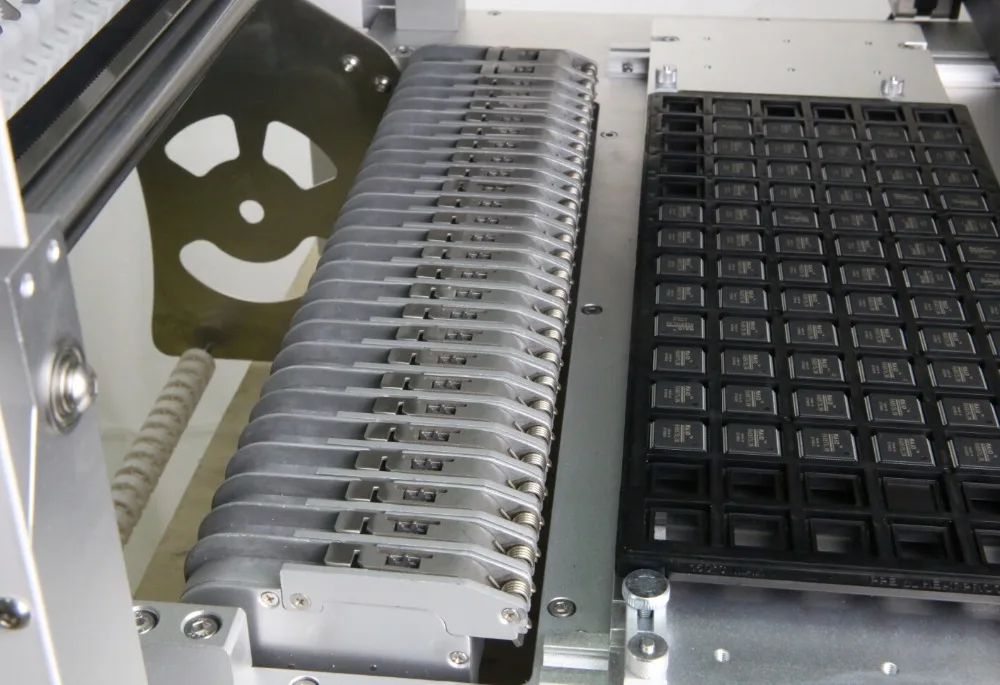

Feeder Capacity
Tape feeder:48(all 8mm)
Vibration feeder:5
Tray feeder:45


Component Range
Smallest Size
0201
Largest Size
32x32mm (Pitch 0.5mm)
Max Height
5mm
Rotation
±180°
Placement Accuracy
± 0.02mm
X-Y Repeatability
±0.02mm
Board Dimension(mm)
Maximum
310 x 1,500mm
Minimum
350 x 400mm(Option)
140 x1,500mm(Option)
Main Control
GUI
Electricity Supply
110V/220V
Power
180W
Weight
85KG
Placement effect


Product category


Company Information


Our show


Packaging & Shipping


FAQ


Q1:Do you provide software updates?



Customers who buy our machine,we can offer free upgrades software for you .



Q2:Does our machine need air supply?



We have vacuum pump inside machine , no need air supply .



Q3:This is the first time i use this kind of machine ,is it easy to operate ?



We have English user manual and guide video to teach you how to use the machine . If still have question , pls contact us by email / skype / whatapp / phone / trademanager online service .



Q4:How about the warranty ?



We have 2 years warranty for NeoDen4 , 1 year for all other model , life time after-sales support .



Q5:How can i buy machine from you ?



(1)Consult us on line or by e-mail



(2)Negotiate and confirm the final price , shipping , payment method and other terms



(3)Send you the perfroma invoice and confirm your order



(4)Make the payment according to the method put on proforma nvoice



(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping



(6)Send your order via express or by air or by sea .
