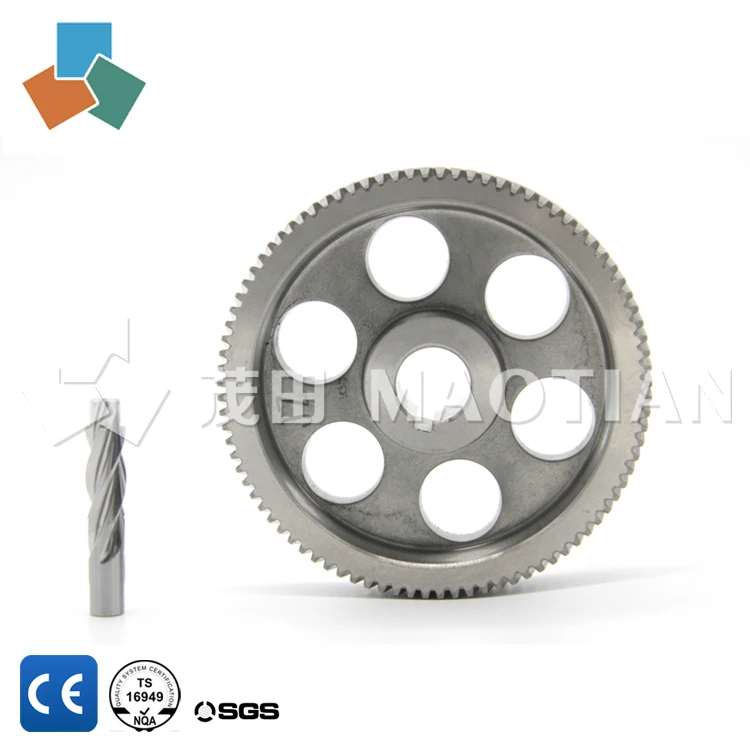

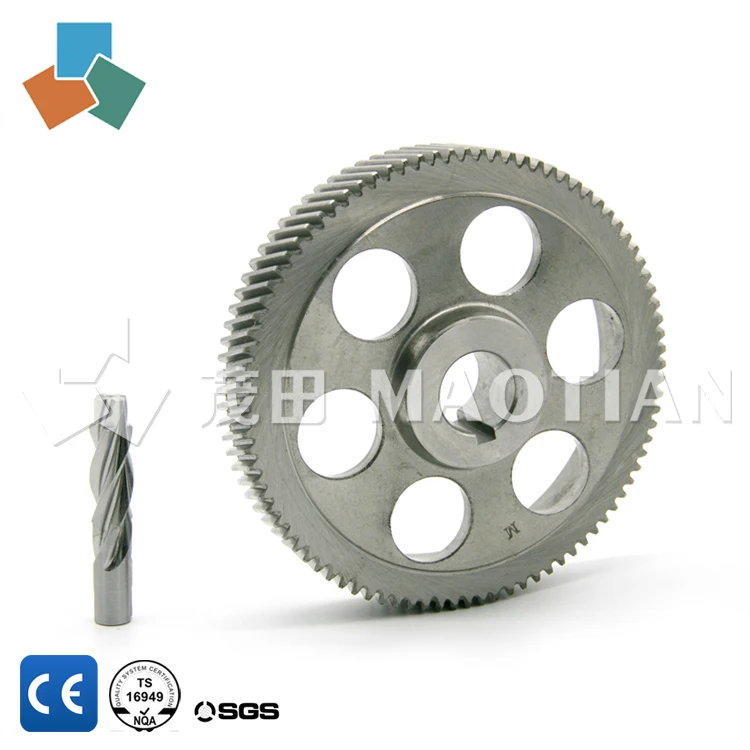

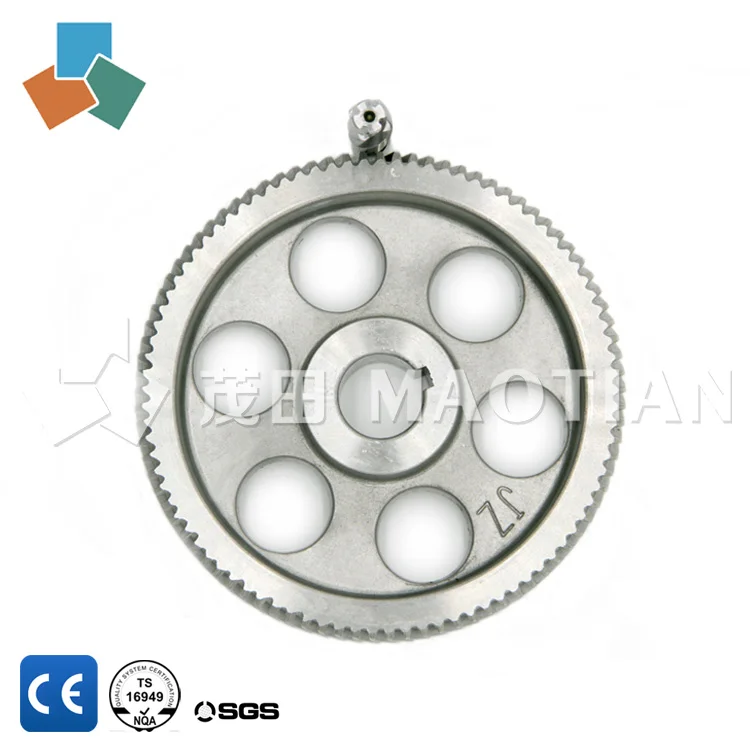

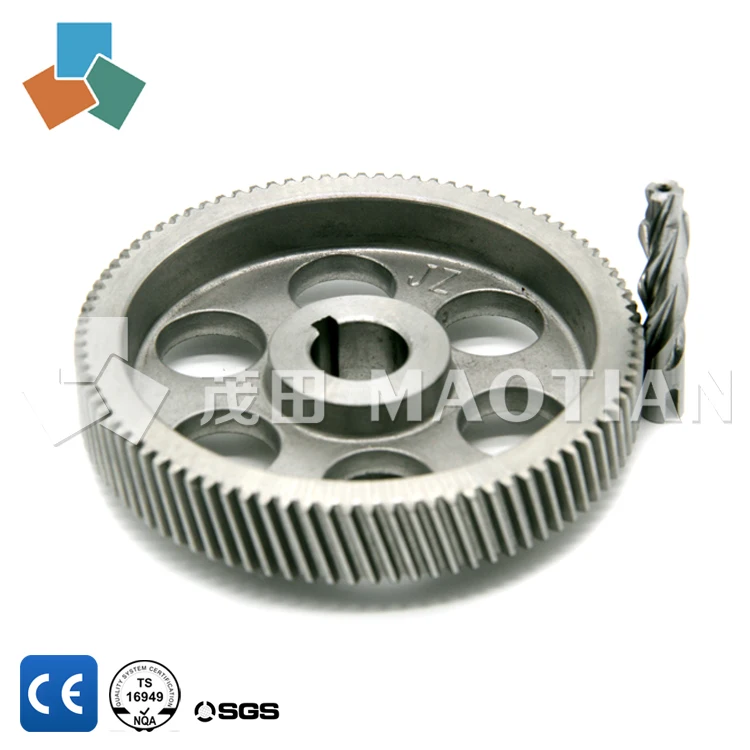

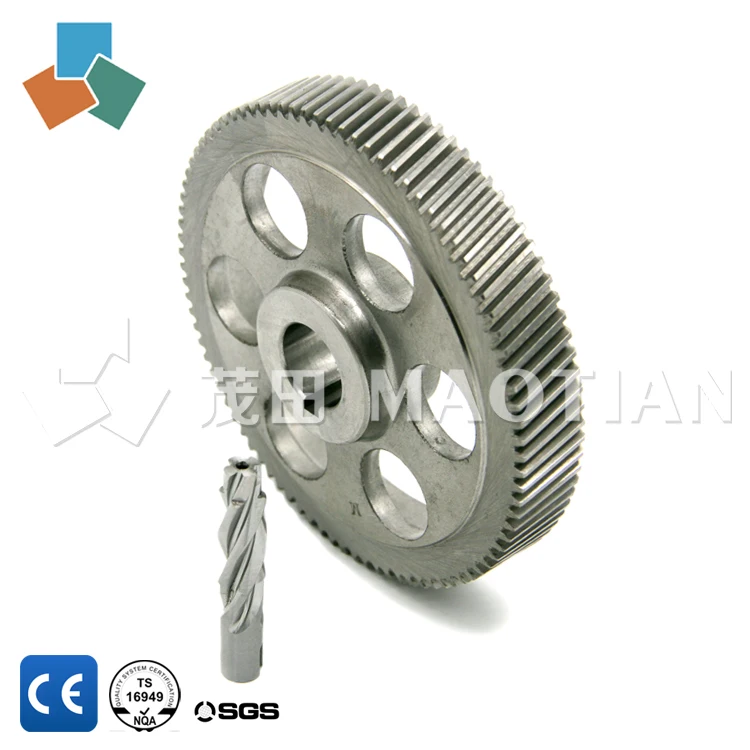

Custom made high precision small tolerances ring gear / electric vehicle reduction axle / mechanical parts
- Category: >>>
- Supplier: Chongqing Maotian Machinery Co. Ltd.
Share on (60712454618):
Product Overview
Description
Product Description
Custom made in china high precision small tolerances ring gear / electric vehicle reduction axle / mechanical parts
Feature
1.The single stage large drive ratio≥1:10 could also be achieved when the number of teeth is less than 2 to 4.
2. High transmission efficiency( ≥90% ).
3. The layout is planetary gear,and the structure is inlaid differential structure.
4. The volume (material) has been reduced by 20%, the structure is more compact and the performance is more stable.
5. Low noise≤60db,and the failure rate is low.
6. High precision of machining assembly, making it easier to manufacture.
Technical Parameters
| Product Parameter | Φ10.6*56.2 / Φ114.5*27 |
| Number of Teeth | Z4 / Z71 |
| Module | 60801:M1.5 / 60802:M1.5 |
| Tooth Height*Tooth Width | 60801:2.93*23.7/ 60802:3.31*19 |
| Weight(kg) | 60801:0.021 / 60802:0.607 |
| Tooth Surface Hardness | Soft Tooth Surface |
| Tooth Line Shape | Spiral Teeth |
| Tooth Position | External Teeth |
| Material | 60801:40Cr /60802:Powder Metallurgy |

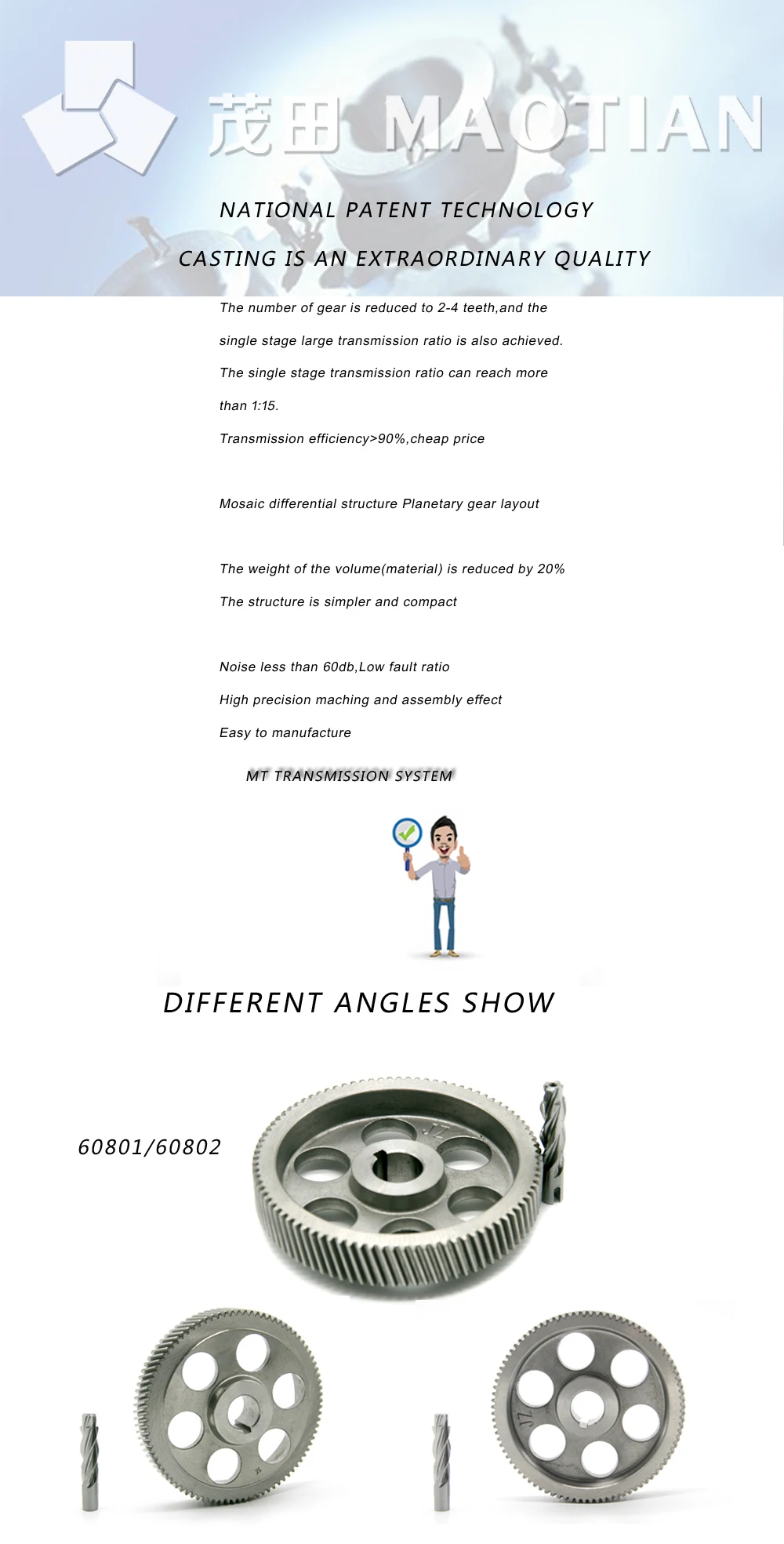

Product image
