Product Overview

Description

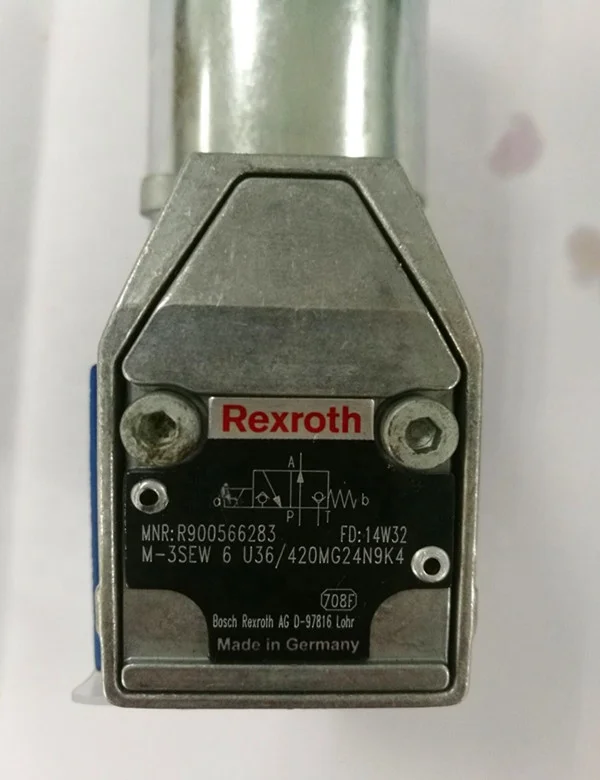

Rexroth directional control valves

Directional Poppet Valves, direct operated, solenoid actuation

Directional control valves, model SED and SEW, are direct (SED) or lever (SEW) actuated directional poppet valves with solenoid actuation. They control the start, stop, and direction of fluid flow. Poppet valves, or seat valves, provide a line contact closure for applications where spool valve leakage or silting is not desirable.



 Features:

• Size 6


• For mounting:


•                Size 6: Porting pattern according to ISO 4401-3, NFPA T3.5.1M R1, and ANSI B 93.7 D 03


•                Size 10: Porting pattern according to ISO 4401-5, NFPA T3.5.1M R1, and ANSI B93.7 D 05


• Blocked port is leak-free when completely shifted


• Solenoids with detachable coil


• Pressure-tight chamber does not have to be opened for changing the coil (type SED)


• Reliable switching when under pressure over longer periods of standstill


• CSA certified part numbers available in size 6
