QQCHINAPA OEM ODM 10 Inch 12 inch 15 inch 2 way full range professional speaker

Share on (60712537459):


Price:$138.00 - $158.00

Quantity:


Product Overview

Description


Quick Details



  • Place of Origin:Guangdong, China (Mainland), Guangzhou ,CN

  • Brand Name:QQ CHINAPA, Lingba, QQCHINAPA

  • Model Number:H-10

  • Use:Hotel,school,Airport,Departmen

  • Certificate:CE, FCC,ROHS,CB

  • Type:Professional speaker

  • Warranty:3years

  • Delivery Detail:2 days upon the payment is confirmed

  • Packaging Details:Carton or Road case

  • our market:get a high reputation all around the world

  • Factory History:Over 10years


Packaging & Delivery













Packaging DetailsPacking way: Carton
Selling unite :Single item
Delivery Time2days






Product Description

Product Description

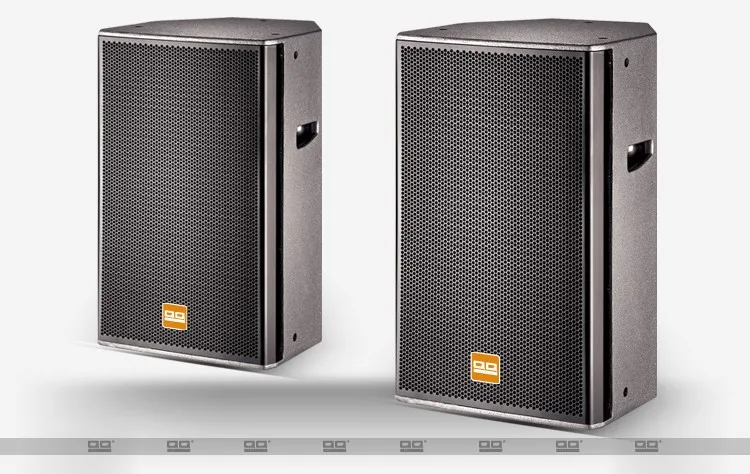

<img src="//sc01.alicdn.com/kf/HTB1cf3oMXXXXXaQXpXXq6xXFXXX6/222379104/HTB1cf3oMXXXXXaQXpXXq6xXFXXX6.jpg" style="width: 750px; height: 474px; margin-left: 0px; margin-top: 0px;">





Main Function Description:


 1*2-Way,2-frequency,full range with high sound pressure and sensitivity,


 2*With wide directive angle:90*55 degree,make sure that the sound reinforcement ability of the loudspeaker can be covered a wide area,


 3*Compatible with imported UKM paper cone,


 4*An computer optimization simulation design to realize good frequence response & phase feature, 5*Easy and convenient to install,


 6*It's widely applied in full range amplifier system,bars,ballroom,audio show amplifier system,Hall PA,flowing performance and supporting large-scale sound reinforcement system fills,


 7*It can be used as replaying appliance for hign quality output,along with a low frequency speaker.(recommended 350W-1000W)






































































Model


H10


H12


H15


System


2WAY FULL RANGE


2WAY FULL RANGE


2WAY FULL RANGE


Frequency response


55HZ to 18KHZ


55HZ  to 18KHZ


55HZ to 18KHZ


Driver


LF:10’*1HF:1’*1


LF:12’*1HF:1’*1


LF:15’*1HF:1’*1


Nominal impedance








Sensitivity


97db


97db


98db


Rated power


250W


350W


500W


Maximum


123db


123db


125db


Size(mm)


300*303*503


360*400*605


410*463*685


Weight


17.5


26


38

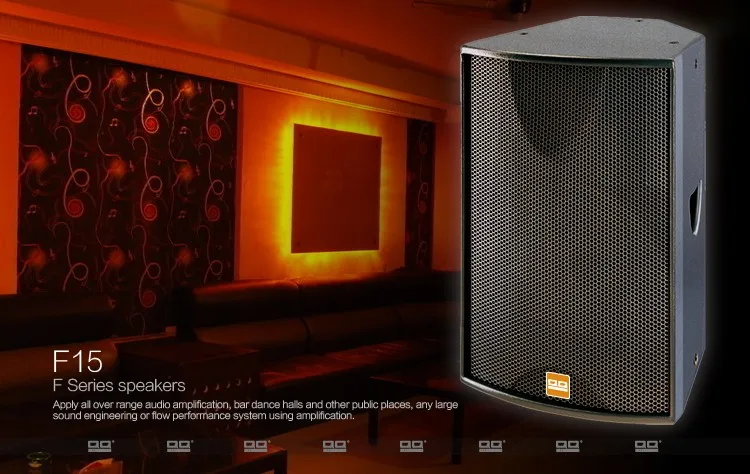

<img src="//sc02.alicdn.com/kf/HTB1vNj0IVXXXXarXXXXq6xXFXXXs/222379104/HTB1vNj0IVXXXXarXXXXq6xXFXXXs.jpg" style="width: 750px; height: 474px; margin-left: 0px; margin-top: 0px;">





Main Function Description:


 1*2-Way,2-frequency,full range with high sound pressure and sensitivity,


 2*With wide directive angle:90*55 degree,make sure that the sound reinforcement ability of the loudspeaker can be covered a wide area,


 3*Compatible with imported UKM paper cone,


 4*An computer optimization simulation design to realize good frequence response & phase feature,


 5*Easy and convenient to install,


 6*It's widely applied in full range amplifier system,bars,ballroom,audio show amplifier system,Hall PA,flowing performance and supporting large-scale sound reinforcement system fills,


 7*It can be used as replaying appliance for hign quality output,along with a low frequency speaker.(recommended 350W-1000W)
















































































Model


F10


F12


F15


F215


System


2WAY FULL RANGE


2WAY FULL RANGE


2WAY FULL RANGE


2WAY FULL RANGE


Frequency response


60HZ to 18KHZ


55HZ to 18KHZ


55HZ to 18KHZ


40HZ to 18KHZ


Driver


LF:10’*1HF:1’*1


LF:12’*1HF:1’*1


LF:15’*1HF:1’*1


LF:15’*1HF:1.5’*1


Nominal impedance










Sensitivity


95db


97db


97db


98db


Rated power


250W


300W


350W


700W


Maximum


121db


123db


123db


125db


Size(mm)


400*385*620


470*440*660


545*525*780


630*590*1180


Weight


18.5


26


32.5


38






<img src="//sc01.alicdn.com/kf/HTB1Cn3hMXXXXXaIXFXXq6xXFXXXz/222379104/HTB1Cn3hMXXXXXaIXFXXq6xXFXXXz.jpg" style="width: 750px; height: 474px; margin-left: 0px; margin-top: 0px;">





Main Function Description:


 1*2-Way,2-frequency,full range with high sound pressure and sensitivity,


 2*With wide directive angle:90*45 degree,make sure that the sound reinforcement ability of the loudspeaker can be covered a wide area,


 3*An computer optimization simulation design to realize good frequence response & phase feature, 4*Easy and convenient to install,


 5*It's widely applied in full range amplifier system,bars,ballroom,audio show amplifier system,Hall PA,flowing performance and supporting large-scale sound reinforcement system fills,


 6*It can be used as replaying appliance for hign quality output,along with a low frequency speaker.(recommended 350W-1000W)




































































































Model


SRX712


SRX715


SRX7215


System


12’,LF cone driver


15’,LF cone driver


2*15’,LF cone driver


3’ HF compression driver(horm-load)


3’ HF compression driver(horm-load)


3’ HF compression driver(horm-load)


Frequency response


55HZ to 19KHZ


55HZ to 19KHZ


40HZ to 19KHZ


Coverage angle


90 ºH×45 ºV


90 ºH×45 ºV


90 ºH×45 ºV


Axial sensitivity


97db


99db


103db


Calculated output


136db


136db


137db


Nominal impedance








Rated power


400W(rated power AES)


550W(rated power AES)


1000W(rated power AES)


1600W(Pead power)


2000W(Pead power)


4000W(Pead power)


Enclosure material


Plywood


Plywood


Plywood


Cabinet finish


Textured black polyester paint


Textured black polyester paint


Textured black polyester paint



Size(mm)


550*350*350


440*720*410


535*1200*510


Weight(kg)


26


34


62

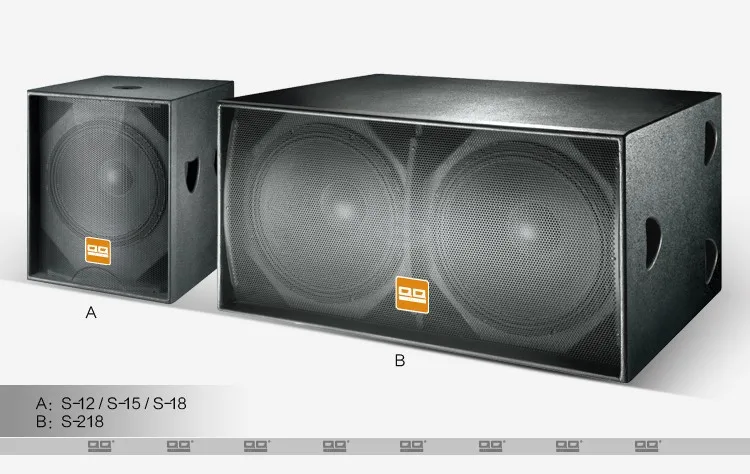

<img src="//sc02.alicdn.com/kf/HTB11_U9MXXXXXcVXFXXq6xXFXXXT/222379104/HTB11_U9MXXXXXcVXFXXq6xXFXXXT.jpg" style="width: 750px; height: 474px; margin-left: 0px; margin-top: 0px;">















































































Model


S12


S15


S18


S218


System


SUB BASS


SUB BASS


SUB BASS


SUB BASS


Frequency response


55HZ-400KHZ


45HZ-400KHZ


35HZ-400KHZ


35HZ-400KHZ


Driver


LF:12’*1


LF:15’*1


LF:18’*1


LF:18’*1


Nominal impedance










Sensitivity


97db


101db


97db


97db


Rated power


300W


350W


450W


900W


Maximum


123db


127db


123db


127db


Size(mm)


400*500*550


470*500*690


560*600*690


1065*780*560


Weight


27


32


42


82






<img src="//sc01.alicdn.com/kf/HTB168eqNVXXXXaSapXXq6xXFXXXd/222379104/HTB168eqNVXXXXaSapXXq6xXFXXXd.jpg" style="width: 750px; height: 474px; margin-left: 0px; margin-top: 0px;">





<img src="//sc01.alicdn.com/kf/HTB1saGANVXXXXXQaXXXq6xXFXXXf/222379104/HTB1saGANVXXXXXQaXXXq6xXFXXXf.jpg" style="width: 750px; height: 474px; margin-left: 0px; margin-top: 0px;">





<img src="//sc02.alicdn.com/kf/HTB19.FoMpXXXXczXXXXq6xXFXXXj/222379104/HTB19.FoMpXXXXczXXXXq6xXFXXXj.jpg" style="width: 750px; height: 474px; margin-left: 0px; margin-top: 0px;">
