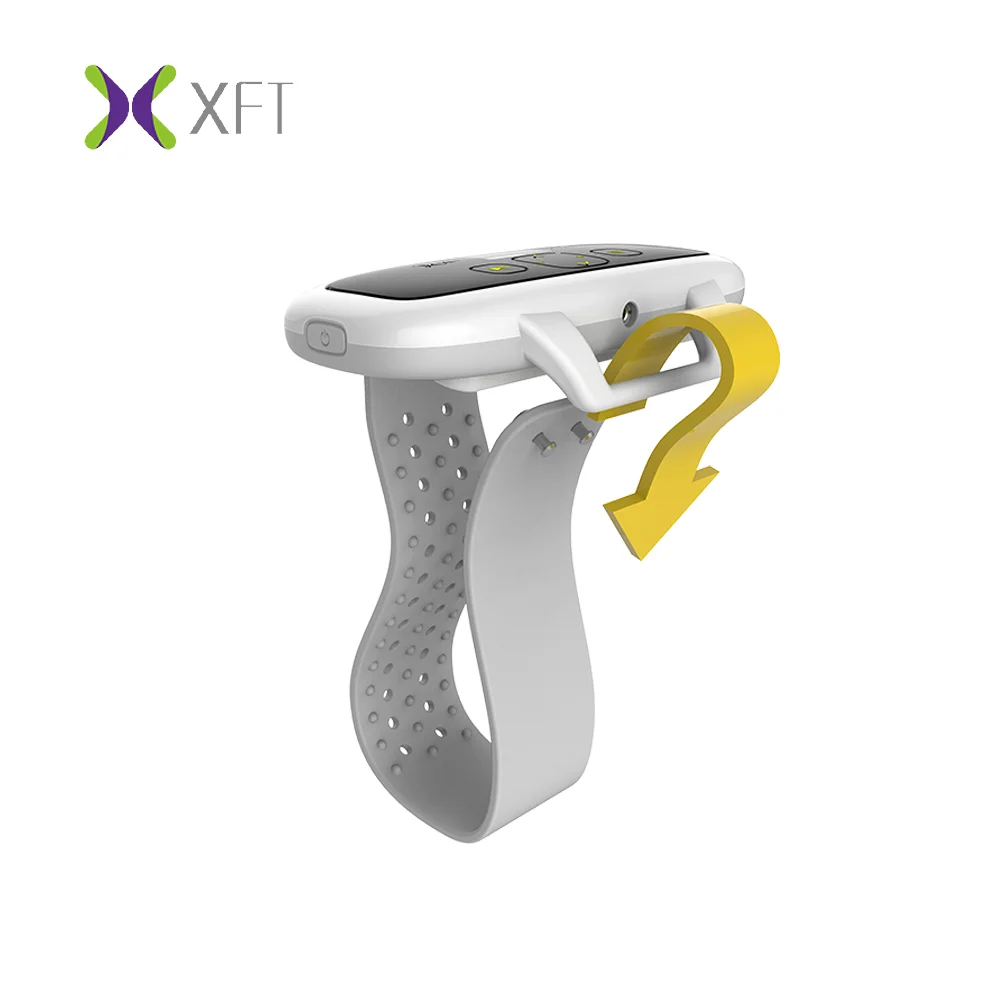

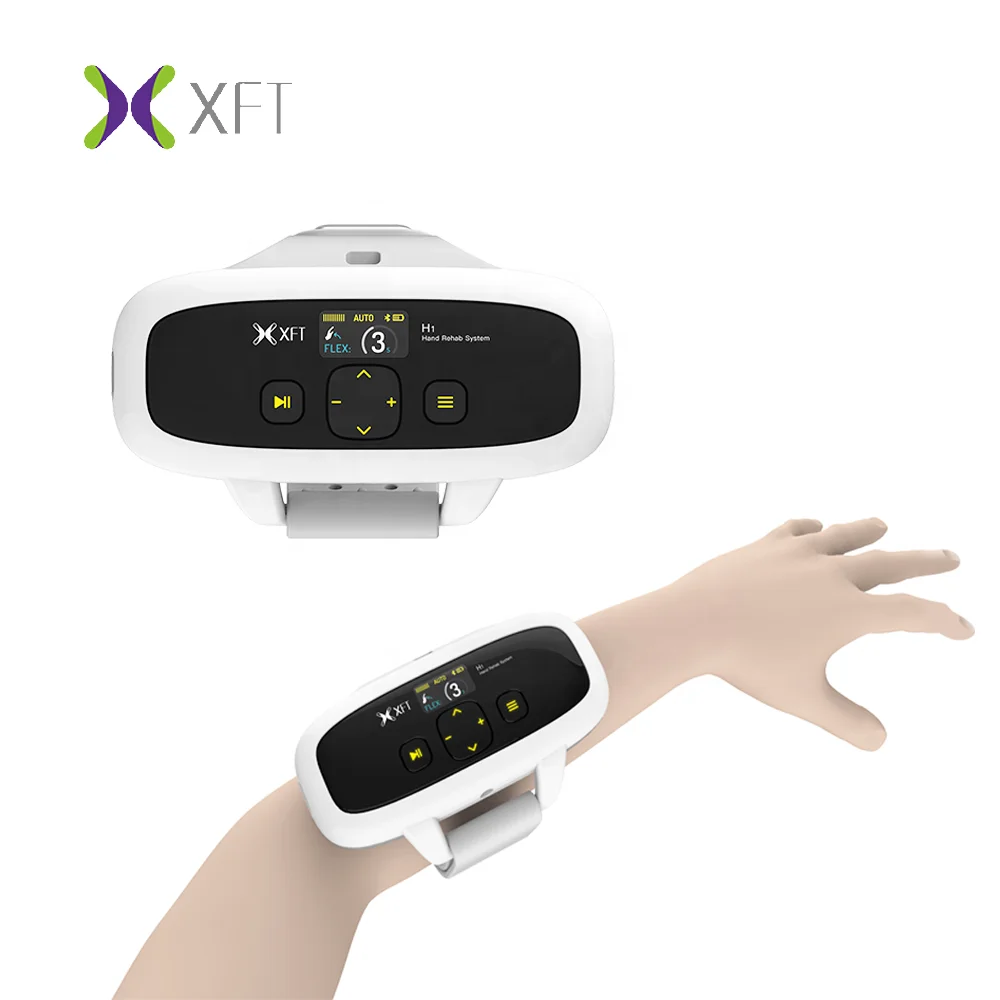

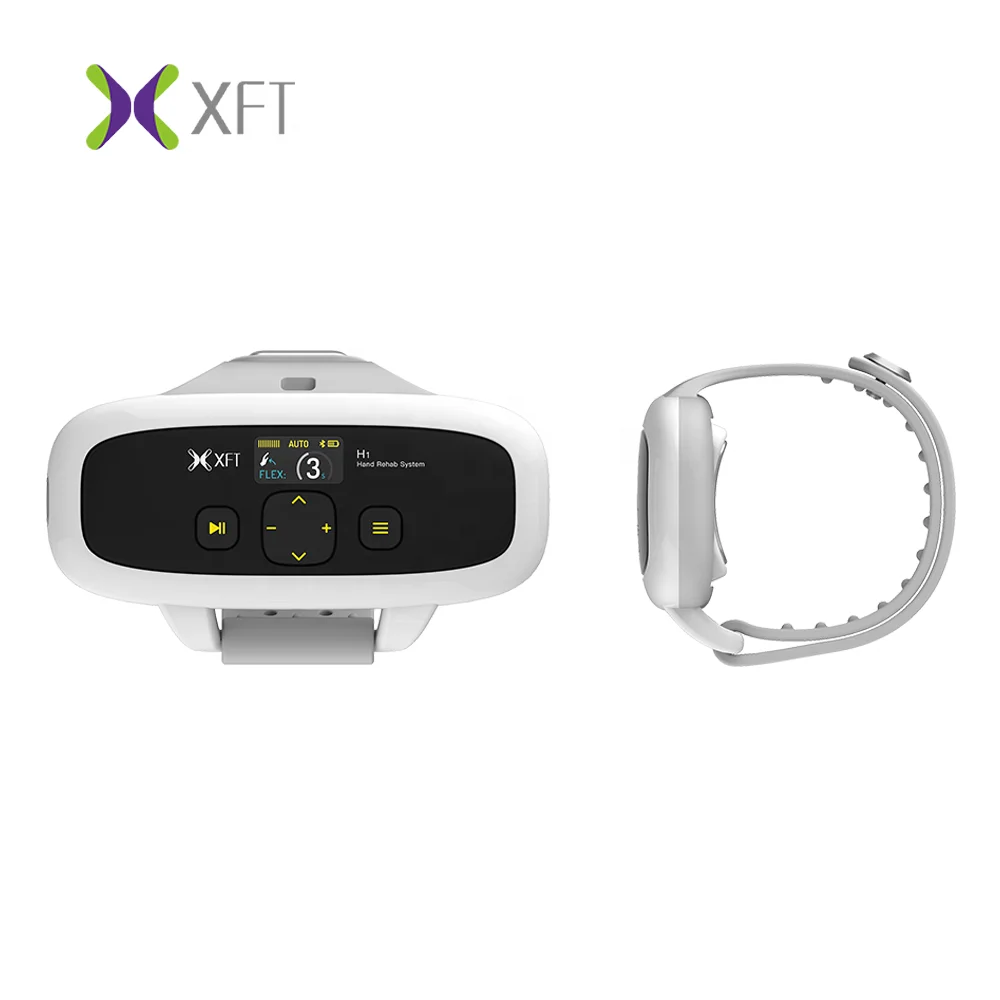

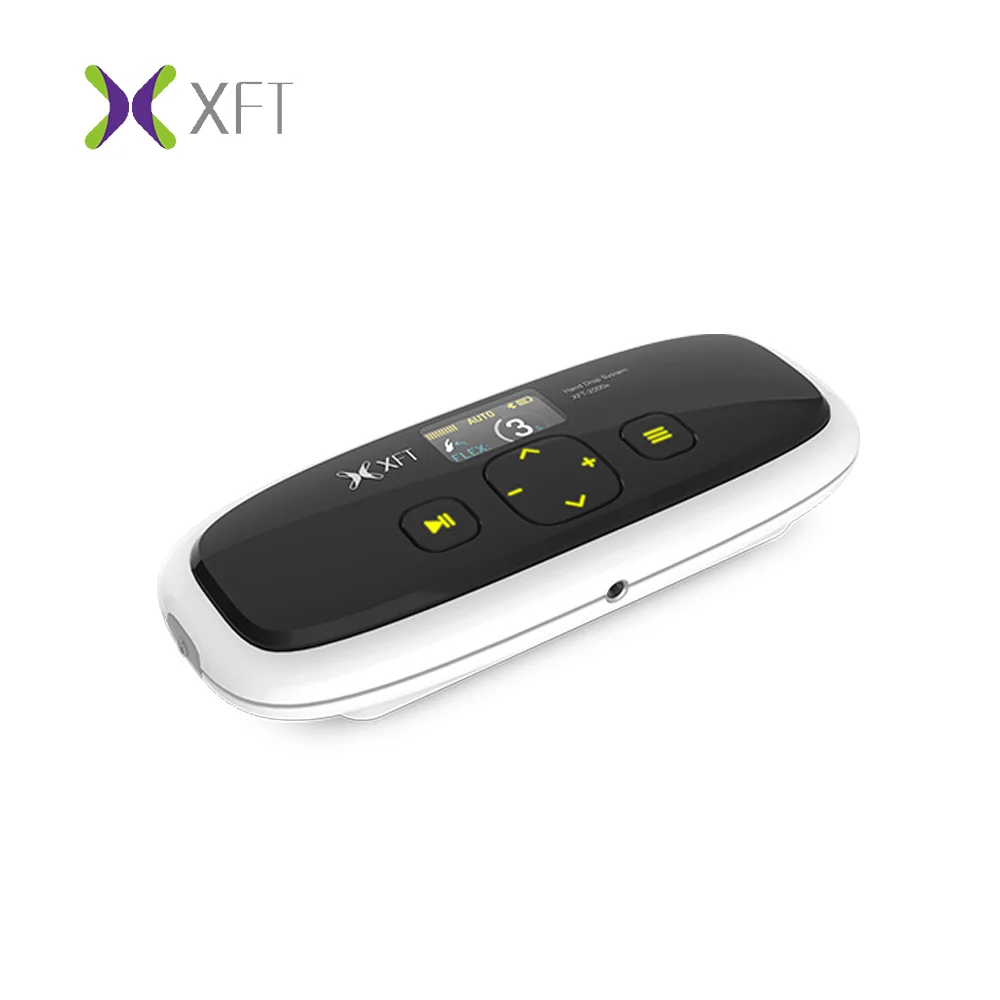

Medical Rehabilitation FES Wrist Stimulator Hand Rehab System for Hand Drop






Product Description


H1 Hand Rehab System is the first wearable hand rehabilitation device based on iOS. H1 combines biofeedback sEMG, Neuromuscular Electrical Stimulation (NMES), EMG Triggered Stimulation (ETS), Power Assistant Stimulation (PAS) and integrated electrode, providing perfect user experience for medical personnel and patients.

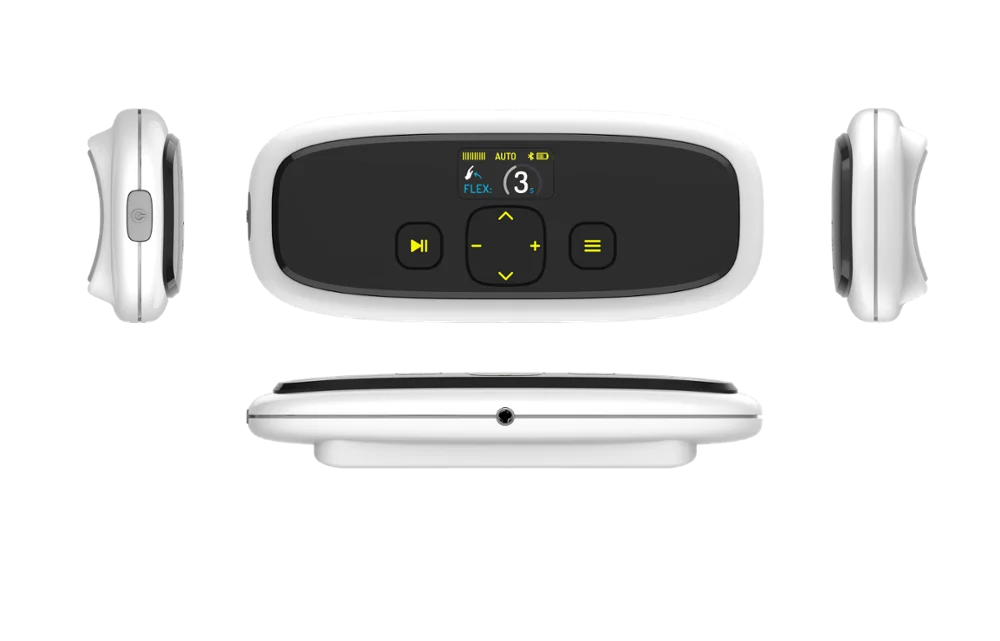

 H1-3


Innovations



  • Collection and processing technology of patient’s EMG signals

  • Latest generation of real-time Power Assistant Stimulation based on EMG

  • A combination of biofeedback interactive games and rehabilitation training based on EMG

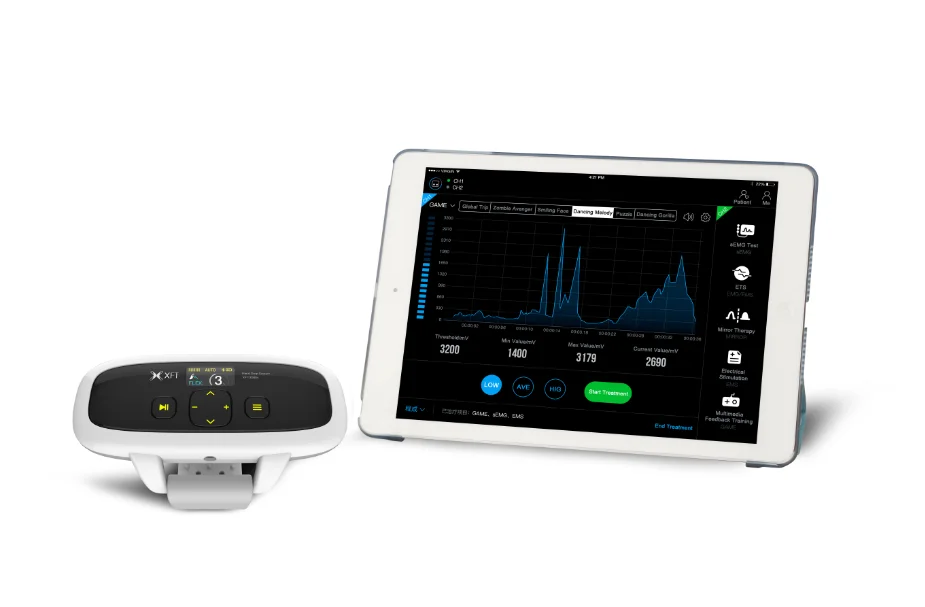

  • Multiple training modes in Rehabilitation APP





Treatment Principle


H1 detects and analyzes the patient’s sEMG signals in real time through the electrode, and then simultaneously delivers low frequency electrical stimulation according to the sEMG signal, evoking muscle contraction and enabling patients to do active motor function training.



Button Instruction


H1 Button1


Specification
























































Product name


H1 Hand Rehab System


Model


XFT-2003E


Classification


Type BF Equipment


Power supply


Rechargeable lithium battery 7.4V


Maximum Current


250mA


Max Voltage


30 V


Pulse Width


50 ~ 450μs (±10%)


Frequency


2 ~ 100Hz (±10%)


Wave form


Asymmetrical balanced biphasic wave


Size


140*58*27mm


Weight


120g


Service life


5 years








Packaging & Shipping


 Package



  • 1 × stim unit

  • 1 × adapter

  • 1×instruction manual

  • 1×Nylon bag


Shipping


1. Delivery by UPS, DHL, FedEx, TNT or by sea etc


2. Delivery time: 1 working day after receive the payment











Our Services


1. Your inquiry will reply within 24hours


2.OEM ODM is available





Company Information


We are an ISO9001 & ISO13485 qualified manufacturer specializing in providing healthcare products, rehabilitation products and first aid training products for more than 20 years. Nearly all of our products have got CE, ROHS certification . We have been  exporting our products to all over the world.


company map.jpg




Warranty


All XFT products are provided with one year warranty starting from the date of purchasing.
