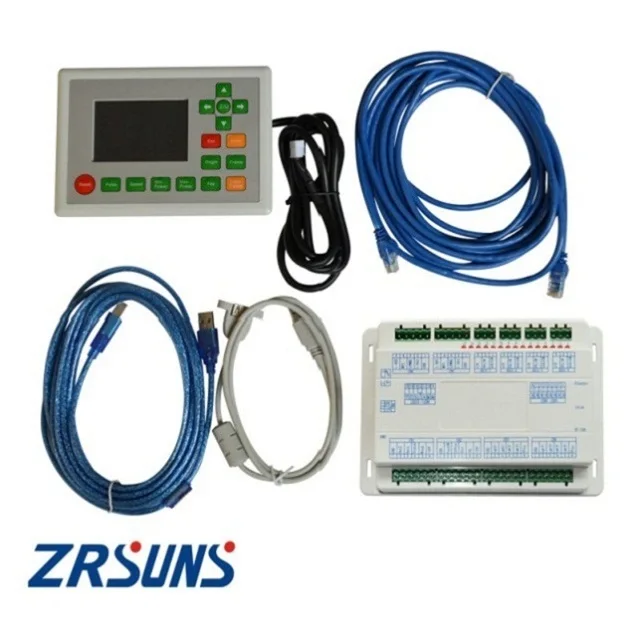

RD Laser Control Ruida Laser Controller rdc6442 ,Ruida 6442g Laser Controller

 RD Laser Control Ruida Laser Controller rdc6442 ,Ruida 6442g Laser Controller

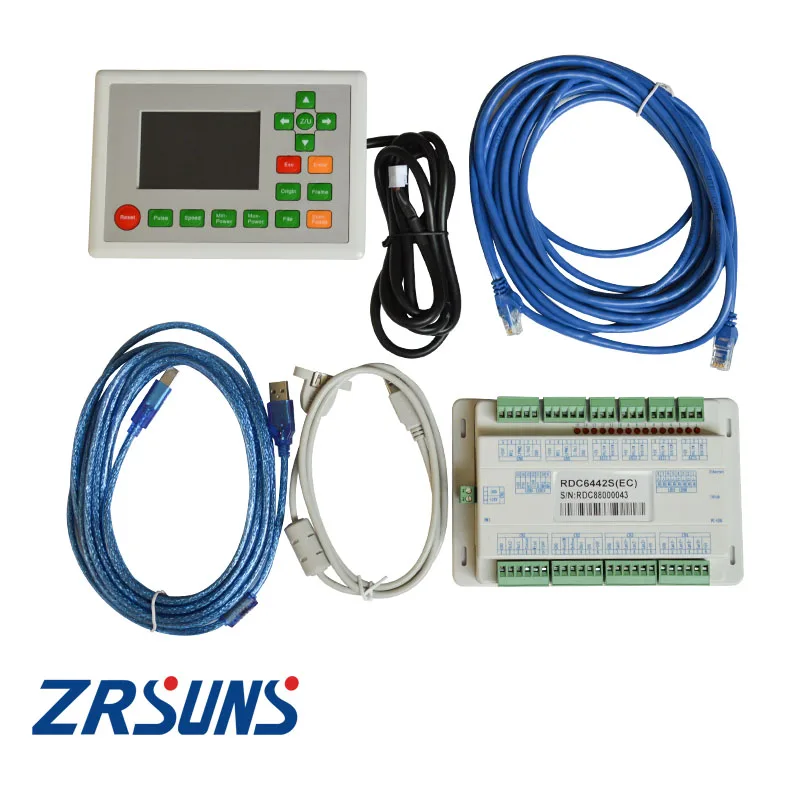

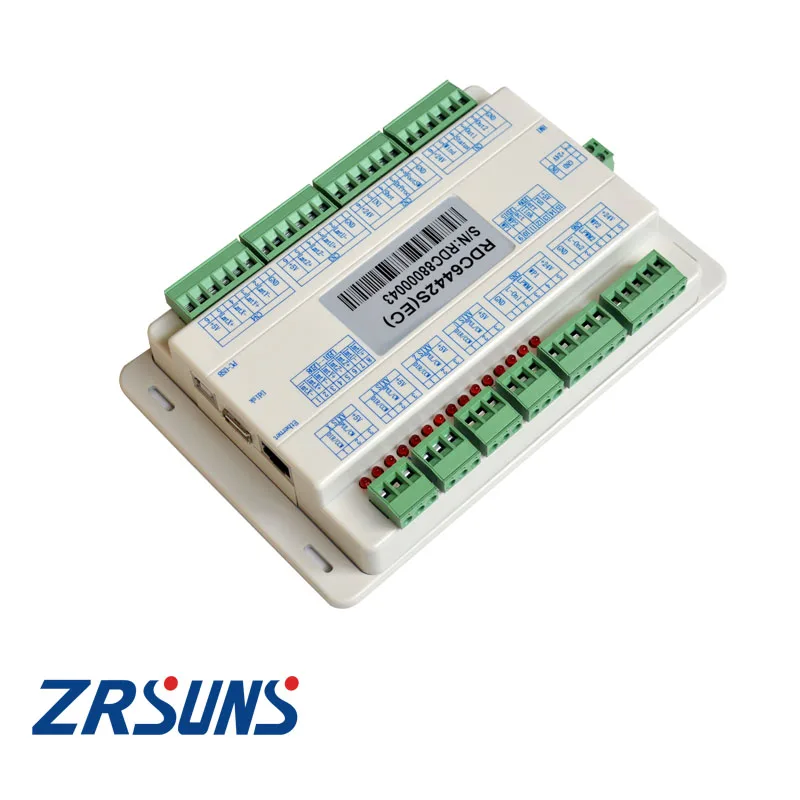

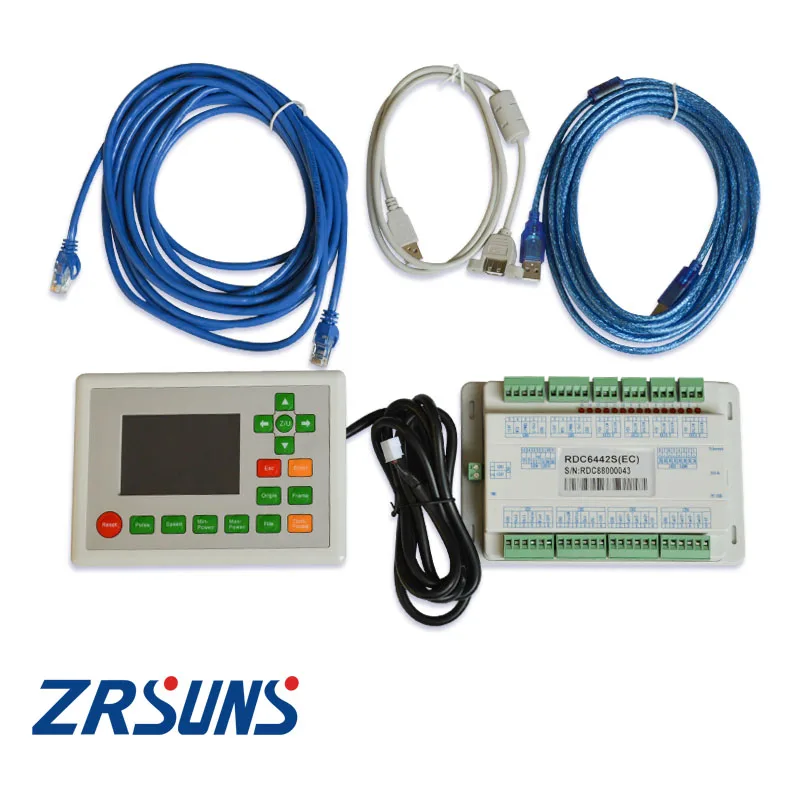

RDC644XG system is a new generation system for control of laser engraving and cutting, which is developed by RD technology, Ltd.

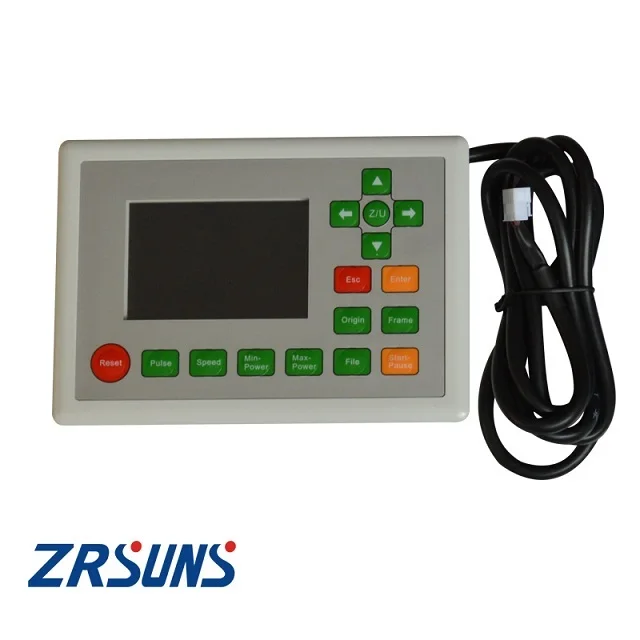

High hardware stability, high voltage or static electricity rejection, and friendly 3.5TFT man-machine display.

This system is provided with stronger software function including perfect 4-axis motion control function, large-capacity file storage, two-channel adjustable digits laser power control interface, USB driver of stronger compatibility,multi-channel general/special IO control, and, this system can communicate with PC by USB2.0 or Ethernet, and the communication mode is automatically checked by the system.

•

  Digital laser control signals:



(1) TTL level output, 50 mA,drive capability(can set enable signal polarity in software)
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V

•

  Motor control signal:common-anode output, drive capability 20 mA. Motor control pulse frequency: Max.500KHZ




•

  USB: Max. transmission rate 12M bps; The longest distance is 5 meters.




•

  Network:Max. transmission rate is100M; Max. transmission distance is 200M.




•

  Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse




•

  Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).




•

  Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level

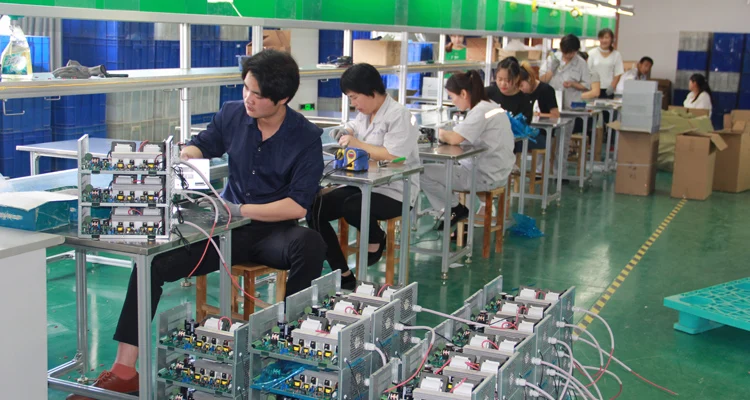

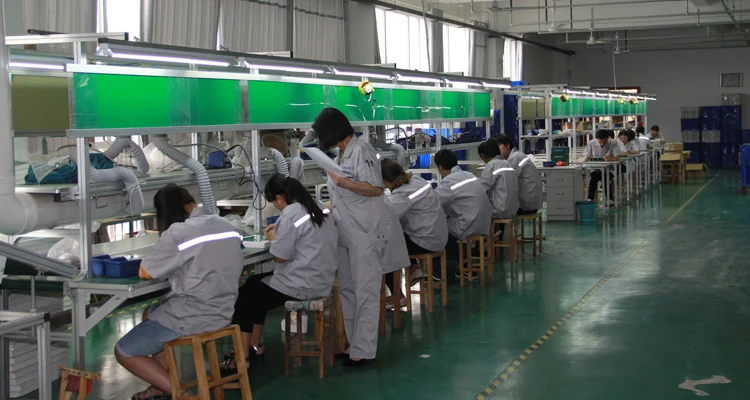

 Linyi ZhaoRi Electronics Co.,Ltd is a high-tech enterprise, located in the core area of electronically developed regions - Linyi, Shandong,China.

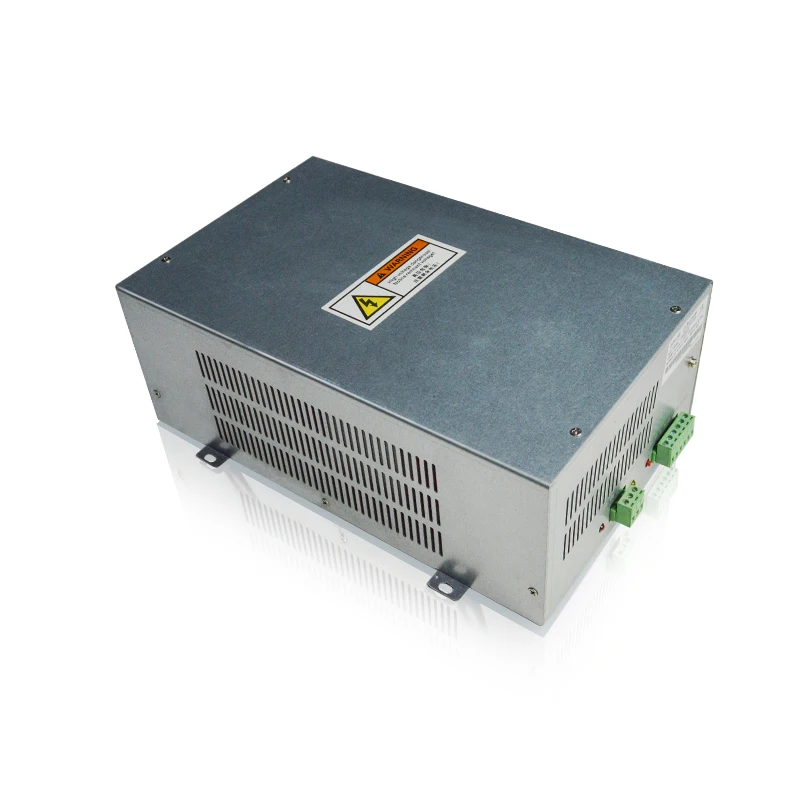

Our company specializes in design, manufacture and sales of power supplies. The main products are switched power supply, CO2 laser power supply, co2 laser machine power source etc. The power range is from 10W to 200W, One of our features is that products are customized according to clients requirements, and more than 90% of our products are customized in accordance with sales order.

 For international custmer, we provide professional technician support on all our products by Trademanager within 24 hours. Any problems about products, we will provide the step by step instruction for you.

 We are happy to replace or refund money and aim to resolve issues quickly to meet your satisfaction.If goods arrive defective or damaged, you have 7 days from date of receipt to contact us. Please kindly provide evidence to us. Such as picture,video and documents.We will replace you a new one or refund you full money!
