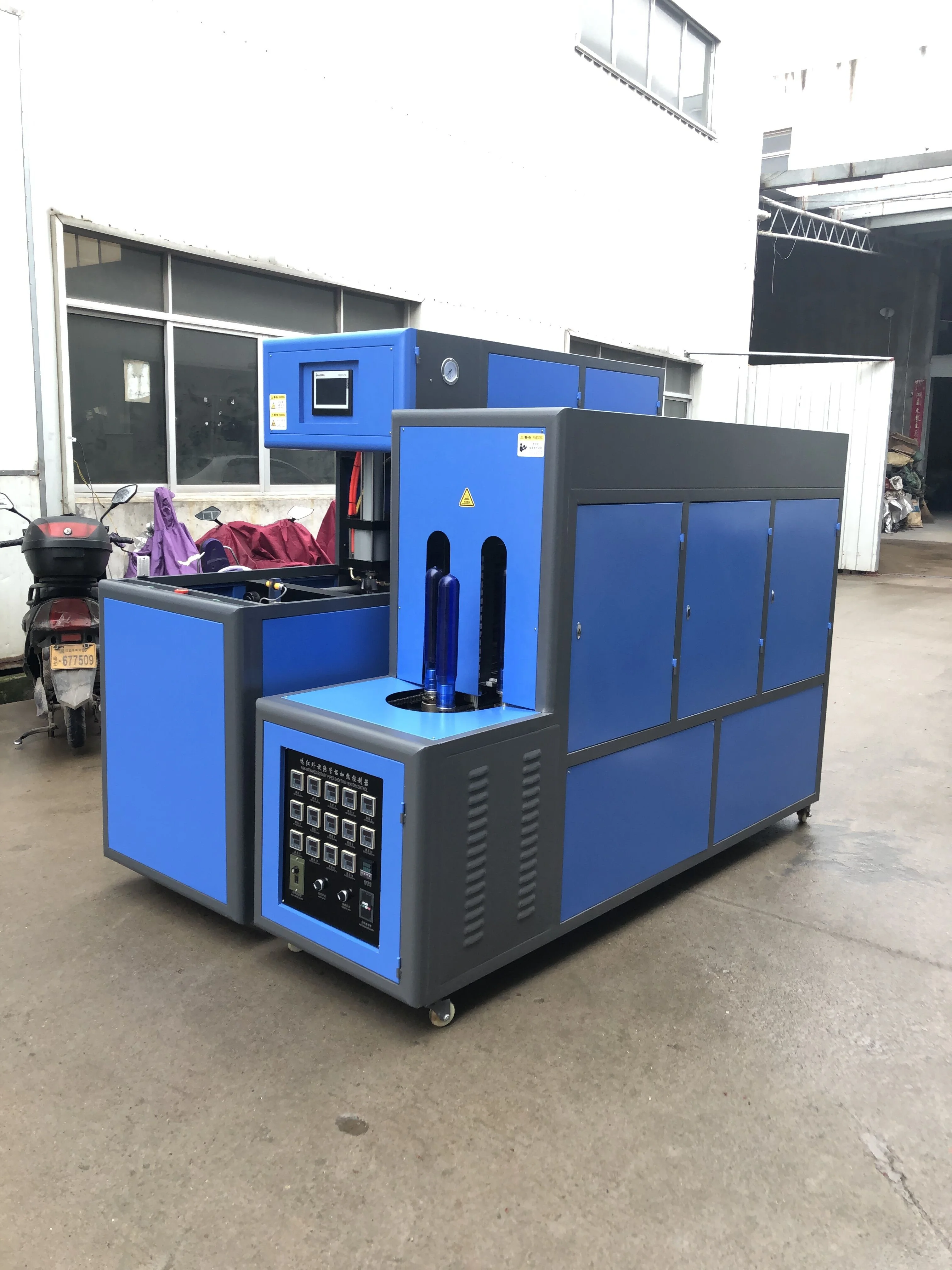

semi automatic 19 liter plastic bottle making machine

Product Overview

Description

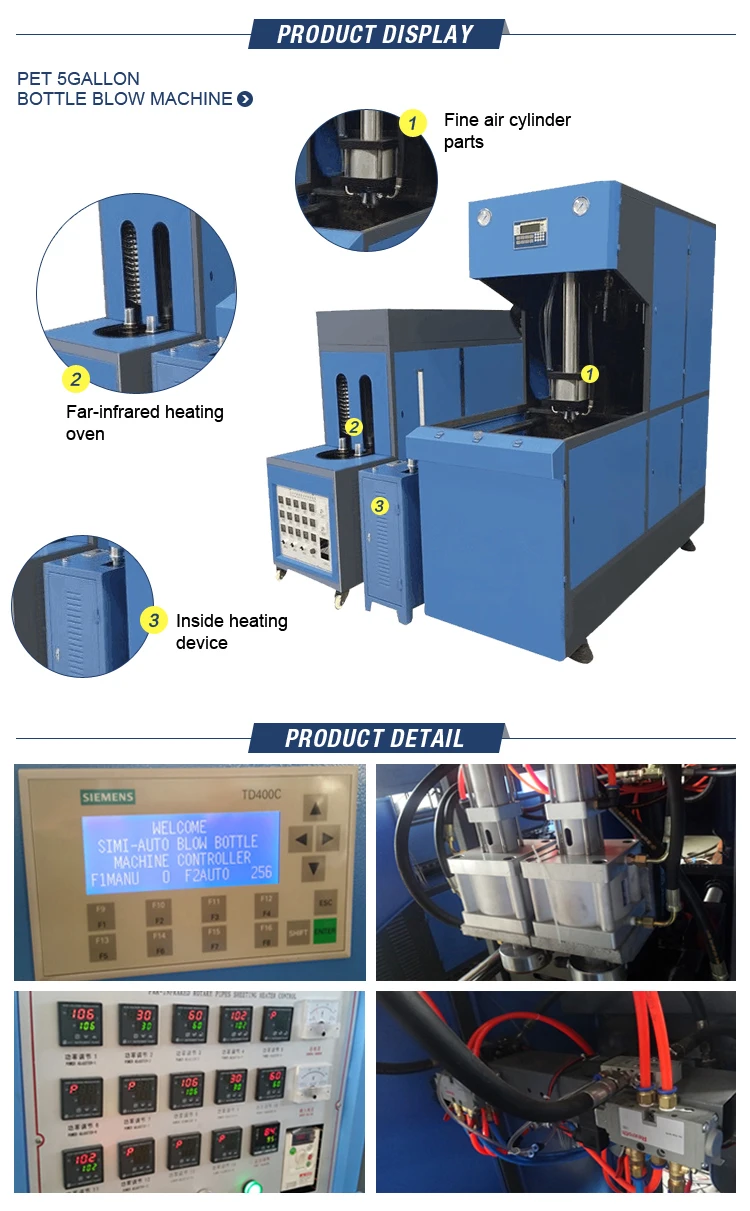

semi automatic 19 liter plastic bottle making machine



Model	DEG-20L (One Blower, One Heater)
Clamping Force	220KN
Clamping Stroke	450 MM
Max. Stretching Stroke	660MM
Number of Cavities	1 Cavity
Theoretical Output	80-100 BPH(7-25L, 1cav)
Max. Mold Thickness	400MM
Voltage Standard	380v/3PH/50Hz
Total Power (Full Loaded)	20-25KW
Max. Container Volume	20L
Neck Diameter Range	50-120mm
Max. Container Diameter	400mm
Max. Container Height	600mm
Low Air compressor	10Bar
High Air compressor	30-40Bar
Blow molding machine	2100*700*1900mm
Preform Heater	2200*700*1600mm
Net Weight	2000kgs















A: We are factory. Specialed in 5gallon Taizhou Degree Plastic Machinery FactoryPET Bottle Blowing Machine



2> Q: Where is your factory located?

A: Our factory located in Taizhou City, Huangyan Area - “Town of Mold” in China,

near Shanghai and Ningbo port. 3hours by train from Shanghai, 2hours by air from Guangzhou.



3> Q: How about quality control in your factory?

A: “ Quality is the key point, do what customers needs”

Degree company focus on quality, pay great attention to quality control

from beginning to the end. Every piece of goods is tested strictly before packing and delivery.



4> Q: How about guarantee for machines and moulds?

A: For machines offer one year guarantee. For molds we offer one year or 3million

short guarantee, based on which comes first.



5> Q: Is there complete machine include mould and other accessories ?
A: Yes ,what we are provide is the complete system and you will no need spend a lot to find the suitable air compressor and chiller...etc..



6> Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English, make sure you will have a easy operation .



7> Q: Can you help us with the shipment of this machine ?
A: Yes , with honor ,we have our special shipment company which already cooperate for long time, you can contact us for the freight , we will give you the best price we can. Also you can ask your own shipping forwarder, we help you done other things. Customer satisfy, is our target.
