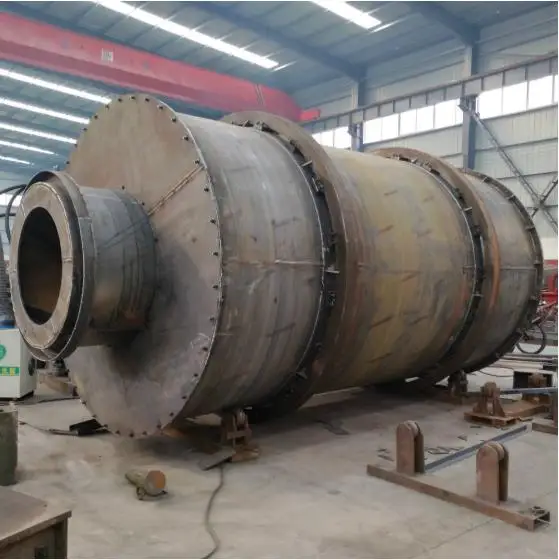

Three Cylinder Rotary Drum Dryer Machine Triple Pass Drying Equipment For Slag Coal Slime Sludge Dehydration Process

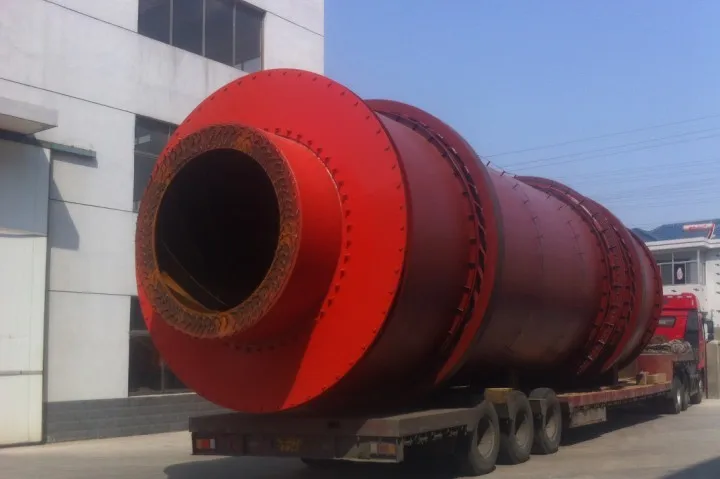

Slag is one of the main industrial waste during the steel making progress, which need to be dried before the grinding purpose,and one of most drying equipment is the Triple Cylinder Rotary Dryer is also named as Triple Cylinder Dryer and Three Cylinder Drum Dryer, it is the other type of rotary drum dryer, there are two layers inside the outer drum shell, so it can efficiently stop the heat from entering the environment,hense its heat loss is much less than the single type rotary dum dryer. Mingyuan can provide two both of them, one is single pass rotary dryer, and the other one is Triple Cylinder Drum Dryer, which can be used for drying various kinds of materials, when the Triple Cylinder Rotary Dryer is used for food materials, the material needs to be use stainless steel, so the rotary dryer can be called Stainless Steel Rotary Dryer, or Food Rotary Dryer, so you can find that the Triple Cyclinder Drum Dryer is not only limit to sand, it can be also used for the food, chemicals drying purpose. Mingyuan is a direct manufacturer of Triple Cylinder Rotary Dryer,we can provide the complete drying plant for various industries.

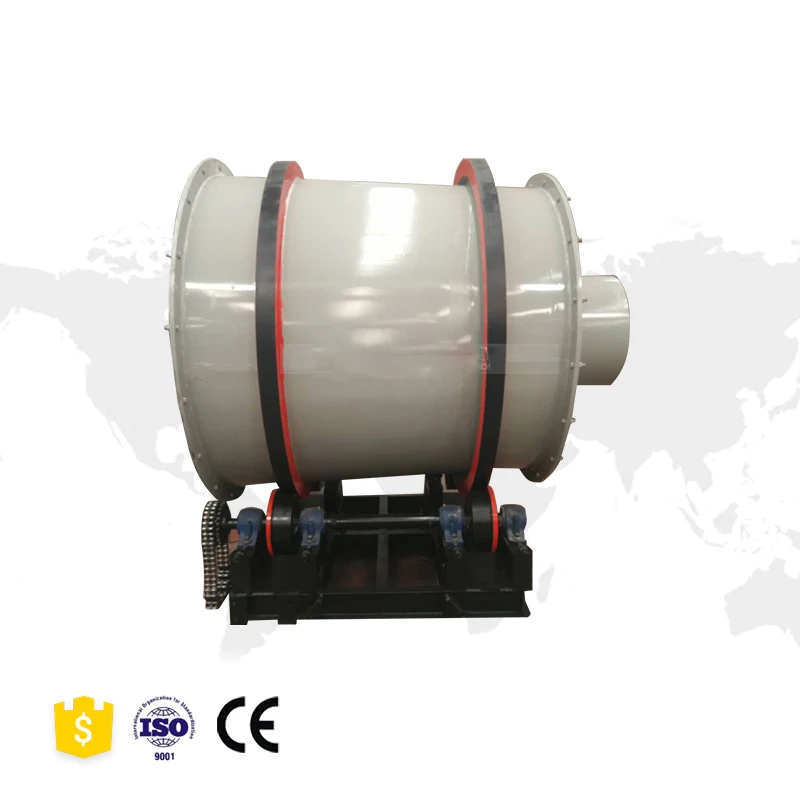

Specification of Triple Cylinder Rotary Dryer/ Triple Cylinder Drum Dryer /Triple Cylinder Dryer
| Specification | φ 2.0× 6m | φ 2.5× 6.5m | φ 2.7× 7m | φ 3× 7m | φ 3.2× 7m | φ 3.6× 8m | φ 4.2× 8.5m | |
| Diameter(m) | 2.0 | 2.5 | 2.7 | 3 | 3.2 | 3.6 | 4.2 | |
| Length(m) | 6 | 6.5 | 7 | 7 | 7 | 8 | 8.5 | |
| Shell volume (m3) | 18.84 | 31.89 | 40.5 | 49.46 | 56.26 | 81.38 | 118 | |
| Shell rotary speed(rpm) | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | |
| Material stay time (min) | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | |
| Material moisture (%) | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | |
| Mafter moisture after drying(%) | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | ≤ 1 | |
| Max inlet temperature | 750-900 | 750-900 | 750-900 | 750-900 | 750-900 | 750-900 | 750-900 | |
| Production capacity (T/H) | Ore slag | 20-25 | 25-30 | 30-35 | 35-10 | 40-45 | 50-65 | 70-85 |
| Flyash | 10-17 | 17-21 | 20-25 | 23-27 | 25-30 | 30-45 | 45-63 | |
| Sand | 20-27 | 25-40 | 27-45 | 30-45 | 35-50 | 55-75 | 75-99 | |
| Motor model | Yr160m-4 | Yr132m-4E | Yr160m-4 | Yr160m-4 | Yr132m-5E | Yr160m-4E | Yr160m-4E | |
| Motor power (kw) | 7.5× 2 | 11× 2 | 7.5× 4 | 7.5× 4 | 11× 4 | 15× 4 | 18.5× 4 | |
| Speed reducer model | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-8 | XWD-8 | |
| Speed ratio(I) | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | |
| Weight (T) | 25 | 32 | 35 | 38 | 43 | 57 | 77 | |

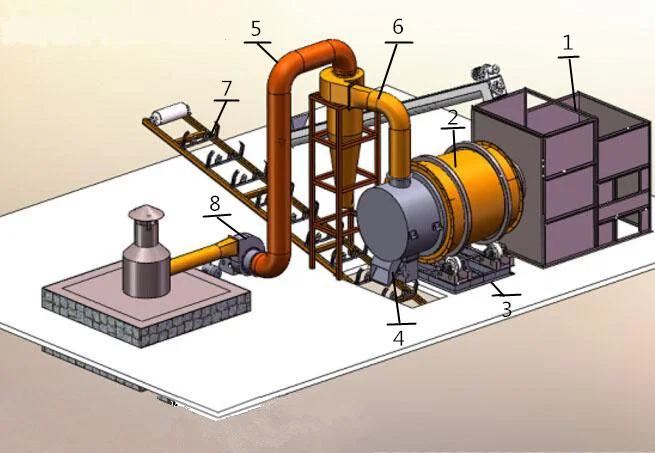

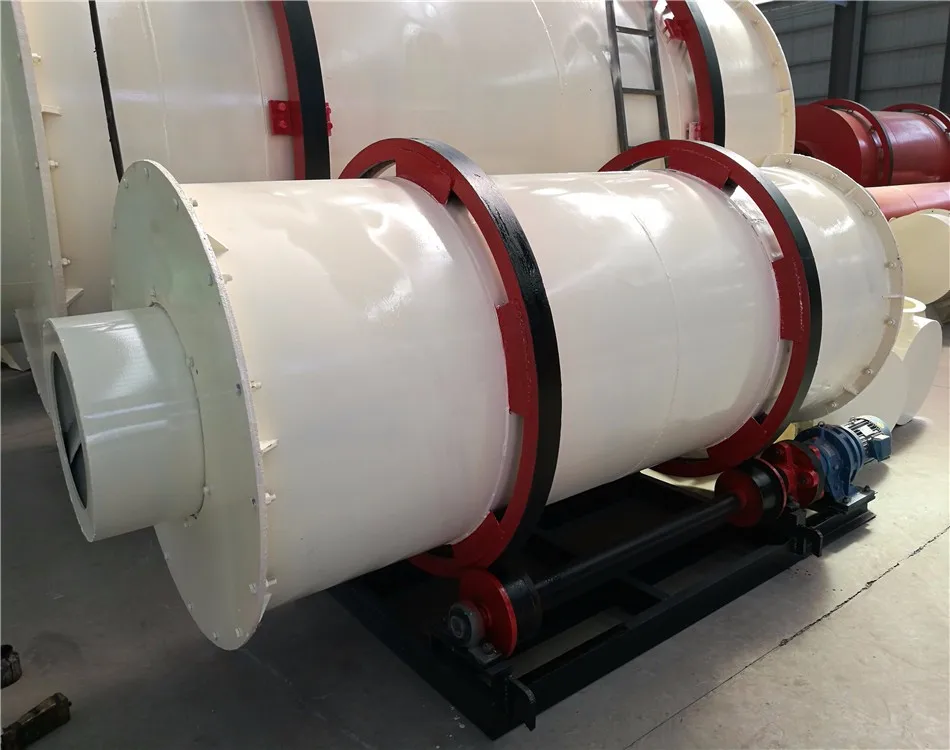

Introduction and application of Triple Cylinder Rotary Dryer/ Triple Cylinder Drum Dryer /Triple Cylinder Dryer

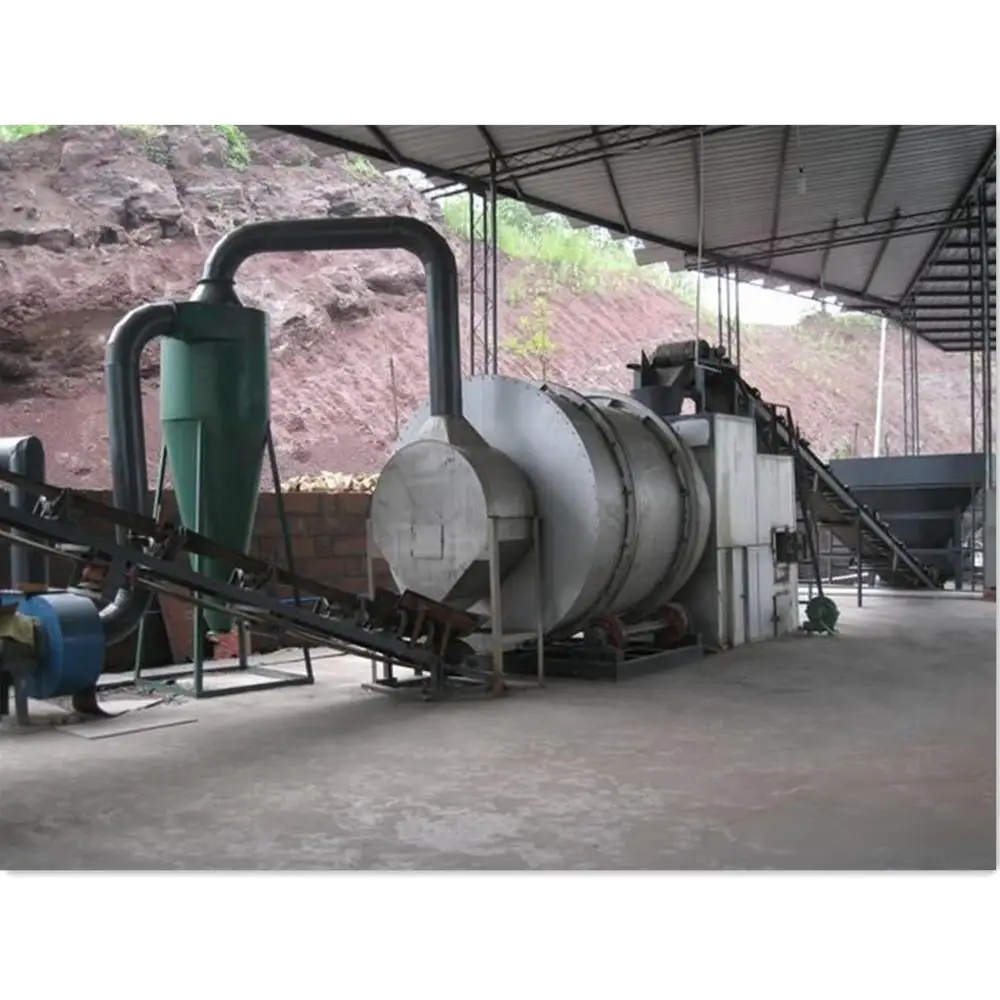

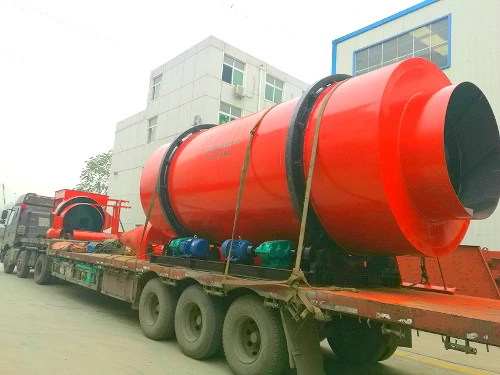

| Brief Introduction For the 3 pass rotary dryer | Raw material with 10-25% moisture content is suitable for this dryer,and not sticky for the drum or lifting blade. The temperature of air flow is less than 70 degree. When there is any special requirement for high temperature drying, the front part of inner drum and lifting blade could be replaced by heatproof steel plate. The product moisture content is adjustable according different requests, even below 1-0.5%. | ||
Applications | industrial small silica sand triple pass rotary drum dryer used rotary sand dryer price used for drying certain humidity range granular materials, such as 1.casting sand which used in dry-mixed mortar and foundry industry 2.small granular clay used in construction and cement industry 3.small granular material in chemical industry which no chemical change, not afraid of heat and dust pollution such as coal, blue carbon, fly ash, sand, water slag, river sand, quartz sand, slag, clay etc. | ||
Features of the 3 pass rotary dryer | 1.The dryer drum made of wear resistant manganese plate, service life 3-4 times than common steel plate | ||
| 2.Original moisture contains <15%, after drying final moisture contain 0.5-1%. First choice for cement slag powder, pre-mixed mortar projects. | |||
| 3. The thermal efficiency is more than 40% higher than that of traditional single drum dryer | |||
| 4. Fuel applicable white coal, bituminous coal, coal gangue, oil, steam. Raw material required <40 mm bulk, aggregate, powder material | |||
| 5.reduce 60% working place, 60% civil work compare with normal single drum dryer. Easy operation. | |||
| 6.No air leakage phenomenon, solved the sealing problem. | |||
| 7.discharge temperature <60 ºC,could storage directly in the silo, no need cooling section. | |||
| 8. Outer barrel temperature <60 ºC, the exhaust gas temperature < 120 ºC, dust removal equipment could serve 2 times longer. | |||
| 9.reduce 2/3 coal, 40% electric consumption. Need <9kg coal to dry one-ton raw material | |||

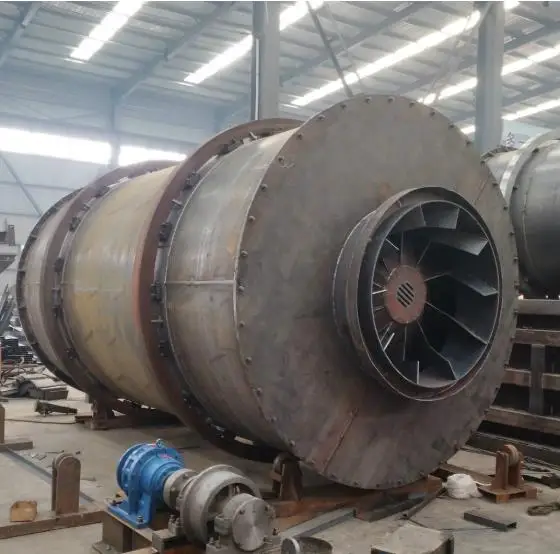

Features of Triple Cylinder Rotary Dryer/ Triple Cylinder Drum Dryer /Triple Cylinder Dryer
1. It can use chemical gypsum (Free gypsum dehydration, phosphogypsum etc) to fry β-semi-water gypsum directly.
2. From craft process, guarantee the requests of frying temperature and time which should make precise control in roasting the gypsum.3. The discharging of work machine is designed rationally, when operation, there is no dust pollution.
4. When interval feeding and discharging, it can be banked fire and shut down furnace. The stove fire can be put into normal production after 3 minutes by again opening furnace.
5. Matched gas stove or fluidized bed furnace is used for supplying heat, the waste heat of tail gas can be used recycling. (Boil water, heat the air.
Our Service For Triple Cylinder Rotary Dryer/ Triple Cylinder Drum Dryer /Triple Cylinder Dryer
1.Offering overall technology and business consultation services;
2.Proposing the most suitable scheme and equipment for our customer;
3.Designing and producting machine according to the special demands of clients;
After-sales Service
1.Carefully checking machine in every working procedure, quality comes first;
2.Assisting our clients for foundation construction of equipments;
3.Dispatching engineers to install and debug equipments,training the first-line operators on site;
4.Regularly visit clients to solve production problems and providing our technology support.
We have more than 15 years experience, support you best before and after sales service.Quality is first and top Pursuit of our company.
