Economic and Reliable temperature data recorder temperature chart recorder paper temperature acquisition recorder
- Category: >>>
- Supplier: Hangzhou Sinomeasure Automation Technology Co. Ltd.
Share on (60712601943):
Product Overview
Description
Our service
Our Aim :
Customer centric, striving for this.
Our Vision :
To make the world use China's top instruments.
Our Team :
Committed to Quality&Quality control (QC) system&ISO9001
Satisfaction Guaranteed.
Fast Response time Guaranteed.
A Wide Spectrum Of Skills & Experience.
Customer centric, striving for this.
Our Vision :
To make the world use China's top instruments.
Our Team :
Committed to Quality&Quality control (QC) system&ISO9001
Satisfaction Guaranteed.
Fast Response time Guaranteed.
A Wide Spectrum Of Skills & Experience.
Products Description
SIN-R9600

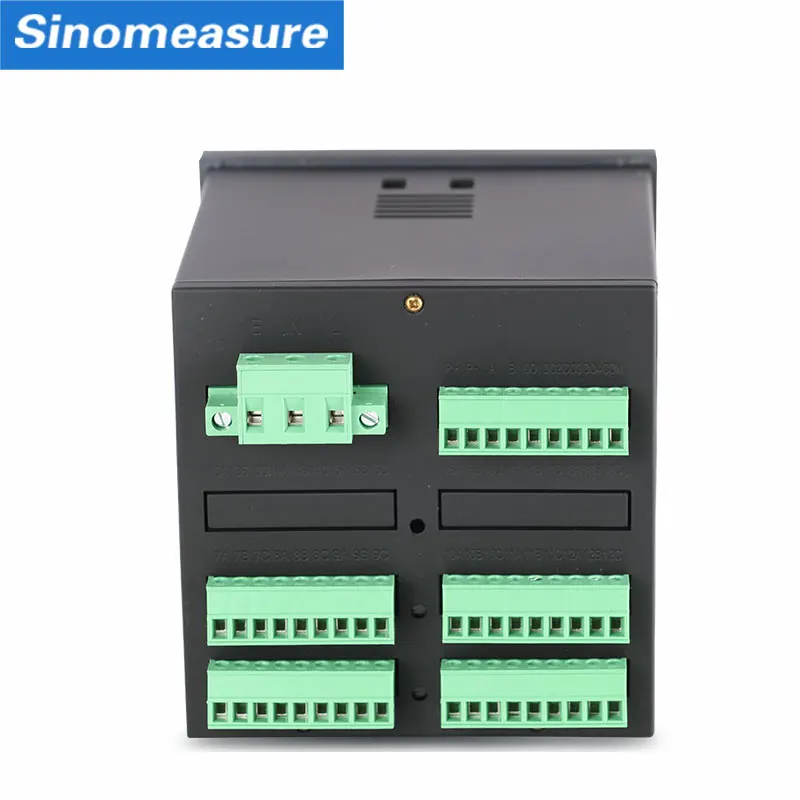

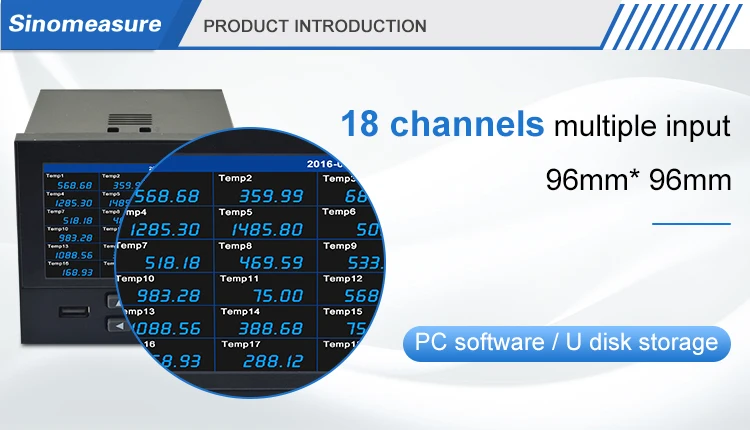

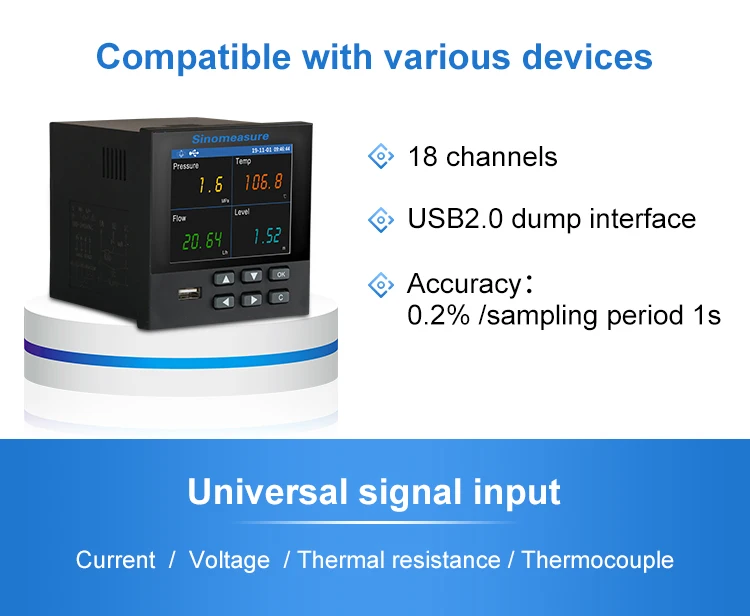

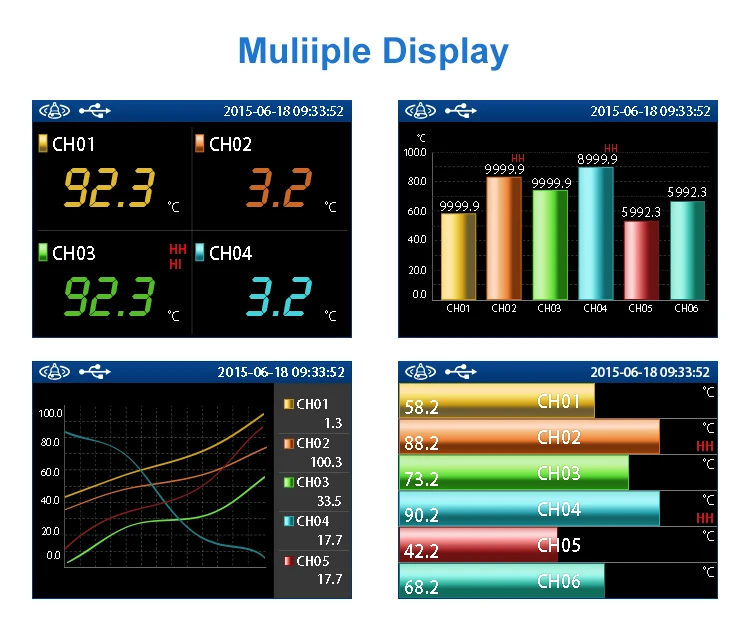

This series of paperless recorders provide intuitive analysis tools and process visualization, faster start-ups and lowest lifecycle costs, and reliable process monitoring and recording. It can be equipped with 18 channels for thermocouples, RTD, voltage, or current input. Front and rear USB ports for connecting peripheral devices--Ethernet and RS485 communications.the instrument is programmable from the front panel or a PC.

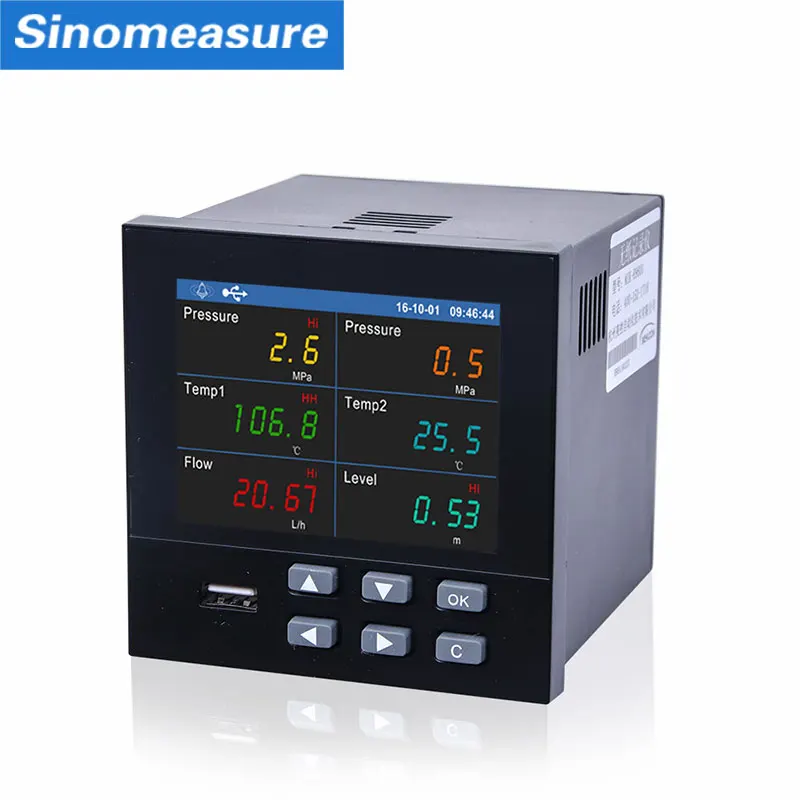

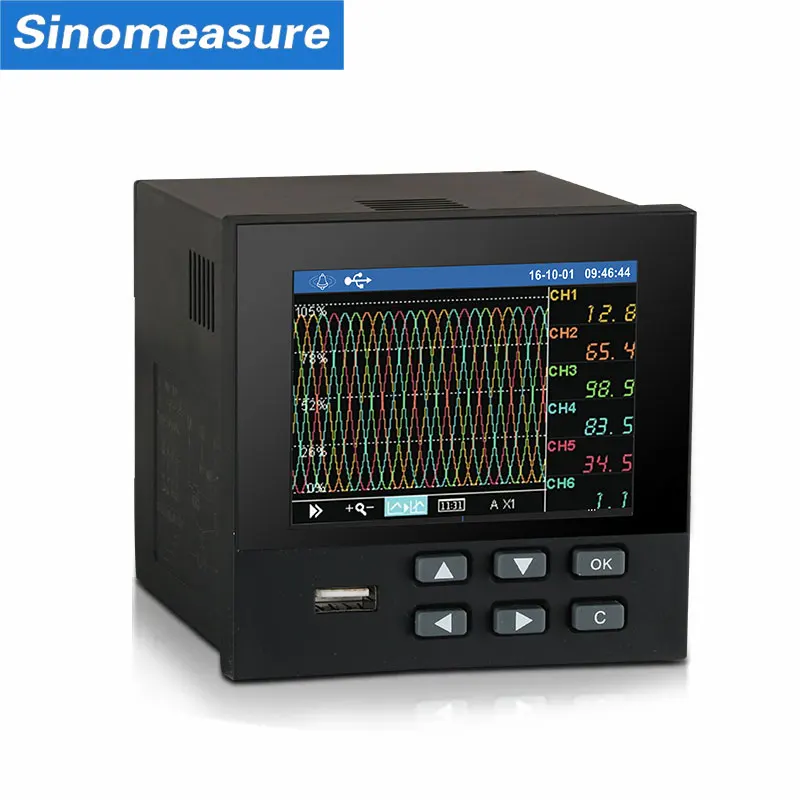

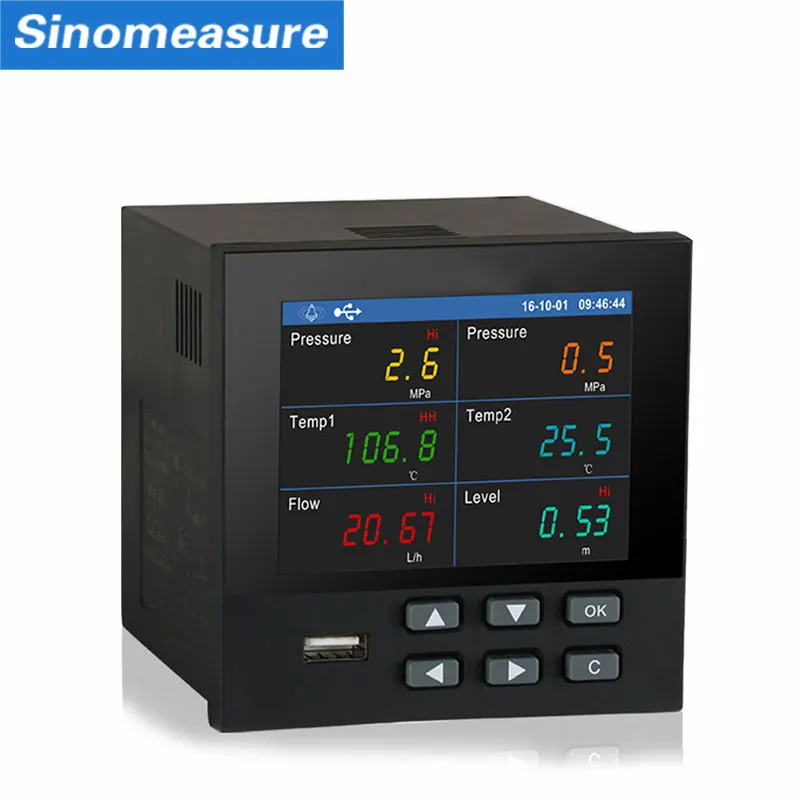

Display | 3.5-inch TFT true color LCD screen. resolution is 320 * 240 |

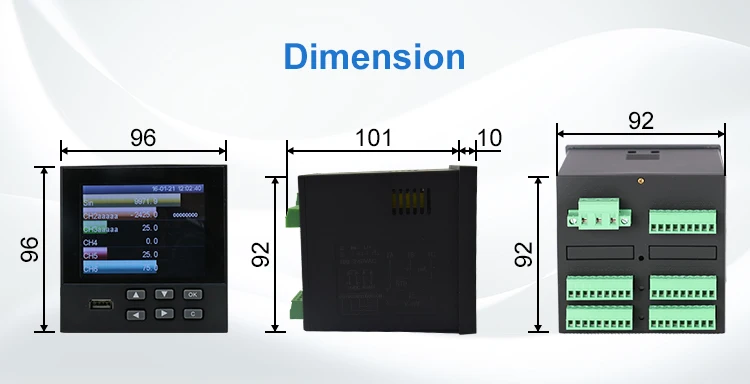

Dimension | Dimension：96mm×96mm×100mm |
Mounting ：92mm×92mm | |
Thickness of mounted panel | 1.5mm~6.0mm |
Weight | 0.37kg |
Power supply | (176~264)VAC，47~63Hz （24VDC can be customized） |
Internal storage | 48M bytes Flash |

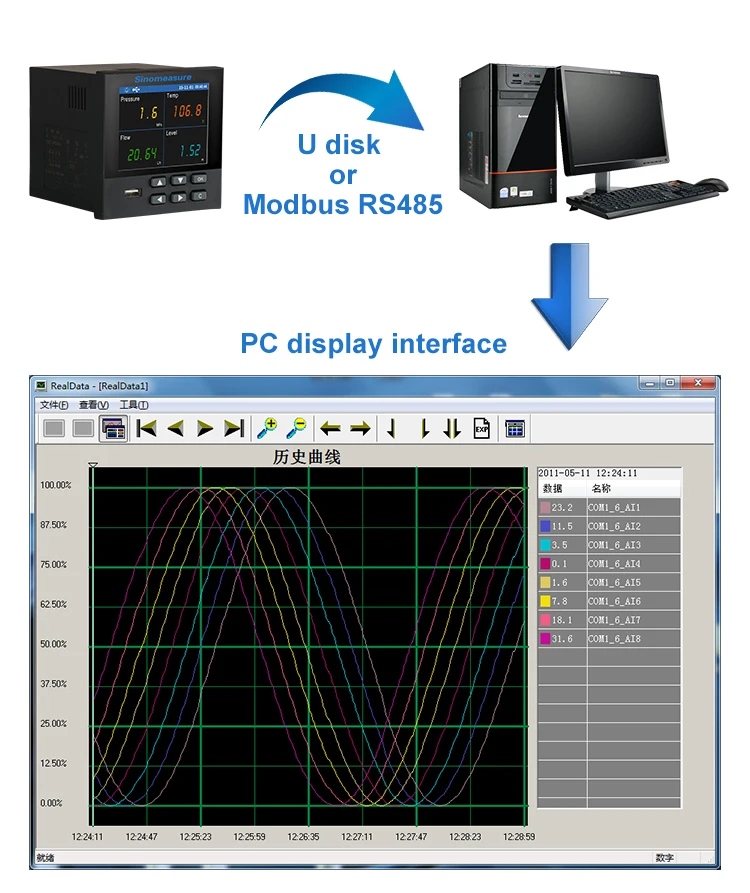

External storage | U disk support (standard USB2.0 communication interface) |
The maximum power consumption | 20VA |
Relative humidity | (10~85)%RH（No condensation） |
Operating temperature | (0~50)℃ |
Transport and storage conditions | temperature (-20~60)℃ Relative humidity (5~95)%RH（No condensation） |
Fuse Specifications | 3.15A/250VAC, Hard-fusing type |
power distribution specifications | 150mA, 24 VDC. |
Power failure protection | All data is stored in Flash storage to make sure that all historical data and configuration parameters are not lost due to power failure. The real-time clock powered by a lithium battery after power failure. |
Alarm output | It has up to 4 channels. Relays are normally open contacts and the contact capacity is 2A / 250VAC (resistive load). |
Communication Interface | 1channel RS485 communication interface.one RS-485 input（optional） |
Communication protocol | Using Modbus communication protocol |
Sampling period | 1s |
Company Profile
FAQ
Q: Is there any stock?
A: Yes,we have materials in stock to help you to get the samples as soon as we can
Q: How to track my Order?
A: After shipped, we will email you the tracking number.You can check the shipping status of your order on the website.
Q: How about warranty ?
A: Warranty: 12 months, Lifetime maintenance
Q: How about after-sales service?
A : We are 24 hours online, if you have any problem,pls contact us directly.
Q: Any discount?
A : For bulk purchase or distribution agents, we will apply the best price for you,If we have any promotions, we will post in store and send you an email to inform you.
A: Yes,we have materials in stock to help you to get the samples as soon as we can
Q: How to track my Order?
A: After shipped, we will email you the tracking number.You can check the shipping status of your order on the website.
Q: How about warranty ?
A: Warranty: 12 months, Lifetime maintenance
Q: How about after-sales service?
A : We are 24 hours online, if you have any problem,pls contact us directly.
Q: Any discount?
A : For bulk purchase or distribution agents, we will apply the best price for you,If we have any promotions, we will post in store and send you an email to inform you.
