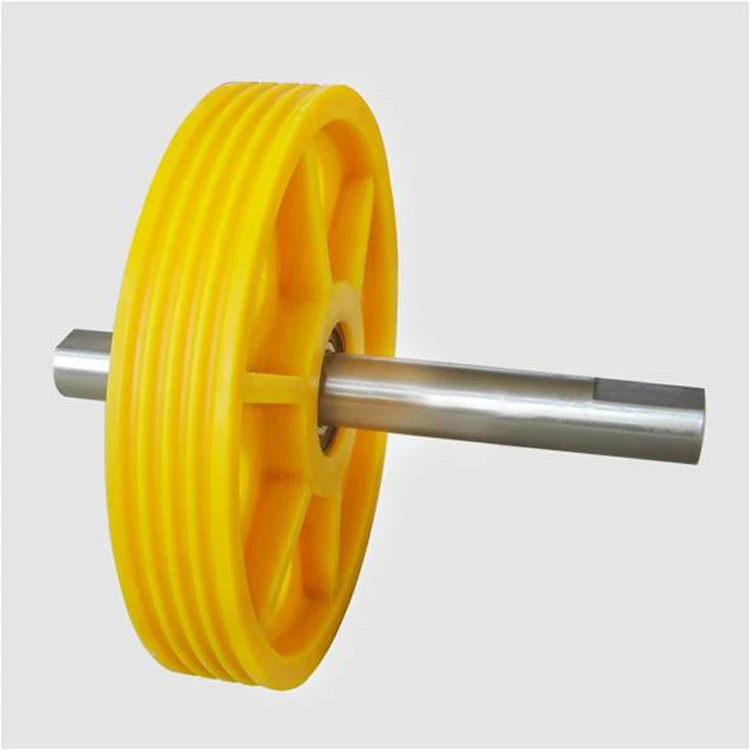

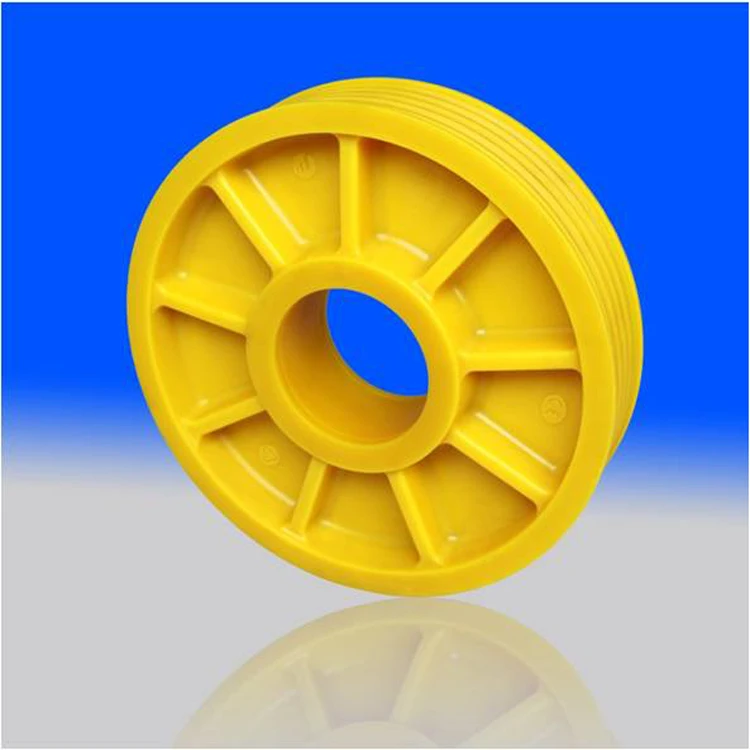

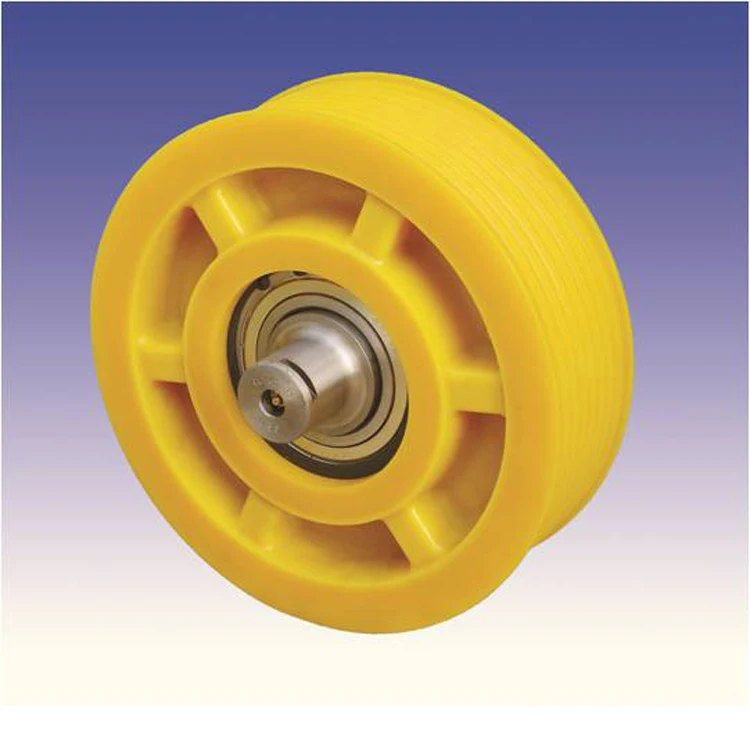

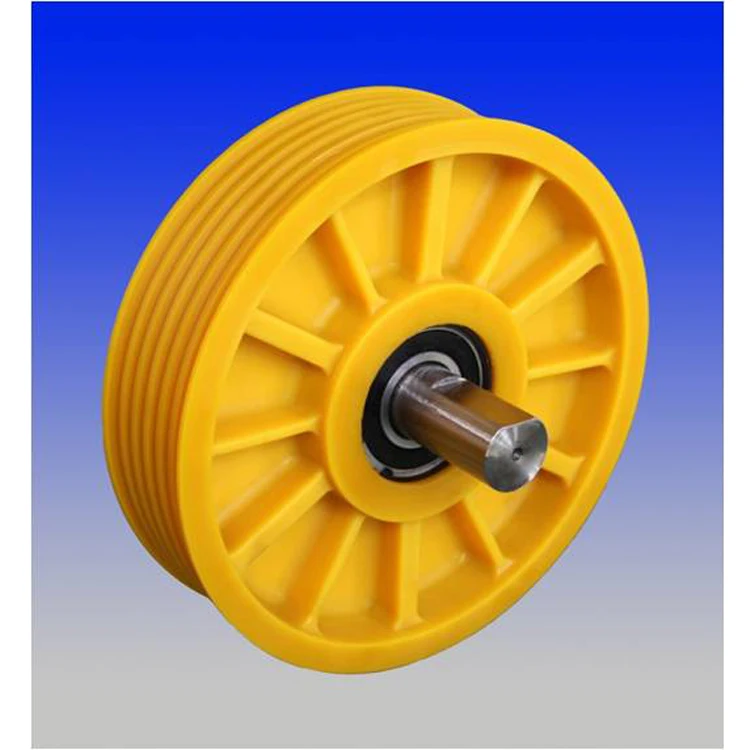

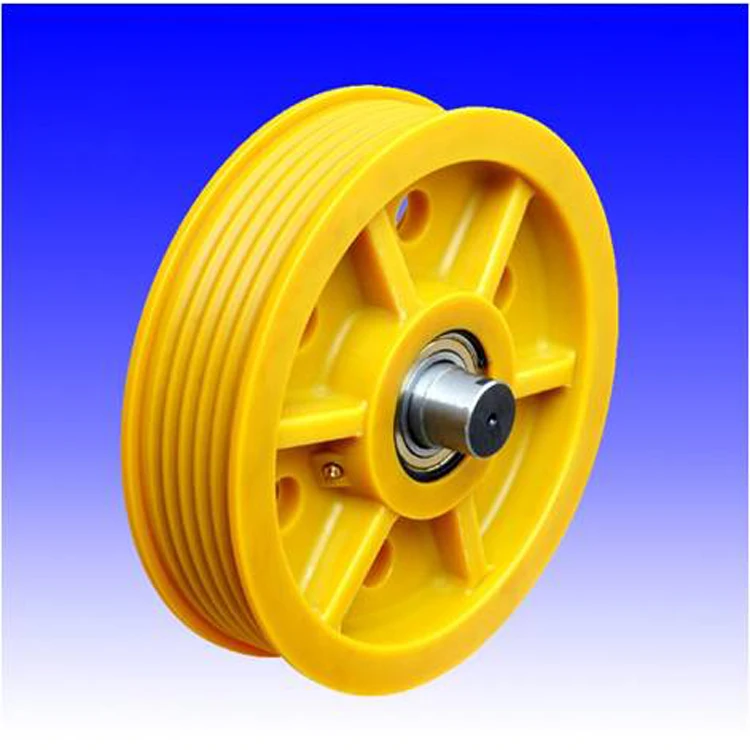

Passenger elevator traction sheave nylon pulley for elevator deflector
- Category: >>>
- Supplier: Shanghai Sunny Elevator Co. Ltd.
Share on (60712631089):
Product Overview
Description
D400 elevator pulley
Model | D400 | ||||
Outer Diameter | 400mm | ||||
Inner Diameter | 110-160mm | ||||
the number of groove | 2-11 | ||||
Rope diameter | 10mm | ||||
Max Groove pitch | 16mm | ||||
Flange thickness | 60-188mm | ||||
Boss thickness | 80-180mm | ||||
Load Capicity | 600-1500kg | ||||
HRB | 6212 | ||||
MOQ | 1-100set | ||||
Pirce | USD 66.63-77.49/set | ||||
D440 elevator pulley
Model | D440 | ||||
Outer Diameter | 440mm | ||||
Inner Diameter | 130mm | ||||
the number of groove | 3-6 | ||||
Rope diameter | 11mm | ||||
Max Groove pitch | 16mm | ||||
Flange thickness | 70-105mm | ||||
Boss thickness | 95mm | ||||
Load Capicity | 1000-1500kg | ||||
HRB | 6312 | ||||
MOQ | 1-100set | ||||
Pirce | USD 74.76-92.29/set | ||||
Model | Outer Diameter D(mm) | Inner Diameter | number of slots | Rope Dia. R(mm) | Slot pitch M(mm) | Flange Width H(mm) |
SN-PS-400-4 | φ400 | φ110 | 4N | φ10 | 15 | 60 |
SN-PS-400-5 | φ400 | φ110 | 5N | φ10 | 15 | 60 |
SN-PS-400-6 | φ400 | φ110 | 6N | φ10 | 15 | 60 |
SN-PS-440-4 | φ440 | φ130 | 4N | φ10 | 16 | 60 |
SN-PS-440-5 | φ440 | φ130 | 5N | φ10 | 16 | 60 |
SN-PS-440-6 | φ440 | φ130 | 6N | φ10 | 16 | 60 |
Pulley Show
Deflector pulley or sheave
Deflector sheave is used to enlarge the distance between elevator car and the counterweight
Diversion pulley or sheave
Traction ratio can be realized by different winding method and a certain number of di ersion sheave.
Traction Pulley or sheave
Traction sheave is aways driven by the drive machine and engaging the hoisting ropes.
Our Company
Shanghai Sunny Elevator Co., Ltd.
1 | 26 years experience | ||||
2 | 3 years' vendor of Hyundai and Otis | ||||
3 | one hour reach Shanghai port | ||||
4 | ISO, CE ,CCC and SGS certificated | ||||
5 | main products cover Elevator Wire Rope,safety gear , Push Buttons, Light Curtain, Display, Traction Machine, Guide Rail, etc | ||||
About Us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 27-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
