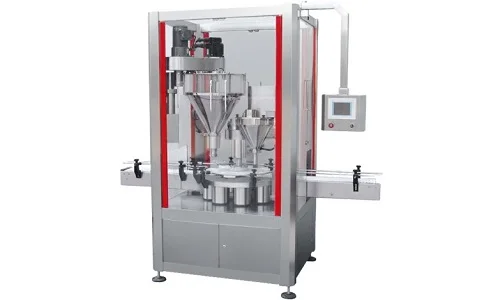

Work flow: can feeding--can supporting--vibration--measuring adn filling-- vibration--vibration--weighing and feedback--auxiliary filling-- weight check and elimination in case of defference exceeding-- can discharging
Main technical parameters:
Canning Material
Milk Powder
Applicable can type
#300~#502
Can Size
#502(diaφ128mm, height 175mm)
Canning weight
900g, canning capacity range:100~200g
Canning Speed
≥50cans/min
Canning precision
≤+/- 2g
Power supply
380v 50Hz, 3.3kw
Compressed air
6kg/m²,0.3m³/min
Material barrel volume
50L(main), 35L(auxiliary)
Machine volume
2650*1000*2300mm
Company Information
Zhoushan Golden Pard Machinery Co., Ltd is a professional manufacturer & exporter specialized in various drinks filling and sealing system, canned fish processing line, canned fruit and vegetables processing line.
We can make the most suitable solutions for customers.
High quality, competitive price and superior after-sale service are our principle.
We are always ready to develop long-term and good relationship with overseas customers.
“To be the best supplier” is always the attitude of our company.
We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.

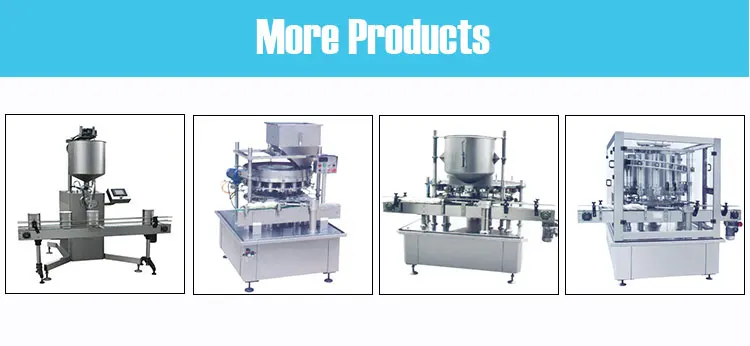

We focus on the following series of products:
Completely Automatic Canned Fish Processing Lines
Completely Automatic Canned Fruit and Vegetables Processing Lines
