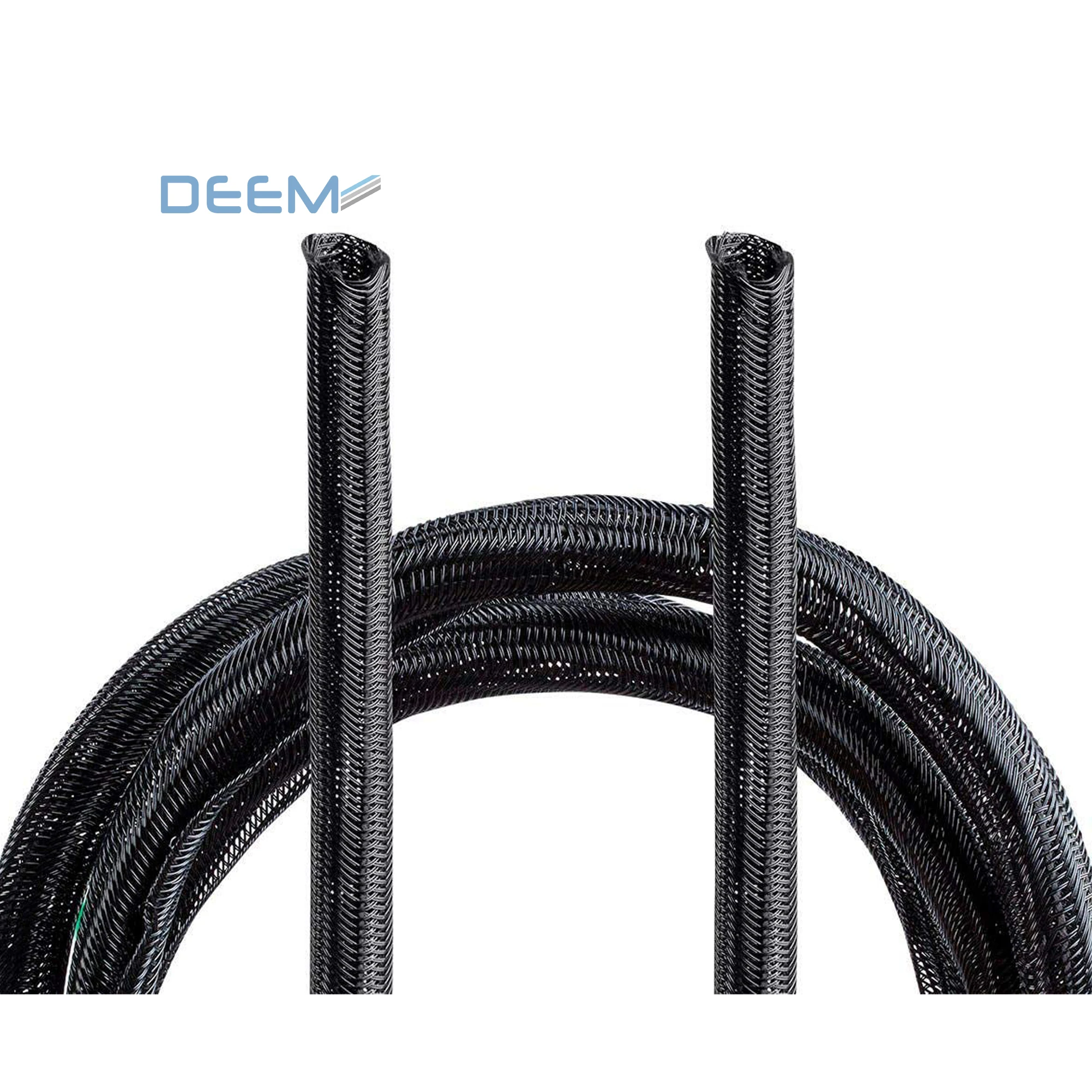

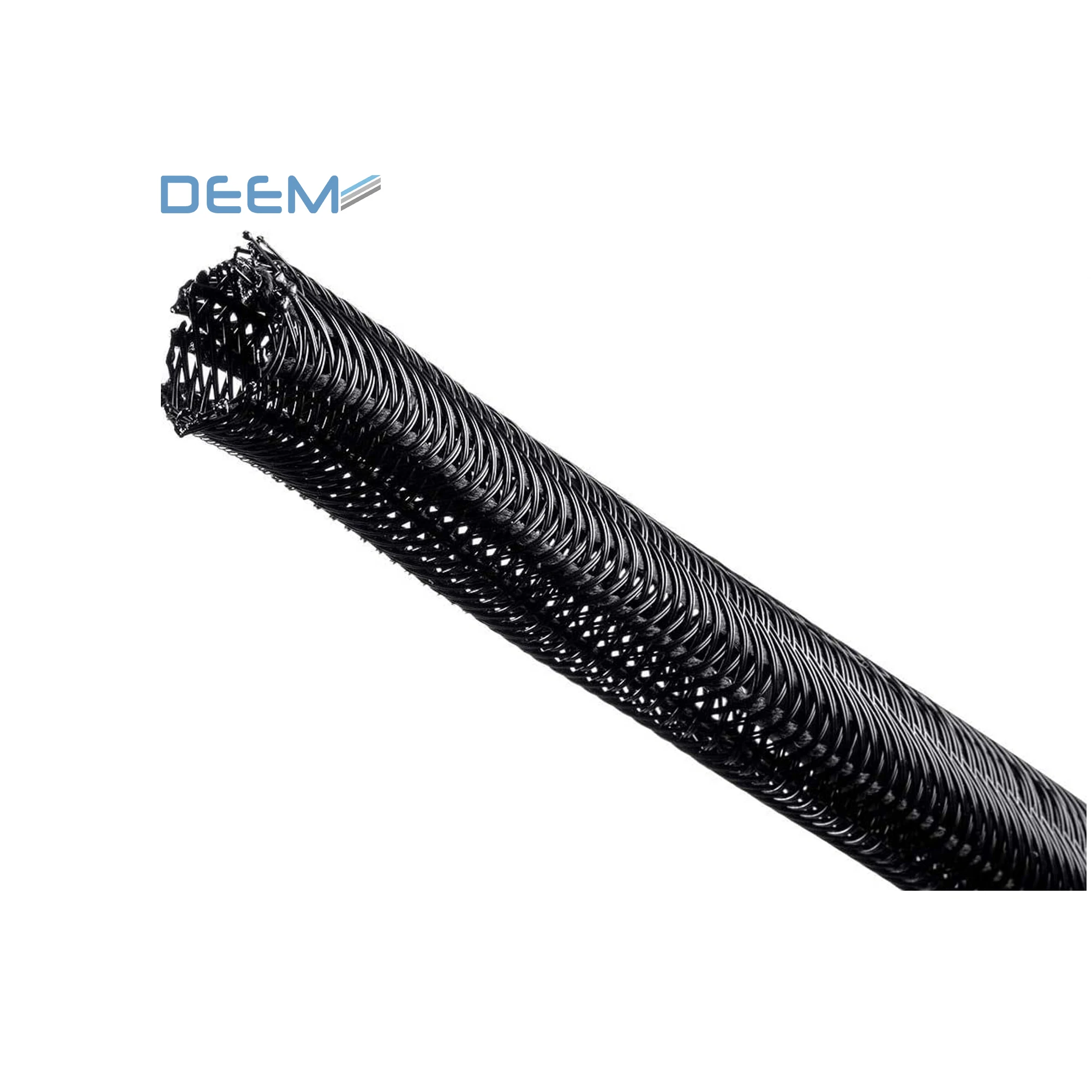

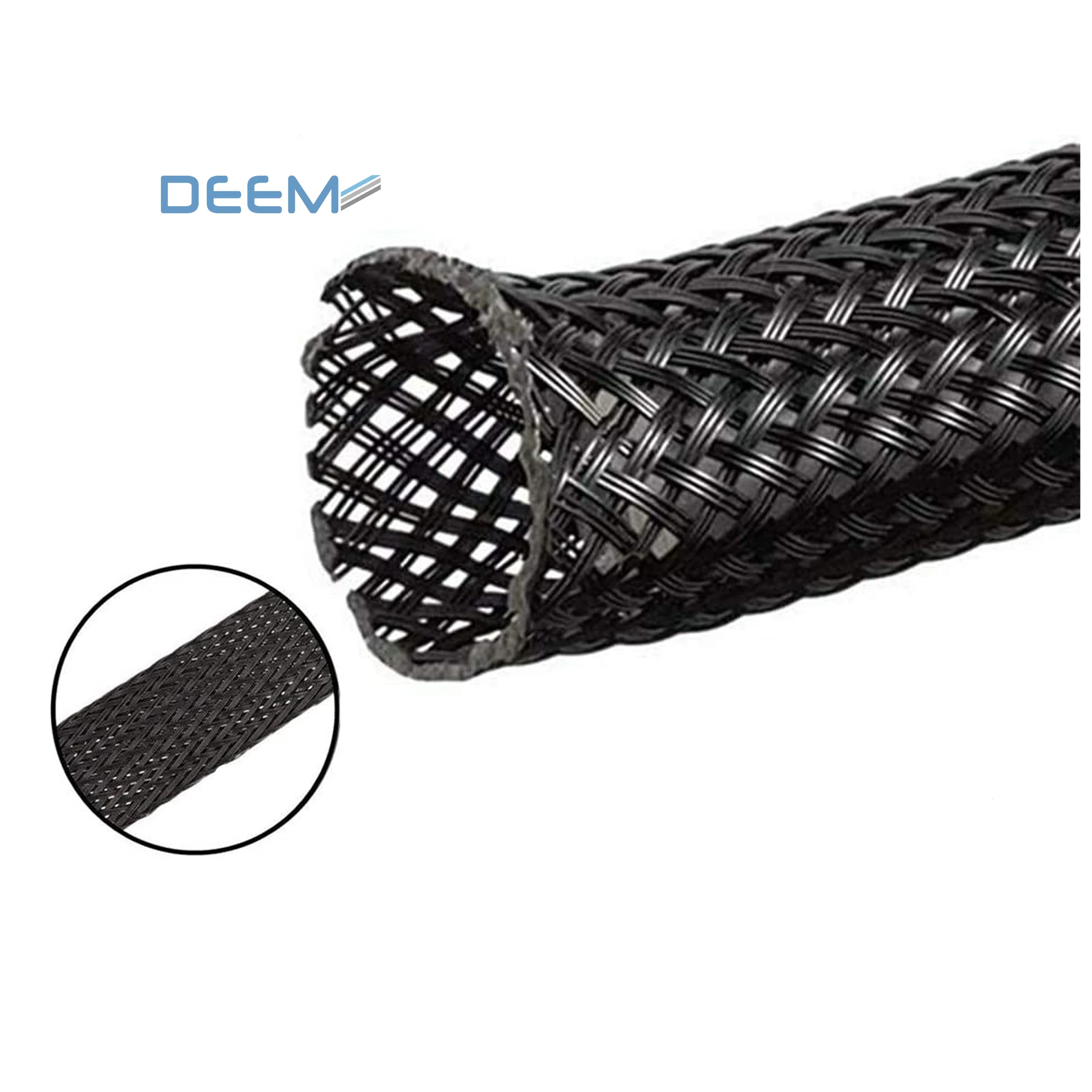

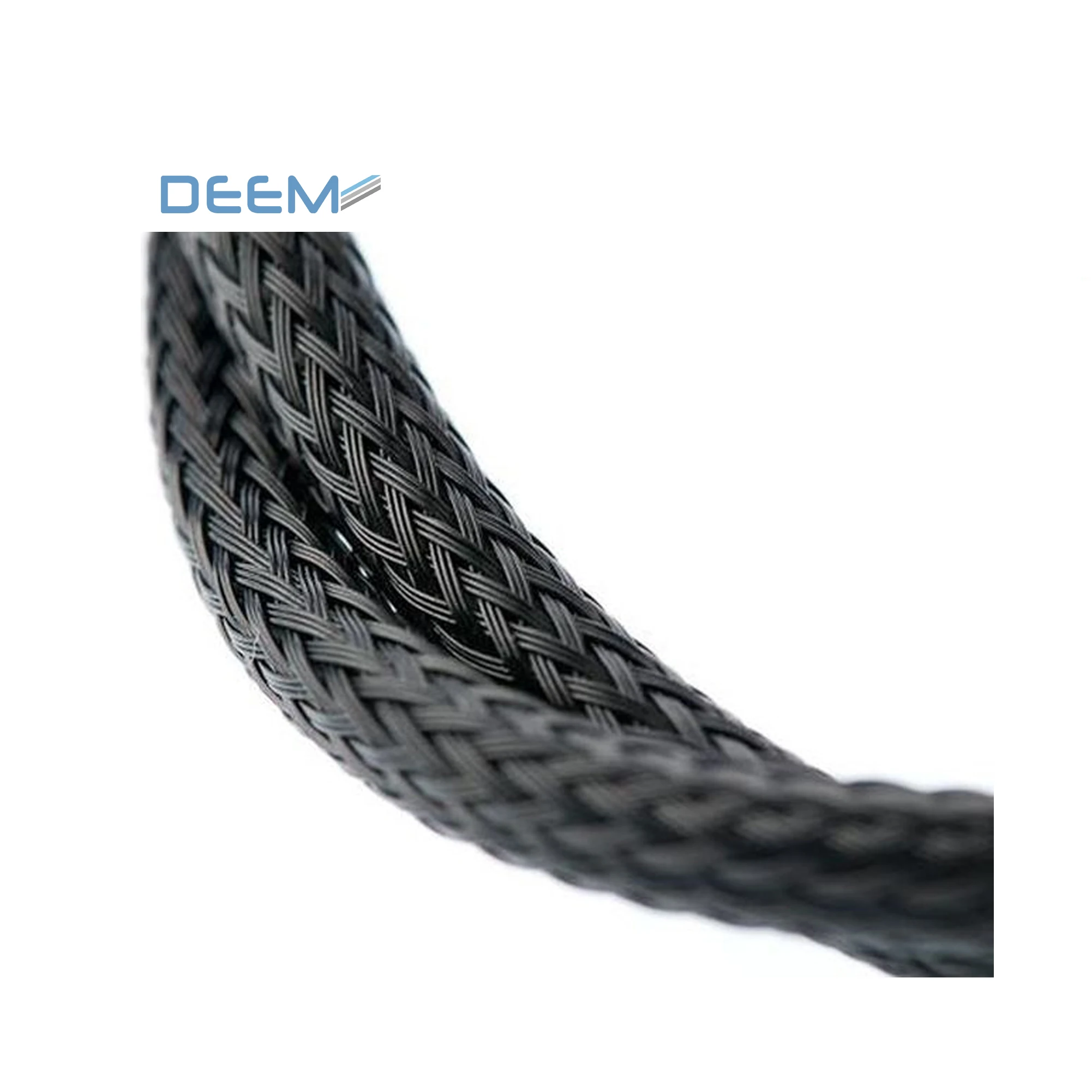

DEEM black expandable braided sleeve PET material cable protective sleeve

Product Overview

Description

Applications

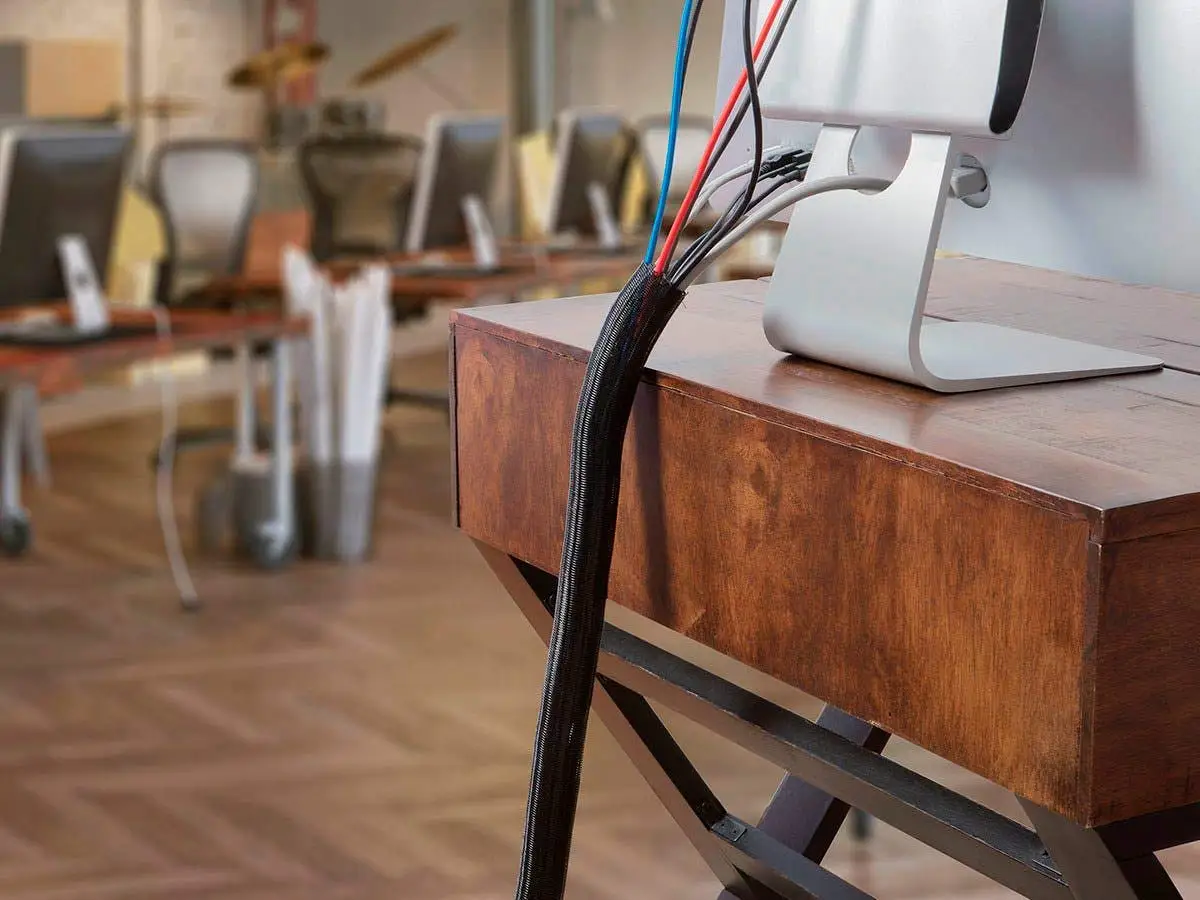

It is suitable for protection of pipes, hoses and cable harnesses used within the automotive and industrial sectors.

Features

DP-ET022 is a self extinguishing, halogen free, Polyester 0.22mm monofilament expandable braided sleeve. It offers a continuous working temperature of - 50°C to +150°C, which have a good resistance to abrasion and a high expansion rate.

Various

Standard color: Black., grey, other color available on request.



Technical Data

Property		Test Method	Values
Physica	Peak temperature	-	+175°C
	Melting point	-	+250°C
	Flammability smoke toxicity	FMVSS 302	Self extinguishing
		D45 1333	Type B
		UL94 on compound	V-2
		NF F 16-101 &102	I2– F1
		EN 45 545-2	R22 & R23
		-	Halogen free
	Abrasion resistance	S21 5101 & D44 1959 PSA/RSA	CAT B
Chemical	Fluid resistance	D47 1924	Unaffected by most chemicals



Dimensions

As Supplied (mm)	Range of use (mm)	Standard Packing (m/roll )
3	1-4	2000
4	2-6	2000
5	3-7	2000
6	4-9	2000
8	5-11	1000
10	7-14	1000
12	8-16	1000
15	10-20	1000
20	14-25	1000
25	18-30	500
30	20-40	500
40	30-52	250
50	40-65	250
65	45-105	100
76	64-120	100
