High quality single photon emission computed tomography(SPECT) GAGG(ce) scintillator

Product Overview

Description

High quality SPECT GAGG(ce) scintillator

Cerium-doped gadolinium aluminium gallium garnet (Ce:GAGG) is a relatively new single crystal scintillator with several interesting properties, such as very high light yield, high density,an emission peak well-matched to silicon sensors, and low intrinsic energy resolution. Moreover, the material is nonhygroscopic and non-selfradiation. It will be widely used in PET, PEM, SPECT, CT , X-ray Γ ray detection.







Feature Scintillation Detector Ce:GAGG crystal

Polishing Specification for Laser Grade
Orientation Tolerence	<0.5°
Thickness/Diameter Tolerance	±0.05 mm
Parallel	10''
Perpendicular	5'
surface Quality	10/5
Clear Aperture	>90%
Chamfer	<0.2×45°
Maximum dimensions	dia 70mm





Scintillation Detector properties Ce:GAGG crystal

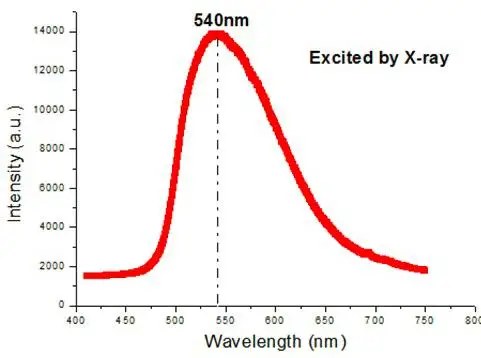

XEL spectra of Ce:GAGG

















Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.

Q2: Do you have any MOQ limited? A: Our MOQ: 1pcs

Q3: What’s the lead time?

A: Sample :2-3 days.Mass production: 15-20 days.

Q4:How do you ship the goods and how long does it take?

A: We usually ship goods by UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.

Q5: Do you offer guarantee for your products?

A: After test them if not pass test,you can return the goods at any time, we will re-offer you again and also bear shipping fee.

Q6: Do you accept OEM?

A: We have our own brand-metalaser. OEM is also acceptable.
