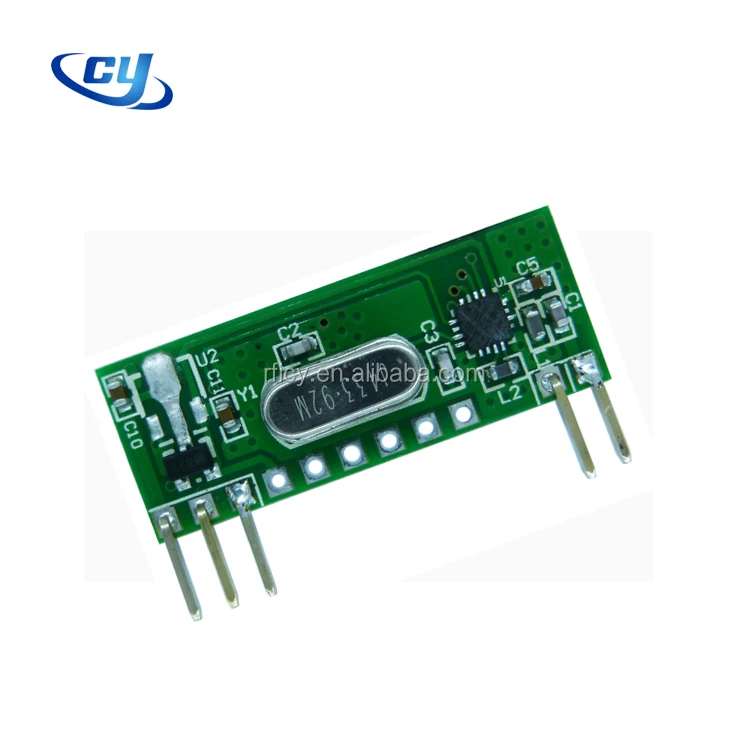

CY121 Modulation 433 MHz 315MHz Receiver RF Module 433.92

DESCRIPTION:

The CY121 is an ASK/OOK/FSK compatible super heterodyne wireless receiving module with high performance for ISM frequency band. With the adoption of European brand RF wireless data transferring/receiver chipsets, the module has advantages at high receiving sensitivity, small size and low cost. It solves the problem on space for the small-sized product. From wireless signal input to data output can be done without any electrical circuit. User only use extra simple data decode circuit can achieve wireless products development.

FEATURES:
Frequency: 300M – 960M (ASK/FSK)
High sensitivity -109dBm;
Supply voltage: 3.6V – 5.5V;
Operating temperature: -20℃ ~ 70℃, work normally even in the severe temperature environment;
Excellent inhibiting ability for local oscillator radiation: multiple receivers receive signals from one transmitter simultaneously without any mutual interference and influence on range;
31.5*12*5mm;

APPLICATION:
Remote door openers
Remote keyless entry
Wireless security systems
Remote control
Wireless door ring
Wireless data transmission

PIN DEFINITION:

 Figure2 CY121 Dimension

CAUTION:

Because of the low drive current of data output pin, if directly drive MCU, please do not connect I/O port of this MCU with pull-up resistor or pull-down resistor and disable the interior pull-up resistor or pull-down resistor of this MCU.
