ZF-800 Automatic Disposable Burger Box Chips Box Paper Carton Making Forming Erecting Machine With CE Factory Directly Sale
Product Application

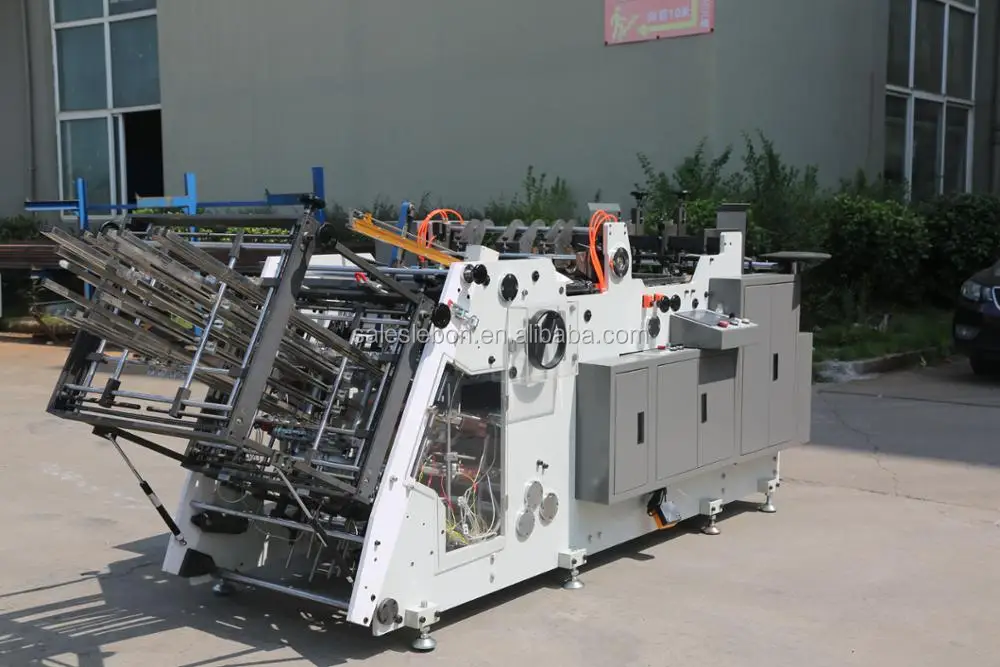

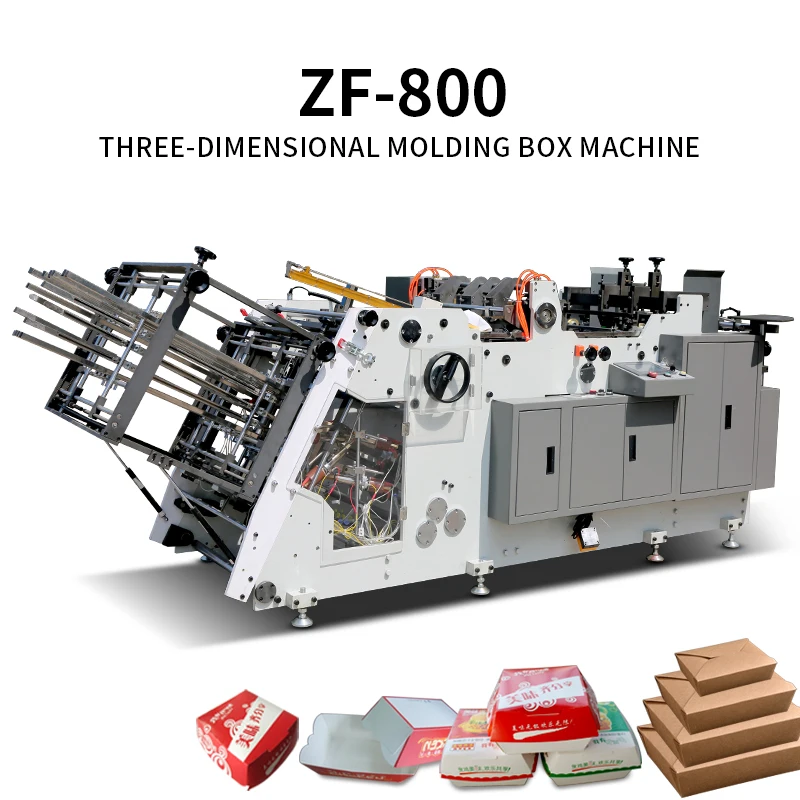

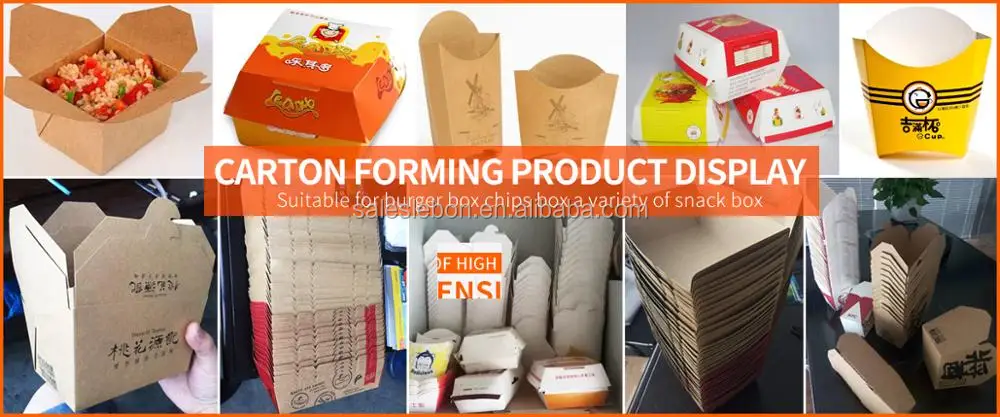

ZF-800 carton erecting machine is a special forming machine that produces burger box,one block box,food pail box(to go box),french fries box and other related containers made by cardboard paper and corrugated paper,the machine adopt the PLC control system,automatically feeding,forming,collecting stacking as well as counting the finsihed products,it will automatically stop when there is paper jam of no paper,safe for operation.
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Model No.
ZF-800
Productivity
max 160pcs/min
Material
170-400gsm cardboard
Paper thinkness
max 1.5mm
Electricity required
4kw/hr
Air requried
6kg/cm²*200L/min
Productivity
Glue Sealing
Overall size
3500mm*1200mm*1600mm
Weight
2000kgs
Main Features
1) Feature of stereo box die-cutter: high efficiency, reaches 160pcs/min
2) Multifunctionality: can manufacture the products such as meal box, chips box,stereo box or burger box with different specifications on one machine only by changing its molds.
3) This machine applies water-based adhesive coating device, attains high efficiency and very high precision. Water-based adhesive, as water soluble adhesive compostion, is a kind of food-grade glue.

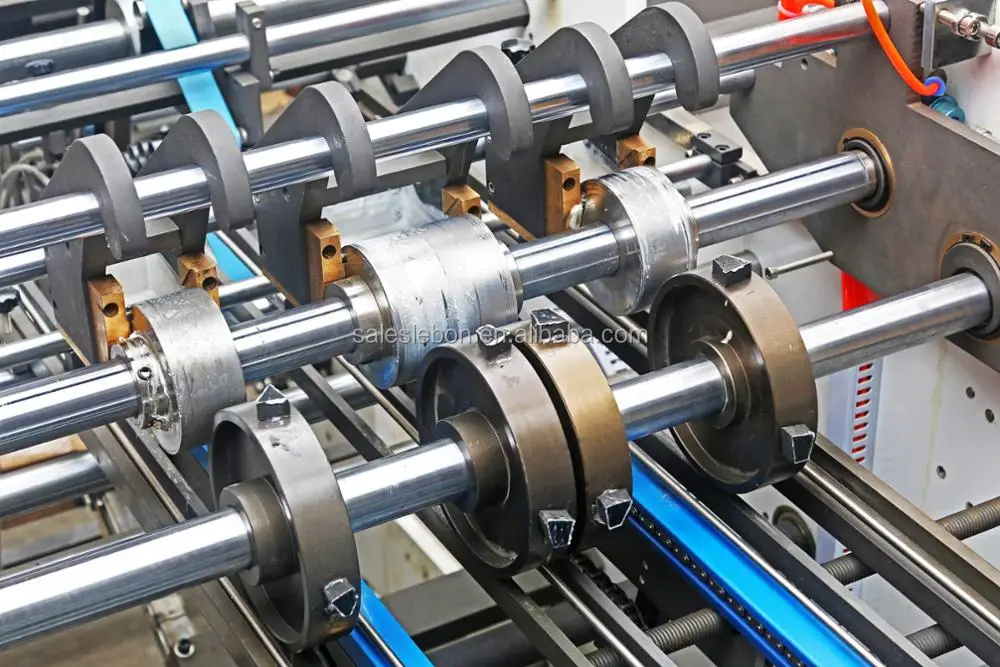

4) Most of the machine applies high-quality sealing bearing, prevents from dust or liquid penetrating and impacting the service life of bearings, with long service life and good stability.
5) The whole is driven by high-quality tinming belts and ensures almost zero error during its operation.

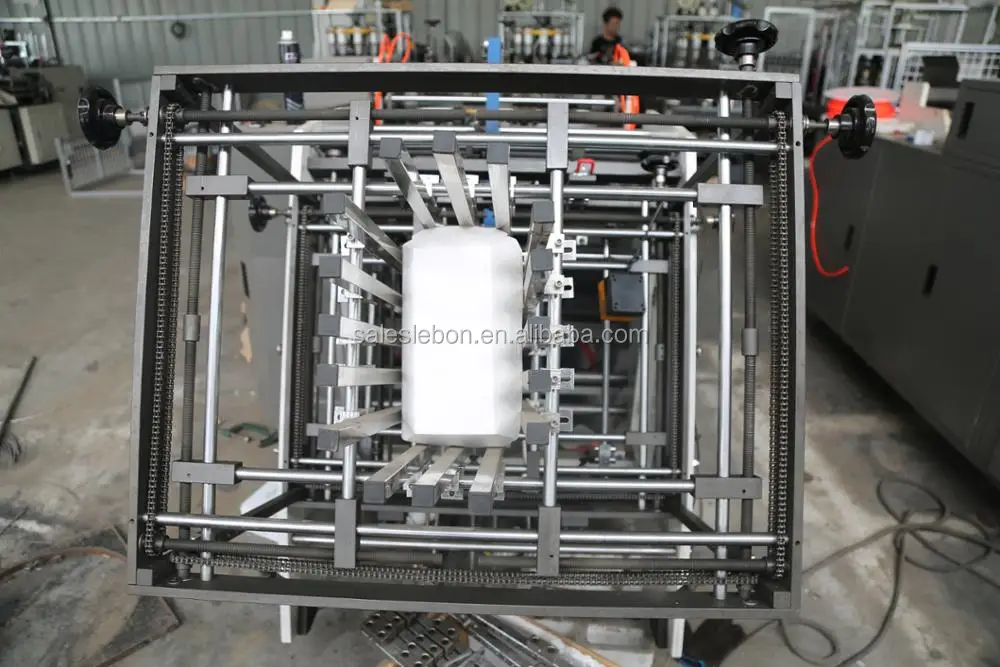

6) Main mould employs pine wood, enjoys high efficiency when replacing its mould.
7) Can automatically collect, store and count finished products, and install additionally counter as per the requirements of customers.
8)The machine applies PLC intelligent control system, and automatically stop when there is paper jamming or no paper. It can avoid unnecessary harm caused by the contact between worker and operation mechanism during the production process.
