1) Patented three roller stripper and main transmission mechanism.
2) The frequency transformer permits the doffer stepless speed change

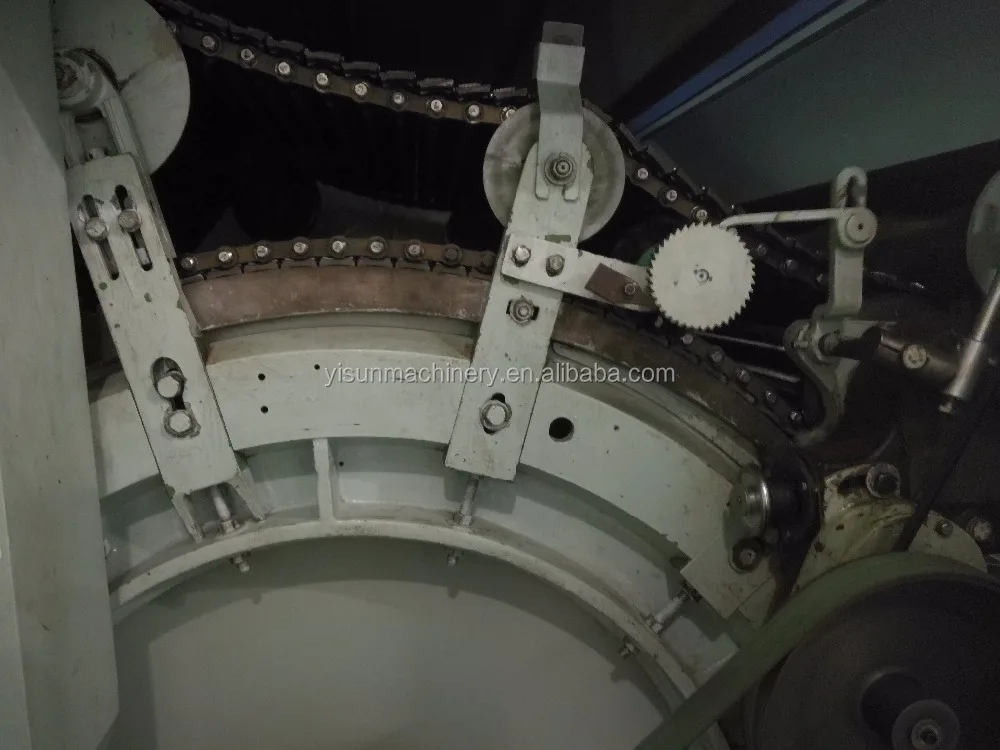

3) New stationary flats: 3 for front & 3 for rear
4) Licker-in carding board
5) High quality MCC wire
6) Computer monitor and auto-stop control at many points of the whole machine
7) Provide a variety of dedusting modes for your selection
Specification:
Application range
22~76 mm cotton and man-made fiber
Sliver delivery ration (g/m)
3.5~6.5
Max. theoretical output (kg/h)
40
Speed of sliver delivery (m/min)
57.7~121.2
Taker-in speed (r/min)
930 800
Doffer speed (r/min)
6~36
Cylinder speed (r/min)
360 330
Flat number (working flat/total flat)
41/106
Flat speed (mm/min)
79 91 129 141 184 241 342
Additional carding components
carding board*1 stationary flat for front*3 stationary flat for rear*3
Sliver can size (diameter*height)(mm)
600*900mm 600*1100mm
Installed power (kw)
5.17
Safety cover
Totally enclosed
Area (length*width)(mm)
3591*2123
Weight(kg)
About 4500
Packing & Delivery
Outside Packaging: Standard Export Wooden Case Inner Packaging: Plastic Foam Packaging Delivery Details: 20-30Days
