EOC Master (ONU+EOC+OR) Apply to CATV/Internet Access/IPTV/VOD/Camera monitor system
Product Description
Product Overview
The C-Data All-In-One product is designed to provide Internet Service to subscriber’s home through the existing coaxial access network. With EPON/GPON, EOC and HFC technology , the All-In-One product meets the CATV broadcasting, VOD and Internet Service requirement of cable operators for FTTB/FTTC. It build with EPON/GPON ONU, EOC master and Optical Receiver module in one housing.
The Optical Receiver module received the optical signal from the Optical Transmitter of HFC network, and the signal processed by the PD, Amplifier, EQ and AGC to a stable RF output. The output level will be up to 108dBuv( 4*RF output) or 112dBuv (2*RF output). Ethernet data is delivered to ONU through the EPON or GPON network form the OLT.
The EOC Master module meets Home-plug AC standards, is designed based on Qualcomm AR7410 chip-set with high anti-jamming capability OFDM technology. It will modulate the Ethernet data into EOC RF signal in the 7.5-65MHz .The EOC signal and CATV signal (87~860MHz) can run on one coaxial cable without interference. The EOC Master can provide high speed data service at 600Mbps PHY Layer speed, the MAC Layer throughput is up to 320Mpbs.
Function Features
Standards
Complies with EPON or GPON standards
Complies with HomePlug AV international standards and IEEE 1901 Standard
Product Configuration
Configurations available with 1 EPON or GPON ONU module
Configurations available with 2 or 4 HomePlug AV EOC Master modules
Configurations available with 1 HFC Optical Receiver
Configuration available with WDM inside or not
RF output configurations with 2 or 4 outputs
Line Power (from 90 to 264 VAC) or Cable Line Power (60VAC) optional
35/47, 42/54, 65/87 type High/Low Filter optional to meet your network
AGC (from -6 to 0dBm) function for stable RF output
Data Transportation in Coaxial Cable
Supports data throughput of greater than 300 Mbps per EOC Master module
Supports Max . link loss greater than 85 dB (40Mbps throughput in lab)
Recommend 40~50dB link loss for about 300 throughput
Network Management
CLI, SNMP management for ONU module
WEB, SNMP management for EOC module
Optical Receiver status monitor and control by PON system
Other Features
IP67 Housing, aluminum alloy die casting shaping
Line Power 60AC feed in and out
Product Pictures and Ports Overview

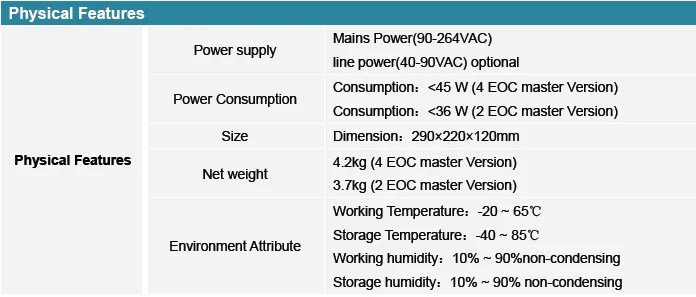

Detailed Specifications
Typical Application
CATV
Internet Access
VOD
IPTV
Camera monitor system
Application Illustration
Order Information
Our Services
1.Good Reply: Your inquiry related to our products or price will be replied within 24 hours. 2.OEM&ODM: We can help you to design and put your good idea into products. 3.Warranty: 1-years warranty.
5.Training service support: Provide free training service on installationanddebugging.
FAQ
1.Can we get a lower price? Yes,price is not a problem,everything could be negotiated based on the quantity.
2.What is your MOQ? No MOQ for any sample test.
3.OEM,ODM Service is available? Yes, C-Data have strong ability to offer customers ODM&OEM products of highest quality. And it will requirement about your quantity.
