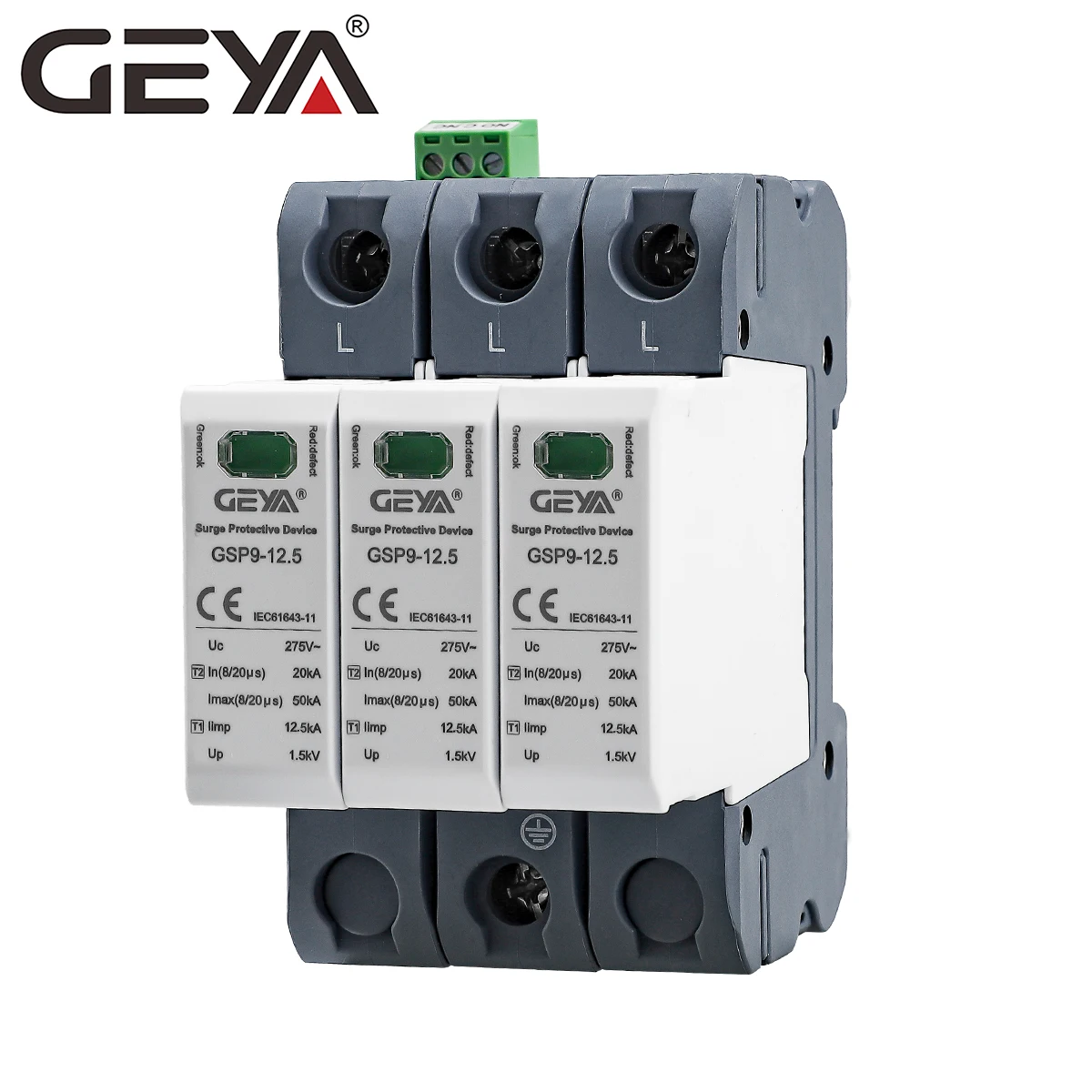

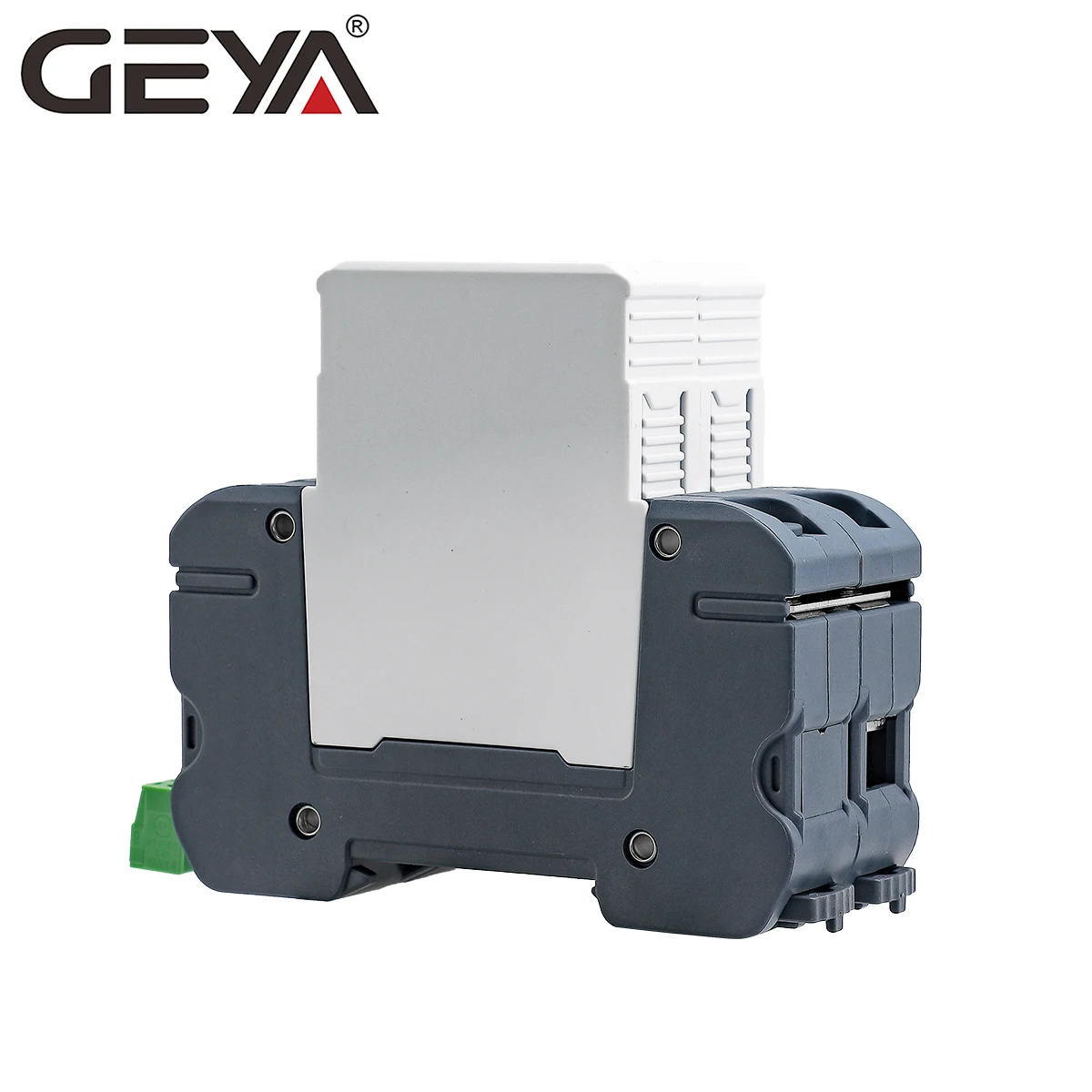

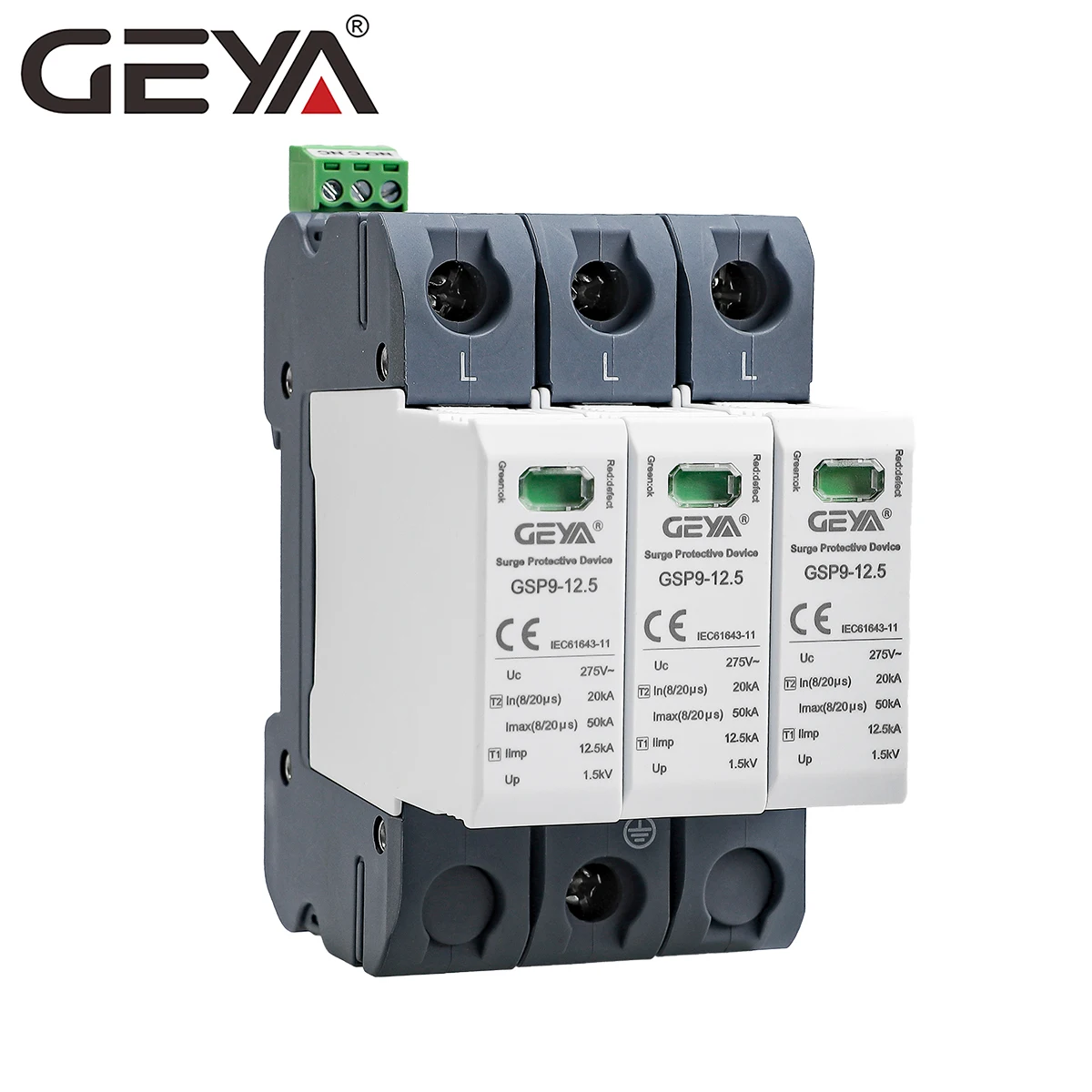

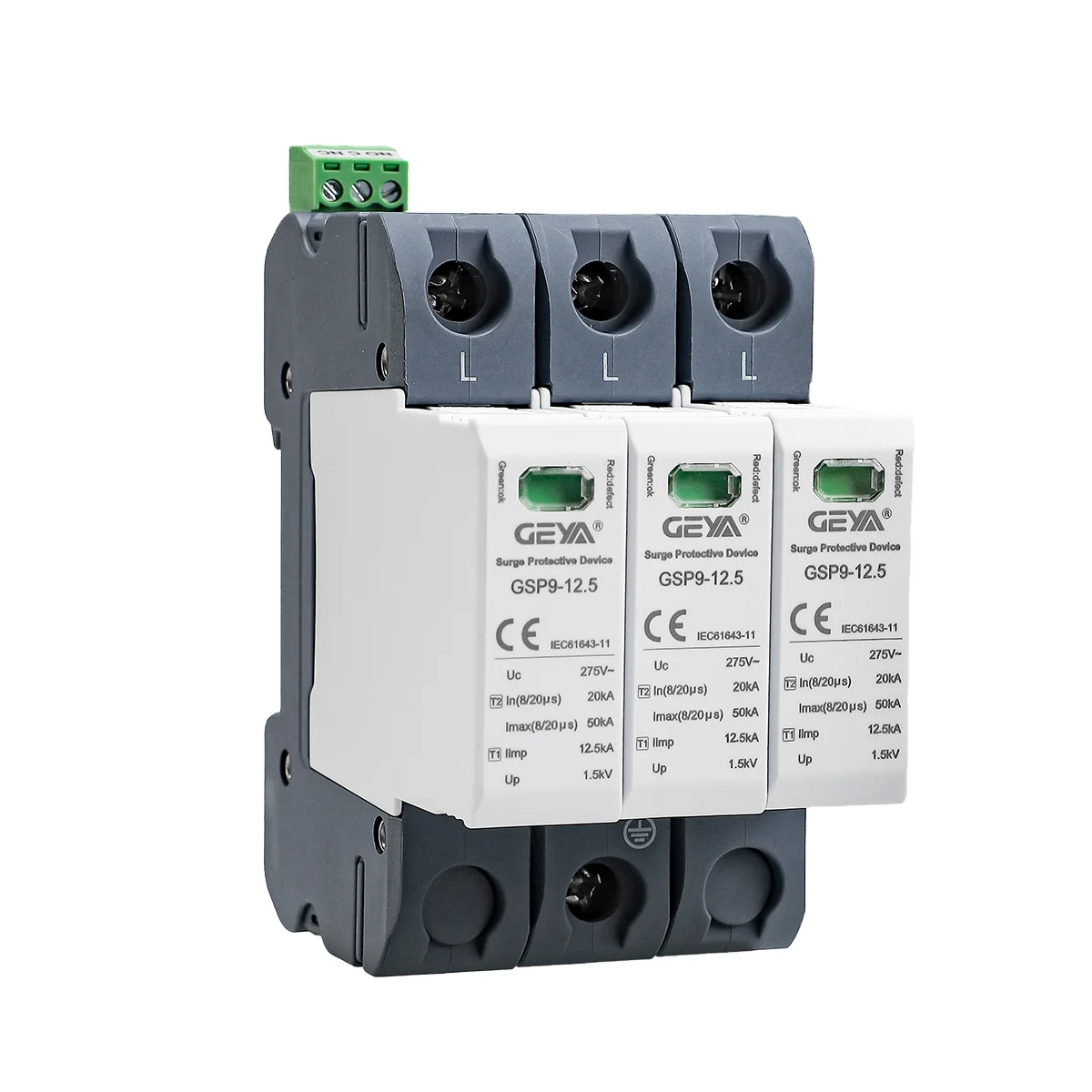

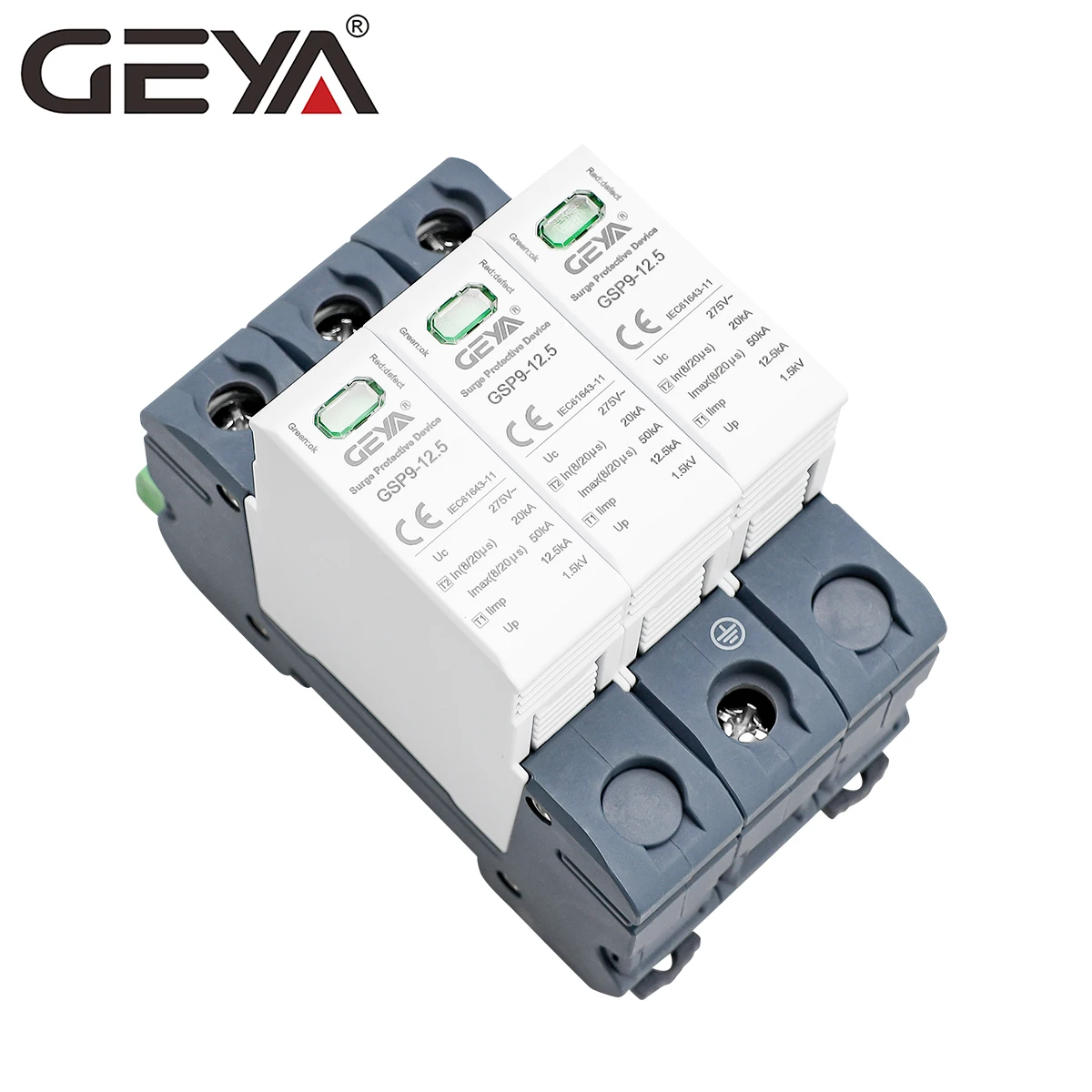

GEYA GSP9 12.5 3P 12.5KA NEW Design High quality Surge Lightning Protector Din Rail Module for DC Power
- Category: >>>
- Supplier: Zhejiang Geya Electrical Co. Ltd.
Share on (60713066554):
Product Overview
Description
············This link price is only for GSP9-12.5-3P-12.5KA···········
Products Description
GSP9 series are Class C Surge Protection Devices, they designed to protect against lightning surge voltages in photovoltaic power supply networks. These units must be installed in parallel on the DC networks to be protected and provide common and differential modes protection. The OBV5-C40-PV DC series are availa-ble for the main operating voltages in photovoltaic: 500, 600,800,900 and 1000 Vdc.

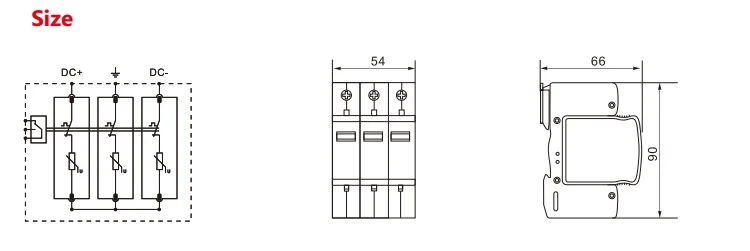

The use of Class C Surge Protection Devices are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long. The electrical diagram of the OBV5-C40-PV DC series are based on high energy MOVs equipped with specific thermal disconnectors and related failure indicators. A remote signal feature is also available.
The OBV5-C40-PV DC series are made with plug-in modules to allow a fast and easy maintenance in case of fa-ilure (disconnection from the DC network).
Discharge current In: 20kA / Imax: 40kA
Discharge current In: 20kA / Imax: 40kA
Plug-in modules
Remote signal option
IEC 61643-1 compliance.
Technical Data
GSPV8 600 | GSPV8 1000 | ||
SPD classification according to EN61643-11 | Type 2 | Type 2 | |
SPD classification according to IEC61643-11 | Type 2 | Type 2 | |
Max. continuous operating d.c. voltage Ucpv | 彡 600V | 彡 1000V | |
Norminal discharge current (8/20 u s) In | 20 | 20 | |
Max. discharge current (8/20 p s) Imax | 40 | 40 | |
Voltage protection level Up | (2.6kV | ^3.8kV | |
Max. backup fuse | 125AgL | 125AgL | |
Response time tA | 彡 25ns | 彡 25ns | |
Operating temperature range Tu | -40°C -80°C | -40°C -80°C | |
Operating state/fault indication | green/red | green/red | |
Cross-section area (Min.) | 6 mm² | 6 mm² | |
Cross-section area(Max.) | 35mm² | 35mm² | |
For mounting on 35mm Din rail | 35mm Din rail | ||
Enclosure material Thermalplastic UL94-V0 | Thermalplastic UL94-V0 | ||
Degree of protection | IP20 | ||
