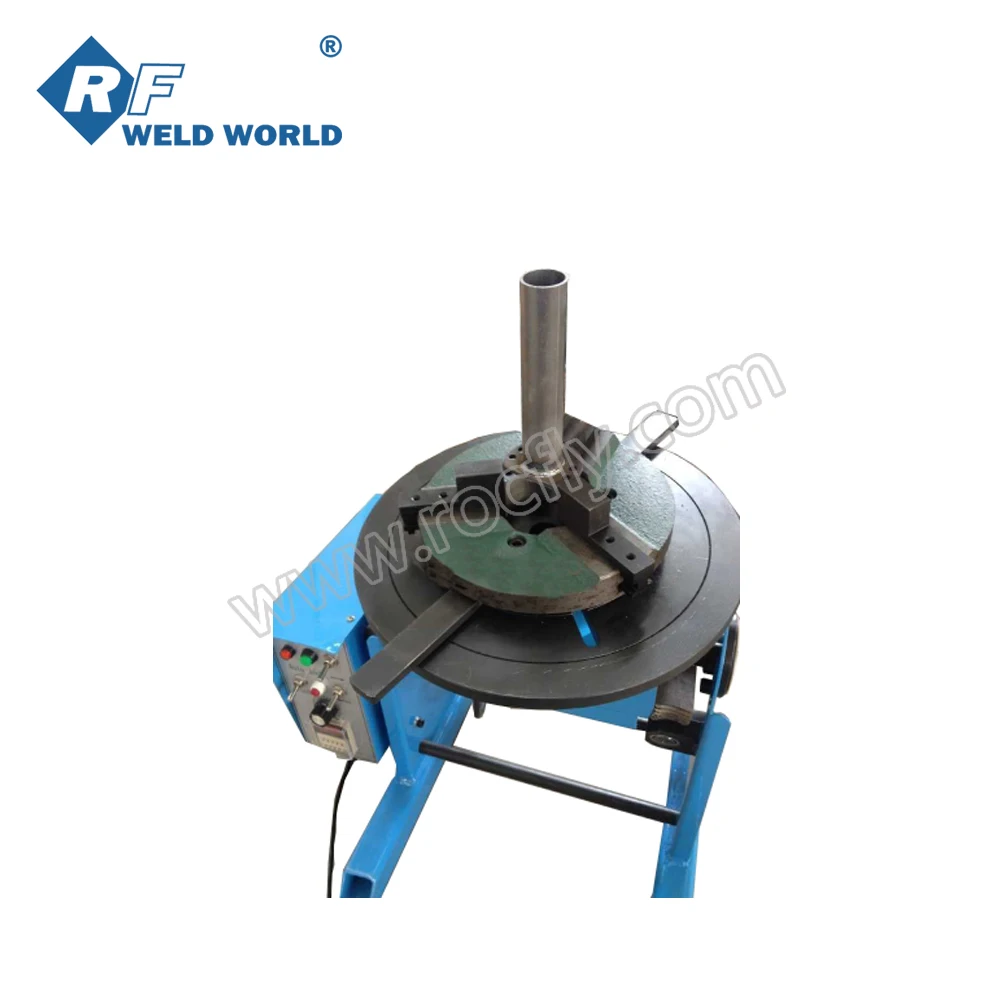

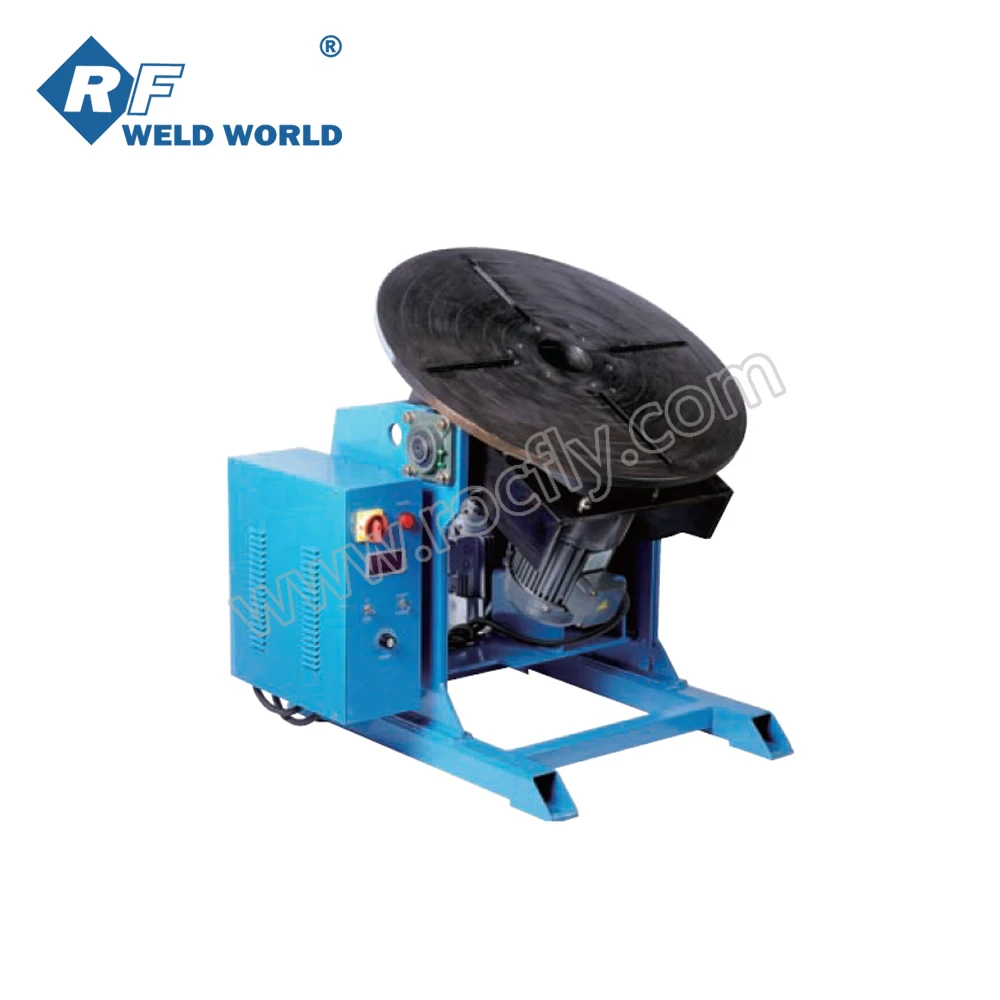

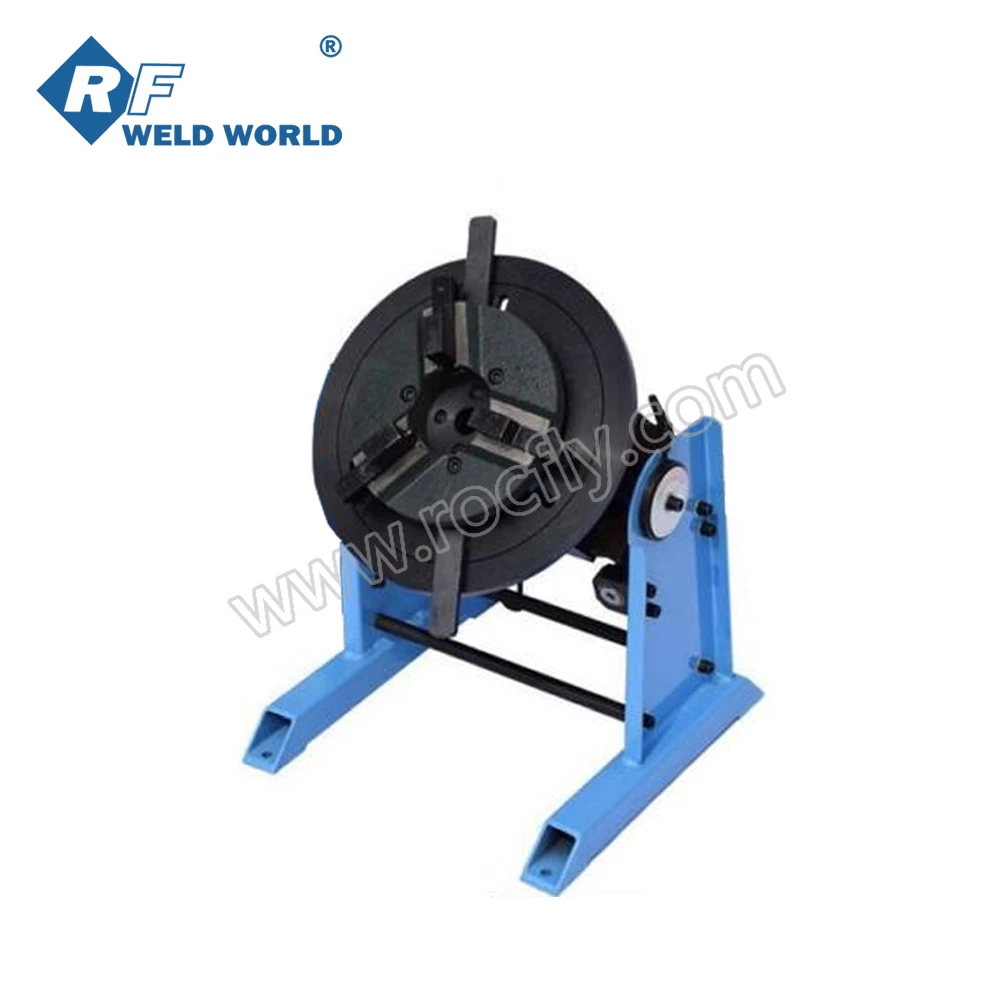

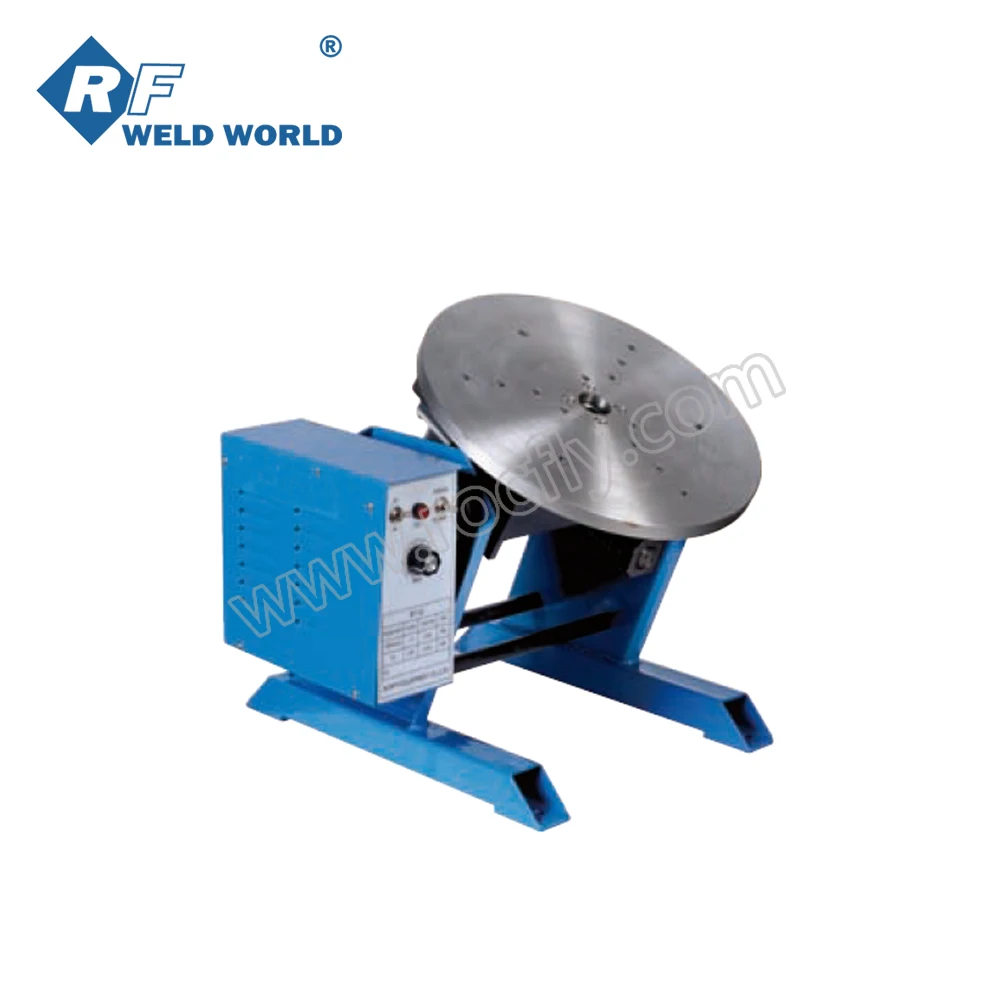

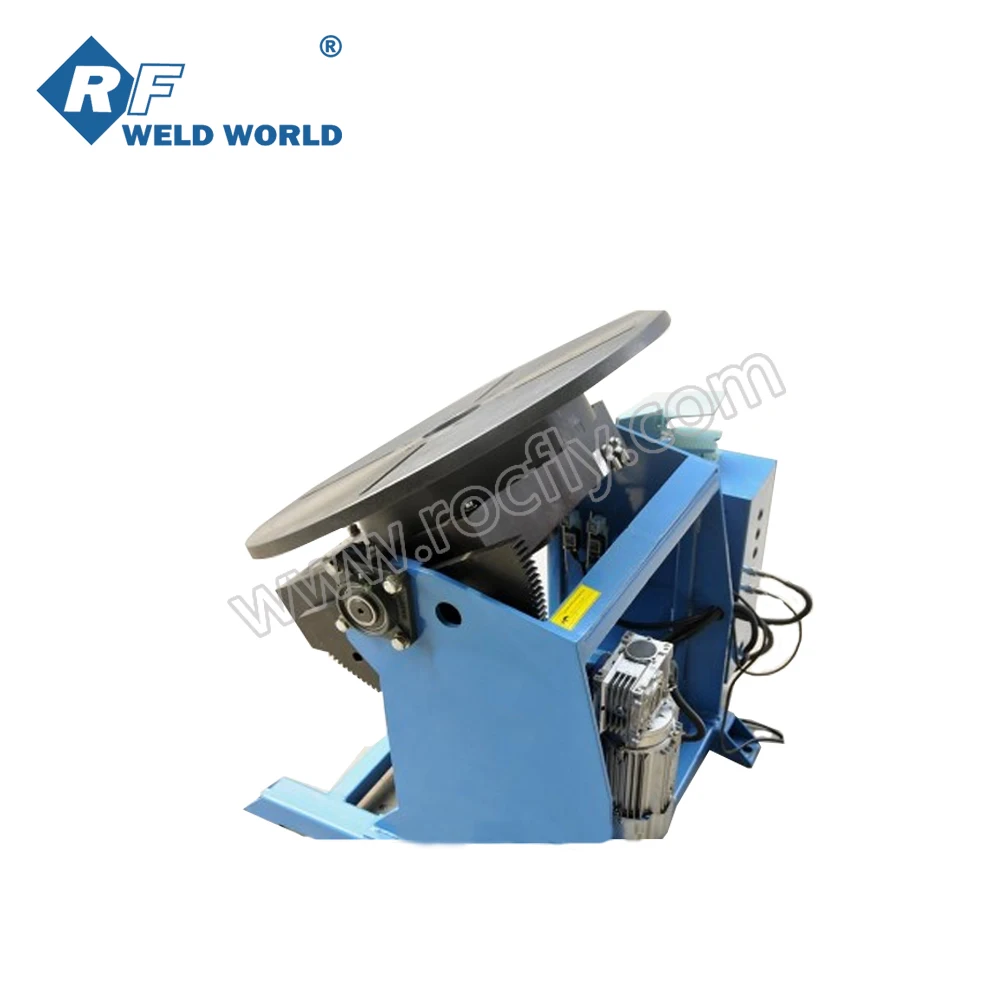

BYT-100 Soldering Rotary Positioner Table
Auto Pipe Welding Positioner 100kgs
1. While welding, the through hole positioner is convenient for the pipe to be clamped and positioned, so it has improved the accuracy degree og welding.
2. While the pipe is welded, the through hole positioner will protect the gas when it go through the internal pipe, the it has improve the efficiency and quality of welding.
| Model | BYT-50 | BYT-100 | BYT-200 | BYT-500 |
| Input Power | AC110V/220V 50/60HZ | AC110V/220V 50/60HZ | AC110V/220V 50/60HZ | AC380V 50/60HZ |
| 0°Capacity(horizontal) | 50KG | 100KG | 200KG | 500KG |
| 90° Capacity(vertical) | 25KG | 50KG | 100KG | 250KG |
| Table Dimension | 340mm | 340mm | 390mm | 690mm |
| Center of gravity | 100mm | 100mm | 100mm | 200mm |
| Eccentricity | 100mm | 100mm | 100mm | 200mm |
| Rotation Speed | 1-5rpm | 0.5-5rpm | 0.5-4rpm | 0.2-2.5rpm |
| Tilt Motor | // | // | // | AC550W |
| Tilt Range | 0-90° | 0-90° | 0-90° | 0-90° |
| Tilt Mode | Manual | Manual | Manual | Motor Drive |
| Rotation Motor | DC90W | AC0.12KW | AC0.20KW | AC400W |
| Center Hole's Dia. | 25mm | 25mm | 65mm | 100mm |
