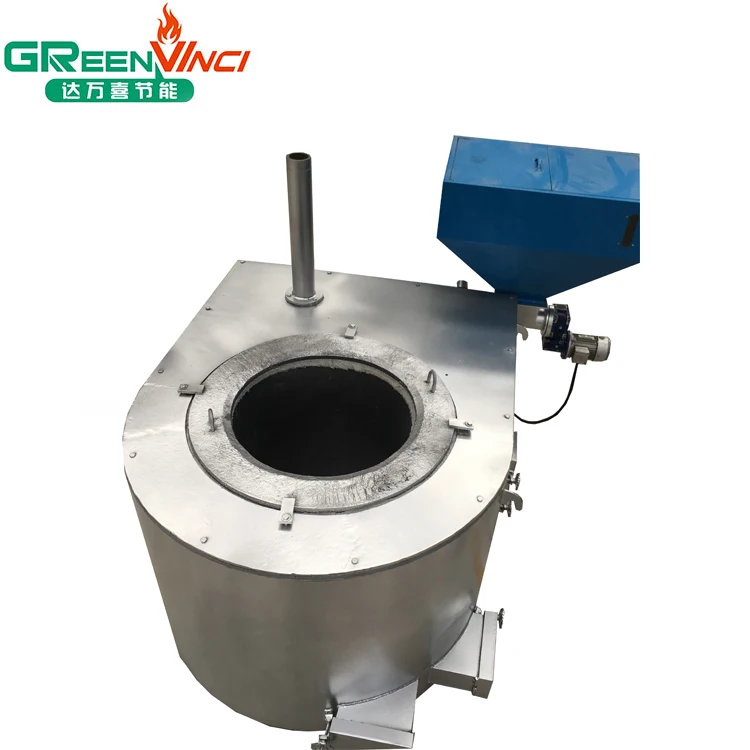

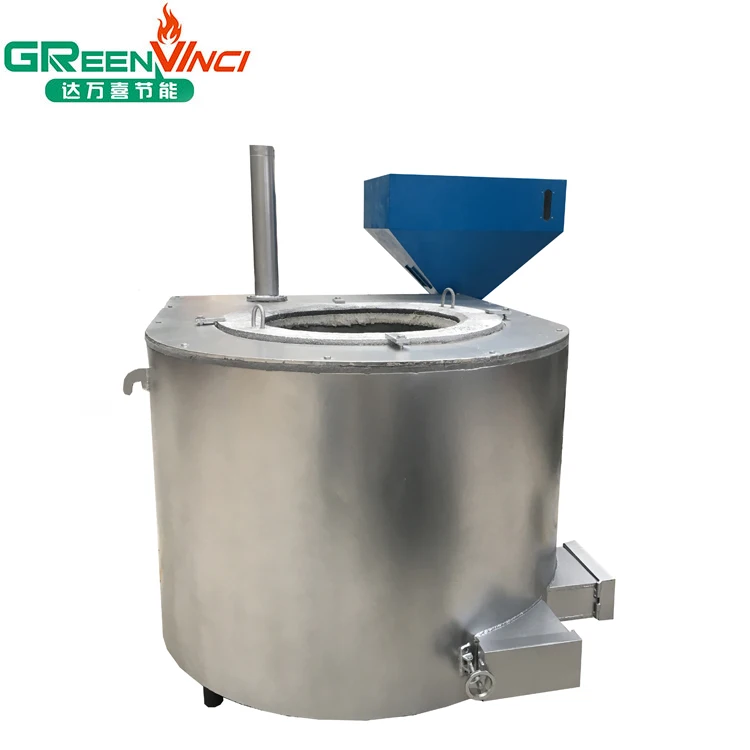

low pollution easy operation aluminum smelter aluminium melting furnace
- Category: >>>
- Supplier: Foshan Greenvinci Biomass Machinery Co. Ltd.
Share on (60713113727):
Product Overview
Description
GreenVinci Aluminum melting pellet burner furnace (biomass integrated aluminum melting furnace) is a Crucible furnace, with burning ,melting, insulation capabilities , is currently the most perfect design, highest degree of automation, with a number of patented aluminum melting furnace. Mainly used in melting or smelting aluminum, zinc, lead, tin, cadmium and other low-melting non-ferrous metals and alloys, and supporting the use of die-cast function well; also can be used for liquid aluminum insulation, in addition to gas, refining. With the advantage of high acceptance by operators , environmental friendly ,low operating cost, simple operation and maintenance , saving 30 ~ 60% of fuel costs than the traditional fuels oil (gas), electric
Application range:
Widely supporting mechanical and aluminum die-casting plant, adapted to industrial aluminum, zinc, lead, tin, cadmium and other low melting point non-ferrous metals melting and insulation , but also as aluminum scrap, industrial aluminum and various metal scrap melting into the ingots.
Product Parameter
Item no. | Melting capacity | Liquid alu capacity | Die-casting machine | Power | Size(LxWxH) | ||
GV-300-AL | 100kg/h | 300kg | 180T-350T | 0.75kw | 1700 | 1600 | 1770 |
GV-500-AL | 150kg/h | 500kg | 350T-500T | 0.75kw | 1800 | 1600 | 1800 |
GV-800-AL | 180kg/h | 800kg | 500T-630T | 1.3kw | 2000 | 1900 | 2150 |
Product Feature
1. easy to clean recycled aluminum liquid leak
Equipment using split design, the base can be separated from the main furnace . In case the aluminum liquid leak ,can get it out from the base removed . It is quickly and easily.
2. unique feeding system design , no get stuck , no fire back
3. PLC control and VFD control of feeder and blower
Feeding ratio, air supply are dual frequency conversion control technology, requires a comprehensive response to various combustion operation digitized. According to the actual needs of the combustion temperature, the flexibility and freedom to set temperature, set intelligent.
4. automatic alarm system
5. high-quality accessories, stable performance electronic control system (stable quality, durable)
6. Nice appearance, good design and practical
Nice appearance, color coordination and compact design ,carefully making ,with metal paint spraying, frame welding with lifting holes for easy lifting equipment and maintenance.
7. unique functions and dust cleaning the internal structure, cleaning is simple and easy to operate
Economic Analysis
Take a 280 T die casting machine for example, 24 hours a day production, one day out of 4,000 die; 400g per modulo calculation; daily consumption of aluminum liquid 1600kg; work 30 days a month, working 300 days a year total.

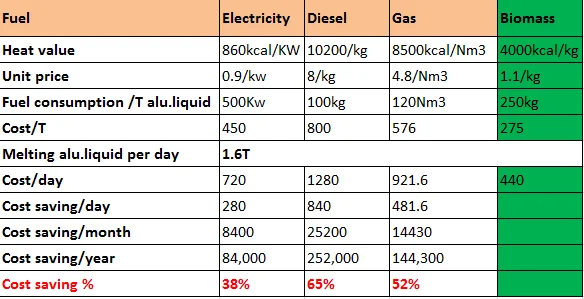

The following is the cost comparison of various fuels: (RMB)
Project:
