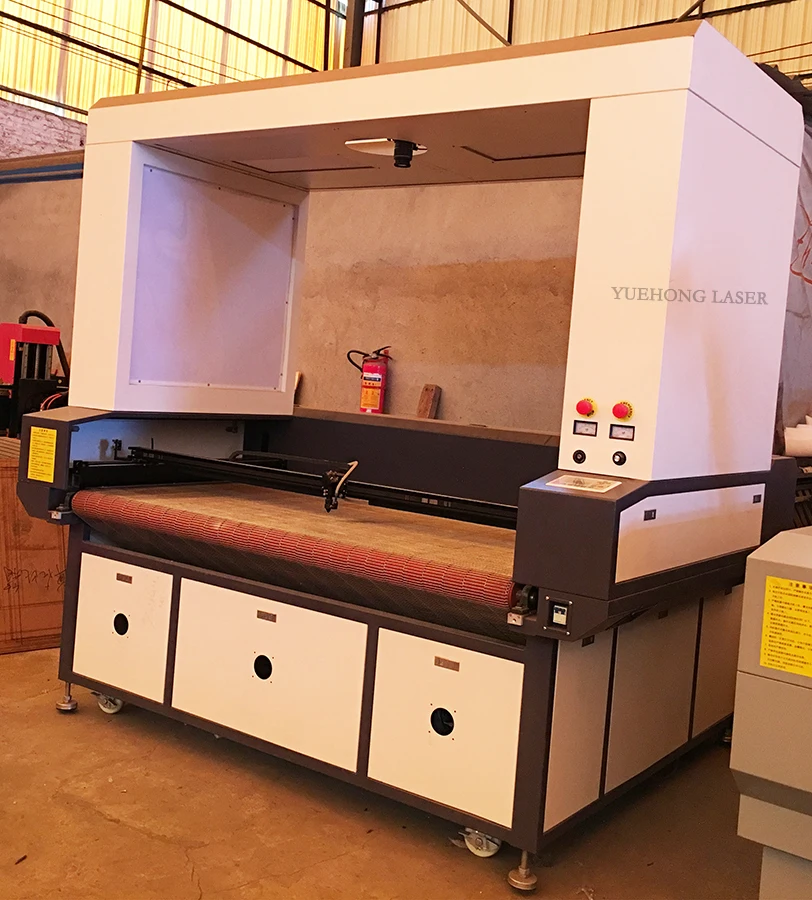

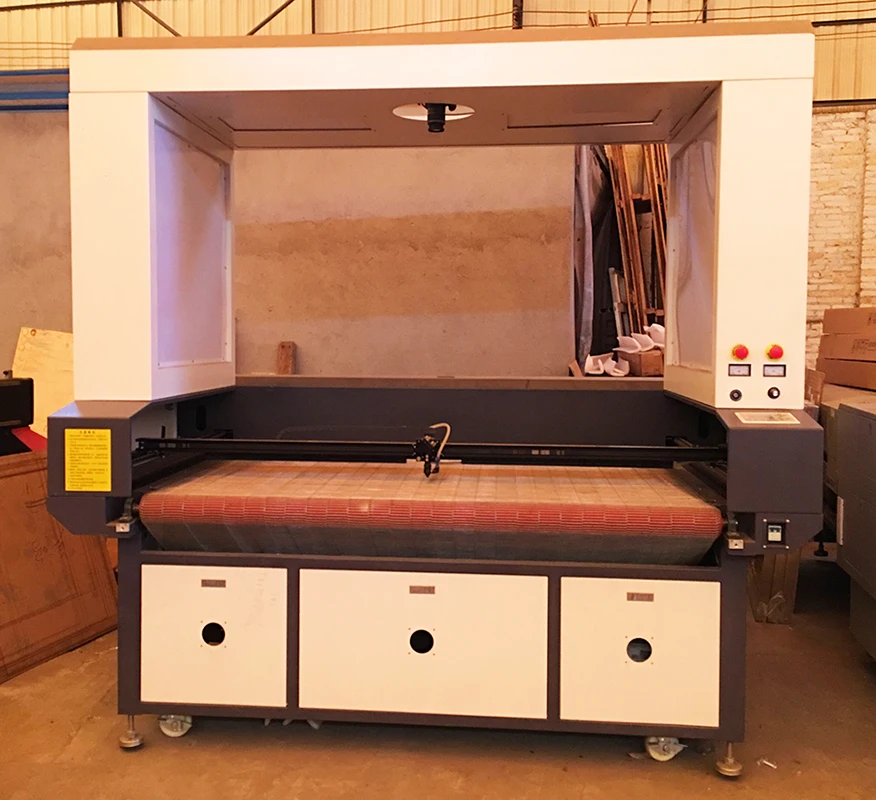

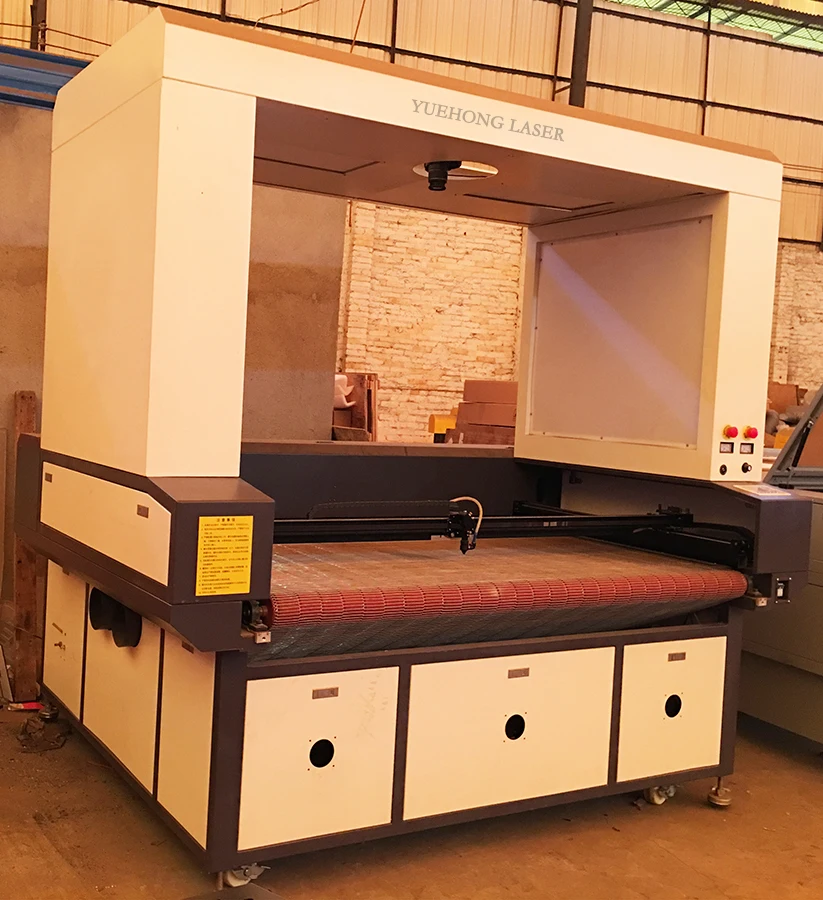

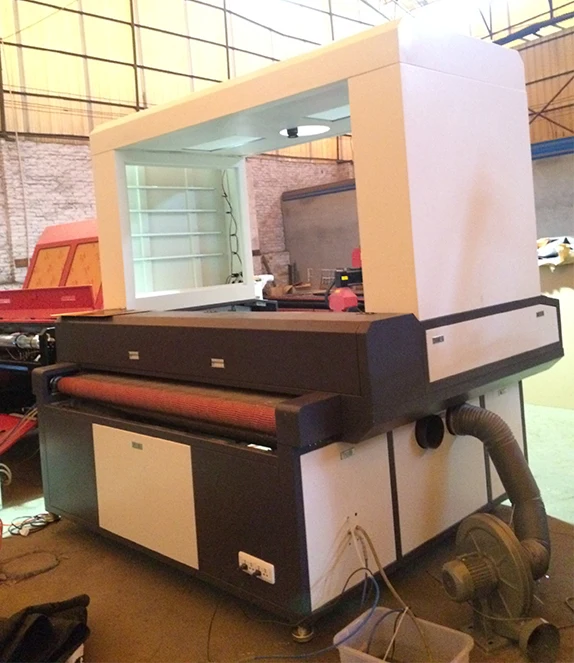

High precision 1810 1800x1000mm for fabric plush toys trademarks auto feed CCD camera Laser Cutting Machine
- Category: >>>
- Supplier: FoShan YueHong Machine Equipment Co. Ltd
Share on (60713115087):
Product Overview
Description
Product Description
High precision 100w 1810 for fabric plush toys trademarks auto feed CCD Laser Cutting Machine
Widely used in the industries of trademarks, garment leather, cloth toy, computerized embroidery cutting, templates cutting, paper products and other industries, with the development of garment industry towards personalization, heterotypic trademarks demand more and more, in traditional cutting technology can't meet the need, but the camera laser cutting machine is the perfect do different trademark cutting, guangdong macro laser machine series, high-grade configuration, stable performance, faster.
Configuration:
1.8 million pixels high resolution CCD camera, which can accurately identify the edge
2.DSP control system, stable performance
3.128 m large capacity memory faster
4.Germany import stepper motor
5.Taiwan imported six balanced linear guide
6.Usb data transmission interface
7.Chinese LCD display, the humanized control panel
8.Domestic 80 w laser
9.All stainless iron honeycomb floor high strength work platform
The CCD automatic positioning laser machine features:
1..System is light, save a space, easy to operate.High-performance laser, perfect optical system, laser power stability, long service life.A red indicator, easy to locate and cutting the preview.
2. High precision stepper motor drive, precision of synchronous belt and belt wheel transmission, ensure high speed and precision.
3. With waste boxes, clean up the cutting waste more convenient.
4. The use of advanced DSP control technology, which can realize fast continuous curve cutting
5. Automatic camera positioning cutter by computer vision system to design intake at work, after processing, can automatically search the workpiece and accurate positioning of cutting, avoid the user for positioning are not allowed to be struggling to keep up.
6. The realization of continuous fast curvilinear cutting function, is due to the powerful data processing ability to high-end DSP technology, computer software targeted design and meticulous precision machinery system, in the case of high speed, cutting straight without deformation, cutting curve no distortion.
Product parameters:
| Model | YH-1810 |
| Engraving Area | 1000x900MM |
| auto feed | yes |
| cutting Speed | 0-18000mm/min |
| engraving speed | 0-36000mm/min(stepless speed regulating) |
| laser tube power | 80w/100w/130w/150W |
| Natural life of laser | warranty for 6-9months |
| Laser wave length | 10.6um |
| Resolution ratio | 0.025mm |
| Minimum shaping character | Chinese character 2mm/ letter 1mm |
| Resetting positioning accuracy | ±0.01mm |
| Voltage | Ac220v±10%,50HZ/60HZ |
| Operating Temperature | 0℃-45℃ |
| Operating humidity | 5%-95% |
| Graphic Format Supported | BMP,HPGL (PLT), DXF, G-CODE, DST,AutoCAD, CorelDraw, CAD CAM, AI, Photoshop |
| software supported | Coreldraw,AutoCAD,Photoshop.llustrator etc |
| lens | reflect lens(3pcs)+import focus lens(1pcs) |
| guide Rail | high quality taiwan guiderail |
| Driver Type | leadshine stepmotor |
| cutting table | aluminium slot/honeycomb table |
| cooling sytem | cw3000/cw5000/cw5200 |
| software | Ruida control |
| Opearate System | Win98/Win2000/WinXP/Win 7/vista |
| interface | LCD screen with USB interface |
| Max Cutting thickness | Acrylic up to 25mm |
| pass through doors | Allow to cut extremely long materials |
| packing | polywood case for export standard |
| Assistant equipment | exhaust-fan,air pump,industry chiller |
Standard accessories:
1) 1× Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1× Exhaust fans with Tube ducts (install inside machine)
3) 1× Water pump/Industrial chiller
4) 1× USB Cable (connecting PC and laser)
5) 1× DVD (including software, user manual, guiding videos etc)
6) 2× Power cables
7) 1× Tool box
Warranty&After-sales Service:
1. Warranty for 1 year for the whole machine(excluded consumable parts).
2. Response within 24 hour by email or calls.
3. User-friendly English manual and CD for machine usage and operation.
Packaging & Shipping
1.pear wool +polywood case
shipping:
This item will be delivered after 5 working days since get your clear payment. Saturday, Sunday and Chinese public holiday is not available.
It all depends on the vessel and the destination port of how long to reach, due to different countries.
4).The shipping item is C&F destination sea port. That is to say, we only deliver this goods to your sea port but not to your door.
So please pick up this machine at your sea port as soon as possible when it arrives.
The extra warehouse fee and importing taxes in destination sea port should be covered by buyers.
Our Services
1.we are directly maufacturer of laser cutting machine ,laser engraving machine ,cnc router with rich experience in guagnzhou china mainland.
2.our facoty is located in guangzhou beautiful city .
3.free make sample. free training for how to operate the machine.
4.good quality good price.no middle businessman make the profit. directly price to supply to client.
5.CE certificate.
Company Information
We are a professional direct manufacturer, not vendor. So good price, complete after sale service, technical support and full set of available accessories is our advantage.
We have many other models, such as YH3020, YH4040, YH9060,YH1210, YH1290, YH1390, YH1610, YH1810, YH1325, YH3015 etc.
If you have special requirement, such as need double laser heads, need water chiller or rotary attachment, pls contact with us for quotation.
We are looking for distributor from all over the world. If you are interested in, please contact with us.
