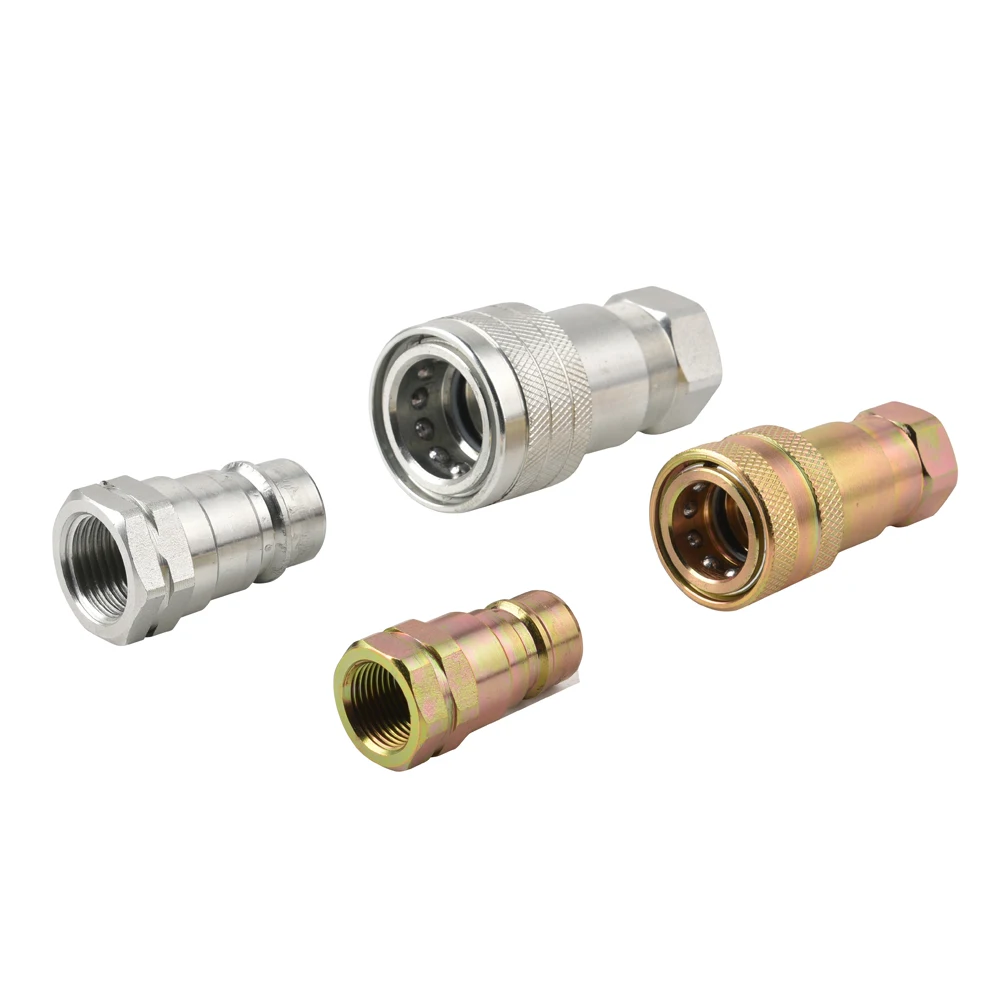

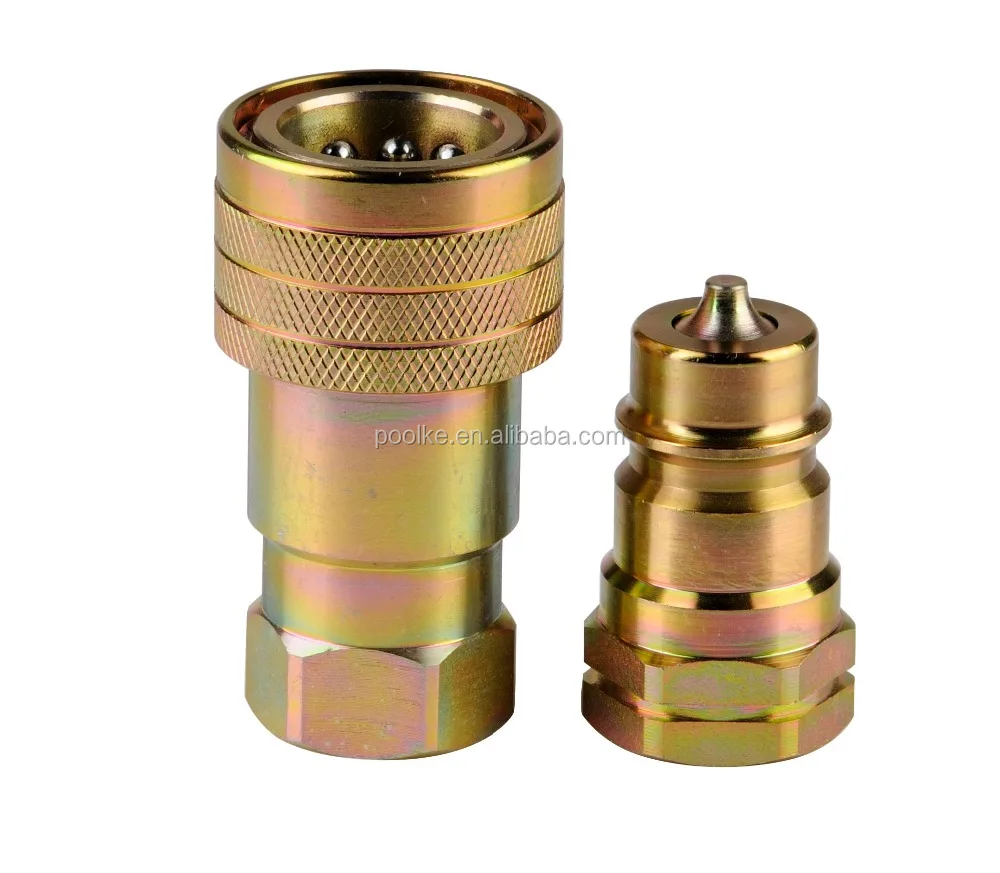

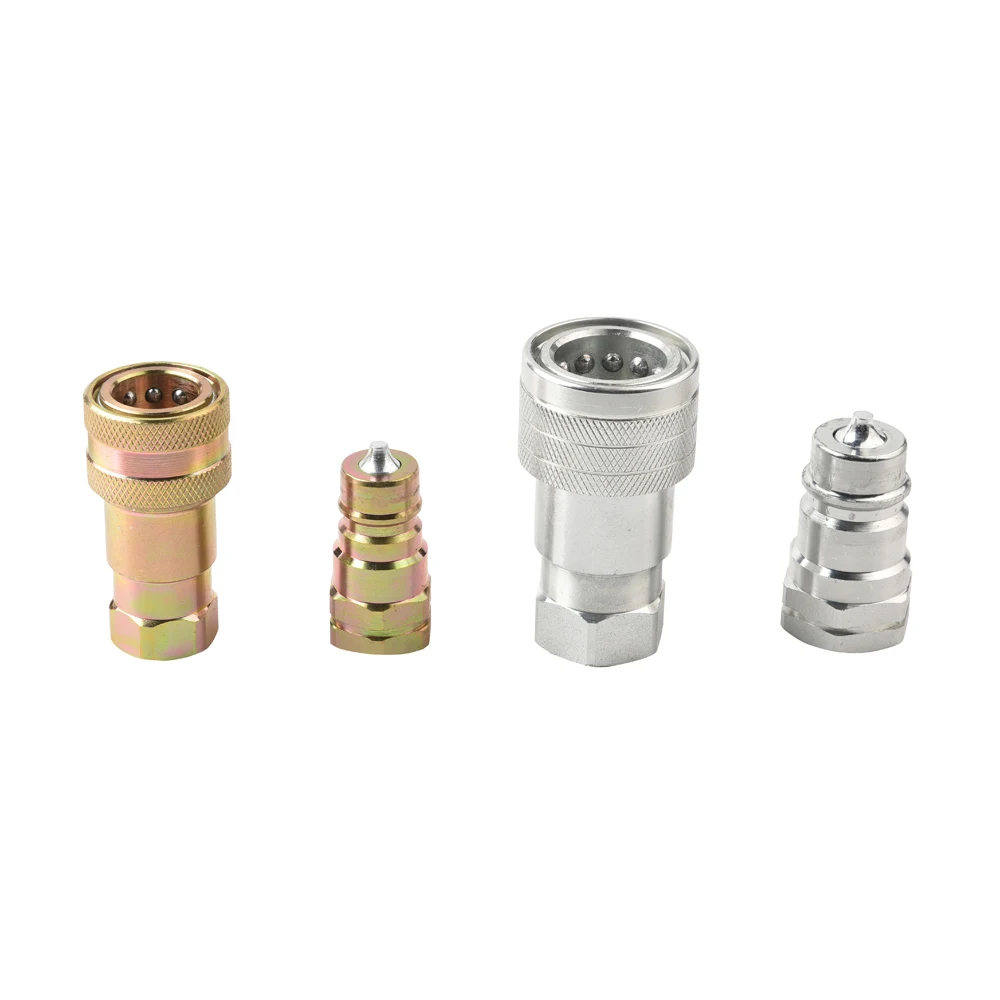

ISO A Hydraulic Quick Coupler

Product Overview

Description

ISO7241-1-A(ISO-A) Hydraulic Quick Couplings



A) Materials:

1) Socket: steel (zinc-chromate plating).

2) Plug: Hardened steel (zinc-chromate plating).

3) Other material options: Brass, Stainless steel are available upon request.

4) Wide Variety of Seal Materials Available.



B) Features:

5) Dimensions & Performance Conform to ISO 7241-1A (ISO-A).

6)  Proven Ball-Locking Design.

7)  Poppet Style Shut-off Valve

8)  Provide an additional PTFE supporting ring to protect O-ring, contributing to high pressure working environment.

9)  Both crucial parts of sleeve and nipple are hardened, the couplings resistant to damage from brinelling and mechanical shock.

10) The durable-ball-locking mechanism ensures a reliable connection every time.

11) Captive valve seal assures poppet sealing. The valve seal is positively captured by the metal poppet to minimize seal washout or damage from high velocity fluid.  12) Dust caps is available, female pipe and BSPP or NPT thread are available upon request.

13) The KIS-A series is a general purpose coupling that is supplied in a double shut-off Configuration for use in applications such as test equipment, agriculture, mobile hydraulics,in-plant hydraulics, machine tool, plastic molding, Departments of Transportation among others.



C) Interchange:

Parker 6600; Nitto 280;Hansen HA15000; Foster A series;Faster ANV;Cejn X95.

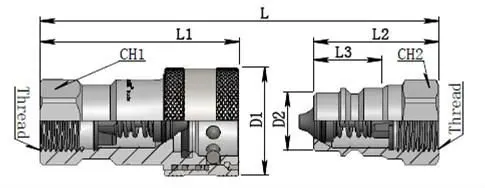

PART NO.	ISO	Thread	L	L1	L2	D1	D2	CH1	CH2
KIS-A-G02SP	6.3	G1/4	70	49	35	26	11.8	19	19
KIS-A-G03SP	10	G3/8	85	60.5	42	30	17.3	22	22
KIS-A-G04SP	12.5	G1/2	96	70	48	38	20.5	27	27
KIS-A-G06SP	20	G3/4	114	84.5	56	45	29.1	34	34
KIS-A-G08SP	25	G1	131	99	66	52	34.3	41	41
KIS-A-G10SP	31.5	G1-1/4	150	117	75	70	45	50	50
KIS-A-G12SP	40	G1-1/2	167	133	84	82	55	60	60
KIS-A-G16SP	50	G2	216	169	108	99	65.1	75	75



Main Market: North America, Australia, Europe, Africa and Middle East

MOQ: 100 Each Product

Manufacturing Capacity: 1,000,000 Pieces/Month

Lead Time:20-45Days

Port:Ningbo and Shanghai
