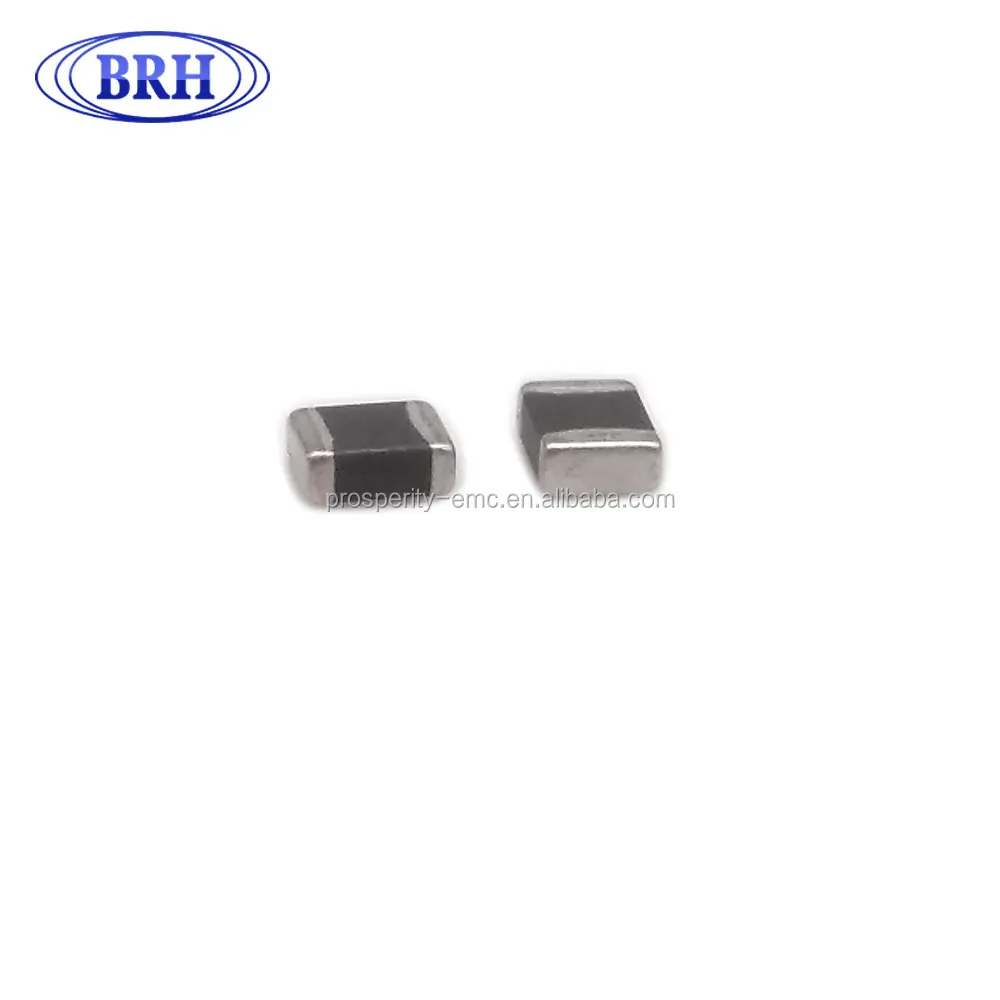

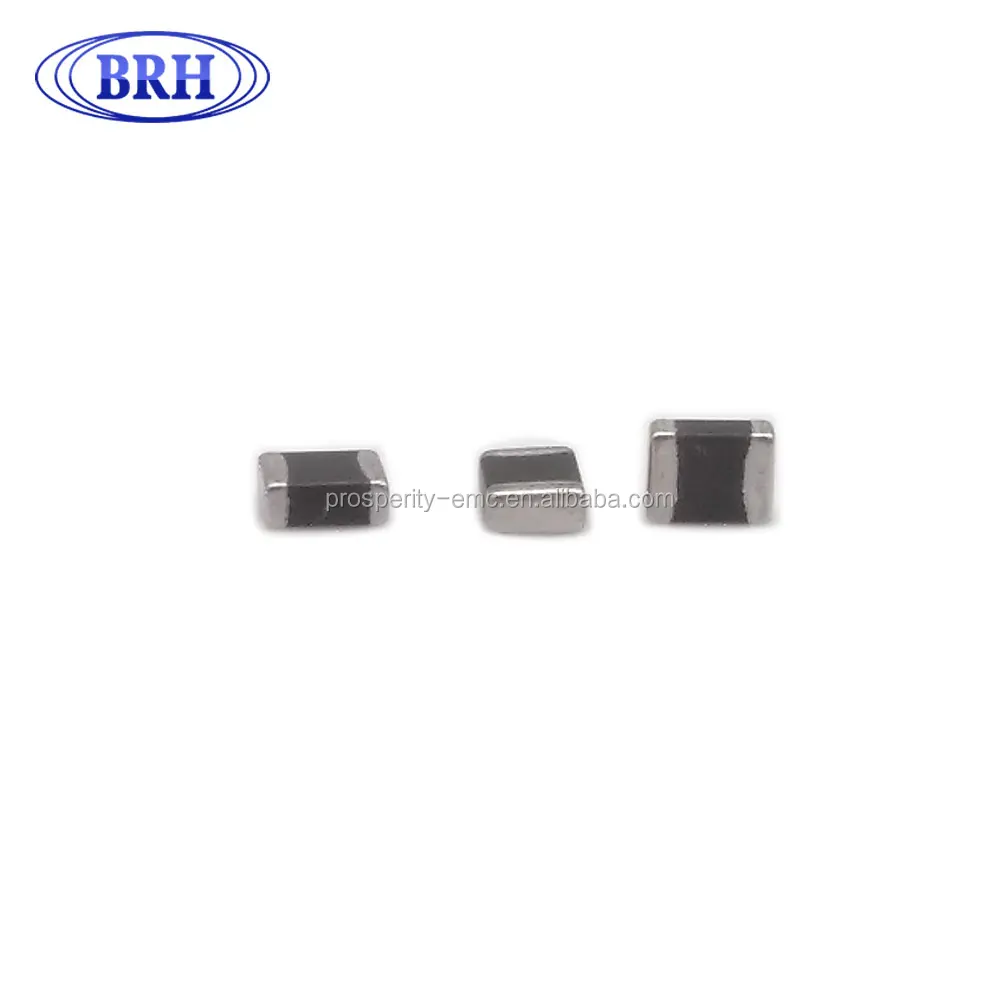

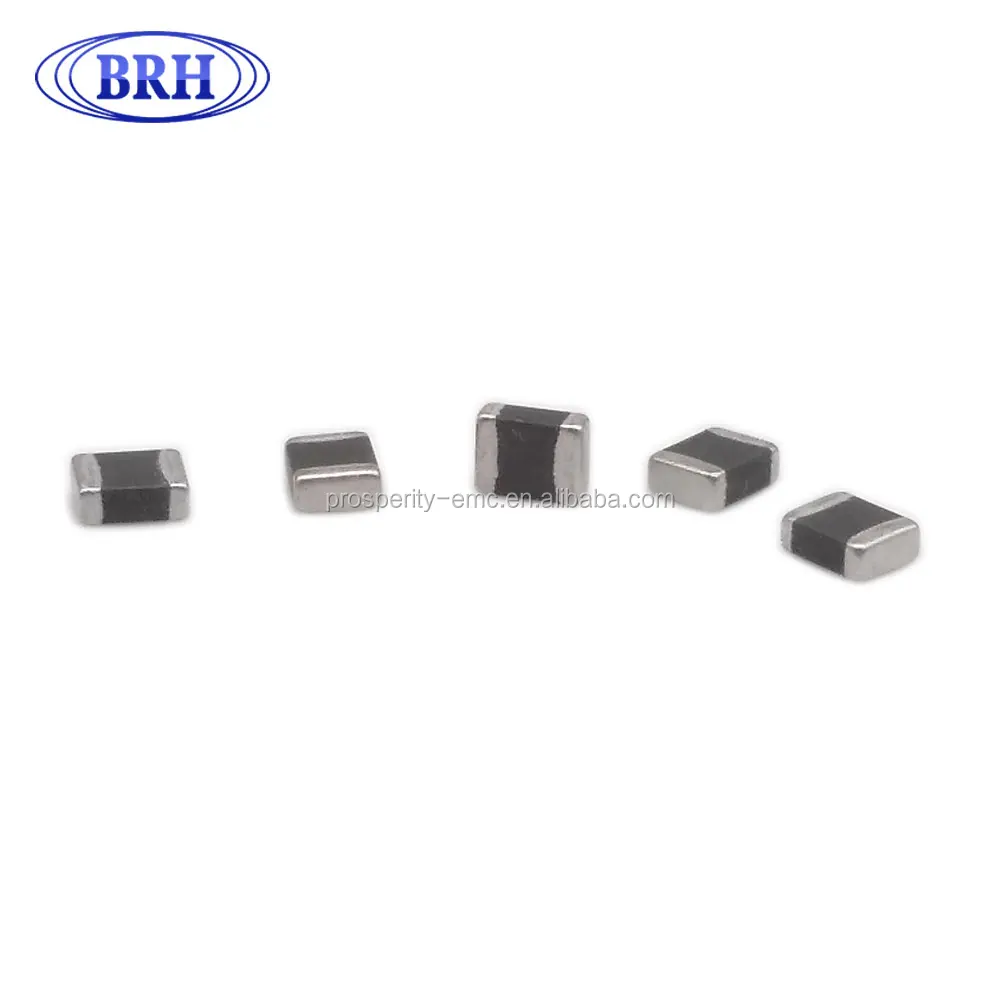

  • High current multilayer ferrite chip bead inductor 1210 size 300ohm 5A
High current multilayer ferrite chip bead inductor 1210 size 300ohm 5A
High current multilayer ferrite chip bead inductor 1210 size 300ohm 5A
High current multilayer ferrite chip bead inductor 1210 size 300ohm 5A
High current multilayer ferrite chip bead inductor 1210 size 300ohm 5A
High current multilayer ferrite chip bead inductor 1210 size 300ohm 5A

High current multilayer ferrite chip bead inductor 1210 size 300ohm 5A

Share on (60713166506):


Price:

Quantity:


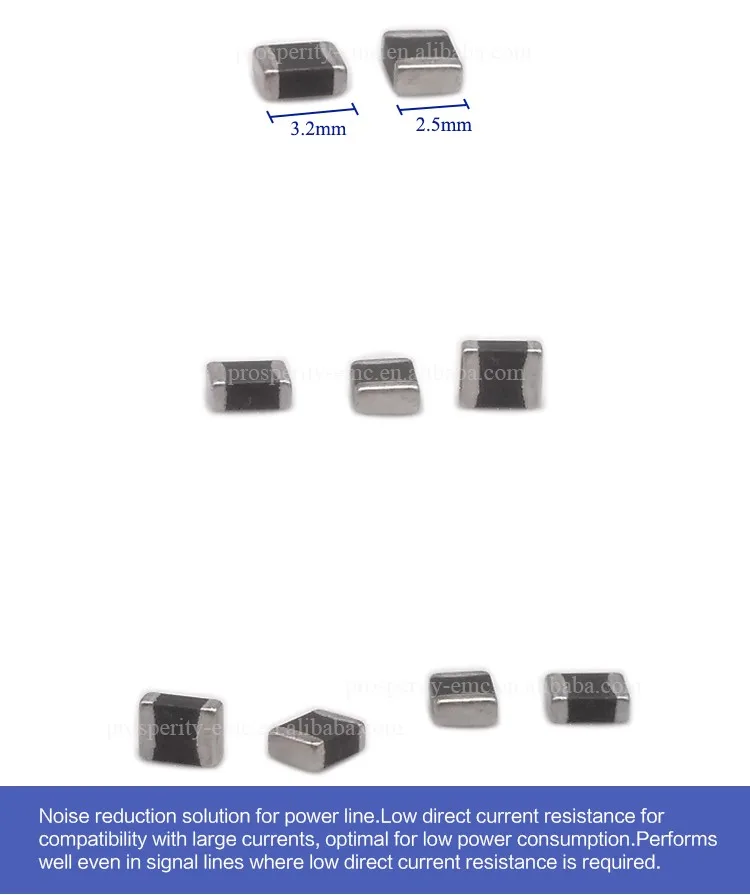

Product Overview

Description


Description
\t
SIZE CODE(mm)
\t
A
\t
B
\t
C
\t
D
\t
1206
\t
3.2±0.2
\t
1.6±0.2
\t
1.1±0.2
\t
0.5±0.3
\t
1210
\t
3.2±0.2
\t
2.5±0.2
\t
1.3±0.2
\t
0.5±0.3
\t


SIZE CODE
(inch)
\t

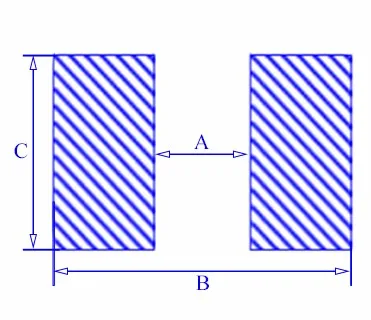

RECOMMENDED PATTERN
(mm)
\t

A
\t

B
\t

C
\t

1206
\t

2
\t

4.2-5.2
\t

1.2
\t

1210
\t

2
\t

5.5-6.5
\t

1.8
Parameter
\t
Detailed specifications and parameters are introduced
\t

ORDERING CORE

\t
Impedance
(Ω)
\t
DC Resistance
(Ω)MAX
\t
Rated Current
(mA)MAX
\t
BEAD1210S280A40T
\t
28
\t
0.035
\t
4000
\t
BEAD1210S600A15T
\t
60
\t
0.150
\t
1500
\t
BEAD1210S800A50T
\t
80
\t
0.020
\t
5000
\t
BEAD1210S121A40T
\t
120
\t
0.035
\t
4000
\t
BEAD1210S151A50T
\t
150
\t
0.020
\t
5000
\t
BEAD1210S201A40T
\t
200
\t
0.035
\t
4000
\t
BEAD1210S301A30T
\t
300
\t
0.040
\t
3000
\t
BEAD1210S301A40T
\t
300
\t
0.035
\t
4000
\t
BEAD1210S301A50T
\t
300
\t
0.025
\t
5000
\t

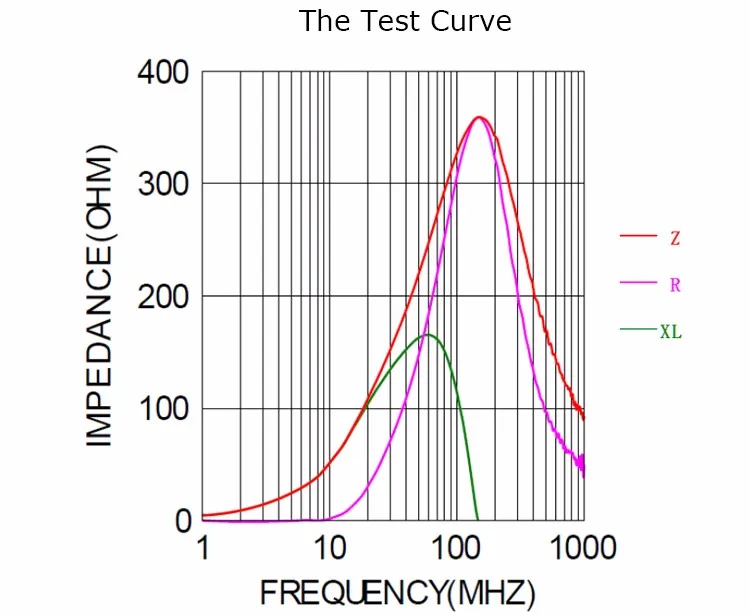

Test Frequency: 100MHz                            Tolerance:±25%
\t
Test Data For Pre Production Samples
\t
MEAS. Item
\t
Z
 (Ω)
\t
RDC
 (Ω)
\t
A
 m/m
\t
B
 m/m
\t
C
 m/m
\t
D
 m/m
\t
Suggest
\t
300±25%
\t
0.025+0
\t
3.20±0.2
\t
2.50±0.2
\t
1.30±0.2
\t
0.50±0.3
\t
1
\t
341.02
\t
0.021
\t
3.25
\t
2.58
\t
1.25
\t
0..51
\t
2
\t
341.59
\t
0.022
\t
3.25
\t
2.56
\t
1.25
\t
0.52
\t
3
\t
342.03
\t
0.021
\t
3.23
\t
2.56
\t
1.26
\t
0.51
\t
4
\t
348.79
\t
0.022
\t
3.26
\t
2.57
\t
1.26
\t
0.51
\t
5
\t
341.05
\t
0.023
\t
3.24
\t
2.58
\t
1.25
\t
0.49
\t

\t

\t

\t

\t

\t

\t

\t
X-bar
\t
342.90
\t
0.02
\t
3.25
\t
2.57
\t
1.25
\t
0.41
\t
R
\t
7.77
\t
0.002
\t
0.03
\t
0.02
\t
0.01
\t
0.03
\t
The above test data for reference,Actual results may differ due to different production batches
