automatic aluminum extrusion puller hydraulic puller
- Category: >>>
- Supplier: Jiangsu Giansun Precision Technology Group Co. Ltd.
Share on (60713170955):
Product Overview
Description
Product Description
Puller:
1.Pulling force: 0～100kg
2.Pulling speed: 10～80m/min (constant tension servo)
3.Return speed: 200m/min (speed adjustable)
4. Clamping efficient widh: 260mm
5. Total length: -41m
6. The puller is driven by chain
7. Operating method: manual, automatic (during extrusion, go forward; when the press stops, it will stop and come back).
8. Power of variable frequency motor: 7.5KW
2.Pulling speed: 10～80m/min (constant tension servo)
3.Return speed: 200m/min (speed adjustable)
4. Clamping efficient widh: 260mm
5. Total length: -41m
6. The puller is driven by chain
7. Operating method: manual, automatic (during extrusion, go forward; when the press stops, it will stop and come back).
8. Power of variable frequency motor: 7.5KW

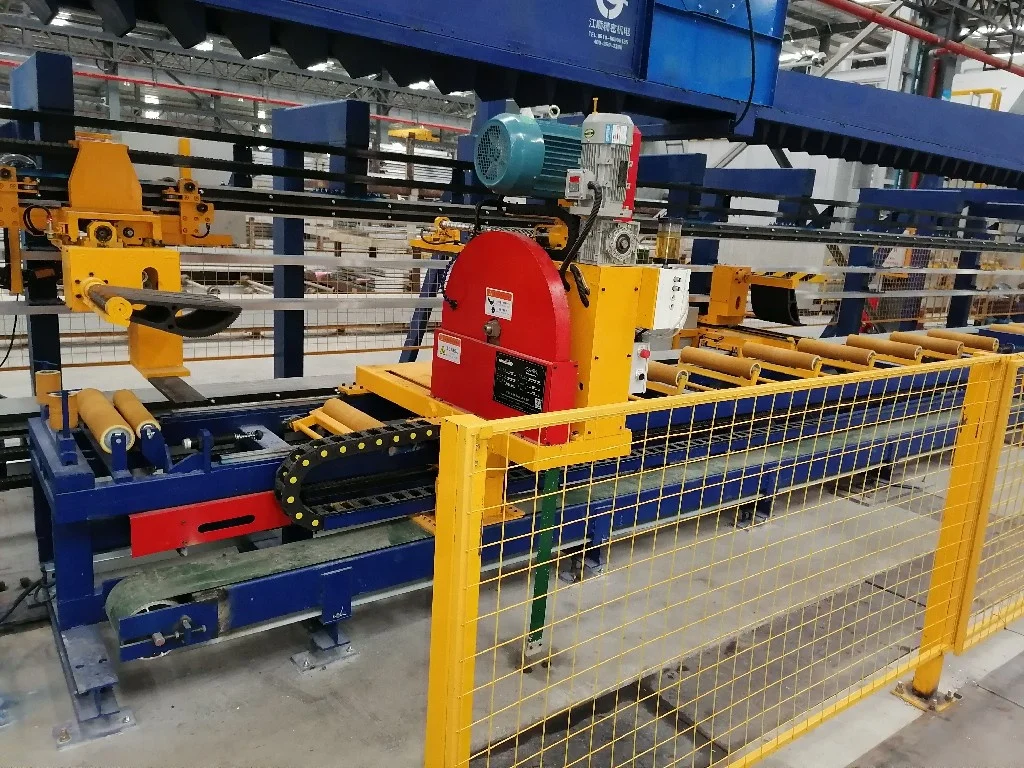

Hot saw:
1. Saw disc diameter: 24 inches
2. Saw motor: 5.5 kw
3. Working mode: cut profiles during press pause
4. Saw disc lubrication: auto
1. Saw disc diameter: 24 inches
2. Saw motor: 5.5 kw
3. Working mode: cut profiles during press pause
4. Saw disc lubrication: auto
Lead-out table
1. Equip with 9m lead-out table to work with single puler
2. Adopt PBO rollers for the lead-out table, resistant temp. Up to 600 degres.
PBO roller dimensions: 96*76*500mm
3. 7 sets of 0.21kw fans are installed under the lead-out table to cool the profiles.
1. Equip with 9m lead-out table to work with single puler
2. Adopt PBO rollers for the lead-out table, resistant temp. Up to 600 degres.
PBO roller dimensions: 96*76*500mm
3. 7 sets of 0.21kw fans are installed under the lead-out table to cool the profiles.
Working principle:
1. Working mode: the hot saw cut profiles when press pause.
2. Power unit: constant-tension traction by using the variable frequency motor; two stage adjusting speed; the trolley is pulled by chain.
3. Mechanism for clamping material: opening & closing of the supporting plate and the lifting movement is controlled by the motor; because the motor can brake and lock the position. The torque limiter can prevent the motor from overloading.
4. PLC control system: PLC communicate with variable frequency controller to control the parameter, thus achieve puller movement and brake. The position is measured via encoder.
5. Touch screen: used to display puller moving status, parameter adjusting,manual operation and alarm etc.
2. Power unit: constant-tension traction by using the variable frequency motor; two stage adjusting speed; the trolley is pulled by chain.
3. Mechanism for clamping material: opening & closing of the supporting plate and the lifting movement is controlled by the motor; because the motor can brake and lock the position. The torque limiter can prevent the motor from overloading.
4. PLC control system: PLC communicate with variable frequency controller to control the parameter, thus achieve puller movement and brake. The position is measured via encoder.
5. Touch screen: used to display puller moving status, parameter adjusting,manual operation and alarm etc.

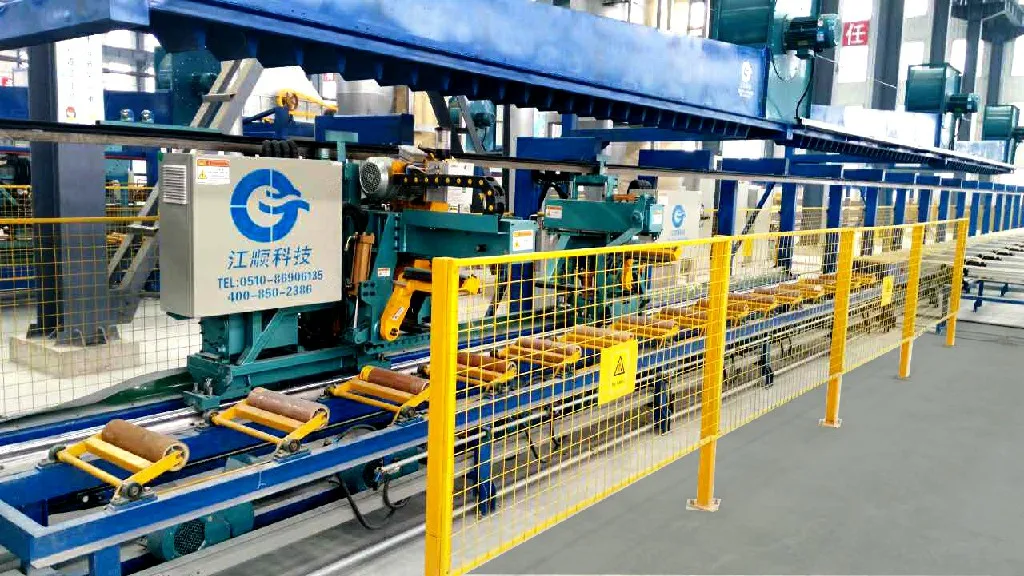

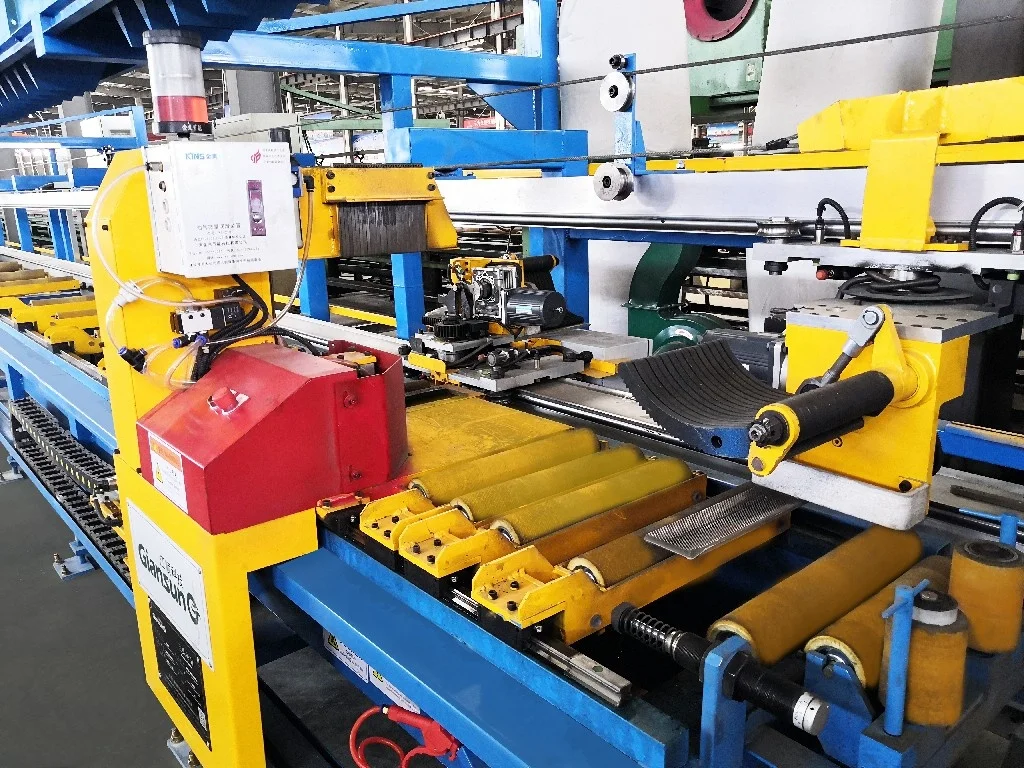

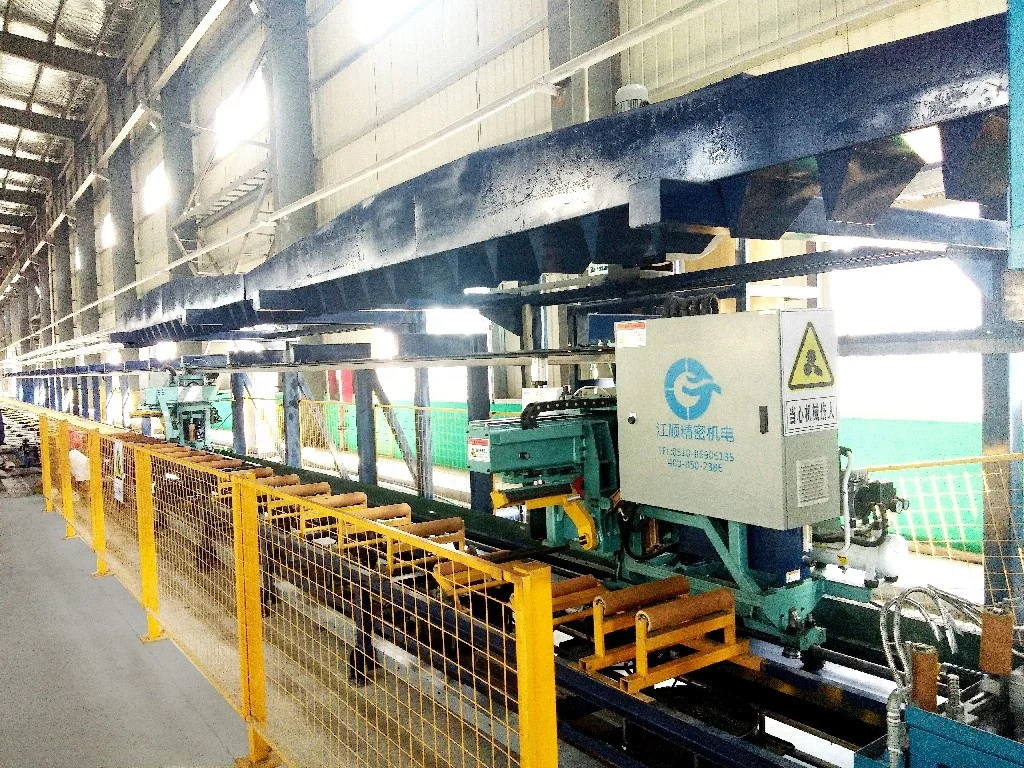

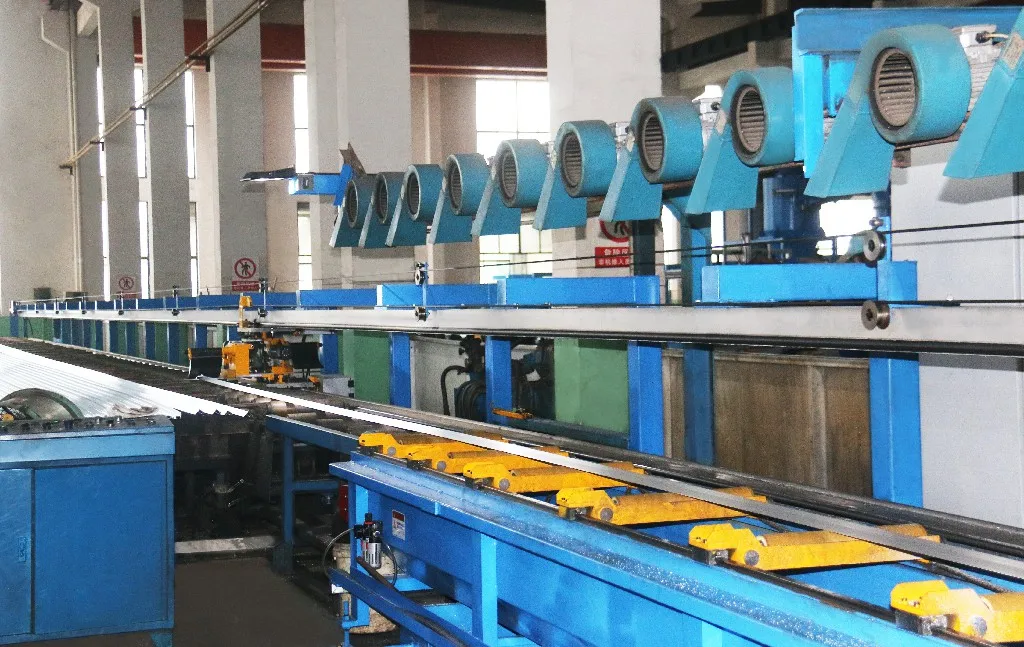

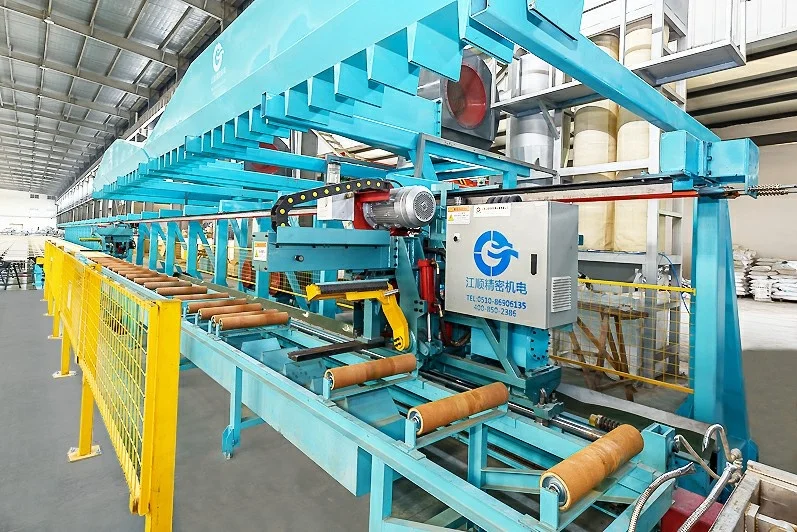

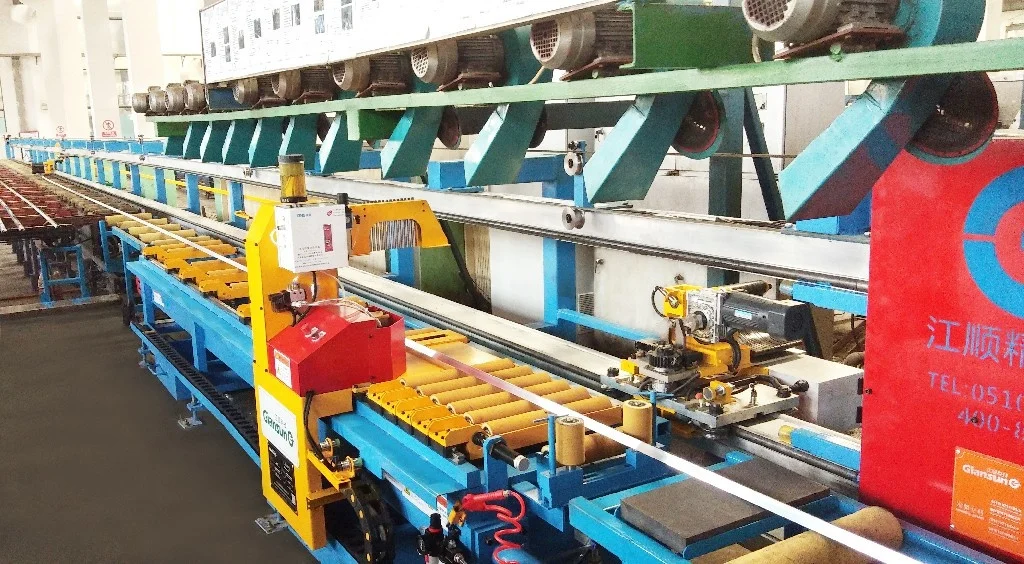

Product Images
After Sales Service
Provide the best factory building support and machine design technical support,
and after-sale support machine usage guide instruction, and field video guide.
If necessary we can send professional technicians there.
Company Introduction
Jiangyin Giansun Aluminum Profile Complete Plant Manufacturing Co., Ltd., which belongs to Giansun Group, is a professional manufacturer of aluminum profile production machine and equipment related to aluminum profile produce. Based on large market share and widely ranged customers, the product made by our factory, such as log/billet furnace body, mould die oven, aging furnace, profile saw, remainder disposal machine, single/double puller, cooling system, etc. and press machine part like container, press rod and hole punching needle, is reputed at home and abroad.
FAQ
1. What's the delivery time of your aluminum extrusion machine?
For ordinary small-sized machine such as saw, 30 days; middle-sized machine such as heating furnace, 45-50 days, for big-sized machine such as cooling system/profile handling system, 60 days. We could also design and make the whole production line for our customer, around 3-6 months.
2. What’s your ordinary shipment method?
We can deliver the machine by land, or by ocean.
For ordinary small-sized machine such as saw, 30 days; middle-sized machine such as heating furnace, 45-50 days, for big-sized machine such as cooling system/profile handling system, 60 days. We could also design and make the whole production line for our customer, around 3-6 months.
2. What’s your ordinary shipment method?
We can deliver the machine by land, or by ocean.
