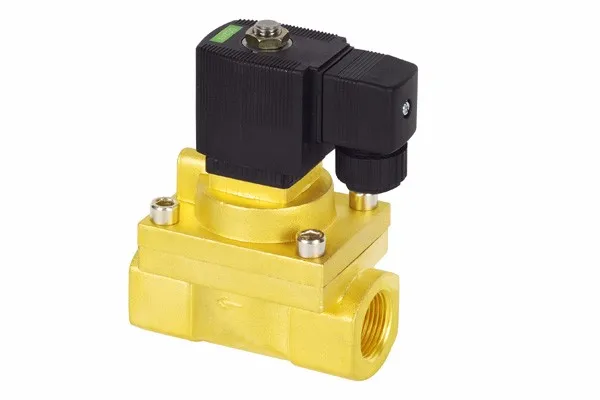

USA Standard High Pressure Air Compressor NC Brass Solenoid Valve 50 bar

Title goes here.

Model\t5231002\t5231002S\t5404-04\t5404-06\t5404-08
Working Medium\tAir, Water, Oil, Gas
Motion Pattern\tDirect Acting Type\tGuide Type
Function Type\tNormal Close
Way Type 2/2
Aperture of flow Rate\t2mm\t2mm\t12mm\t20mm\t25mm
KV Value\t0.2\t0.2\t2.0\t5.0\t10.0
Joint Pipe Bore\tG1/4’’\tG1/4’’\tG1/2’’\tG3/4’’\tG1’’
Working Pressure(Bar)\t0~50\t3~50
Max. Pressure Resistance\t50kgf/cm2
Voltage Range\t10%up and down
Operation Temp Range\t-10~+150'C degree (185’c degree allow)
Insulation & Protection Class \tF Class IP65

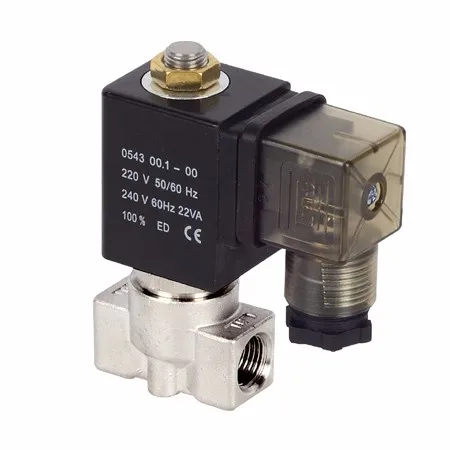

Material of Body\tBrass (S: Stainless Steel)
Material of oil seal\tFKM,PTFE

Title goes here.

Model\t5404-02K\t5404-03K\t5404-04K\t5404-06K\t5404-08K
Working Medium\tAir, Water, Oil, Gas
Motion Pattern\tGuide Type

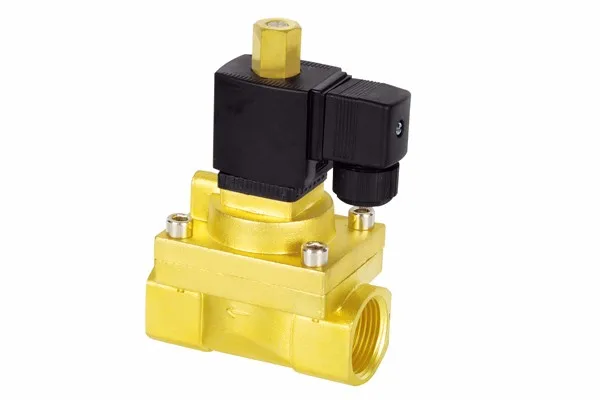

Function Type\tNormal Open
WayType 2/2
Aperture of flow Rate\t12mm\t20mm\t25mm
KV Value\t2.0\t5.0\t10.0
Joint Pipe Bore\tG1/4’’\tG3/8’’\tG1/2’’\tG3/4’’\tG1’’
Working Pressure(Bar)\t3~30
Max. Pressure Resistance\t35kgf/cm2
Voltage Range\t10%up and down
Operation Temp Range\t-10~+150'C degree (185’c degree allow)
Insulation & Protection Class \tF Class IP65
Material of Body\tBrass
Material of oil seal\tFKM,PTFE

Title goes here.

Description:
Two position, two way, normal close switch, magnetic solenoid water valve.
Should be installed in the horizontal tube keep upward.
Used to control automatically the liquid and gas in the pipeline
