Product Description

Economical lathe high precision CD6241 gap bed lathe machine:

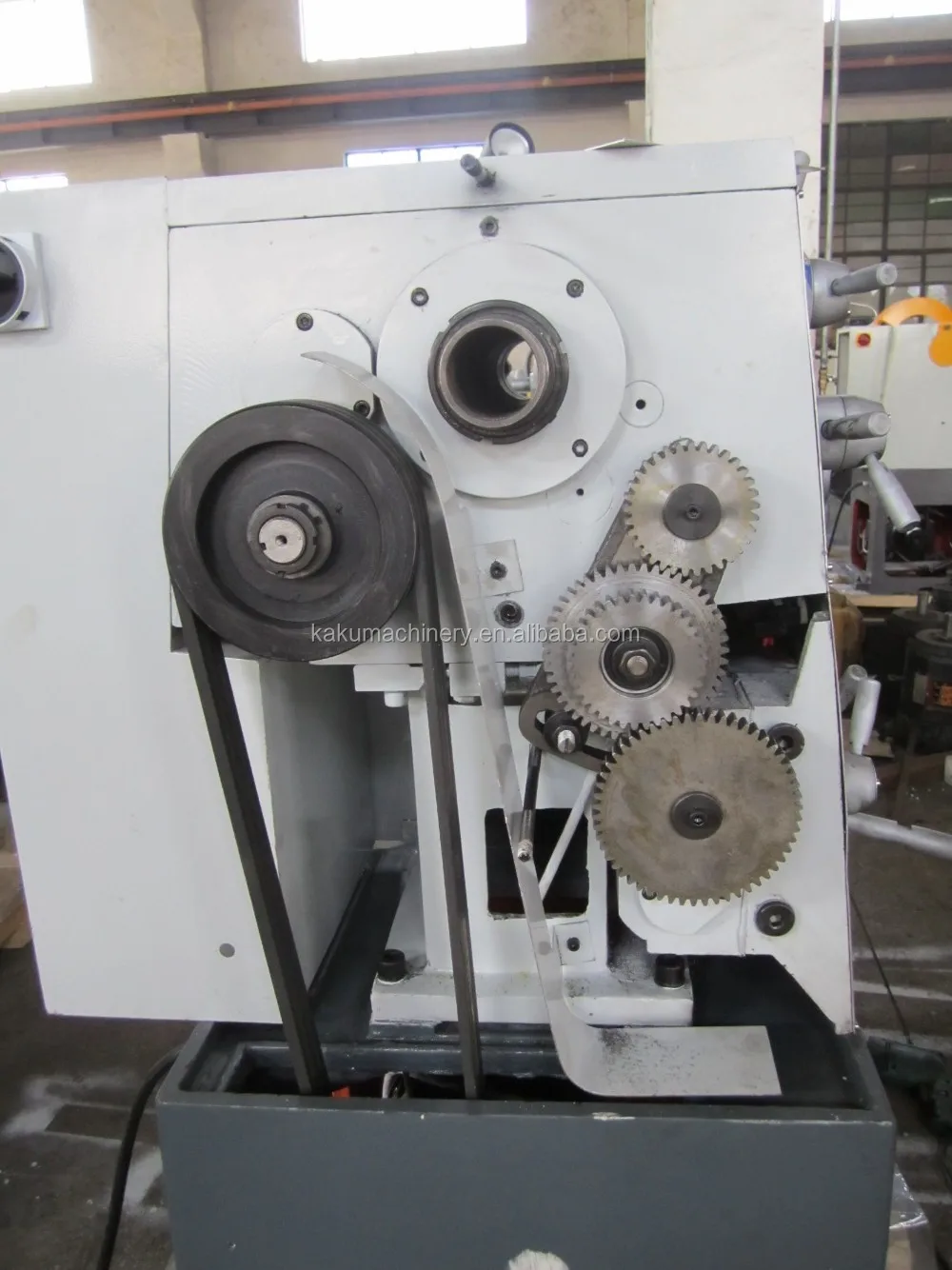

The universal lathe CD6241 is a fantastic model for small to medium-size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. Ingreasing the application area of this model significantly.

Feature:

1. Mechanical foot brake reduces downtime significantly.

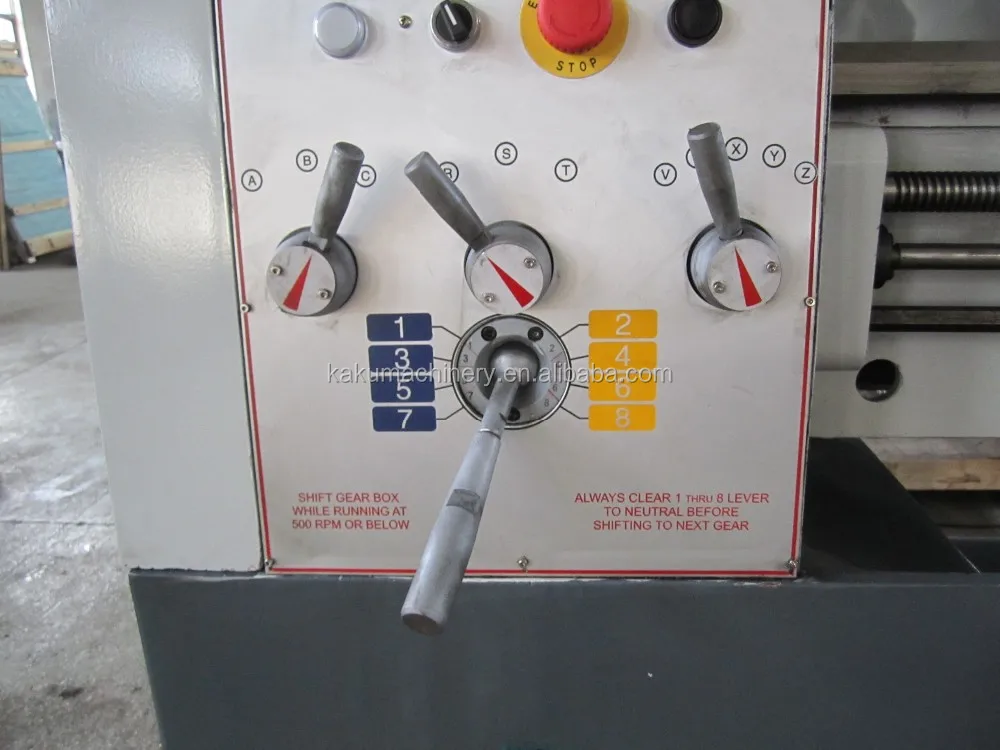

2. Inching button incorporated on the control panel for convenient spindle speed selection.

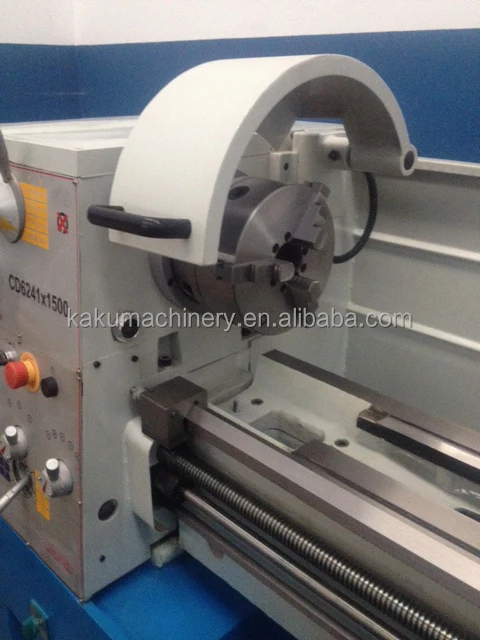

3. Chuck guard fitted with safety micro switch.

4. Coolant system with flexible hose enabling operator to manipulate flow direction.

Parameters
\t
Swing over bed
\t
410mm(16 )
\t
Swing in gap
\t
580(23 )
\t
Distance between centers
\t
1000mm(40 )
\t
Width of bed
\t
250(10" )
\t
Spindle nose
\t
D1-6
\t
Spindle bore
\t
52mm(2" )
\t
Taper of spindle bore
\t
No. 6Morse
\t
Range of spindle speed
\t
16 changes 45-1800r/min
\t
Max. travel of compound rest
\t
102mm(4 )
\t
Leadscrew pitch
\t
4T. P. I.
\t
Max. Section of tool
\t
20× 20mm(13/16 )
\t
Metric threads range
\t
39kinds 0.2-14mm
\t
Inch threads range
\t
45kinds 2-72T. P. I
\t
Diametrical pitchesrange
\t
21kinds 44D. P.
\t
Module pitches range
\t
18kinds 0.3-3.5M. P.
\t
Dia. of tailstock sleeve
\t
50mm(2 )
\t
Morse taper of tailstock sleeve
\t
No. 4 Morse
\t
Cross adjustock
\t
± 13mm(± 1/2" )
\t
Power of main motor
\t
2.8/3.3kw(3.8/4.5HP)3PH
\t
Power of coolant pump
\t
0.1KW(1/8HP), 3PH
\t
Overall dimension(L× W× H) mm
\t
1940× 850× 1300
\t
Packing size(L× W× H)mm
\t
2060× 900× 1640
\t
Net weight/Gross weight
\t
1500/1750

STANDARD ACCESSORIES:

200mm Three Jaw Chuck and Adapter 320mm Four Jaw Chuck and Adapter 300mm Face Plates Steady Rest Follow Rest Thread Chasing Dial Mt/6/4 Sleeve and MT 4 Center Oil Gun One set of Wrenches Operation Manual.


SPECIAL ACCESSORIES:

1.200mm Driving plate

2. Quick change Tool Post 3. Taper Turning Attachment

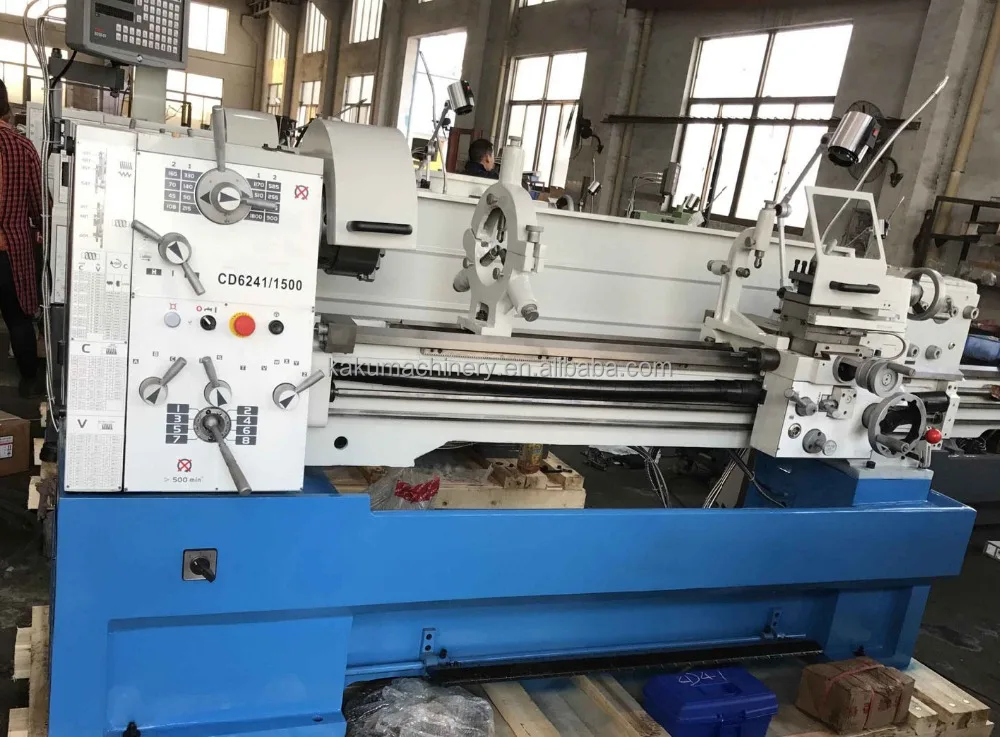

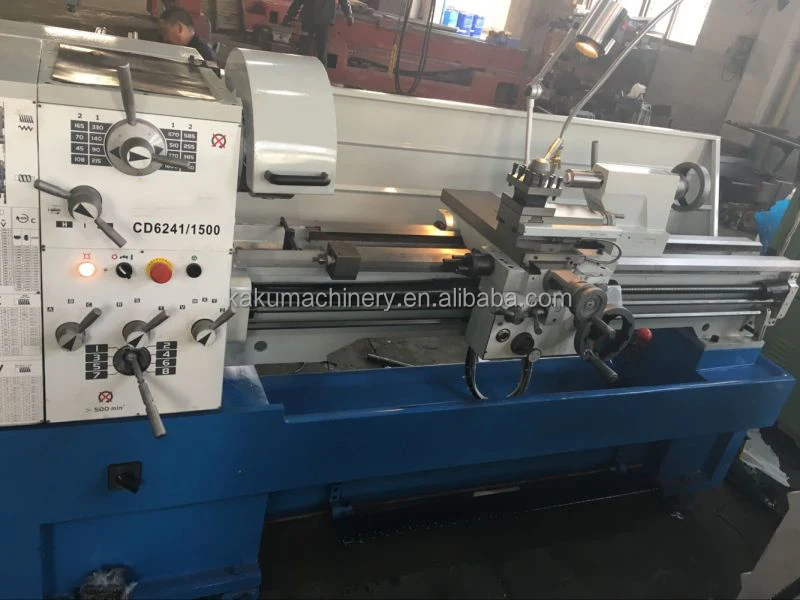

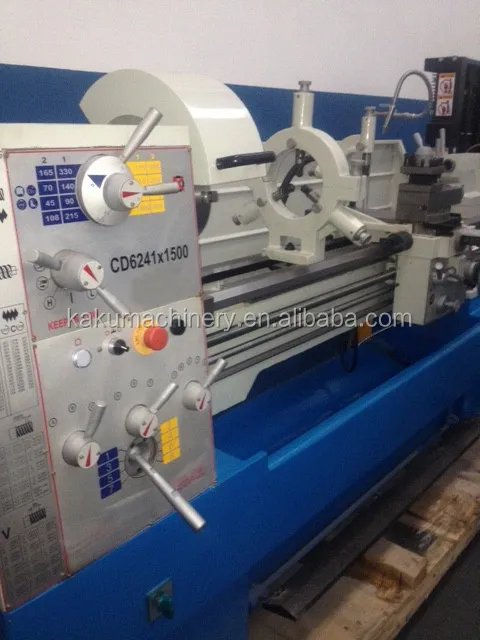

Detailed Images

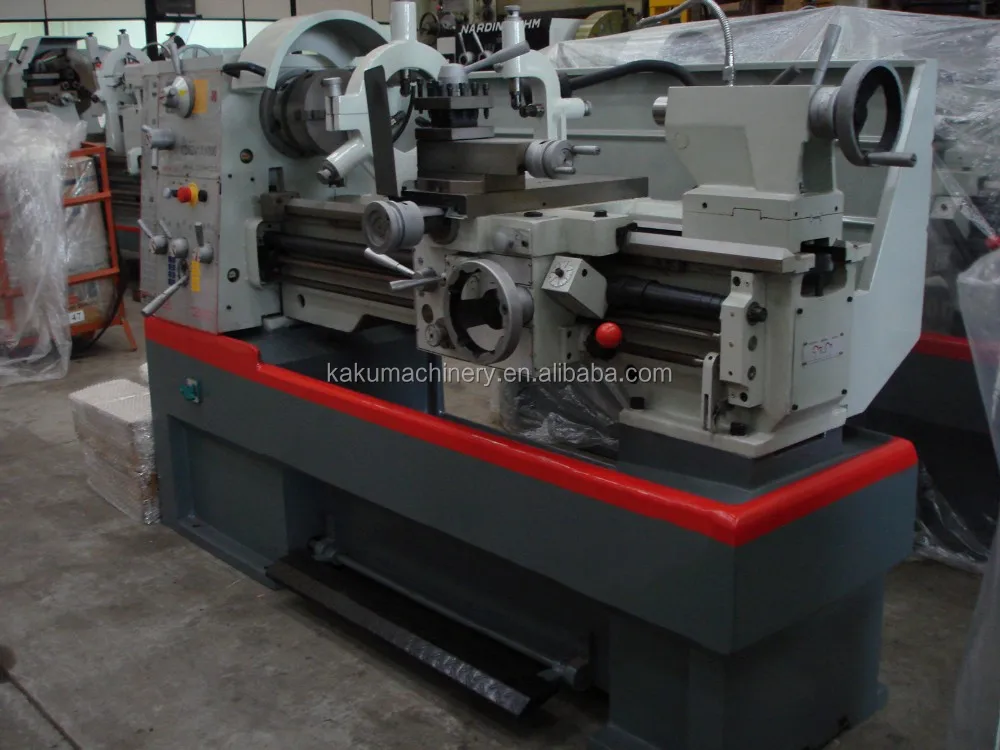

Other colors for your reference
