15S / 48V / 80A LiFePO4 Battery BMS , Battery Management System with CANbus Communication Module

Product Overview

Description

  15S 48V80A  LiFePO4 Battery BMS



1.     With SMBus comm. function via USB tool bridge to PC, to gain battery information, which is good for engineering services. (Specific design for the CANBus board as a project on pay for option)



2.     Monitoring battery SoC & SoH, such as Amperes, capacity; temperature, protection status and cell balance, event records etc.



3.     Conducting back electromotive force circuit design, and filter circuitry against noises, interference.



4.     LED display to show battery capacity, based on Coulomb Counter and, to show protection occurrences.(Option)

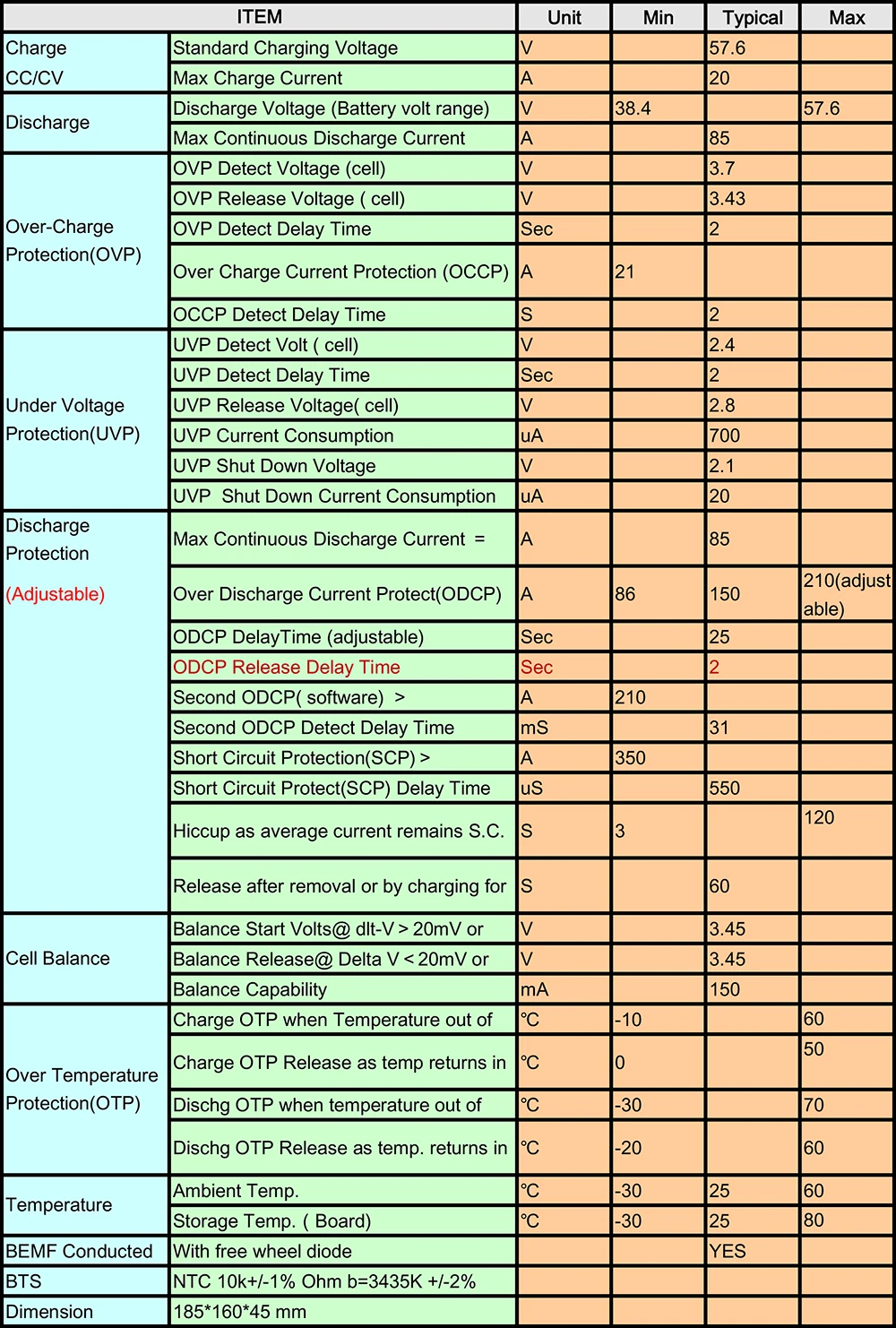

<1> Key specification:

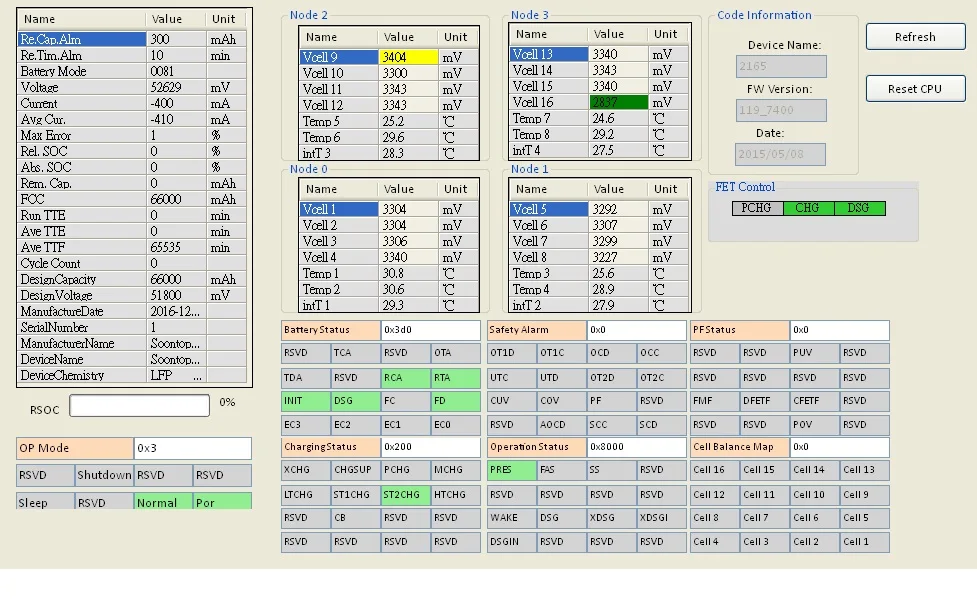

<2> Smart battery management of SMBus via USB bridge tool to PC

(Items for CANBus refers to Communication Protocol.)

   * CANBus board as a specific project will be finished and issued.

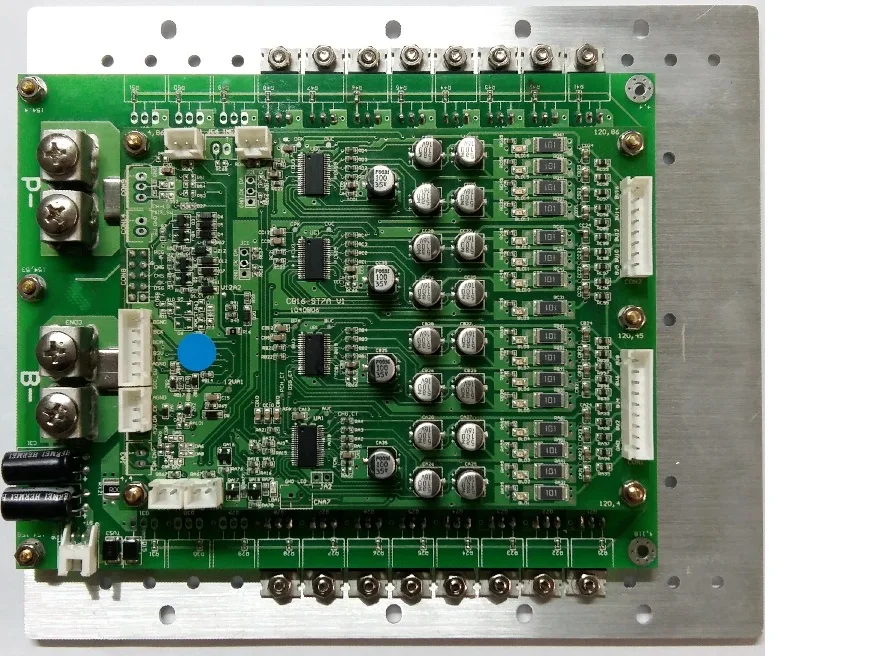

<3> Physical structure and size for 15S 48V/80A with 8 pairs of Mosfets, hereby a single port as demonstration

    Heat Sink will affect the dimension subject to final golden sample
