custom double sided circuit boards design services ru 94v0 rohs aluminium board led pcb
- Category: >>>
- Supplier: Shenzhen Huaxing Pcba Limited
Share on (60713242213):
Product Overview
Description
Product Description

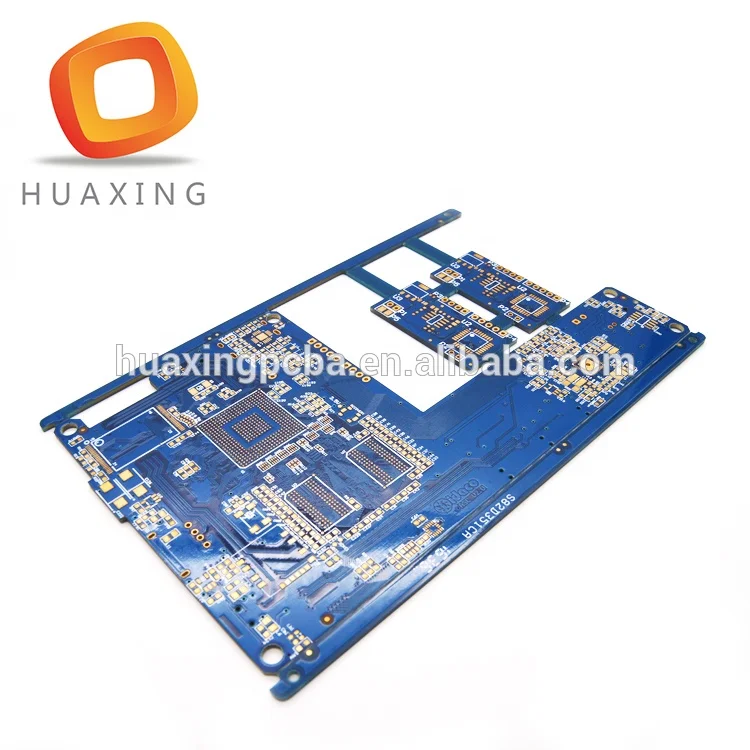

custom double-sided circuit boards design services ru 94v0 rohs aluminium board led pcb
Our Services
1. Technical Capacity of PCB Manufacturing
| Item | Mass Production | Pilot Run Production |
| Capacity | Capacity | |
| Layer Counts | 1L—18L, HDI | 20-28 , HDI |
| Material | CME1,CME3,FR-4, High TG FR4 , Halogen-free FR4 , aluminium ,Ceramic(96% Alumina) | |
| Teflon,PTFE(F4B,F4BK), Rogers(4003,4350,5880)Taconic(TLX-8,TLX-9), Arlon(35N,85N)etc. | ||
| Material Mixed Laminate | 4 layers -- 10 layers | 12 layers |
| FR4+Ro4350 , FR4+Aluminium , FR4+ FPC | ||
| Maximum Size | 610mm X 1200mm | 1200 - 2000MM |
| Board Outline Tolerance | ±0.15mm | ±0.10mm |
| Board Thickness | 0.125mm--6.00mm | 0.1mm--8.00mm |
| Thickness Tolerance ( t≥0.8mm) | ± 8% | ±5% |
| Thickness Tolerance( t<0.8mm) | ±10% | ±8% |
| Minimum Line / Space | 0.10mm | 0.075mm |
| Trace width Tolerance | 15%-20% | 10% |
| Minimum Drilling Hole (Mechanical) | 0.2mm | 0.15mm |
| Minimum laser hole | 0.1mm | 0.075mm |
| Hole Position/hole Tolerance | ±0.05mm PTH:±0.076MM NPTH:±0.05mm | |
| Mini hole ring (single | 0.075MM | 0.05MM |
| OutLayer Copper Thickness | 17um--175um | 175um--210um |
| InnerLayer Copper Thickness | 17um--175um | 175um--210um |
| Mini Solder Mask Bridge | 0.05mm | 0.025mm |
| Impedance Control Tolerance | ±10% | ±5% |
| Surface Finishing | HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver. | |
| Plated gold , OSP, Carbon ink, | ||
| 1-2L Lead-time | 3-7 days | 1-2 days |
| 4- 8L Lead-time | 7-10 days | 2-7 days |
| 10-18L Lead-time | 10-15 days | 4-9 days |
| 20-28L Lead-time | 15-20 days | |
| Acceptable File Format | ALL Gerber Files,POWERPCB,PROTEL,PADS2000,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 etc. | |
| Quality Standards | IPC-A-600F and MIL-STD-105D CHINA GB<4588> | |
2. Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
PCB or PCB Assembly files requests
1) Gerber files of the PCB Board
2) BOM(Bill of material) for assembly
To short the lead time,please kindly advertise us if there is any acceptable components substitution.
3) Testing method & Test fixtures if necessary.
4) programming files & programming tool if necessary
5) Schematic if necessary
3. Other services
1) Design service
2) Cloning and Copy service
3) Prototyping service
4) Mold making and plastic Injection
5) FPC making
6) Cable and wire Assemblies
7) Supply Chain service
8) other OEM service
Packaging & Shipping
1. Package
2. Shipping
Company Information
1. Welcome to Hua Xing
---custom double-sided circuit boards design services ru 94v0 rohs aluminium board led pcb
--- Specialized in PCB/PCBA field over 10years
---One-stop service
---Competitive price , Great quality ,Quick delivery
---ODM&OEM are welcome
--- ROHS,ISO9001,CE certification

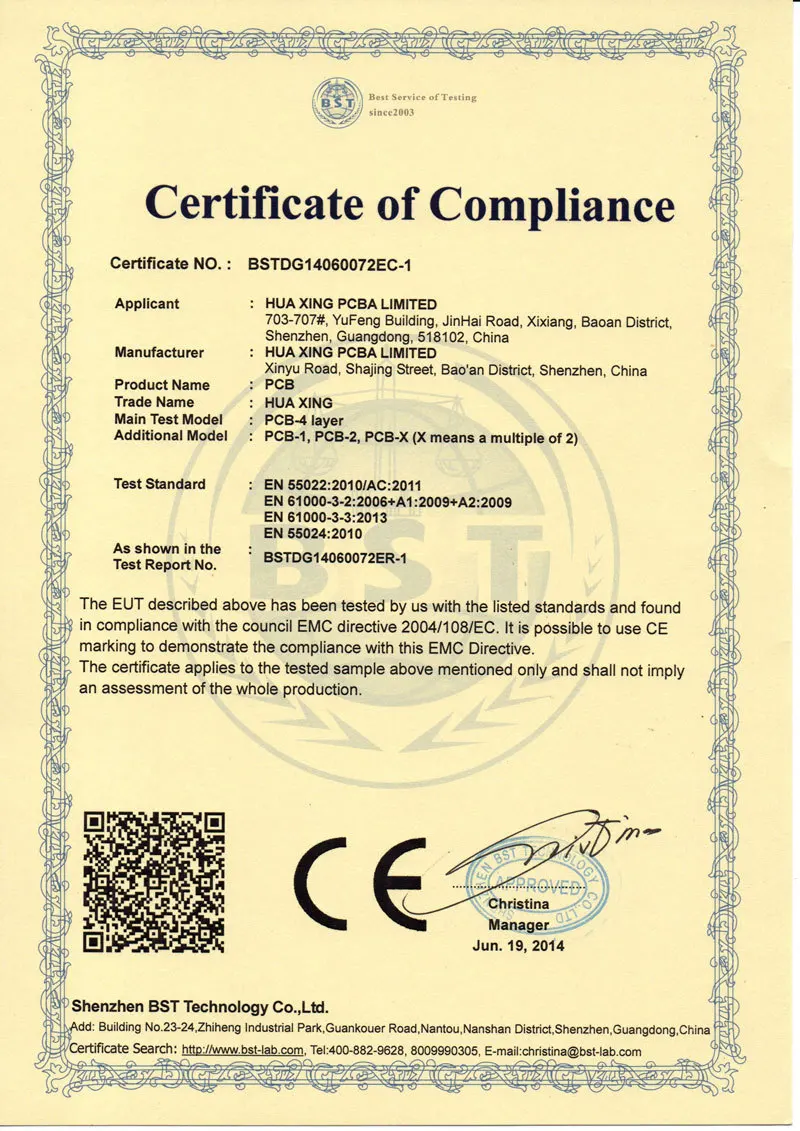

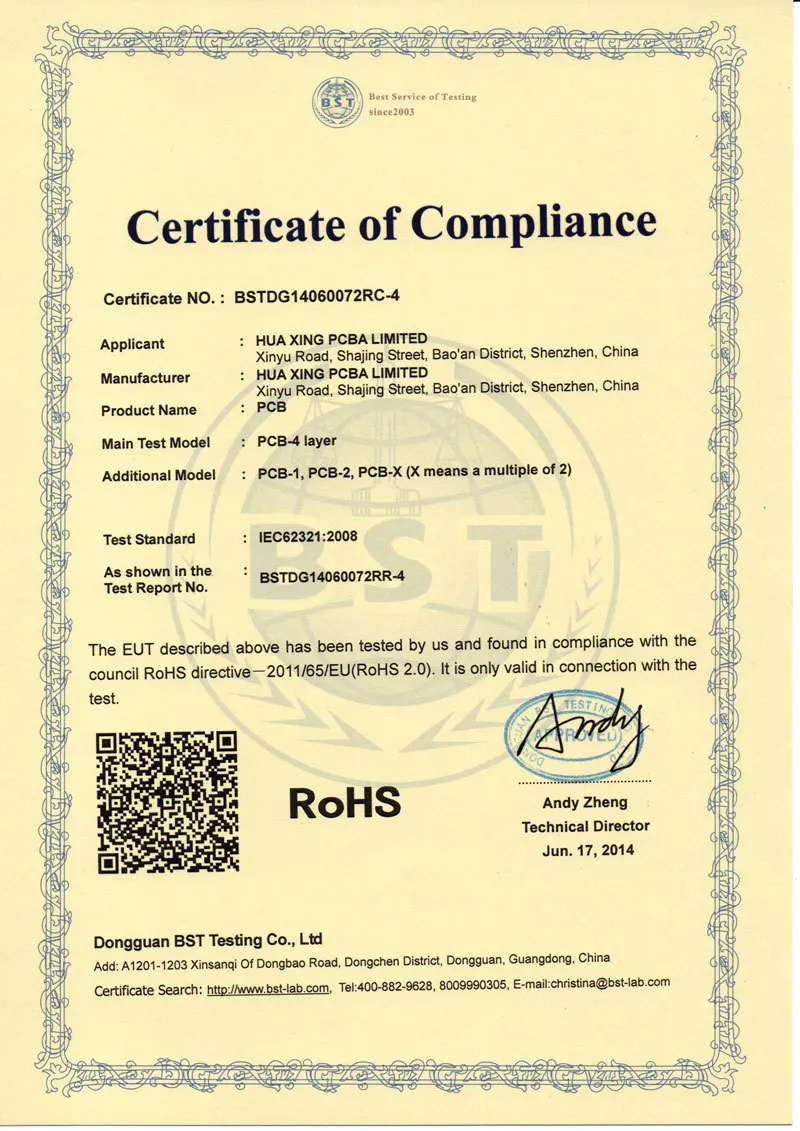

2. Certifications

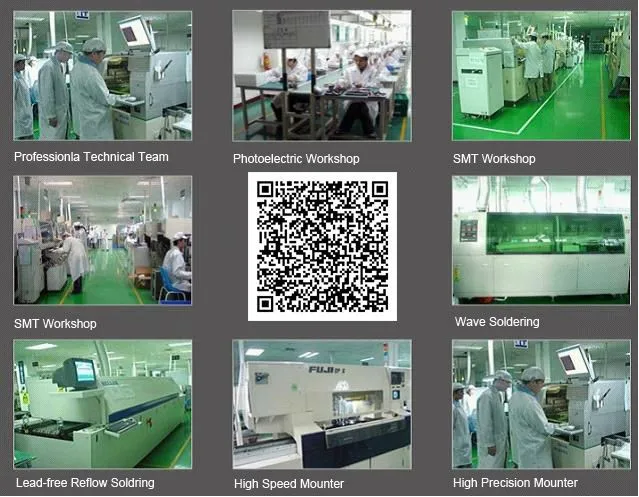

3. View of workshop
4. Customer Visit
5. After-service
---All our products have been checked and packaged in good condition.
---If the item you received is defective,please contact us ASAP:we will repair it or replace another new one after we check it.
FAQ
- What service can you provide?
We can provide PCB circuit board gerber file design,Copy and Clone,OEM and ODM service.Not only produce PCB,PCB Assembly,but also Mold making ,Plastic Injection,and Complete products
- Are my design files secure when I send them to you?
Your files are held in complete safety and security while Hua Xing PCBA Limited is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
- For small quantity orders, can you produce prototype PCBs?
Yes. Hua Xing PCBA Limited has the capability to produce circuit boards in any amount. But,the greater the quantity, the greater the cost savings.
- Do you have an order minimum?
We don't have MOQ, accept order with as low as a quantity of 1 (piece or panel).
- What file formats do you accept for PCB assembly?
Gerber and CAM Auto CAD DXF, DWG formats.
More details about us, kindly scan website: //www.ems-pcba.com
If you send us your Gerber Files and BOM list, we will quote for you within 48 hours.
Thanks in advance ! My skype ID is alice19920605, Wechat ID is wlp19920605
