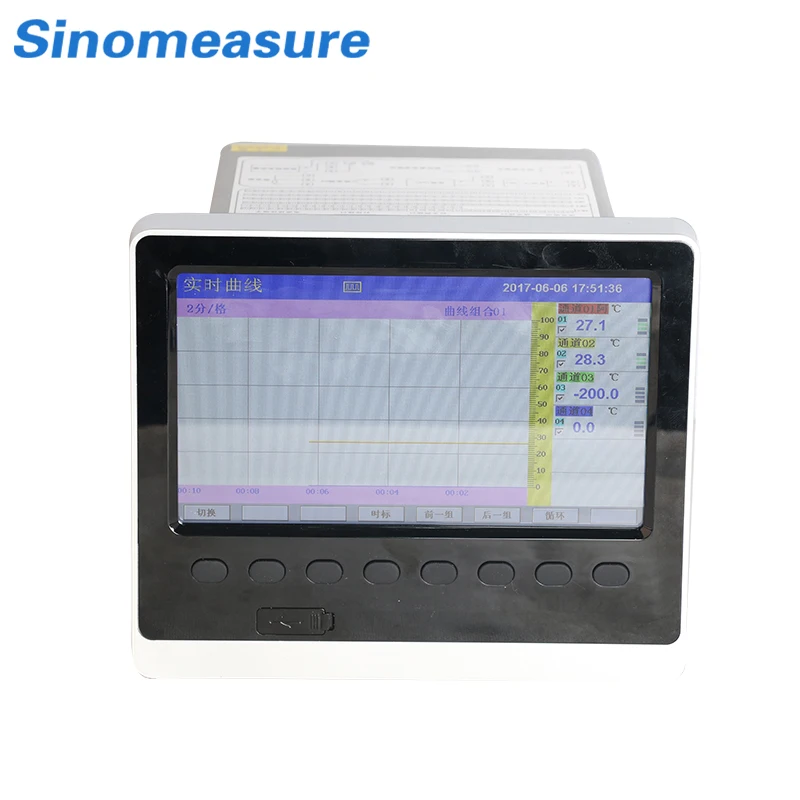

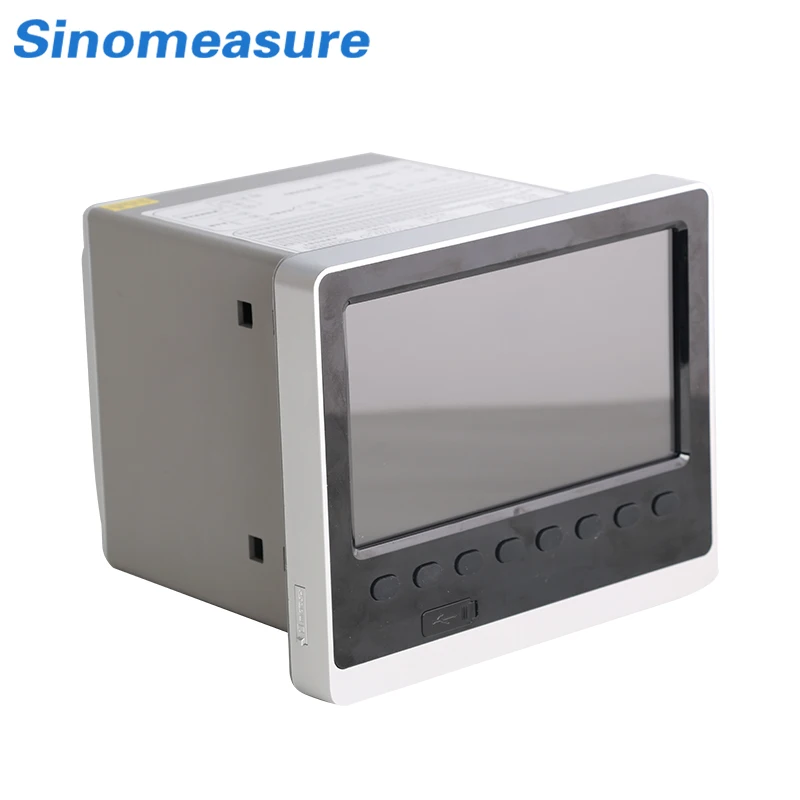

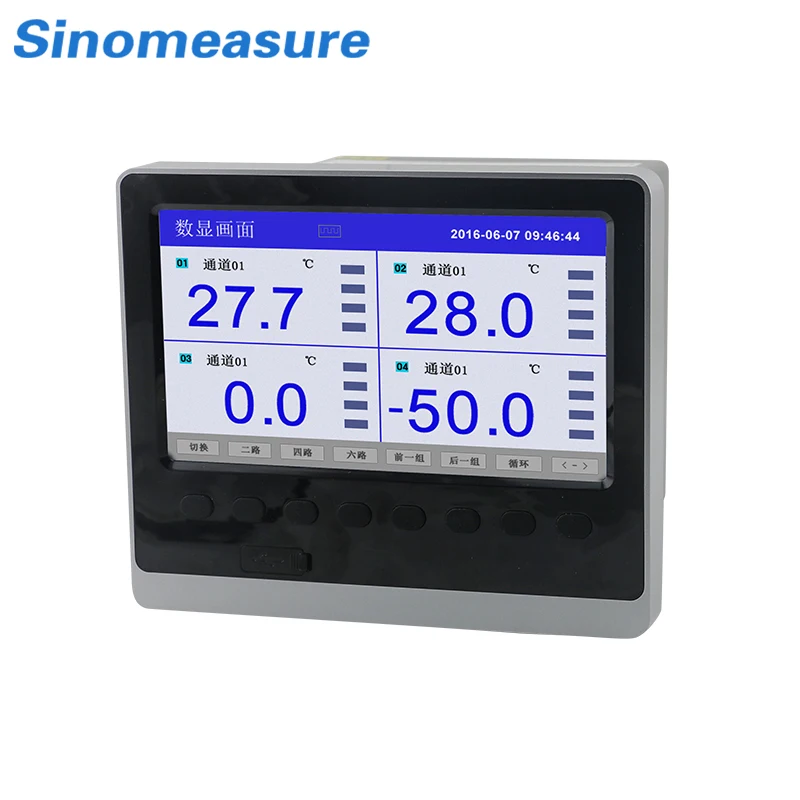

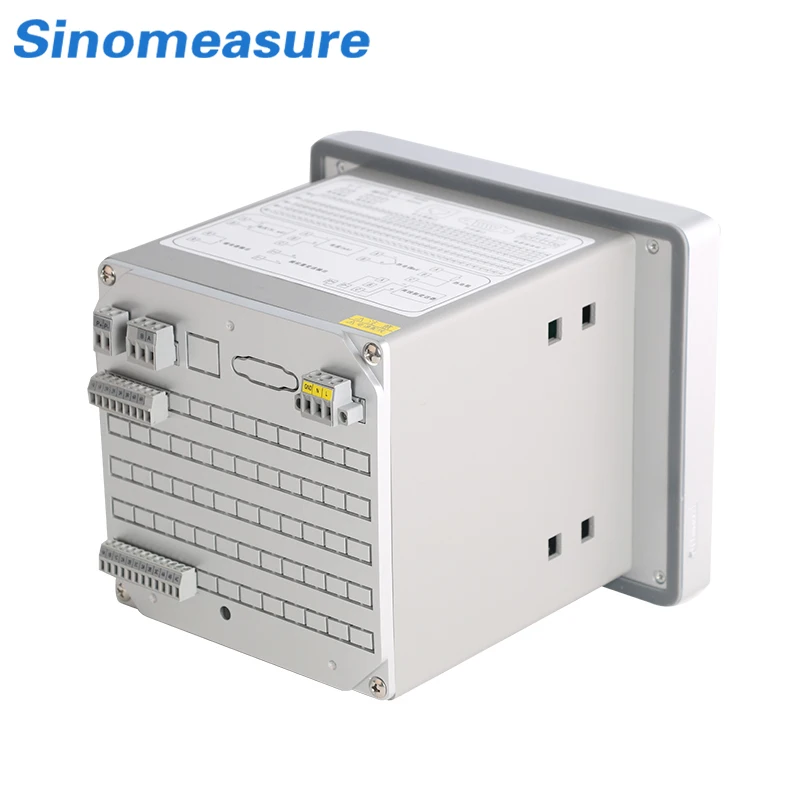

2017 hot style digital pressure recorder digital chart recorder data logger channel paperless recorder
2017 hot style digital pressure recorder digital chart recorder data logger channel paperless recorder
2017 hot style digital pressure recorder digital chart recorder data logger channel paperless recorder
2017 hot style digital pressure recorder digital chart recorder data logger channel paperless recorder
2017 hot style digital pressure recorder digital chart recorder data logger channel paperless recorder
2017 hot style digital pressure recorder digital chart recorder data logger channel paperless recorder
2017 hot style digital pressure recorder digital chart recorder data logger channel paperless recorder

2017 hot style digital pressure recorder digital chart recorder data logger channel paperless recorder

Share on (60713275128):


Price:

Quantity:


Product Overview

Description


Our service
Our Aim :
Customer centric, striving for this.
Our Vision :
To make the world use China's top instruments.
Our Team :
Committed to Quality&Quality control (QC) system&ISO9001
Satisfaction Guaranteed.
Fast Response time Guaranteed.
A Wide Spectrum Of Skills & Experience.
Products Description
Number of channels
Up to 48 channels, universal signal input
Current input
0~10mA, 4~20mA, 0~10mA square, 4~20mA square
Voltage input
0~5V, 1~5V, 0~10V, 0~5Vsquare, 1~5Vsquare,
0~20mV, 0~100mV, ±20mV, ±100mV
Input signal
1 Thermocouples: B, S, K, E, T, J, R, N,F2,Wre3~25, Wre5~26,
2 Thermal resistor: PT100, Cu50,Cu53,Cu100,BA1,BA2
3 Linear resistance: 0~400Ω
4 Non-standard signals: (-20 to 20) mV, (-100 to 100) mV,
(-10 to 10) V Range of signal
Alarm output
Relay normally open contact output, contact capacity 1A / 250VAC
Feed output
DC24V±1,load current
Communication output
RS485 / RS232, baud rate 1200-57600bps can be set,
standard MODBUS RTU communication protocol
Measurement accuracy
0.2%FS ± 1d
Sampling period
1s
Display method
7 inches ,800*480mm ,LED, clear picture,wide viewing angle,
brightness can be adjusted, Can display Chinese characters,
numbers, process curves, bar charts.
Setting method
Panel touch-button settings
Data backup
Support SD card and U disk,maximum capacity is 8 GB,
support FAT FAT32 format
Storage
64M
Record interval
1,2,4,6,15,30,60,120,240 nine block to choose from
Storage length
24-5825 day
Ambient temperature
-10~50;relative humidity: 10~90%RH(no condensation);
Avoid corrosive gases
Recording interval:
Recording interval is divided into 0.1s to 60s adjustable
Power supply:
AC220V power meter: AC85~265V, power consumption is less than 25VA;
DC24V power supply of the instrument: 24V ± 10%,
power consumption less than 25VA
Working power
AC85-264V(Switching power supply),Frequency Range:50~60Hz;
Maximum power consumption:20VA
Company Profile
Q: Is there any stock?
A: Yes,we have materials in stock to help you to get the samples as soon as we can
Q: How to track my Order?
A: After shipped, we will email you the tracking number.You can check the shipping status of your order on the website.
Q: How about warranty ?
A: Warranty: 12 months, Lifetime maintenance
Q: How about after-sales service?
A : We are 24 hours online, if you have any problem,pls contact us directly.
Q: Any discount?
A : For bulk purchase or distribution agents, we will apply the best price for you,If we have any promotions, we will post in store and send you an email to inform you.
