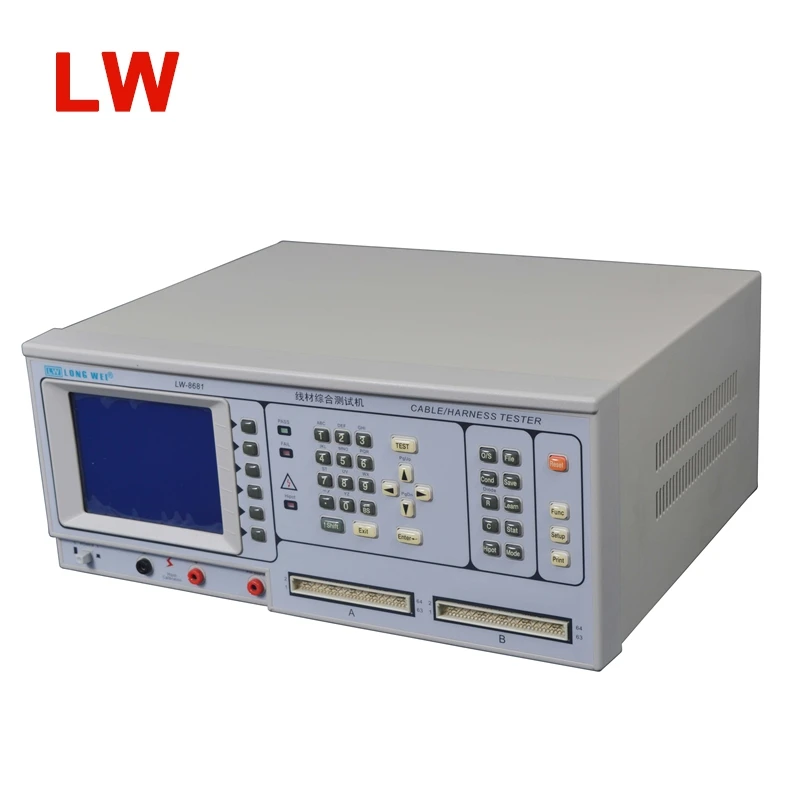

Programmable cable harness tester

Cable harness tester

Lw-8681 precision wire testing machine
Product model: lw-8681
1.maximum 1000 VDC / 500 vac test
2.Automatic scan change
3.Single-edge test
4.A short road test
5.large 320 x240 LCD display
6.Programmable test setting
7.Statistics and printing functions

LW-8681 function
Resistance:R:0.1Ω～1MΩ
Capacitor:C:10Pf～500μF
Diode test:D:0.0V～7.0V
Conductance:COND:0.1Ω～50Ω
Insulation:IR:1MΩ～500MΩ
HIPOT:0.1mA～5mA
Off/short way:O/S:2kΩ～50kΩ

LW-8681．
Specification
Advanced function:
Program continuous testing
Automatically learn to find points automatically
Self diagnosis
Self correction is zero
Accuracy :±1%
Test mode:manual/automatic switch
Measure frequency and signal/voltage:100～100kHz, 1Vac
Low voltage measurement signal:5Vdc / 50mA max. ±5%
High pressure (leakage current) test:200～500Vac. ±5%

Measuring contact spot:
1.128 Measuring contact (optional256/512 sport)
2.Hipot Calibration +/- Output
3.Auto Pin Search Jack
Keys:Syskey / Fastkey / Editkey

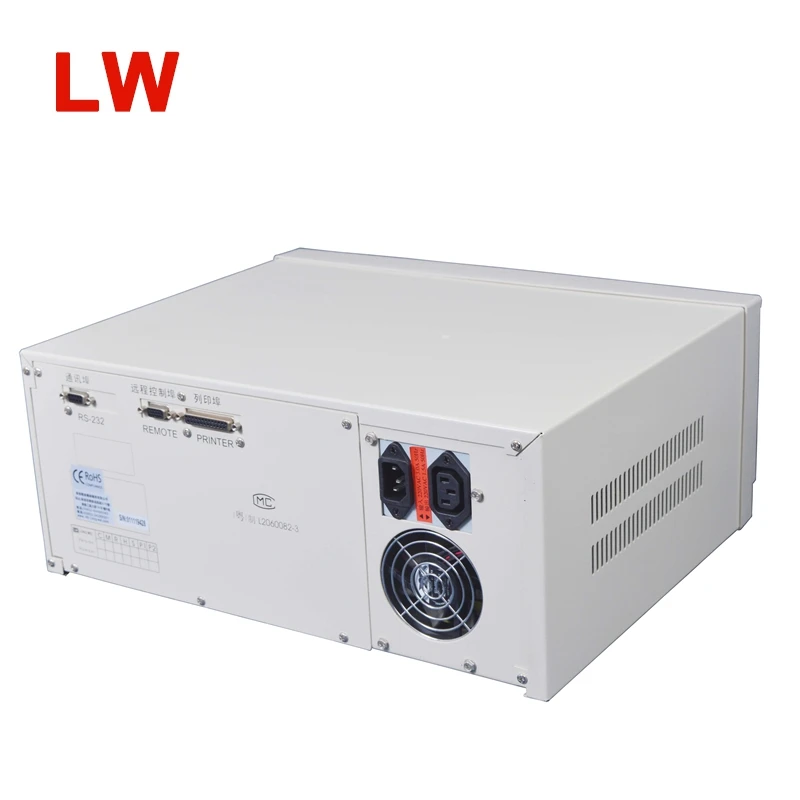

I/O:
1.RS-232 Port
2.Printer Port
3.Remote Control Port
Storage:Can store up to 56 sets of Settings

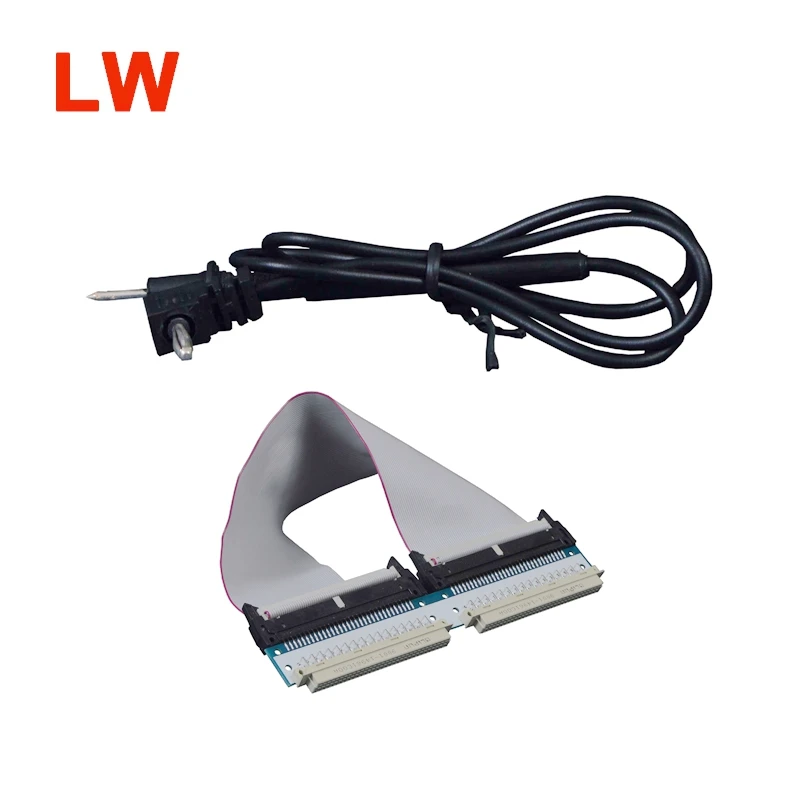

Accessories:
1.Automatically find some probes
2.Fixture row line
3.The manual
4.Power cord

Temperature humidity:15℃～35℃. RH≦75%
Size (WxHxD):425 x 190 x 350mm
Weight:14kgs
Wire specification requirements:1μF Max.

Model:
LW-8681N:700Vdc
LW-8681F:1000Vdc
LW-8681FA:700Vdc/500Vac
/C2:256 test spot
/C3:512 test spot

LW(LONGWEI) Our company build up in 1996s,and we have 20years history in China .Our own Research&development -Production-Sales together.And our workshop located in Dongguan City,Guangdong Province,China.We are specialized in power supply,oscilloscope,signal generator,Hi-pot tester,Soldering station and so on .Our products has about 2000kinds (instruments and tools).Our workshops more than 80000 square meters.Our productivity is 1000000pcs/year.

Q:what about the products warranty?
A:Usually 12months.

Q:How about the delivery time?
A:Usually we have goods in stock.If some models out off stock or not enough,we will contact you and discuss with you the delivery time.

Q:Could you OEM for our LOGO?and how about the OEM fee?
A:Yes,we can OEM for your LOGO.The OEM fee we will according your customized details and quantities then discuss with you.

Q:What’s kind of payment you accept?
A:We can accept TT,Western Union, Money Gram.We also accept pay online on alibaba.

Q:What is your MOQ?
A:In our LW brand,MOQ is 1pcs.If OEM products,the MOQ according the models.

QHow many output voltage and current can you supply?
A:We can supply different voltage and current ,and can customized for your want.

Q:Which way for the shipping?
A:We usually shipping small packages by express by air door to door:such as DHL FEDEX UPS TNT and so on.For the large goods,we will discuss with you and suggest that shipping by sea.

Q:Could i get one sample for test?
A:Yes,we can send sample to you.But the sample fee need to pay by yourself.When the first order reach MOQ 200pcs,we will send back all the sample fee to you.
