Support System: HID compatible USB HOST device - Window XP, Vista,7/8/10, Linux, Android OS (With standard USB interface), Mac OS
Applicable: Home entertainment, multimedia education, training, meetings, presentations and computer remote control computer-controlled; Car TV, HTPC, big screen TV, smart TV, hard disk player, network player, X-BOX

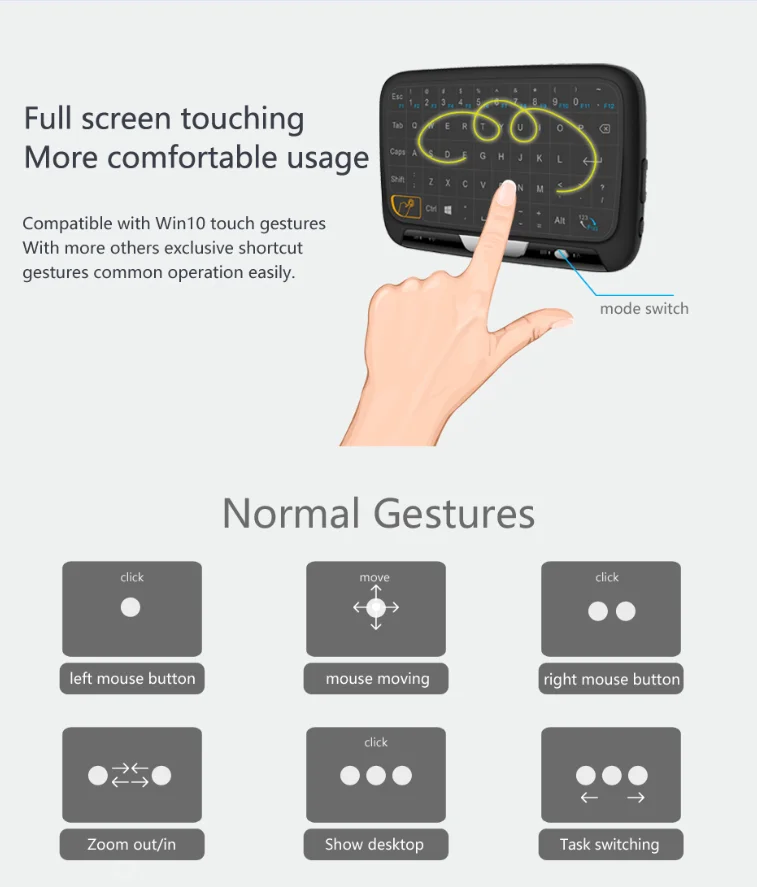

Indicators: Red : - It blink in low voltage and be on in charging status - It will be off when the battery is fully charged. Blue: - It keeps on when key or touchpad is pressed and be off after finger released. - It will flash when the wireless part is not work correctly. Please make sure your usb receiver has been plugged into host side or you must re-pair it again. Orange (left): Means the touchpad is in keyboard mode. Orange (Right): Means the touchpad is in touch mode.
Note: When the 2 orange LEDs are on at the same time means the touchpad is in exclusive gesture status. <b>Please note:</b> For power saving, the touchpad will enter into sleep mode when there is no any operation in 3 minutes or there is wirelss disnnection in 10 seconds.

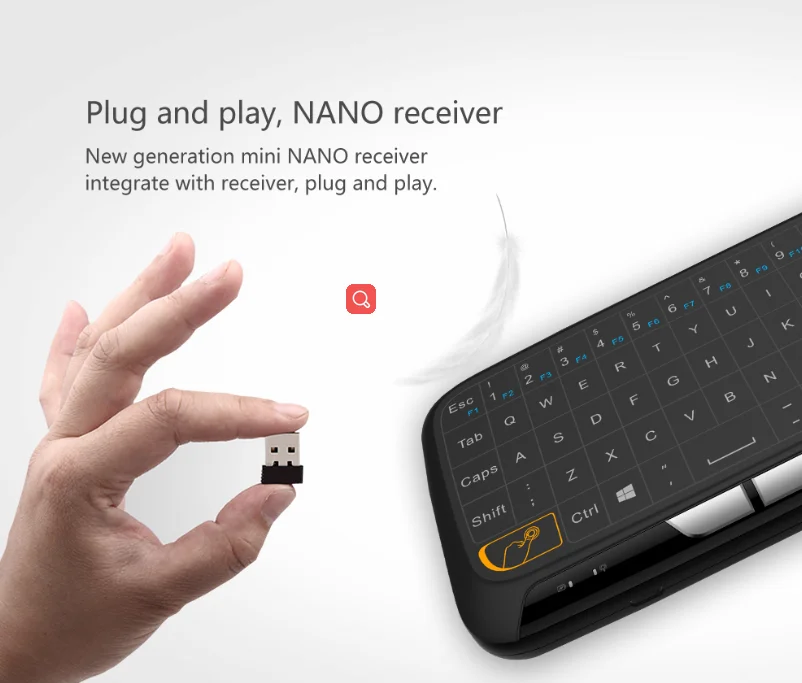

| Receiver(dongle) | Nano style |
| Connection port | With USB2.0 or above |
| Transmission mode | GFSK 2.4GHz wireless, up to 10 meters |
| Transmission frequency | 2400-2483MHZ(16 channels) |
| Transmission Power | Less than +4bd |
| Power supply | Rechargeable polymer Lithium-ion battery |
| Charging voltage | 4.4V-5.25V |
| Charging current | 300mA |
| Operating current | < 15mA(vibration off) |
| Sleeping current | < 20uA |
| Net weight | 118g |

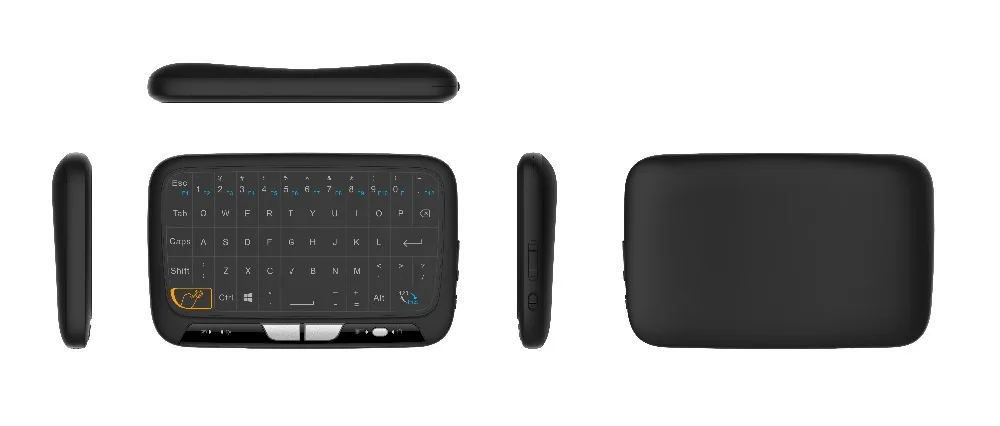

| Size | 143*89.5*18.5mm |






Nowadays ShenZhen Labra Technology Co,.Ltd is an enterprise which works in controllers and led lighting solutions. Since 2006,we devoted in remote control designing,developing and manufacturing.
Now we have been developer and manufacture of IR,RF(2.4G,512Mhz,433Mhz)controller.We have high RD human power,developing system and excellent management process like ISO 9001 and ERP for client’satisfaction in any specification,needs and after sold service,more than 50 kinds plastic tooling,welcome for asking solutions on controlling.
What is your OEM/ODM service?
Customized case logo, customized package, customized manual, customized software (booting logo, modifications)
What is the Warranty for our product?
All products have 2 year warranty. If there is no man-made problem, we will replace or repair for you freely. we own the best quality control department and professional sales team, if any problem happen,our team will do our best to solve for customers.
What power specification do you provide?
There are EU./UK./AU./US. Four kinds of power supply available .We will deliver the light power supply to you according to the standard in your country or your requirement.
1.If you just need a sample to check the design and quality, we will provide you sample for free, as long as you afford the express freight.
2.If you need OEM/ODM remote control moulds you maybe pay for $100 and we will return the sample fee in the first order.
