EMM088 5 Three Components polyurethane elastomer continuous casting foam machine

Product Overview

Description

Hello, thanks for your trip here, this is EMM :)   How do you like this product ? please feel free to send us inquiry, it would be great if you can leave your contact information as well, this will make our communication much more effective.

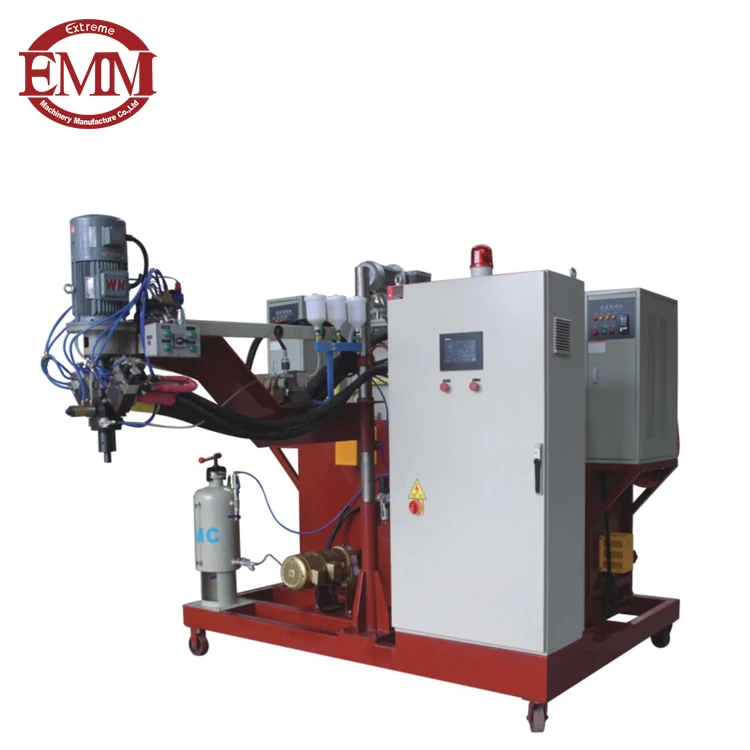

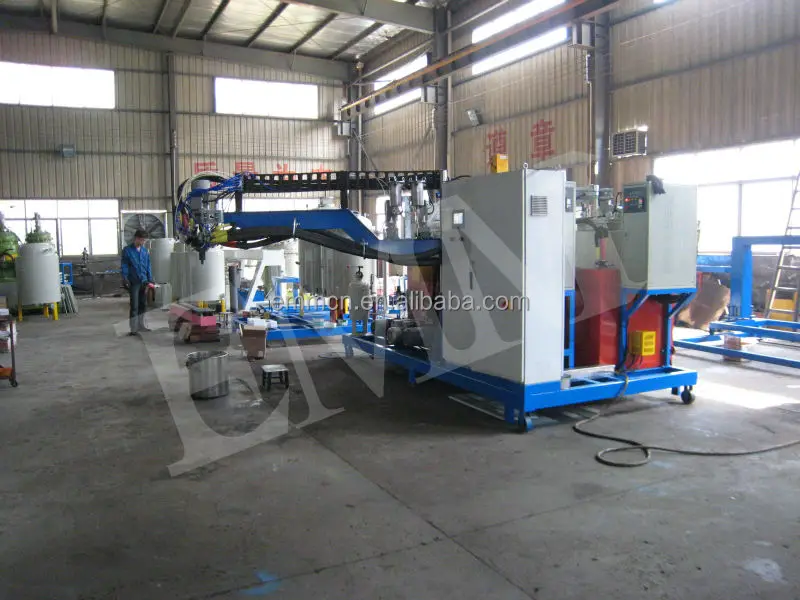

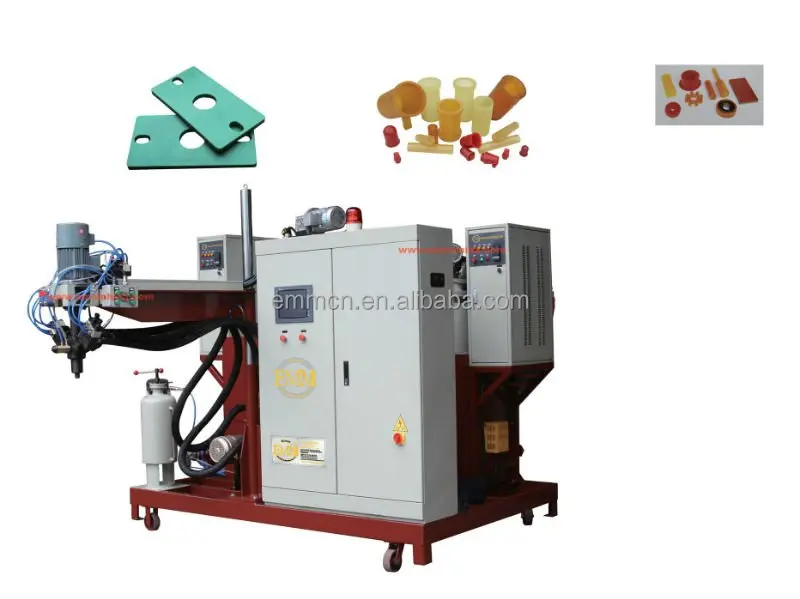

EMM088-5 Three Components Elastomer Casting Machine

The EMM088 series Elastomer casting machine is that our company follows the international’s advanced technological products, The Main parts are imported from foreign countries, technical and safety performance of the equipment has reached the advanced level of the same product of the same period abroad.

The EMM088-5Elastomer casting machine has 2 components to 5 components, and the output can be 0.2kg/min to 120 kg/min, the tank capacity can be 20L to 1000L.

The EMM088-5 Elastomer casting machine has one prepolymer barrel and one MOCA barrel, and the two metering units using frequency governors to control the metering pump’s output, thus change the difference mixing index. This kind of machine is specially used in the polyurethane elastomer casting products.



Product specification



2.1 Type: EMM088-5

2.2 Suitable: polyurethane elastomer casting products

2.3 Suitable material viscosity (80℃--160℃):

         A:1000~2500cps(65℃-90℃)

B:35~80cps(45℃-120℃)

C:1000-18000 cps(45℃-120℃)

2.4 Pouring output: 10000-30000g/min (1:1),with ratio range adjustable (A:C:B):100:20-180:63-135

2.5 Casting program time: 0.50~99.99sec

2.6 Inject the quantity of the procedure:

 Formula: 5

    Manual / automatic inject: 20



A.

B.

C

Quantity

1

1

1

Metering pump type

45CC

45CC

6CC

Shift motor power

2.2kw

2.2kw

0.75kw

Speed(Rpm)

40-200

40-200

40-220

pump sealing lubricating

DOP

DOP

DOP



All the parts such as Shift motor,Gear metering pump,Bracket,Coupling is using to metering the components’flowout.

Packaging &shipping

Packaging Details	wooden pallet and wrapping film
Shipping	30 working days after receiving the deposit



Related products

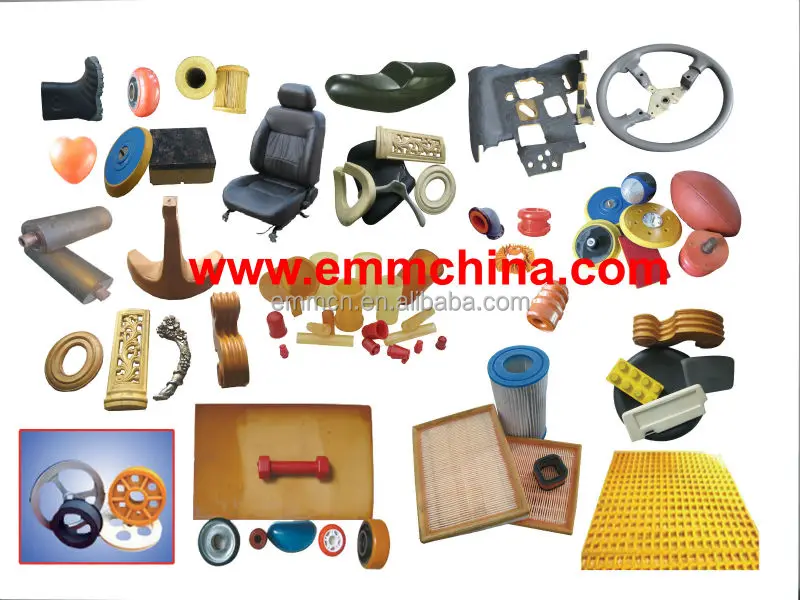

 Polyurethane elastomer products



We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
Service during the Sale
1. We are manned with professional salesmen and technicians to provide the information, technical support and the optimal solutions with high cost performance.
2. Based on the specific requirements of customers and the lead time, we will formulate a rigorous operation process. Through the close cooperation of Commodity Department, Sales Department, Technical Department and the Ocean Shipping Department, we are devoted to timely supplying customers with superior machines.
3. Generally, certain quantity of quick-wear parts will be delivered with the goods. The delivery deadline depends on the specific order, which is usually within 1 to 3 months.



After-sale Service

1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation , we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
