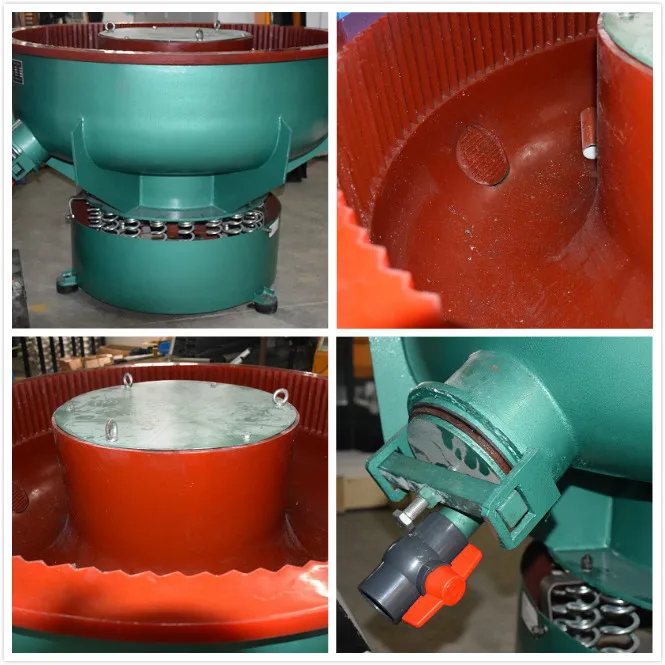

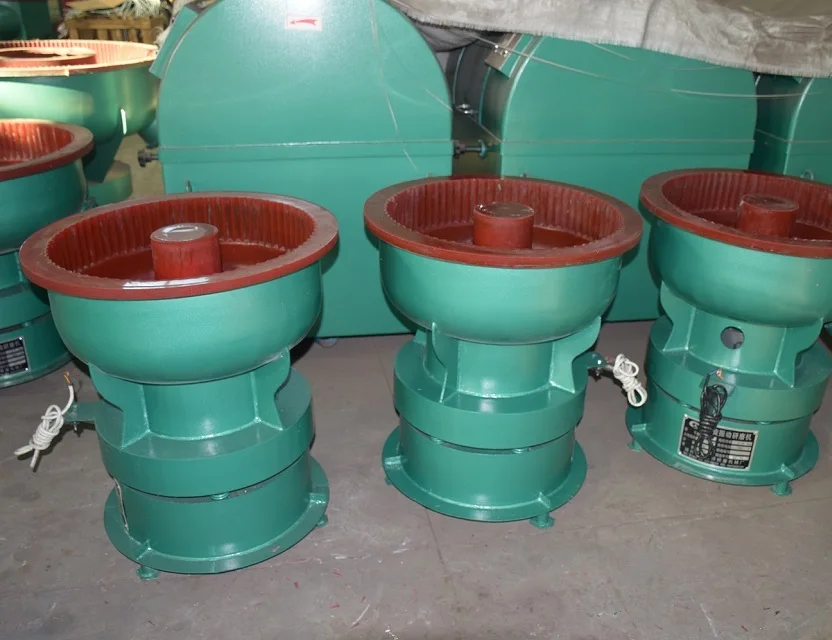

40L Vibratory Finishing Feeder Bowls / Mass Finishing Machine
Introduction
In the vibratory finishing bowl, workpieces, abrasives, water and chemical agents make movement under the vibratory driven system. This results in a sustained relative movement between the abrasive and the workpiece. The interaction between water, chemicals, abrasives and vibratory polishers enables the required surface treatment.
Product Details of vibratory finishing feeder bowl
1. Large amount of processing, applicable to small or medium size of metal and non-metallic parts for grinding and polishing, shorten the processing cycle time.
2. Remove the burrs, edges and corners, rust, stains and marks of the parts'surface, so that surface of the parts achieve a certain cleaning and brightness, the process does not destroy the original shape and geometry accuracy.
3. Simple and convenient operation, can achieve automation, check the parts at any time in processing conditions.
4. Grinding tank has high wear-resistant PU plastic lining material to reduce the collision between parts and reduce the noise.
5. Installed with high-performance vibration three-phase motor, the amplitude adjustable range is 0.3-8mm.
Specifications of 40L Vibratory Finishing Feeder Bowls
Mode
CL-40(A)
Capacity
40L
Motor Power(kw)
0.55
Speed(r/min)
1450
Amplitude(mm)
0.8-3
Rubber lining(mm)
6-12
Weight(kg)
65kg
Size L*W*H(mm)
600*500*600
