Professional factory manufacture shell pulverizer high speed
Product Description
1.Stainless steel. 2.For PVC/PE/PP/ABS/PS/PA/PC etc. 3.Output size:10-80mesh
Pulverizer machine:
Application: Suitable for recycle all kinds of grinding thermoplastic, like PP, PE, PVC,PET,EVA,ABS etc.
Advantages:
1.This type can grind all kinds Hard & Soft materials into 10-80 mesh powders in normal temperature
2.A widely use range, PVC/PE/PP/ABS/PS/PA/PC Materials
3.This machine has a more higher output, 2 or 3 times than normal miller, equip with Dust collector. An ideal energy saving machine in plastic industries
4.This miller includes automatic feeder, main engine, air fan conveying, cyclone separator, automatic shaker screen, auto coarse material milling again,high-efficiency dust collector system. Automatic and space saving.
5.The sword adopted imported stainless steel, durable, can work continous
6.Knife can be adjusted easily, easily maintained and control
7.Main shaft adopted SKF, matched with oil pump imported, can used about 3-4 years in normal use.
Specifications:
MODEL
WSM-500
WSM-600
WSM-800
ITEM
MOTOR POWER
380V 50HZ
380V 50HZ
380V 50HZ
37kw
45kw
75kw
BLOWER POWER
380V 50HZ
380V 50HZ
380V 50HZ
3kw
5.5kw
11kw
DUST COLLECTOR
9
16
24
TOTAL POWER
42kw
52kw
90.5KW
FEED DIAMETER
<18mm
<18mm
<18mm
DISCHARGING PIN-SIZE(MESH)
10-80MESH
10-80MESH
10-80MESH
PRODUCTION(KG/H)
200-250
300-400
500-600
DIMENSIONS(MM)(L*W*H)
2500x2000x3000
3200x2600x3200
3500x2400x4000

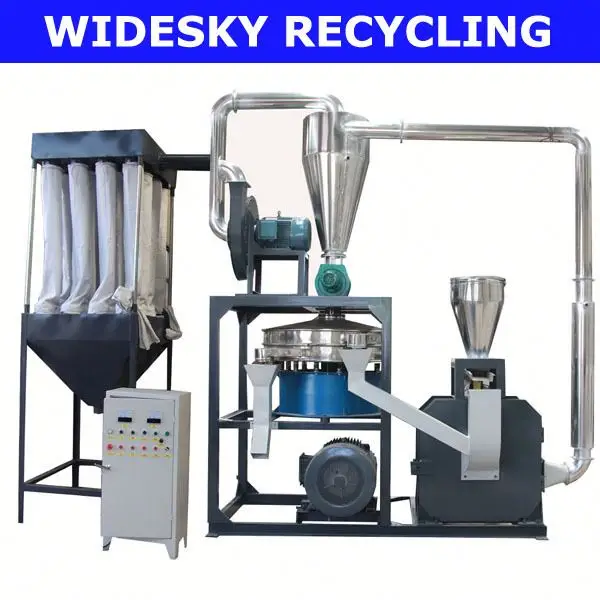

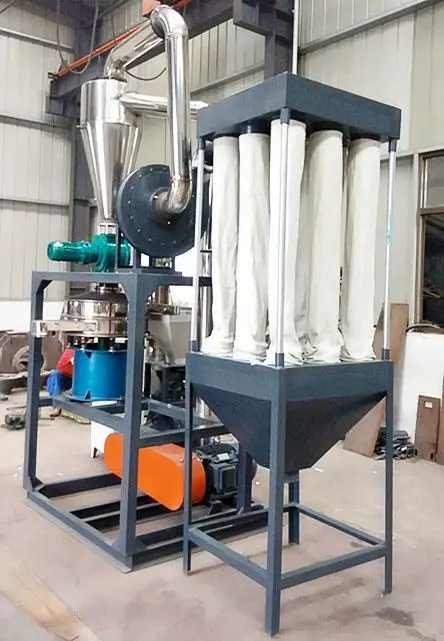

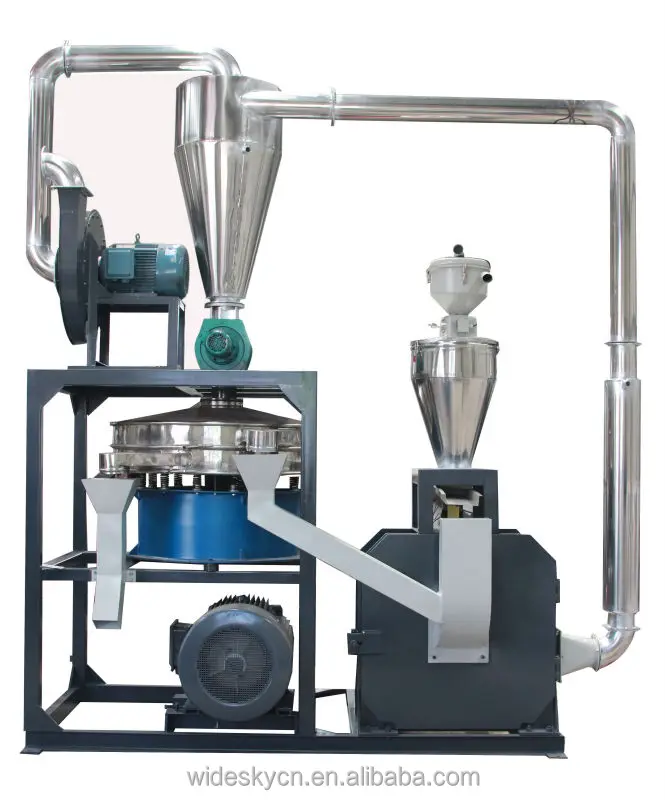

Machine Pictures:
Packaging & Shipping
Wooden case or as your require
Our Services
1.15 moths warranty
2.24 hours online service
3.Oversea engineers team, can supply the professional technology support.
4.Delivery in time
Company Information
Why choose WIDESKY?
1.WIDESKY founded in the 2004's, our factory stresses on the experience accumulation and technology research.We visited the operation sites of our end-users to listen to their proposals for improving our products, set up professional team of oversea engineers.
2.Have professional series of plastic machines, like:strong crusher,horizontal/vertical/tilting mixing machine, blending machine drying, hopper dryer,suction machines, industrial chillers, mold temperature, cooling towers, ovens and other plastic shaker auxiliary machinery and equipment.
3.We will continue with technical force, high quality prduct performance, reasonable price, thoughtful & efficient service.
FAQ
1. How to choose pulverizer? It is depends on the plastic and capacity.
2.Does it support 7*24 hours working?
Yes, our motor is china top brand. 7*24 hours working is not a problem.
3. What points should be noticed? Blade disk quantity, Output size, Shaker size,Output capacity
