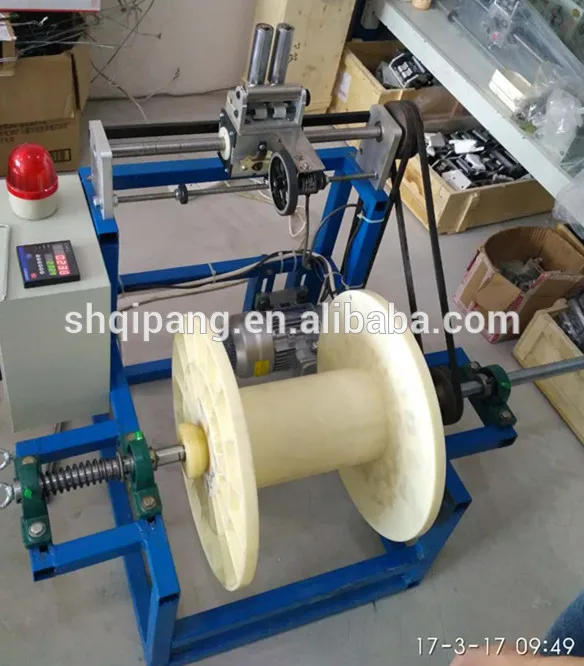

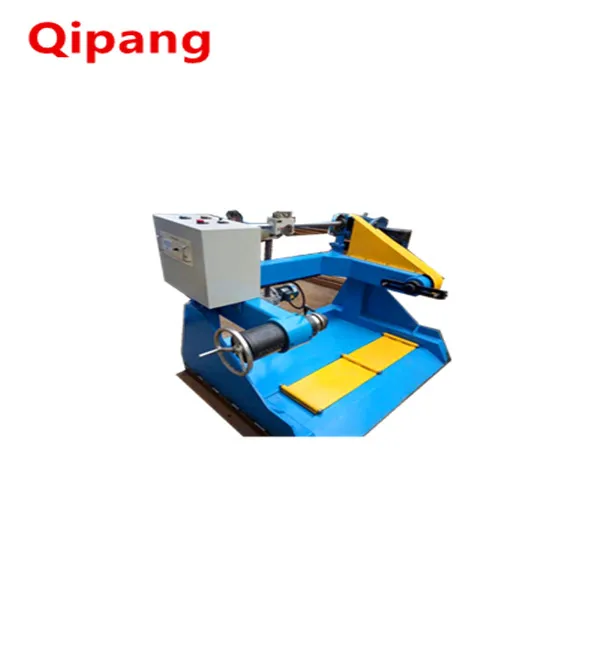

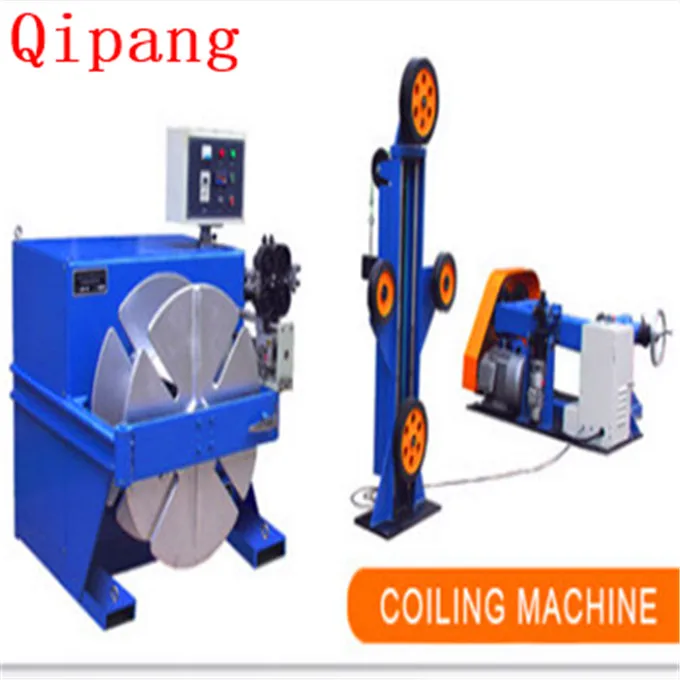

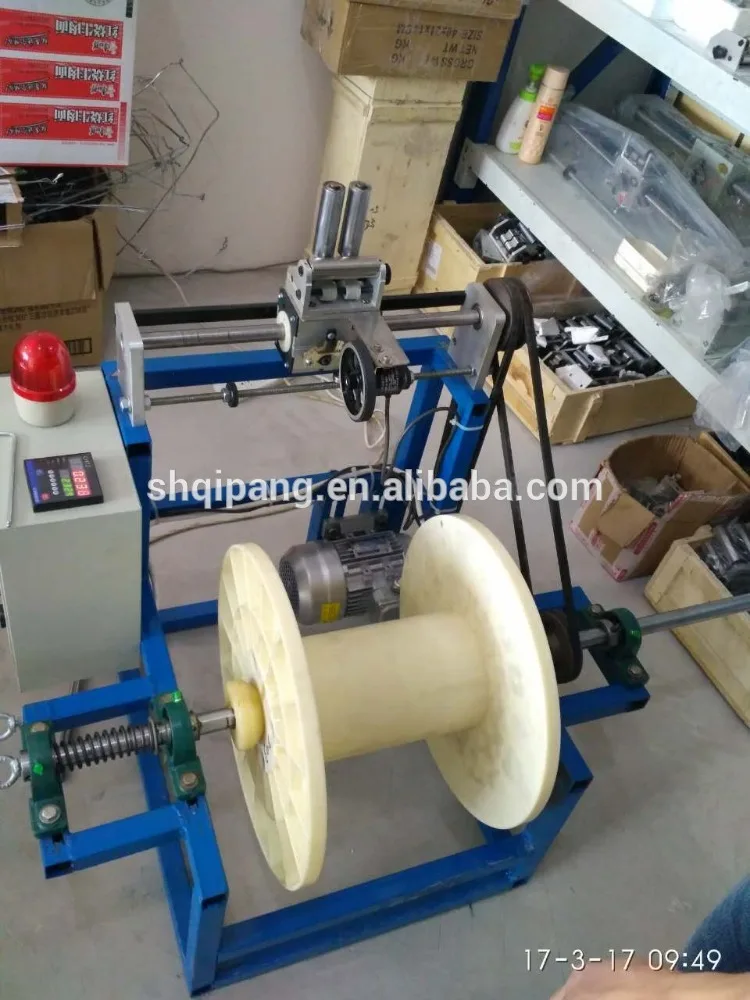

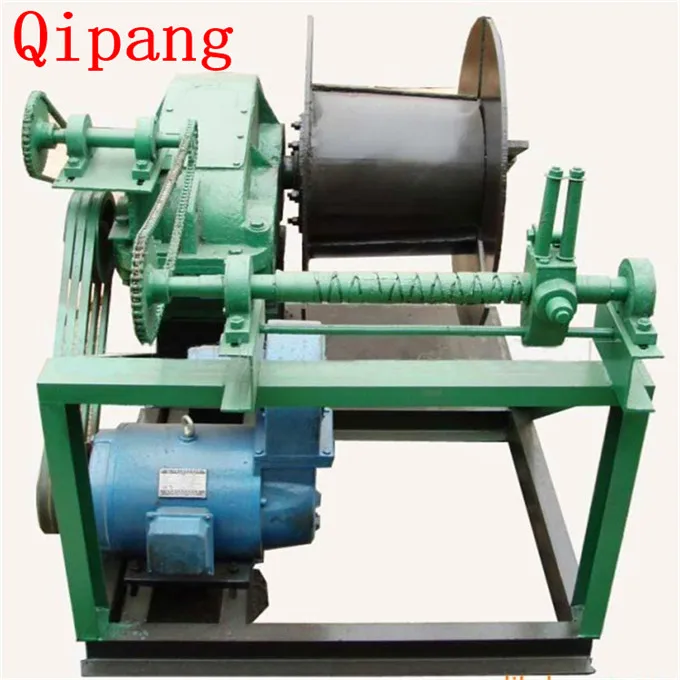

Take-up Machine
Take-up Machine
Product Detail
| Product Keywords | Take-up Machine,Take-up Machine,Take-up Machine |
JD500 high-speed arch opposite twisting wire machine
1. Used by joint wire of electric element loaded in barrel welding thread loaded in barrel. Heat-thread furnace multi-head annealing quincunx bobbin winding.
2. Adjusted speed device with automatically speed.
3. Equipped with the pay-off frame.
4. Adjusted tension of coil within the wire in a free state without responding force.
5. Adjusted the range of eccentric within adjusted forms quincunx.
Function characters
High speed, big coil quincunx bobbin winding; put in barrel, box or receiving wire frame; The reel forms regular quincunx. While paying off, high speed can’t make the wire in disorder.
Main Parameter
|
Standard |
Outside diameter of coil |
Inside diameter of coil |
Height of coil |
Speed of take-up |
Diameter of wire taken-up |
Take-up motor |
Motor moving reel |
|
MH300 |
φ300mm |
φ150mm |
φ400mm |
60-200m/min |
Annealed copper wire. Aluminium wire, iron wire 0.4mm-1.5mm PV wire 0.7mm-4mm |
Inverter 1.5KW |
90W electric adjusting speed |
|
MH500 |
φ500mm |
φ300mm |
φ500mm |
60-300m/min |
Annealed copper wire. Aluminium wire, iron wire 0.7-2mm PV wire 0.8-5mm |
Inverter 2.2KW |
250W electric adjusting speed |
|
MH800 |
φ800mm |
φ500mm |
φ800mm |
60-300m/min |
Annealed copper wire. Aluminium wire, iron wire 1mm-3mm PV wire 1-6mm |
Inverter 4KW |
Motor with frequency chance is possible |
|
MH1000 |
φ1000mm |
φ600mm |
φ1000mm |
60-300m/min |
Annealed copper wire. Aluminium wire, iron wire 1mm-4mm PV wire 1-6mm |
Inverter 5.5KW |
Motor with frequency change is possible |
