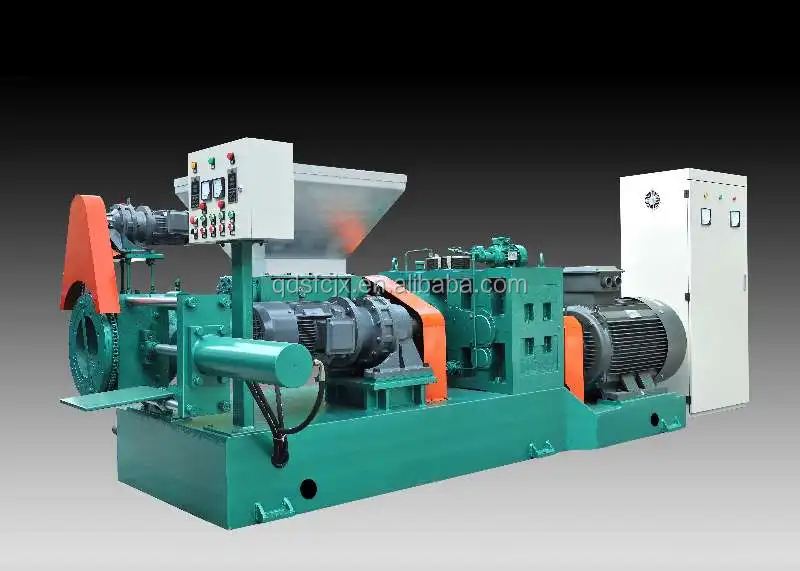

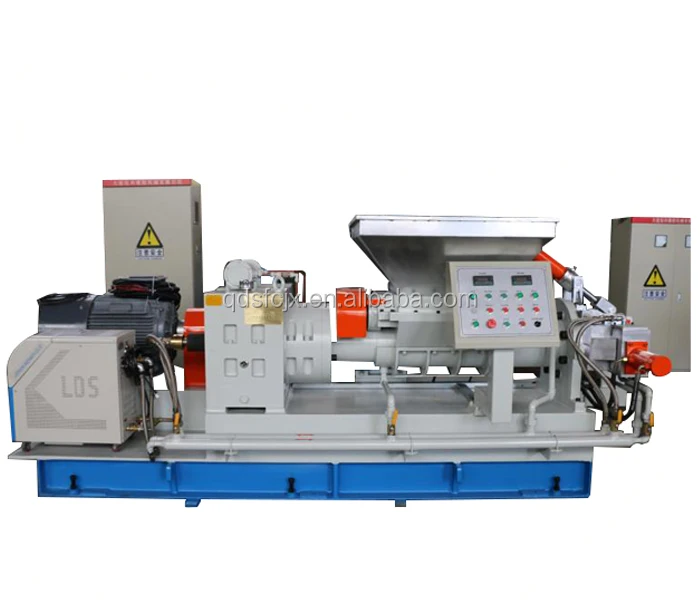

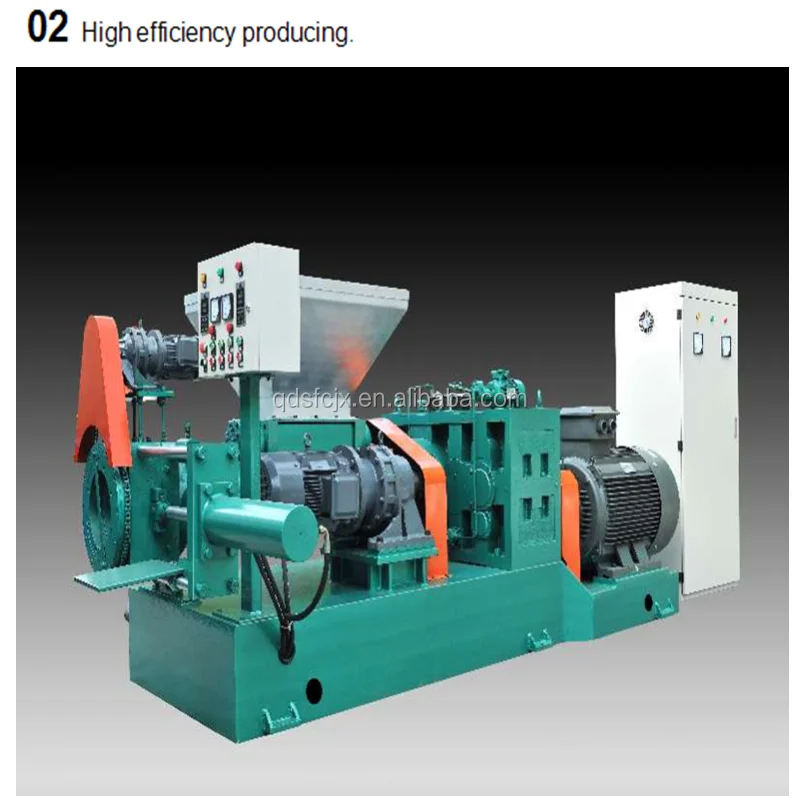

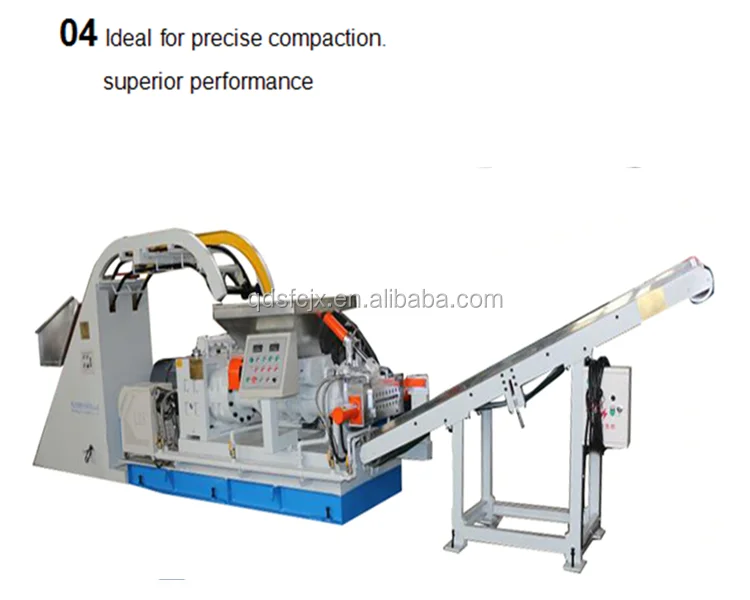

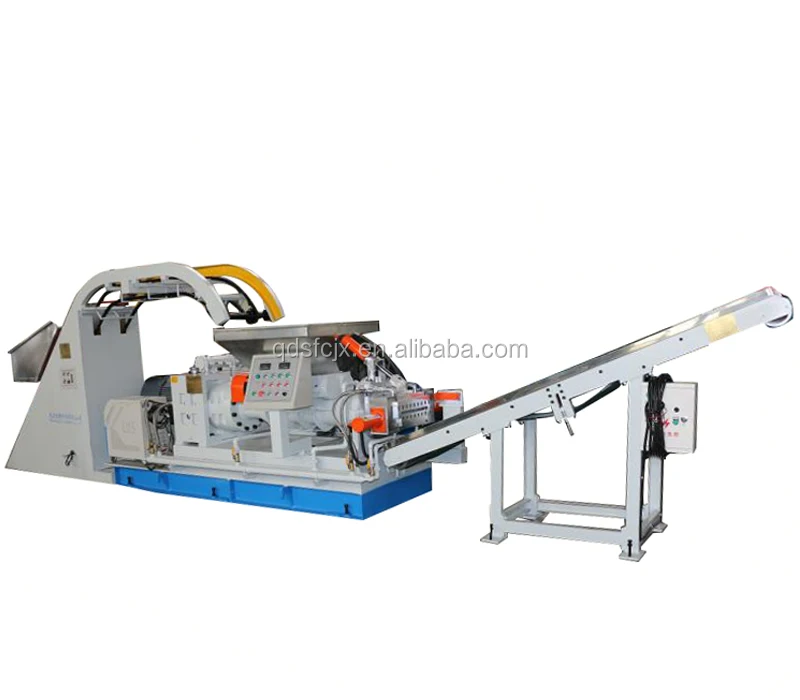

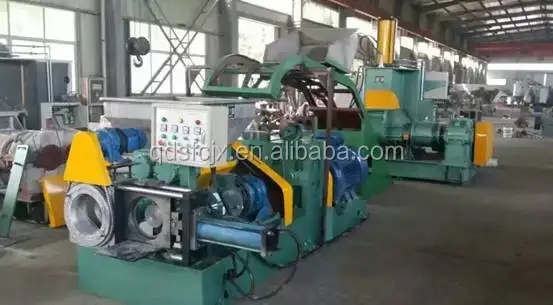

Innovative New Technology Double Heads Rubber Strainer Extruder

Product Overview

Description



 Application fields

It is widely used in rubber products such as cable industry, renewable rubber industry, inner tire industry and rubber pipe industry!



Usage

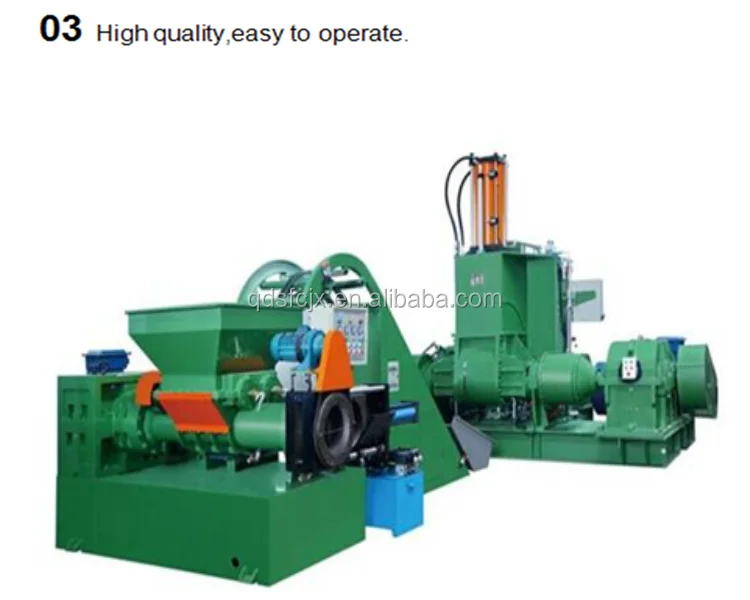

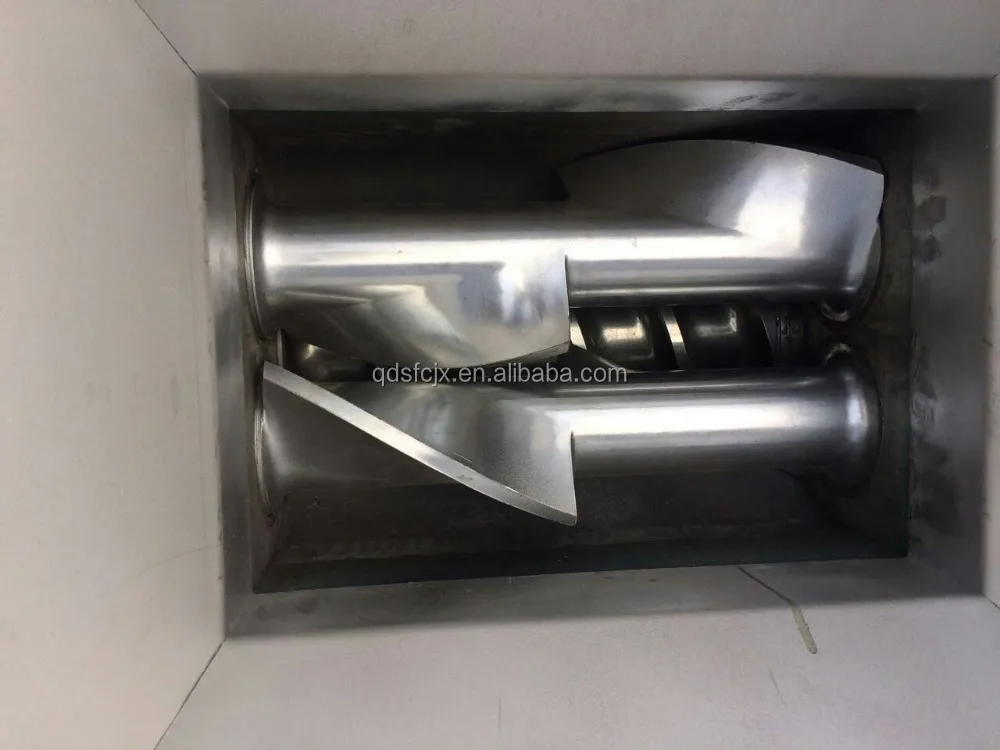

About rubber materials after mixing by rubber kneader, without the old process through mixing mill output strip and feeding old strainer, this new type strainer can directly feed clumps of block to double-pull feeding mechanism, using screw pushing, conveying, the mixed gum or removing the impurity in the mixed rubber and reclaimed rubber.Rubber products with different shapes can be extruded according to customer requirements.



Feature

1.Compared with the old process, reducing the use of a rubber mixing mill and one worker, the production cost is greatly reduced.And the feeding effect is good, the filtration ability is strong, greatly reduces the work intensity of worker, reduces the investment cost.

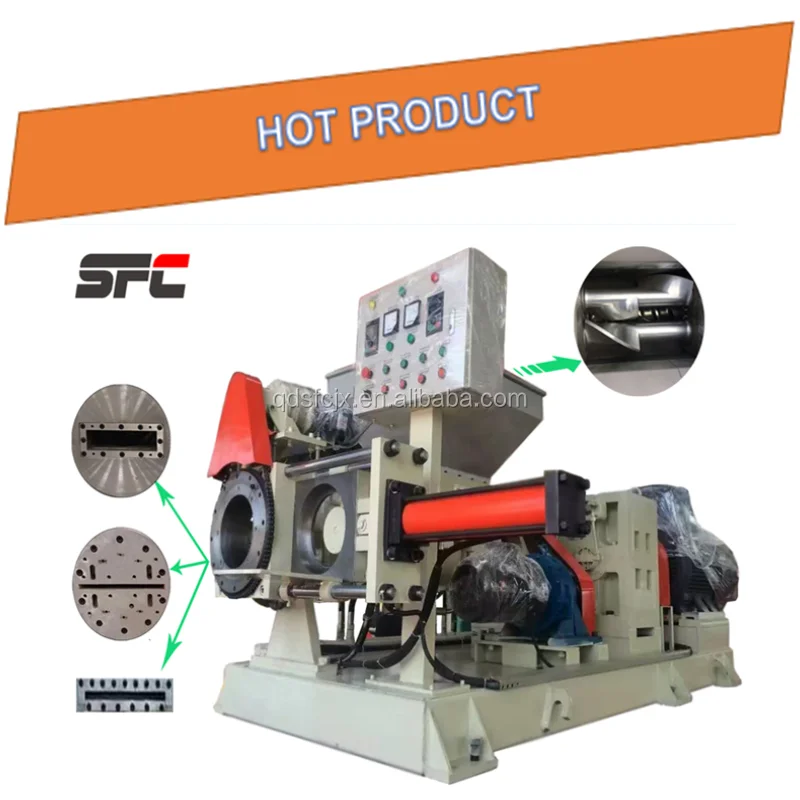

2,Adopt double heads with filter plate,and The filter screen is replaced by hydraulic push, and the operation is fast, not leaking, saving time and energy.





3,The rotation speed can be adjusted, which can match the speed of the equipment before and after, improve the utilization of resources, more safety and save energy.



4,Adopt Hard tooth speed reducer special used on extruder,Low noise and long service life.



5,The machine barrel and screw are made of high quality alloy steel 38CrMoALA, which is treated with nitrification and abrasion resistance.



6,Equipped with automatic cutting rubber device to reduce the labor intensity of workers



Paremeter





Model Item			XJL-150	XJL-200	XJL-250
Screw dia		mm	150	200	250
L/D ratio			6.3	6	5.4
Screw speed		r/min	60	50	40
Motor power		kW	45	75	110
Steam pressure		MPa	0.2-0.4	0.2-0.4	0.2-0.4
Cooling water pressure		MPa	0.2-0.4	0.2-0.4	0.2-0.4
Capacity		kg/h	500-800	900-1500	1500-2000
Overall dimensions	L	mm	3500	3700	4800
	W	mm	1650	1850	2150
	H	mm	1520	1750	1850
About weight		t	~4.5	~8	~9
