Product Overview

Description



INTRODUCTION

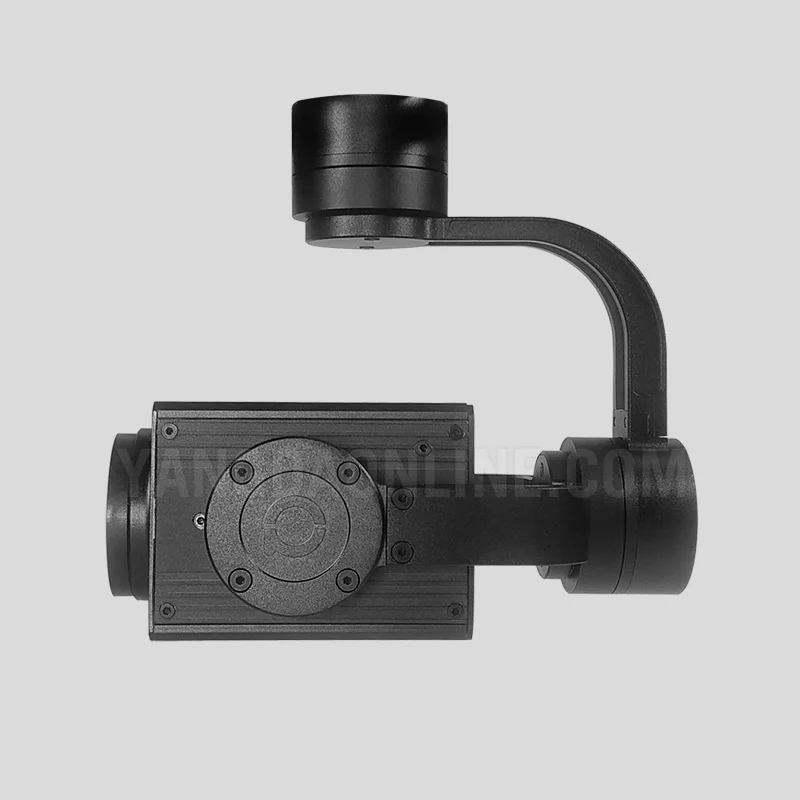

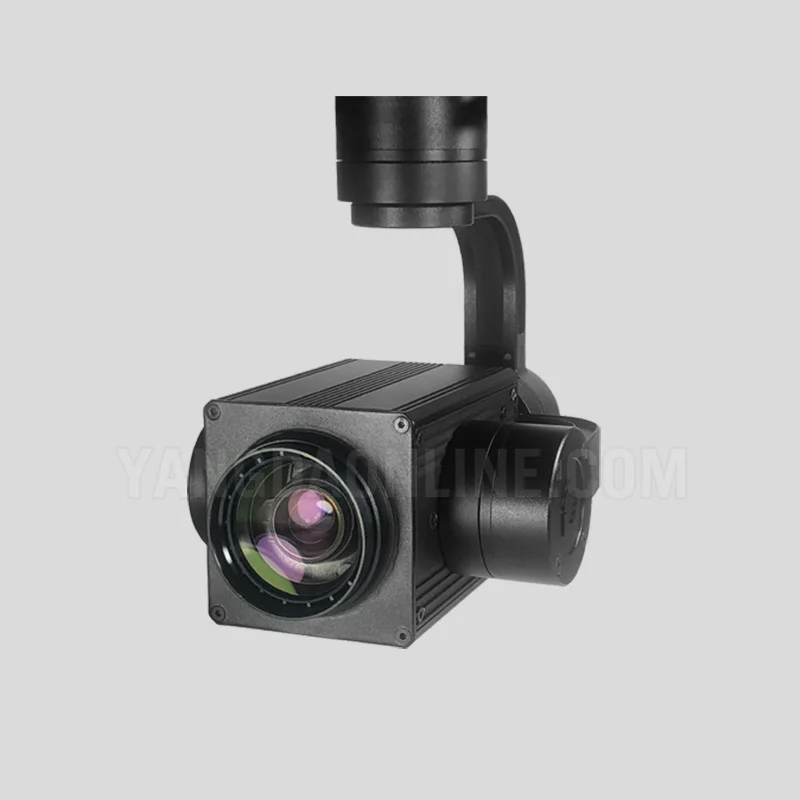

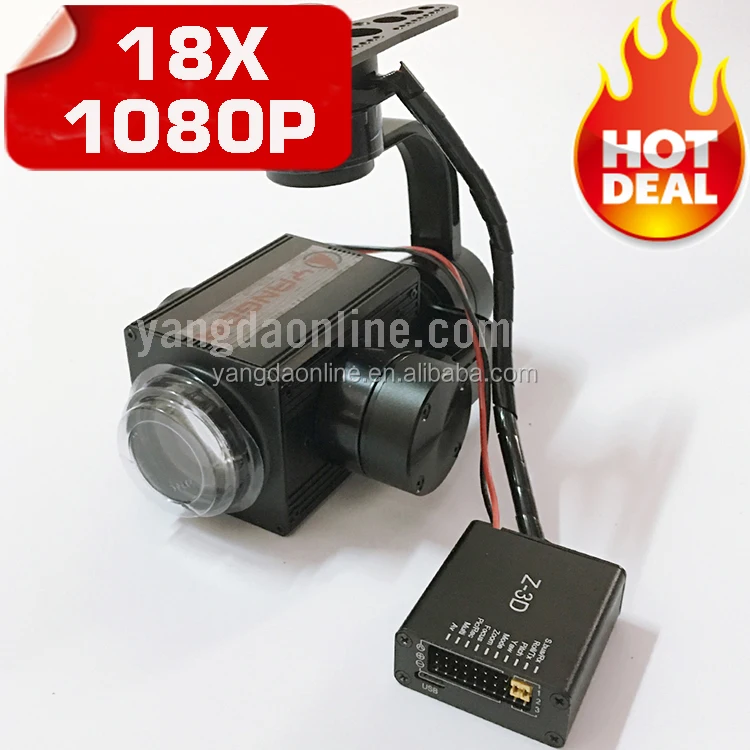

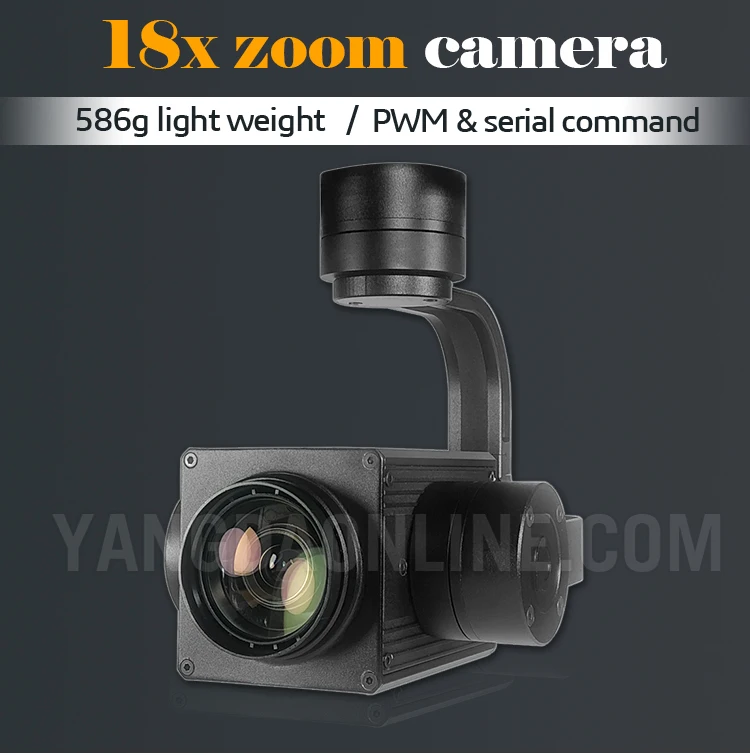

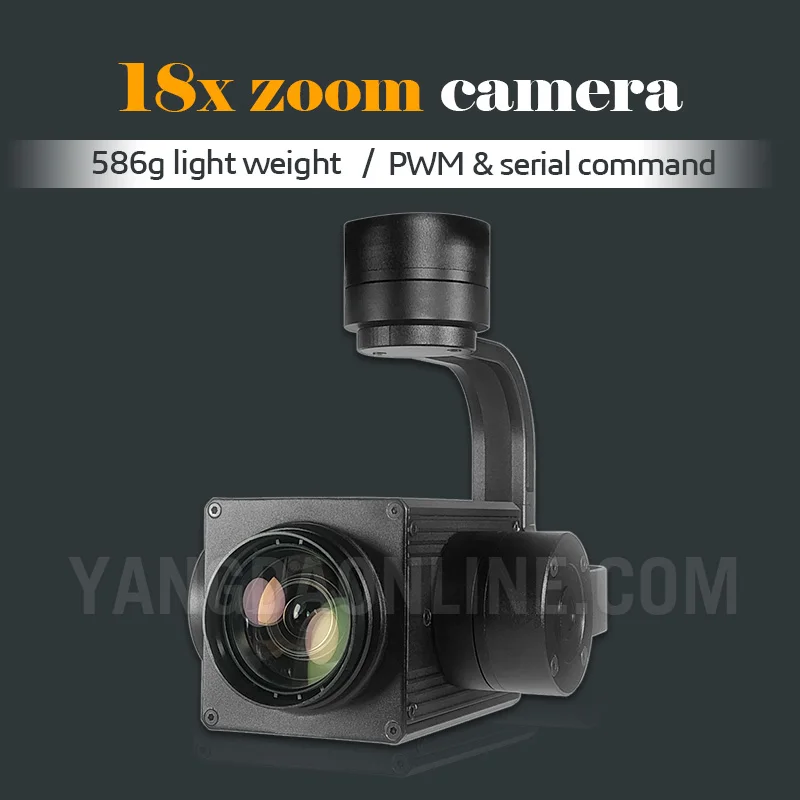

Sky Eye-18HZ 1080P is a gimbal designed for 18X zoom camera for drone aerial inspection,surveillance,research and rescue mission,which can be easily installed on most multirotor platforms.It consists of HD 18X optical zooming camera and a 3-axis high stabilized gimbal,which is able to take and record 1080p 30fps video to an on board TF card, giving you a stable eye in the sky that can be controlled via drone pilot or a secondary individual allowing for an overhead view that can cover a large amount of ground quickly and effectively. The 18X zoom function will allow you to remain at a distance yet zoom closely in on anything that requires your attention.

Compact and lightweight
Sky Eye-18HZ weighs as little as 586g to help you meet your payload weight allowance.

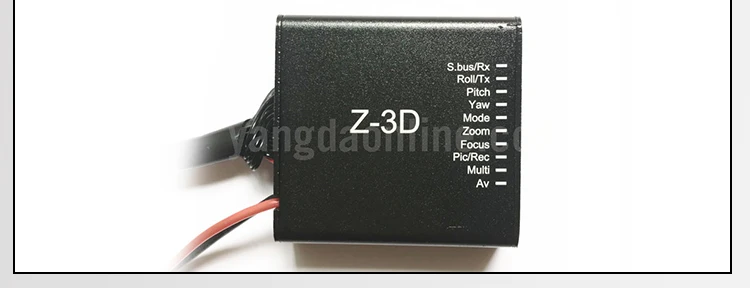

Clean and simple wiring
Sky Eye-18HZ provides an outstanding wiring hub design for RC receiver and video output port(AV and HDMI),which makes wiring pretty easily. Also the gimbal offers 2 smart speed modes:FAST speed and LOW speed.Fast speed mode is used for small zooming range,which makes the gimbal control sensitive and quick.LOW speed mode is used for large zoom range,will enable you to target the object more accurately.

Clean and simple wiring
Sky Eye-I 1080P provides an outstanding wiring hub design for RC receiver and video output port(AV and HDMI),which makes wiring pretty easily. Also the gimbal offers 2 smart speed modes:FAST speed and LOW speed.Fast speed mode is used for small zooming range,which makes the gimbal control sensitive and quick.LOW speed mode is used for large zoom range,will enable you to target the object more accurately.

2 Video out

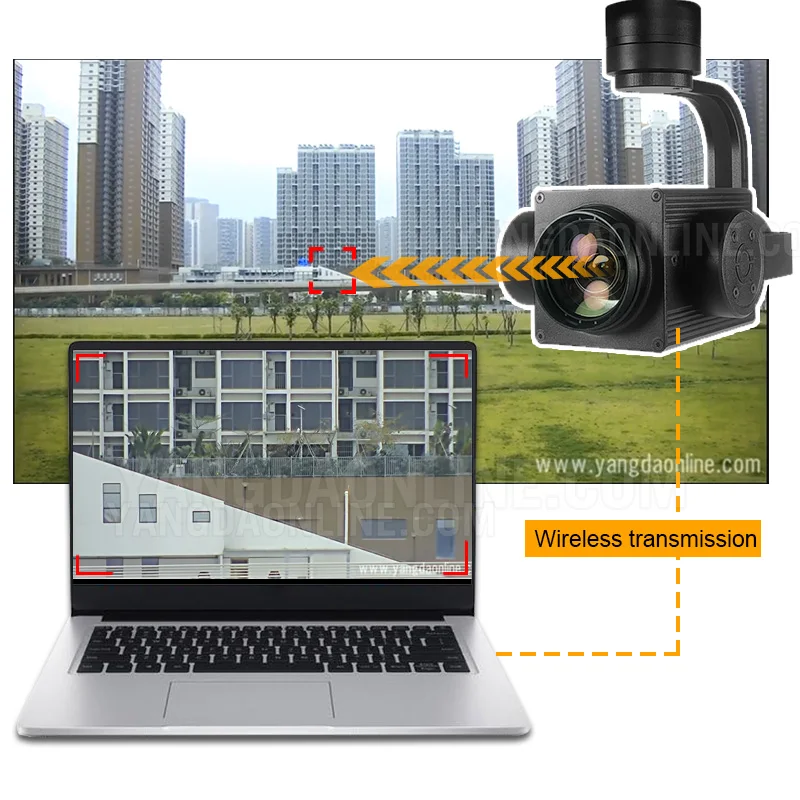

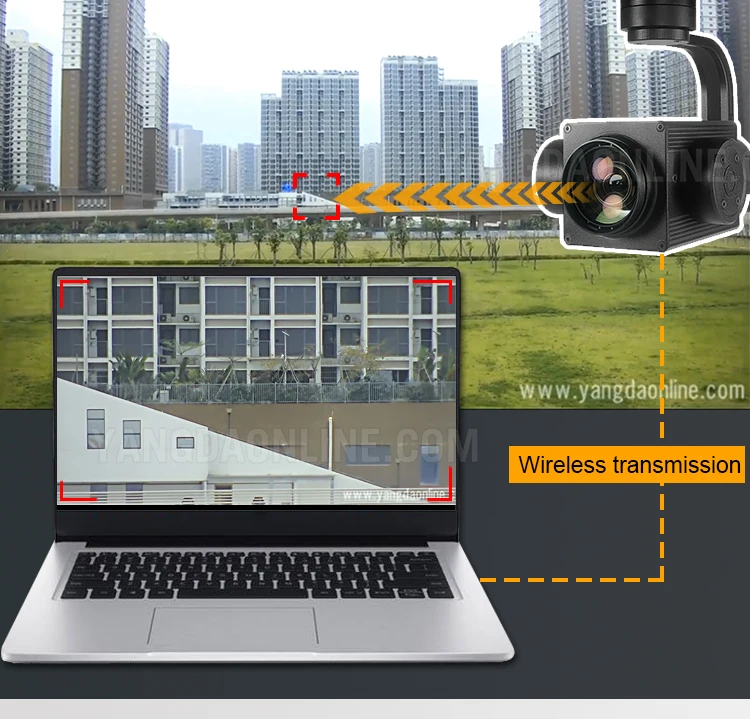

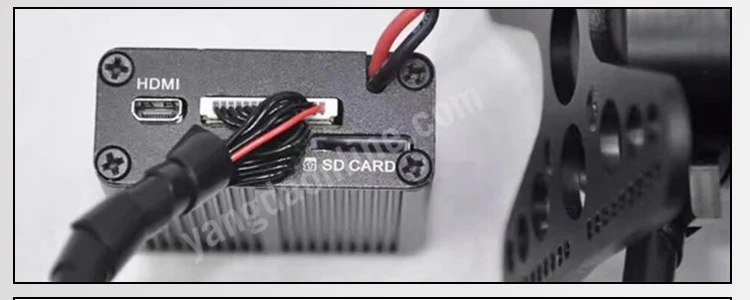

Sky Eye-I 1080P has two video output ports,HDMI(1920*1080*60fps ) and Analog,which makes it possible to use traditional analog 5.8G video downlink or HD video downlink. The photo/video/playback functions can be chosen by a 3-gear switch on your radio.

Gimbal quick-release mechanism
This feature is avalable for this camera, please check HERE to get more information.

System Specification

18X zoom camera
Sensor	1/3 inch 4MP CMOS SENSOR
Video output	CVBS and 1080P/60 HDMI
Video recorded	1080P/30 MP4
Focal length	18X optical focal zoom, 4.85-82mm
FOV	Horizontal: 54.8°(Wide end) ~ 3.4°(Tele end)
	Vertical: 41°(wide end) ~ 2.5°(tele end)
	Focus: 66.6°(wide end) ~ 7.2°(tele end)
Wide Dynamic	Up to 105dB
Auto focus	Less than 1S
Low illumination	0.05lux F1.6
Aperture	Φ 16.0
Vertical Roll / Horizon Mirror/Static	Support
AWB/AGC/ACC/	Support
Gimbal system
Input voltage	3S-4S

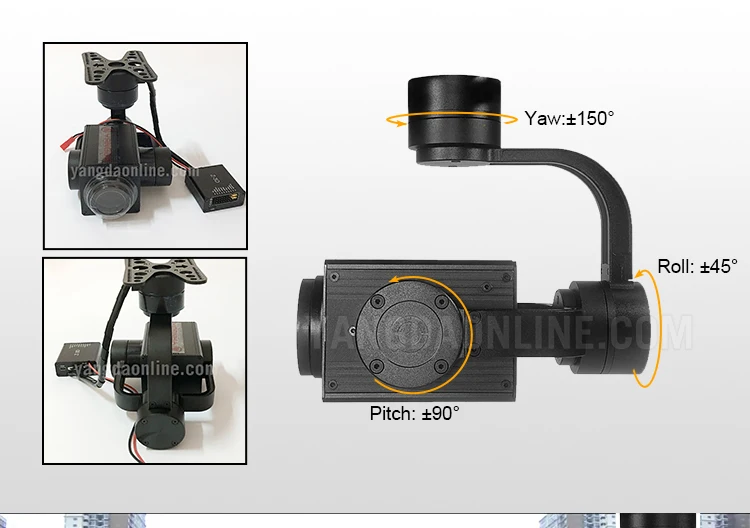

Rotate range	Pitch: ±90° Roll: ±45° Yaw: ±150°
Angle amount of jitter	Pitch and roll: ±0.02° Yaw: ±0.03°
Control interface	PWM, S.Bus, and serial command
Working Current	Static current: 330mA(12V) Dynamic current: 450mA(12V)
Mechanical feature
Total weight (gimbal and camera)	586g
Working temperature	-25° ~ +60°

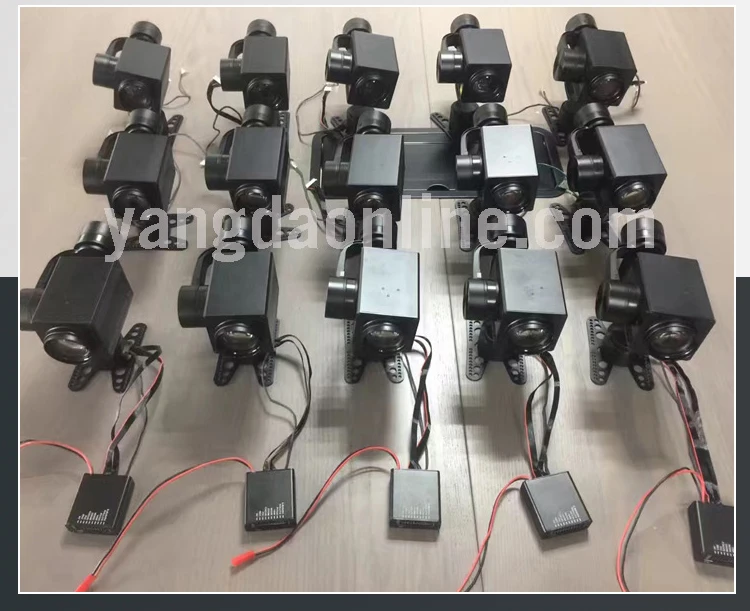

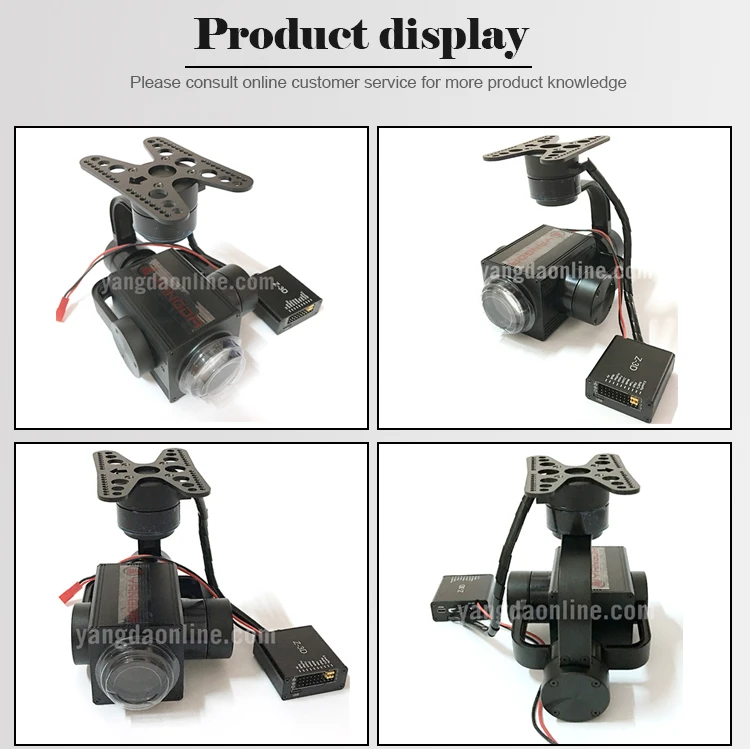

PRODUCT PHOTOS
