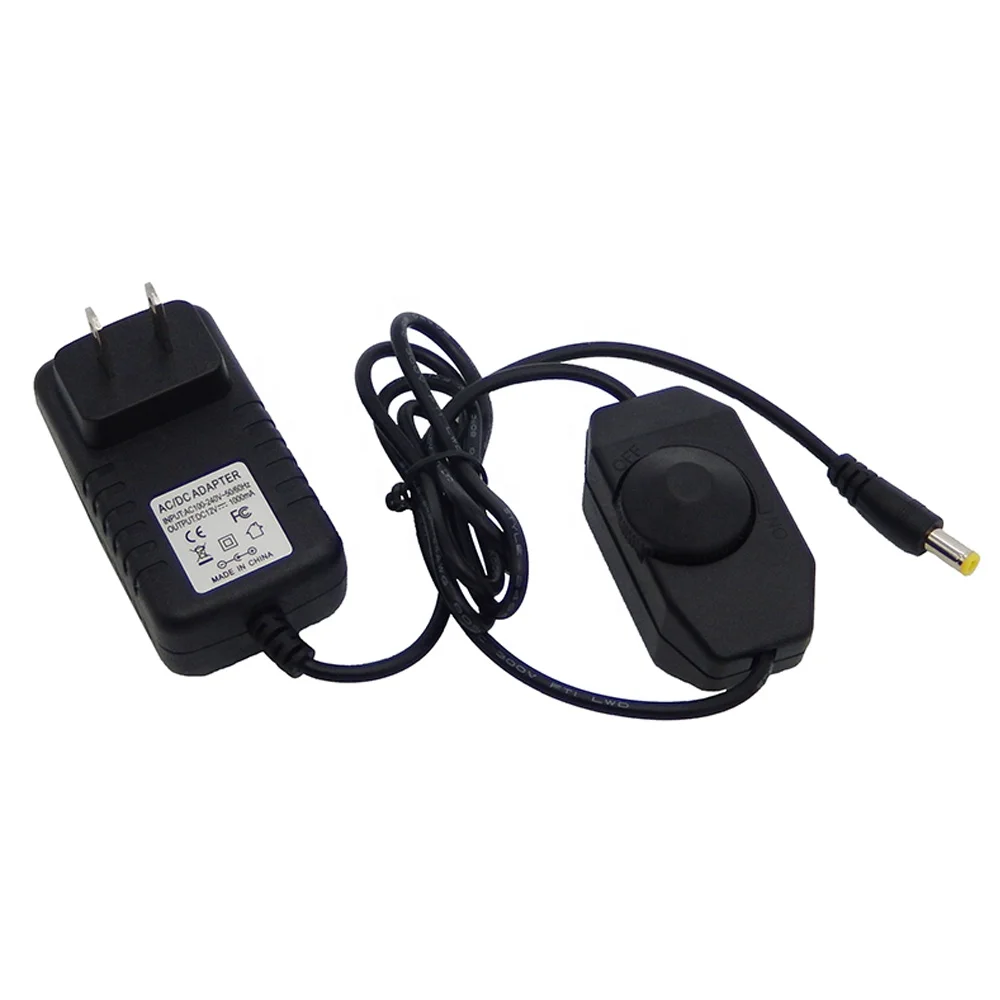

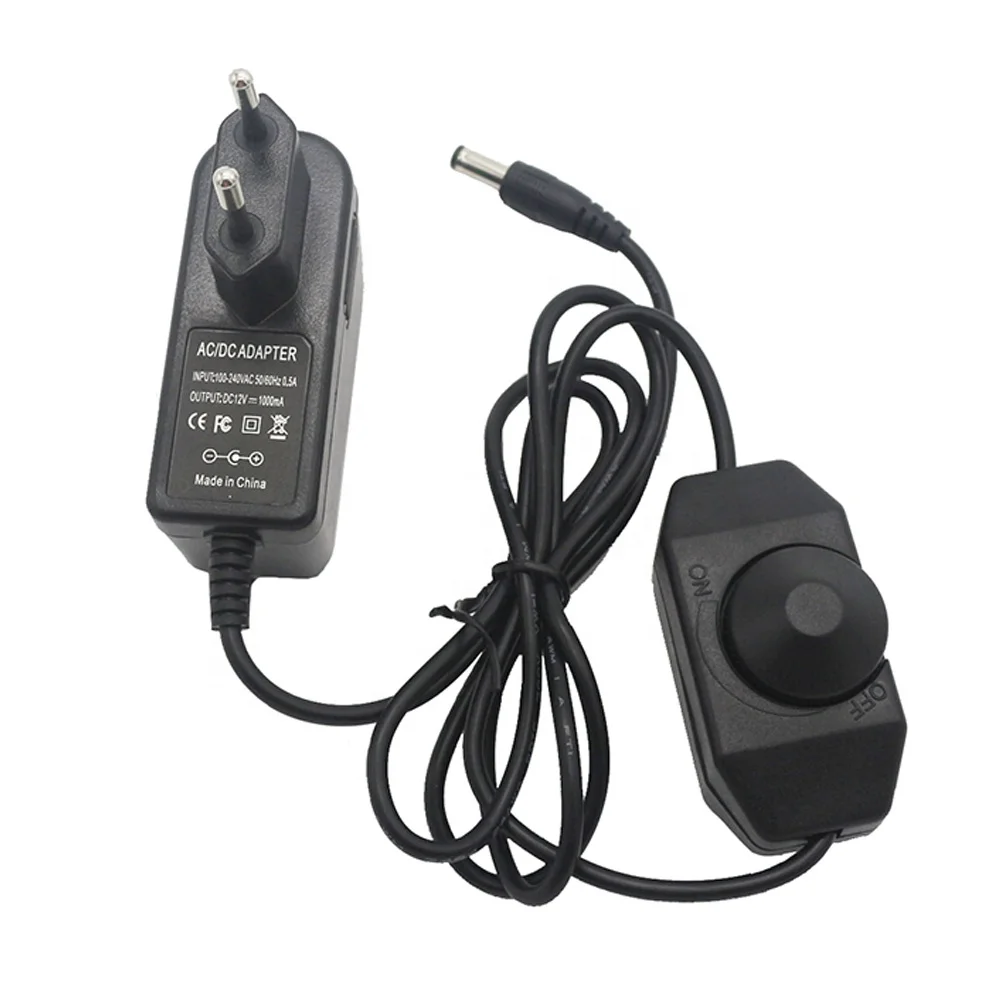

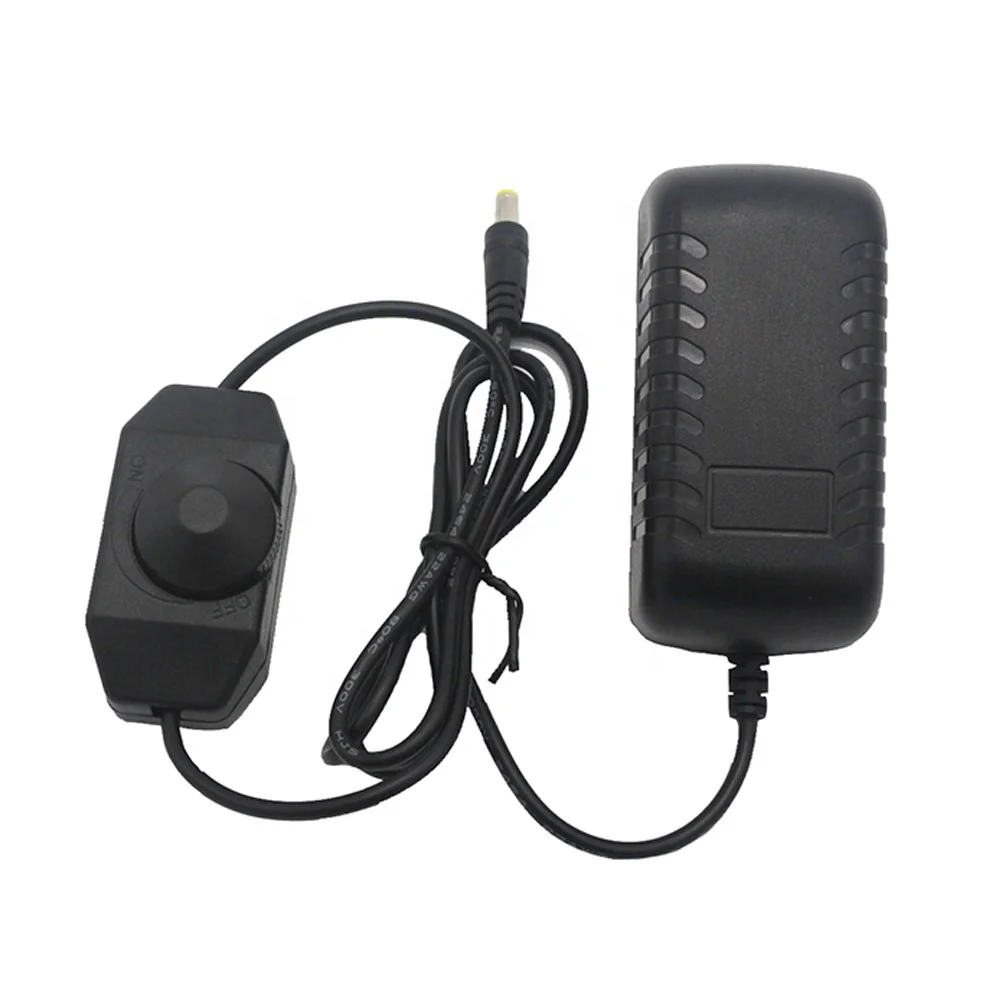

12V 2A dimmer driver power adapter for LED lighting for Speed Control Hand Drill
12V 2A dimmer driver power adapter for LED lighting for Speed Control Hand Drill
12V 2A dimmer driver power adapter for LED lighting for Speed Control Hand Drill
12V 2A dimmer driver power adapter for LED lighting for Speed Control Hand Drill
12V 2A dimmer driver power adapter for LED lighting for Speed Control Hand Drill
12V 2A dimmer driver power adapter for LED lighting for Speed Control Hand Drill
12V 2A dimmer driver power adapter for LED lighting for Speed Control Hand Drill

12V 2A dimmer driver power adapter for LED lighting for Speed Control Hand Drill

Share on (60713583443):


Price:$2.53 - $3.00

Quantity:


Product Overview

Description


12V 2A dimmer driver power adapter for LED lighting






Product Description






12V 2A dimmer










































































































































Model GLS-122000G
AC InputVoltage 100-240V AC
Input current 0.25A/230V AC
Frequency 47-63 Hz
Efficiency 85% typical
Inrush current 30A/230V AC
Leakage current <0.5A/240V AC
DC OutputVoltage 12V
Current 0-2000mA
Rated Power 24W
Ripple&noise 120mvp-p
Setup rise hold up time500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load
ProtectionOver Load120%Max, hiccup mode auto recovery after fault condition is removed
Short CircuitAuto recovery
EnvironmentStore Temperature-20-85°C
Wokring Temperature0--50°C
Operating Humidity20%-80%RH
SaftyCECompliant to EN 60950-1:2006;   EN61000-6-3:2001;
EN 55022:2006+A1:2007;  EN61000-4-2/-3;
EN61000-6-1:2001; EN55024:1998+A1:2000+A2:2003
RoHsFree from lead, Cadmium, Mercury, Hexavalent
Chromium and/or PBB &PBDE
othersProduct dimension83*43.5*31 mm
Weight0.17kg/pc
Packing100pcs/ctn,51*23.7*30cm
DC connector size5.5x2.1, 5.5x2.5. 3.5x1.35 or others
Cable length1.2M or others




Notes:



  1. Voltage and current can be adjusted by customer requirement.

  2. All parameters are specified at 230VAC input, rated load, 27°C 70%RH ambient.

  3. Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor.

  4. Tolerance: includes set up tolerance, line regulation, load regulation.

  5. DC voltage : the output voltage set at point measure by plug terminal &50% load.

  6. Line regulation is measured from low line to high line at rated load.

  7. Load regulation is measured from 20% to 100% rated load.

  8. The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives.
