DBLS 02 S 24 48V 60A peak current brushless dc motor driver for industrial
- Category: >>>
- Supplier: Shenzhen Dingtuoda Electromechanics Co. Ltd.
Share on (60713688397):
Product Overview
Description
Product Description
PID speed and current double loop regulator
High performance, low price
20KHz chopper frequency
Electrical stop to ensure the quickly action of motor
Over load radio larger then 2, torque always can achieve the max in low speed
Provide over-voltage protection, lost-voltage protection, over-current protection, over-terperature protection, illegal horal signal and other fault alarm.
- CE certification
Function:
1. Two adjust methods for the user to choose: Inner potentiometer speed adjustment and
External input adjustment
2. Motor operate/stop control (EN)
3. Motor rotation direction control ( F/R ) : CW/CCW
4. Break the motor to stop ( BK )
5. Speed signal output(PG)
6. Alarm output (ALM)
7. Drive failure protection
8. Standard Mod bus protocol, RS485 multi-axis control
Terminal connection
1,Power Input
1 | V+ | 24VDC~48VDC input |
2 | GND | GND input |
2,Motor Input
1 | MA | A phase |
2 | MB | B phase |
3 | MC | C phase |
4 | GND | GND |
5 | HA | Hall single A input |
6 | HB | Hall single B input |
7 | HC | Hall single C input |
8 | +5V | Hall single power line |

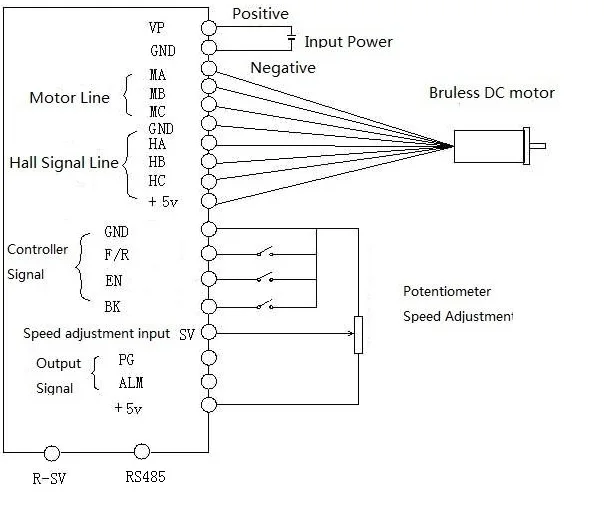

Connection Diagram of motor and driver
Dimension
Packaging & Shipping
Standard export carton, 1pc per PP bag per white box, 10pcs per carton,
Carton size: 390*250*265mm, Net.Weight.: 10kgs, Gross.Weight.:11kgs.
Package can be made as customer's design.
Our Services
1. Customized design is available, OEM &ODM are welcomed.
2. One year warranty after products shipped from original port
3. 24-hours online service support
4. Paypal, Western Union, T/T,L/C payment are acceptable
