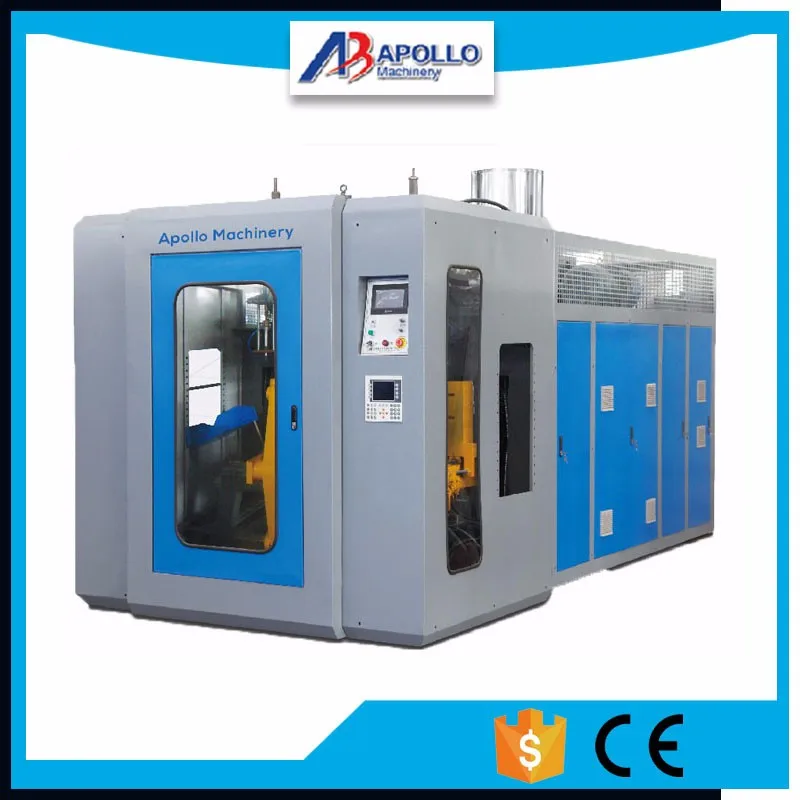

20 liter 60L PE plastic bottle oil drum Blow Molding Machine
- Category: >>>
- Supplier: Zhangjiagang Apollo Machinery Co. Ltd.
Share on (60713737438):
Product Overview
Description
Company Profile
Product Description

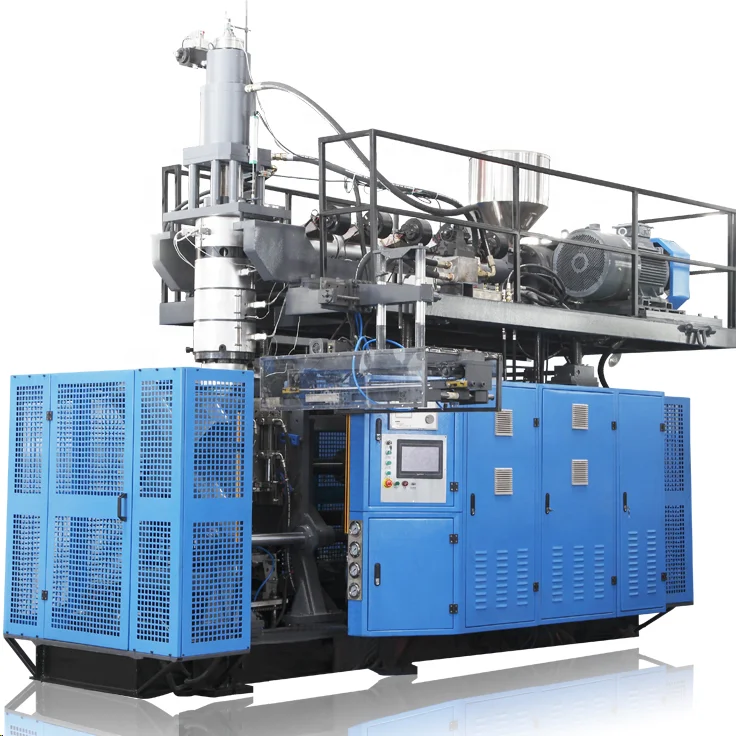

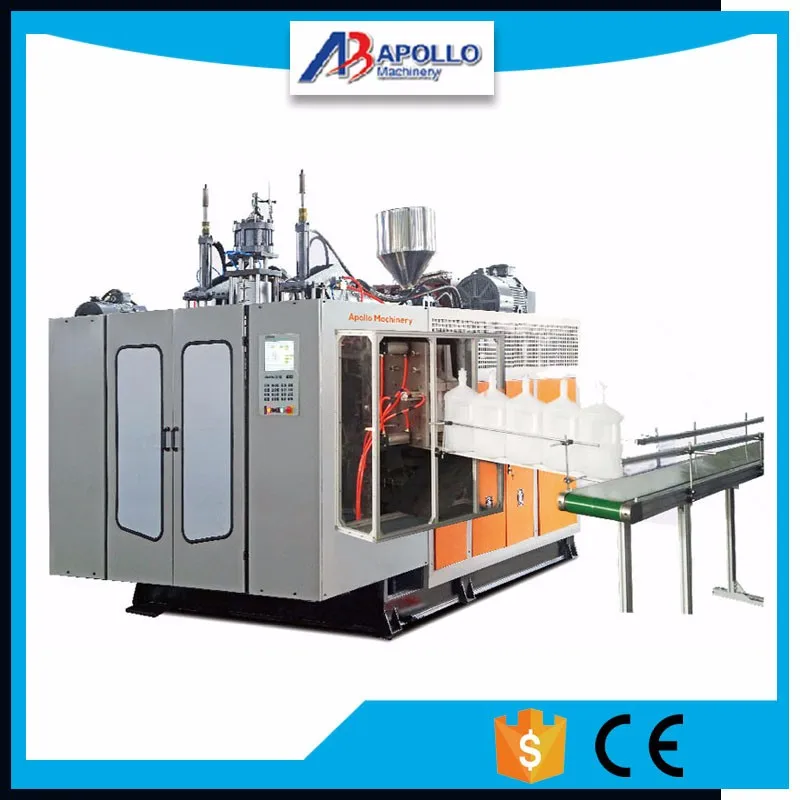

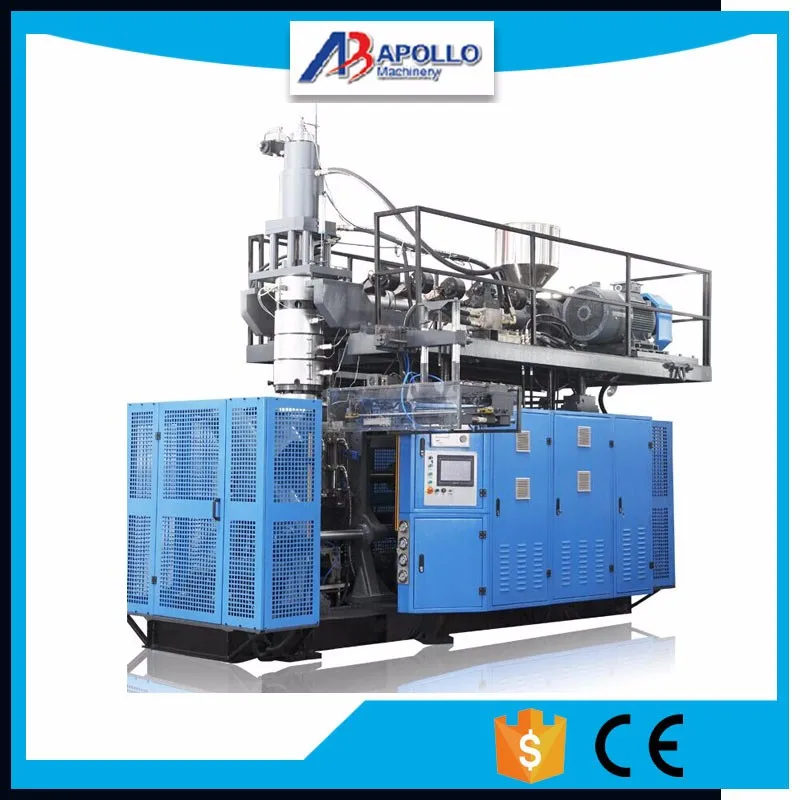

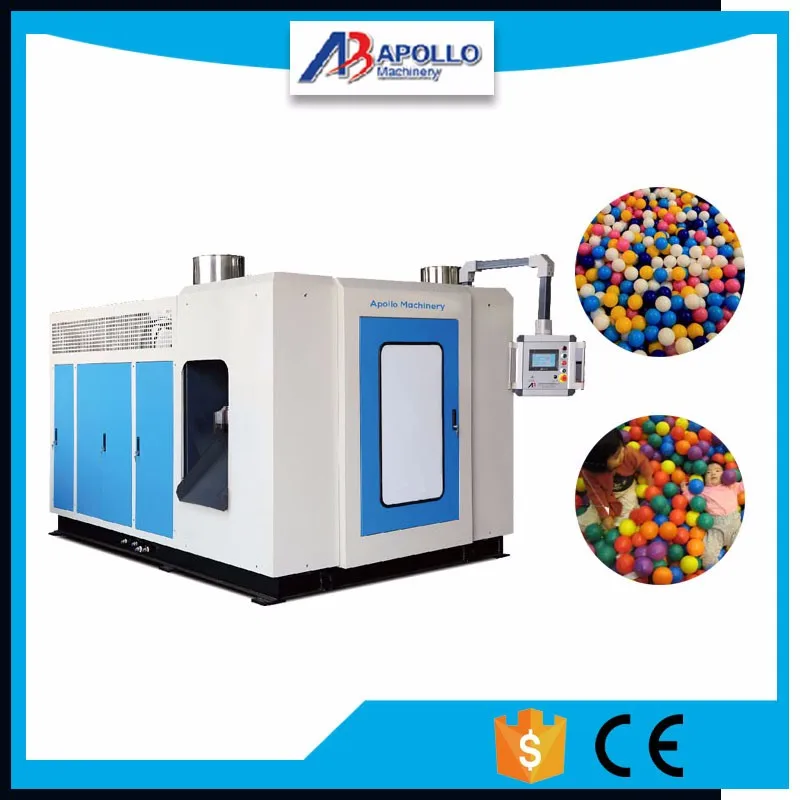

Energy Saving HDPE Blow Molding Machinery for Oil Drum

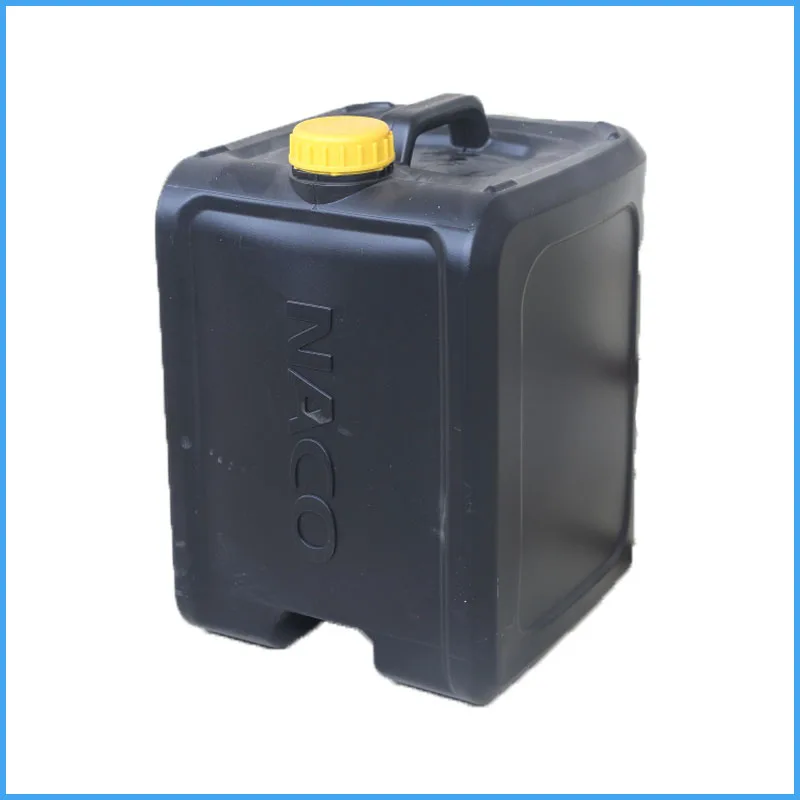

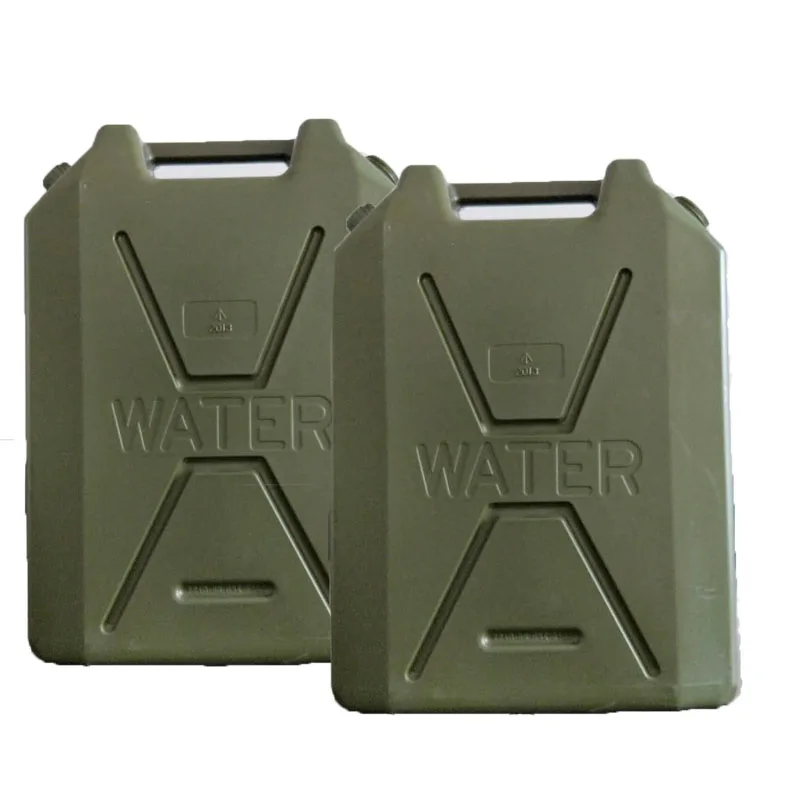

It is widely used in bottles, kettles, jerry cans, vessels,toolboxes, toys and so on.It is equiped with Japanese Mitsubishi PLC & temperature controller, Schneider contactor, Delta or ABB invertor, Siemens Motor, Hitech oil pump, Original Japan MOOG 100 points parison controller.
Oil pump motor adopt latest servo motor, saving more than 40% energy consumption.
Optional function for special blow molding such as: Bottom blowing, Side blowing, Material support, inner and outter screw mould release, sub-mould open and close, automatic sealing, mechanical robot so on.
SPECIFICATIONS FOR ABLB45II BLOW MOLDING MACHINE | ||||
NAME | UNITS | ABLD100 | ||
Max. product volume | L | 1 | ||
Dry cycle | PC/H | 700*2 | ||
Screw diameter | MM | 45 | ||
Screw L/D ratio | L/D | 24 | ||
Screw drive power | KW | 11 | ||
Screw heating capacity | KW | 3 | ||
No. of heating zone | ZONE | 3 | ||
Output of HDPE | KG/H | 30 | ||
Oil pump drive power | KW | 5.5 | ||
Clamping force | KN | 35 | ||
Max. size of mold | MM | 250*320 | ||
Template size | MM | 290*320 | ||
Mold stroke | MM | 150-500 | ||
Max. die diameter | MM | 120 | ||
Blowing pressure | MPA | 0.6 | ||
Air volume | M3/MIN | 0.4 | ||
Cooling water pressure | MPA | 0.3 | ||
Water consumption | L/MIN | 30 | ||
size of machine | L*W*H | 2.6*1.8*2.2 | ||
Weight of machine | TON | 4 | ||
Main Features
1) This type of machine is suitable to produce different shapes of plastic bottles from 100ML to 1L.
2) Adopt Mitsubishi PLC from Japan.
3) Contactor use Schneider from France.
4) Most of spareparts of hydraulic system and pneumatic system are imported from Japan, Korea, France and Taiwan region, China to ensure the quality of the machine.
2) Adopt Mitsubishi PLC from Japan.
3) Contactor use Schneider from France.
4) Most of spareparts of hydraulic system and pneumatic system are imported from Japan, Korea, France and Taiwan region, China to ensure the quality of the machine.
Detailed Images
Machine Parts

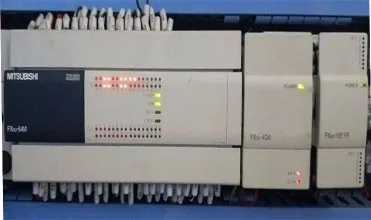

Name: Microcomputer Control System (PLC)
Brand: MITSUBISHI
Original: JAPAN
Used to control all electric components and touch screen.
Machine Parts

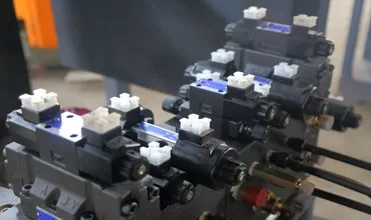

Name: Valves
Brand: YUKEN
Original: Japan
It has high quality.
It is consistent and reliable.
Machine Parts

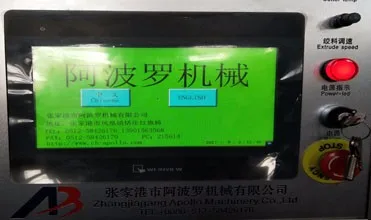

Name: Touch screen
Brand: WEINVIEW
Original: Taiwan Region, China
It is can be used in Chinese or English
All movement operated by touching screen
Making the process full automatic
Exhibition
1, Our company has attented a lot of exhibitions, which hlep us accumulated a lot of ecperience.
2, Our machine not only sold in our domestic land, it is also exported to overseas, suach as:the America area:Canda, The USA, Mexico, Brazil and so on. Countries in Europe, such as: Turkey, Germany, Russia and in the Moddle East, such as: Saudi Arabia, Orman, Sudan, Nigeria. In the Asia area, such as: Indonisa, The Philippines, India and so on.
3, Our produsts have own a high reputation in the blow molding machine and our machine are always warmly welcomed by our new and old customers because of the best machine and the suitable services.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Machine testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packing
Standard sea freight package for sea freight by 20CY.
Delivery
No later than 40 working days, after we received the deposit.
FAQ
1. Can the machine customized only for my products?
Yes, most APOLLO machines can be customized as per clients’ requirements, including the structure special design and brand of parts special request.
2. How about the molds ?
APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. What is the business item for this project ?
a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
4. How is APOLLO after-sales service?
a. Inspection
Before delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into operation once reach the client`s factory.
b. Debugging Instruction
APOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory.
C. User Training
APOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients’ factory to the users, so that they could understand the machine features and could operate the machine by themselves.
5. What is the warranty period?
a. APOLLO machine Main parts is one year warranty with a lifelong maintenance.
b. Mould within one year or 5 millions warranty.
