Newest Factory Producing 22*14CM tempered glass multi function DND corridor doorplate, with gold LOGO

Product Overview

Description

Newest Factory Producing 22*14CM tempered glass multi-function DND corridor doorplate, with gold LOGO



This is GTD latest touch doorplate solution.

Whole system is including: outdoor panel + indoor panel + bell + key card switch+ mounting box

It is with room status function.

(Option: LOGO+Room number back light LED colors changing as the service DND/MUR/BELL operating status)

140-220mm size, not too large or too small.

This product is with status record when power off, and then, when the power on, all LED will display as the previous same status.



Material	100% Tempered glass
Color	Black ( white/silver/gray/champagne, etc. customize)
Size	140*220mm
Function buttons	logo+room number+DND/MUR+ BELL (WAIT/LAUNDRY/CHECK IN option)
System option panels	outdoor panel + indoor panel + bell + key card switch+ mounting box
LED back-light	Reserve different colors LED (white/blue/red/green/orange)
Room number LED changing	The room number back light color can be changing as service status
Exclusive design icons	All words and icons exclusive design, customize available
Room status function	Support
Status Record	With status recorder function when power off
Voltage	80-260V AC wide voltage, (9-24V DC version option or customize)
Touch area	Large area Capacitive touch
High sensitivity	Easy touch, with high sensitivity
Operating temperature	-10℃~60℃
Working humidity	0~95%

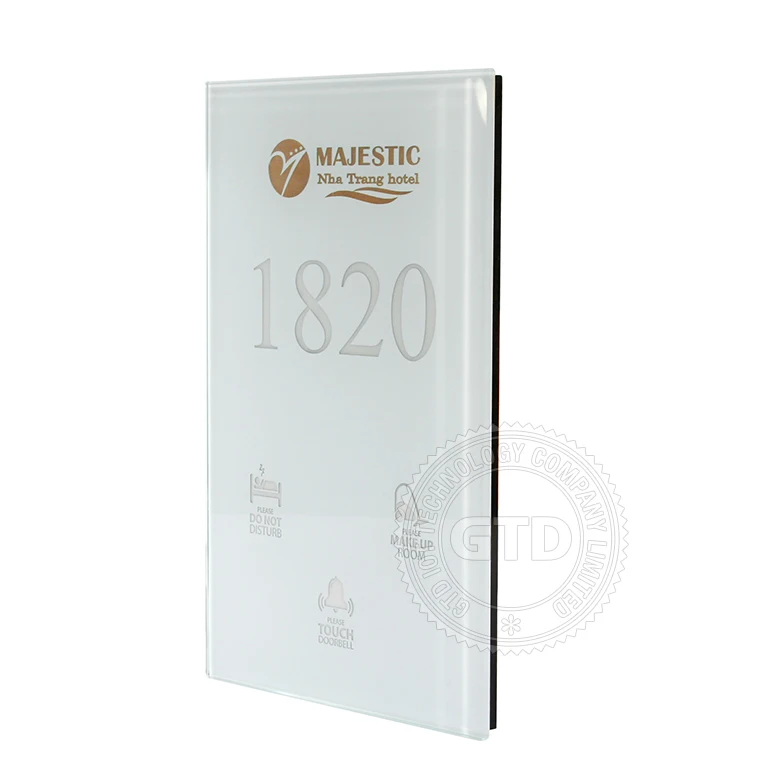

Nice 140*220 mm size white Crystal Tempered Glass panel

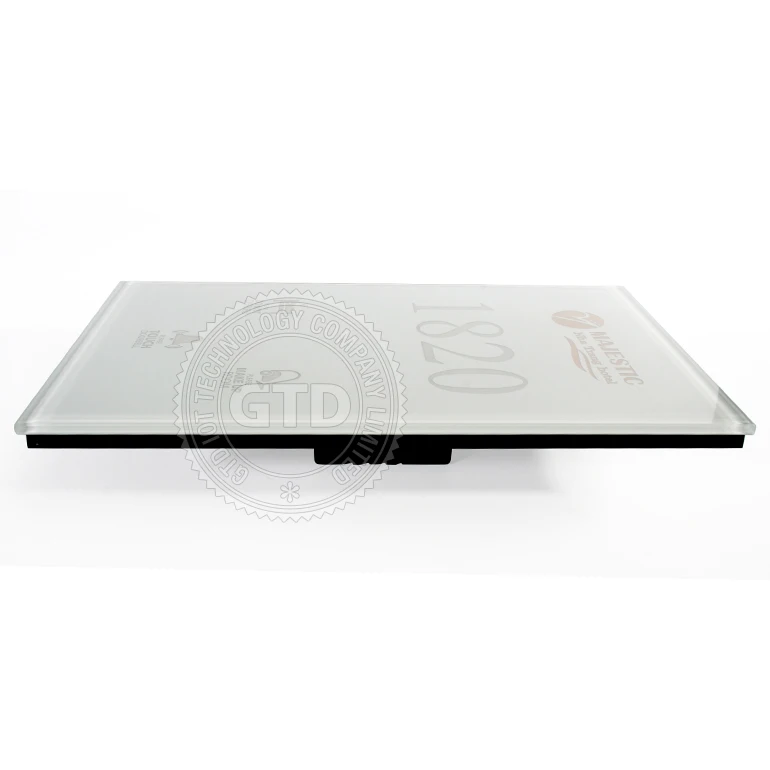

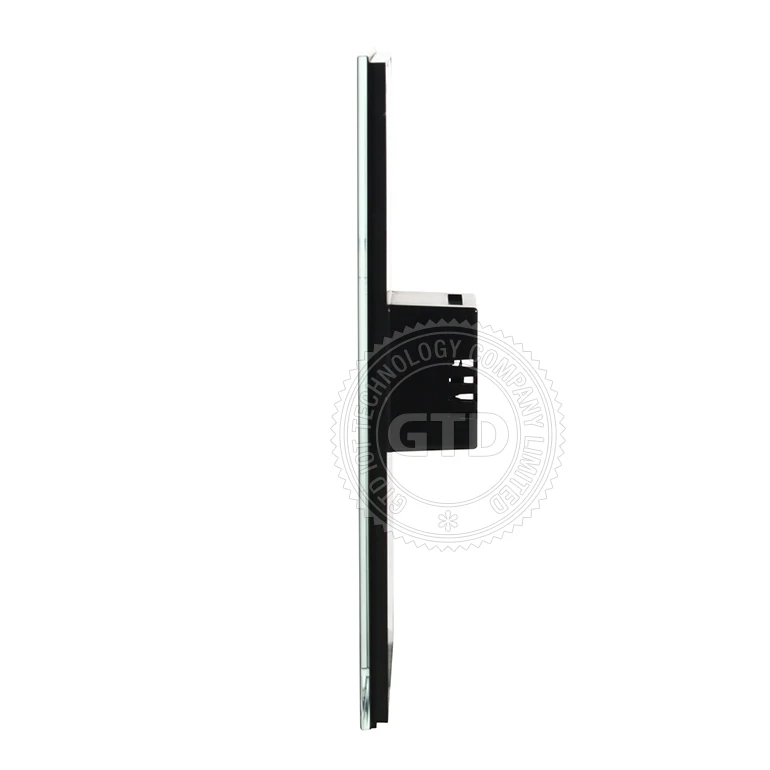

The outdoor plate is 140*220mm size, white tempered glass, 4mm thickness with good crystal effect.



Exclusive Function Layout Design

The outdoor panel function layout is special designed, with exlusive design icons, words, font, size, layout, this well enhance whole product level. We can also customize design and print as you need.

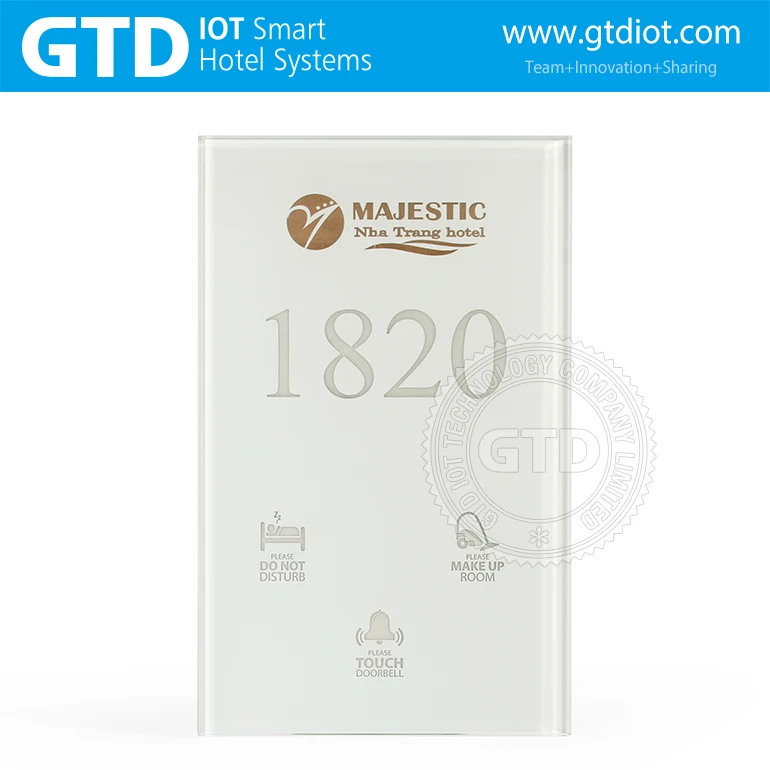

Gold logo + white room number+ red DND + green MUR + blue TOUCH bell

Different colors LED back light option, and the LED quality is very good with smooth brightness light.







Different Function Layout Style

The outdoor panel, there is different layout style, as your function need.

-- Room number + LOGO

-- Room number + LOGO + Bell touch

-- Room number + LOGO + DND/MUR/WAIT/LAUNDRY/CHECK-IN

-- Room number + LOGO + DND/MUR/WAIT/LAUNDRY/CHECK-IN + Bell touch

customize print as your design or requirement.



High-quality PC Flame Retardant Materials

The panel and mounting box both applies high-quality V0 ABS flame retardant materials, fireproofing, flame retardant and strong security.





Same Apperance Structure Hotel Guide Sign Plate Option

There is same structure sign plate option, such as room number direction guide, WC, Elevator, etc.



Newest designed 86*86mm size Bell for Choice

GTD have new developed 86*86mm size bell, with good appearance:

-- back box structure convenient same installation in the wall or on the wall with a mounting box,

-- different music and 5 levels voice volume for choice.

-- LED flashing indicator.

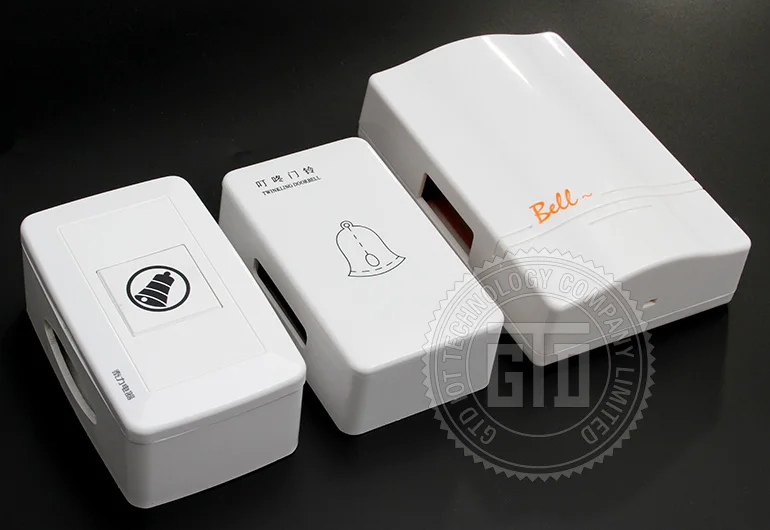

Other normal bell for option

The whole system can be outdoor panel + indoor panel + bell + key card switch + card + mounting box

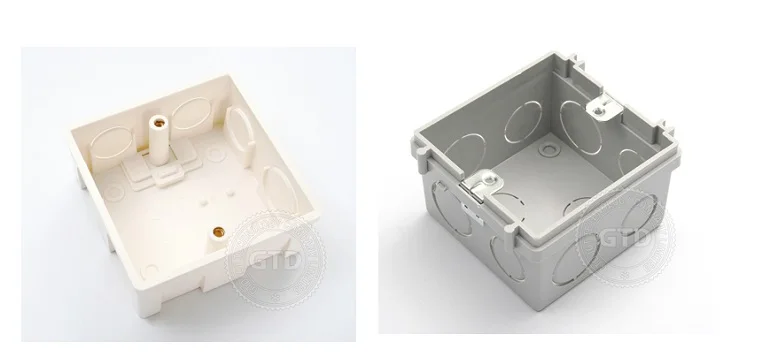

Other normal mechanize bell, card, mounting box below can be choosen.







Differente Matched Accessories Option

There are rich different matched accessories option, different size version bell, matched appearance key card switch, different colors and content customize card, install mounting box.



Product Parameters

Working voltage: 80-260V AC (other voltage can be customized) , Size: 140*220mm

Panel materials: tempered glass, Service life: 100,000 times

Self-consumed power: <2W   Working temperature: -10℃~60℃  Working humidity: 0~95%

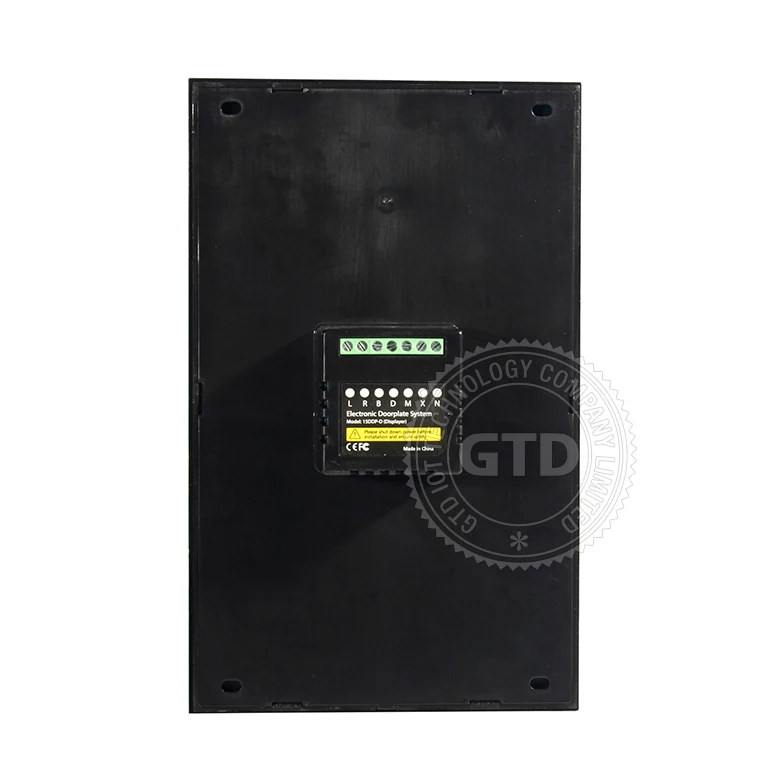

Clear Wiring indicator

On the product back, there is clear wiring indicator, simple and easy to be understood.



Packaging (customize available)

1 pcs in 1 brown box, with Pearl cotton bags, shockproof and dust-proof

brown box size: 24*16*6cm

19.9kgs/47*52*33cm/30pcs/carton

Customize packaging is available
