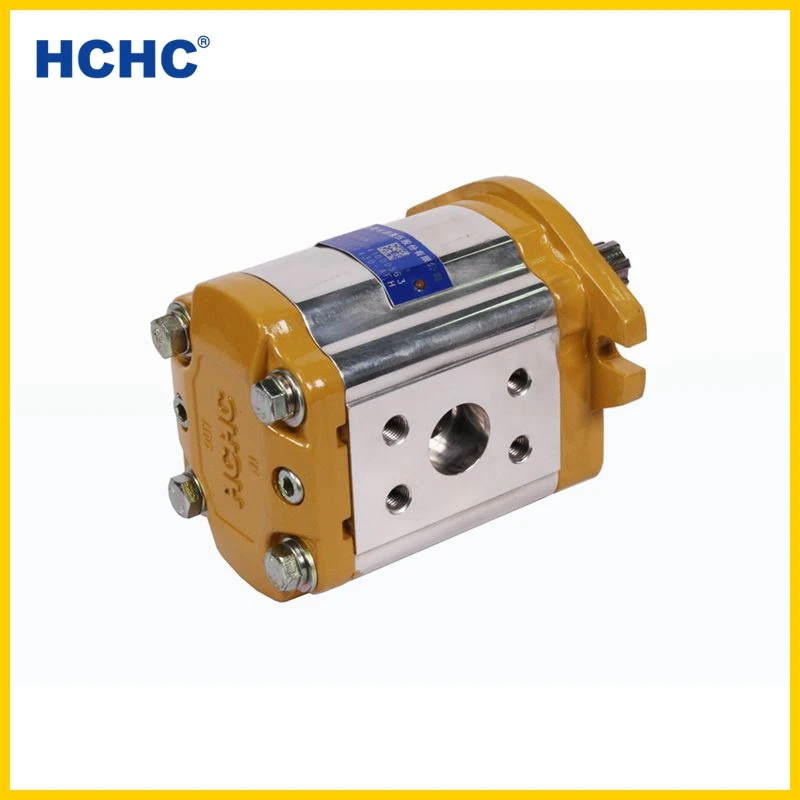

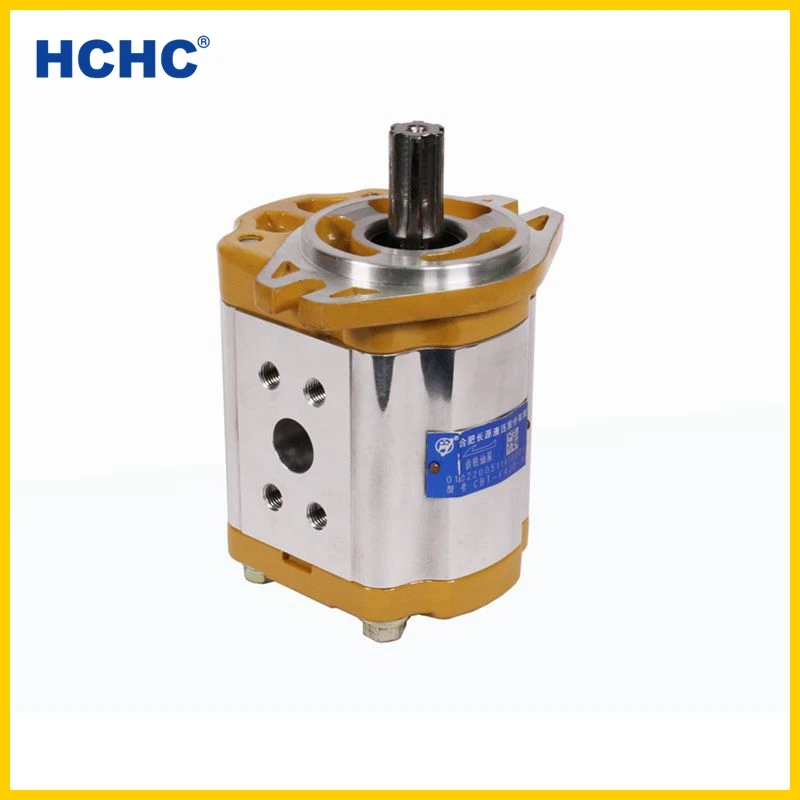

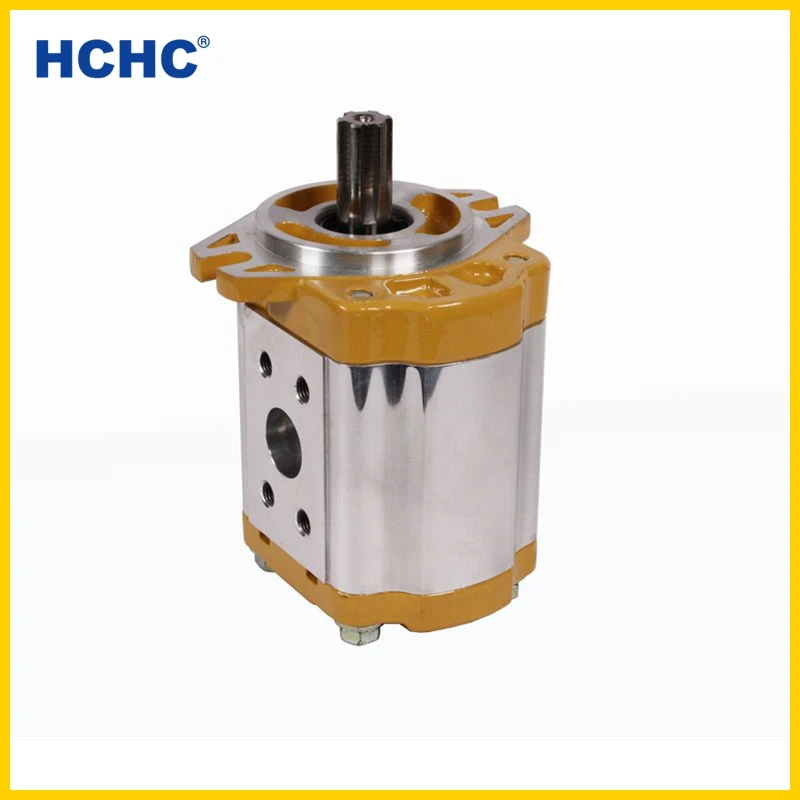

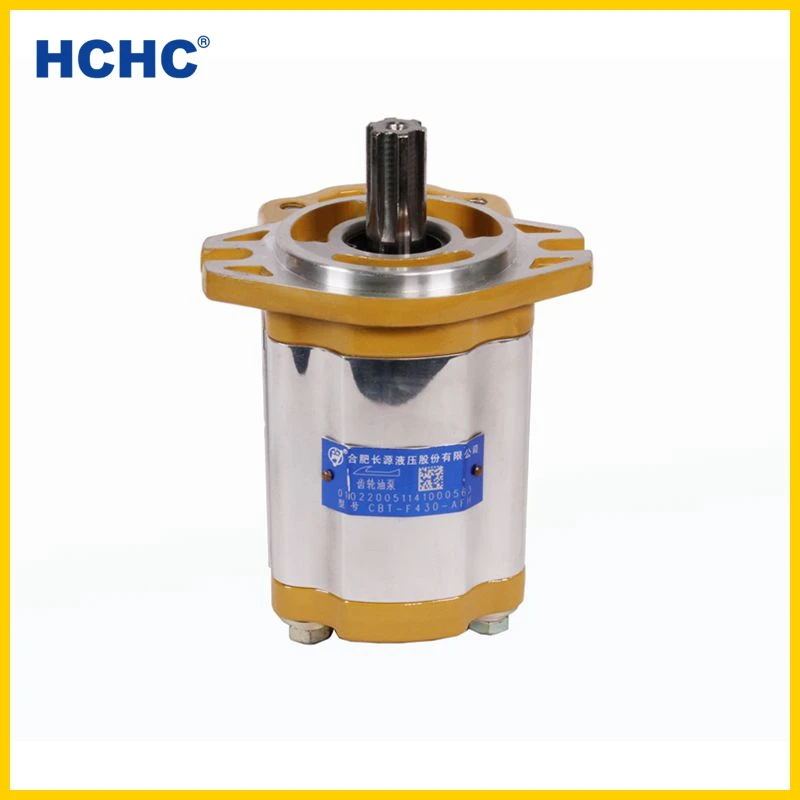

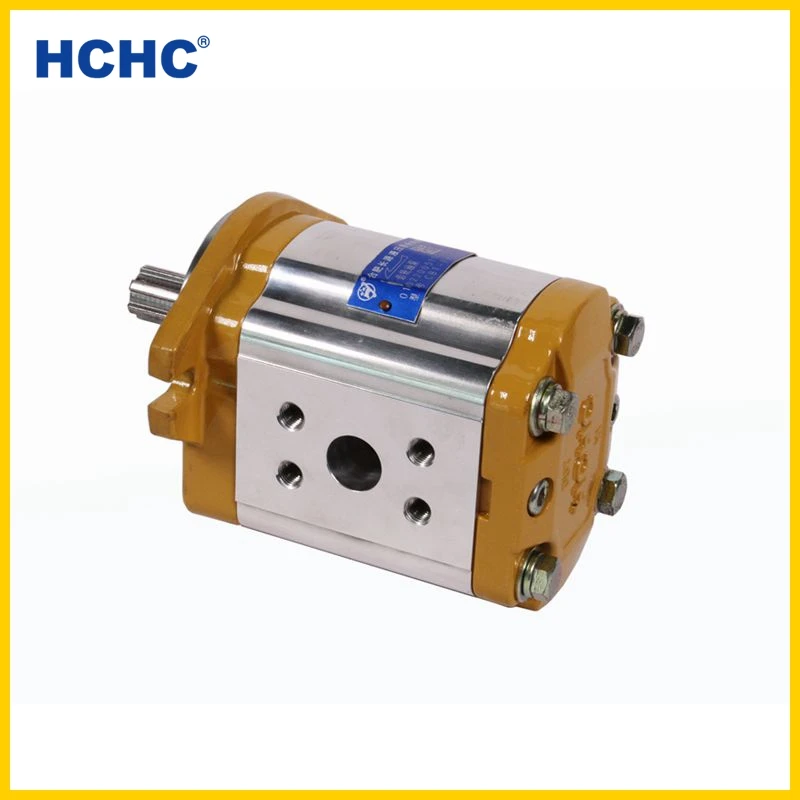

HCHC small hydraulic gear pump CBT F4 for agricultural machine
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (60713762238):
Product Overview
Description
HCHC small hydraulic gear pump CBT-F4 for agricultural machine
Performance character:
1.Pump housing is made of high strength aluminum alloy material.
2.The shaft extension type: P(plain key), H(rectangle spline), involute spline, SAE spline.
3.The joining type of inlet/outlet position is flange (F) or thread (L).
4.The auto-compensation unit of axial clearance ensures the high volumetric efficiency.
5.Higher working pressure, wider speed range.
6.Keep higher volumetric efficiency when the speed is 600 rpm/min.
2.The shaft extension type: P(plain key), H(rectangle spline), involute spline, SAE spline.
3.The joining type of inlet/outlet position is flange (F) or thread (L).
4.The auto-compensation unit of axial clearance ensures the high volumetric efficiency.
5.Higher working pressure, wider speed range.
6.Keep higher volumetric efficiency when the speed is 600 rpm/min.

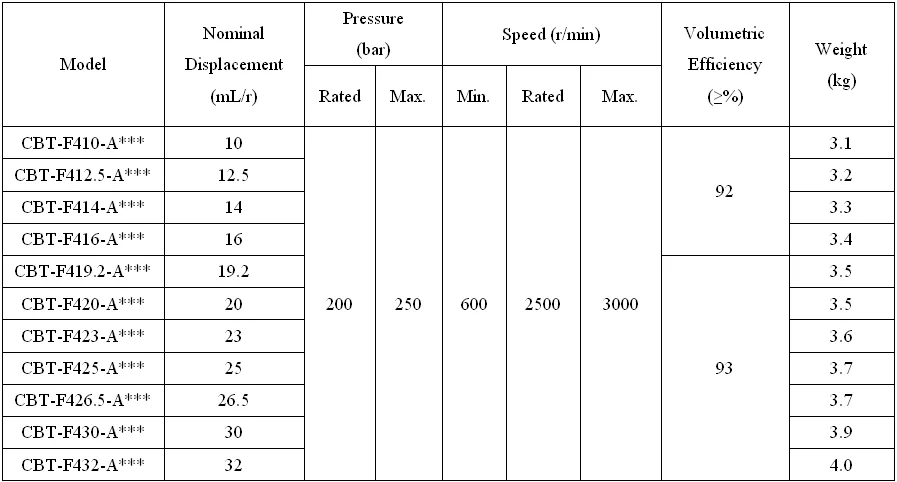

Specification
CBT - F 4 ** - A * * *
① ②③④ ⑤ ⑥ ⑦ ⑧
Model Code
CBT - F 4 ** - A * * *
① ②③④ ⑤ ⑥ ⑦ ⑧
①Product model
②Pressure grade: F=200 bar
③Gear modulus: 4
④Nominal displacement (mL/r)
⑤Mounting type: A= Oval flange
⑥Joining port type: F= flange, L= thread
⑦Shaft extension type:
P= plain key, H= rectangle spline
X= involute spline, Φ= SAE spline
⑧Rotation direction:
L= counterclockwise, R= clockwise
②Pressure grade: F=200 bar
③Gear modulus: 4
④Nominal displacement (mL/r)
⑤Mounting type: A= Oval flange
⑥Joining port type: F= flange, L= thread
⑦Shaft extension type:
P= plain key, H= rectangle spline
X= involute spline, Φ= SAE spline
⑧Rotation direction:
L= counterclockwise, R= clockwise

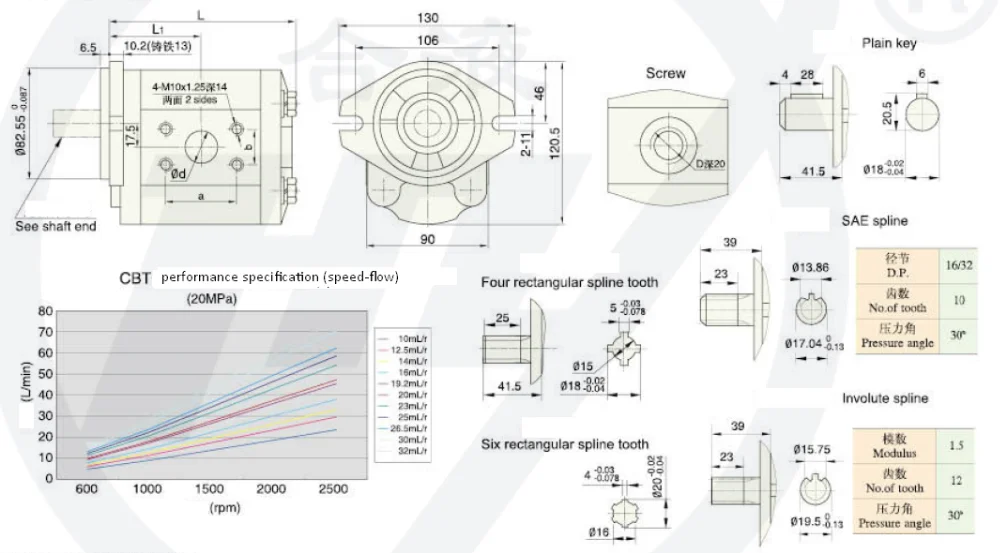

Outline Dimension
