plcc 3 3528 view angle 30 degree Red smd led
- Category: >>>
- Supplier: SUPER BRITE LTD.
Share on (60713790287):
Product Overview
Description
Specification
PLCC 3 3528 30 degree Red LED
AA3528AU-2030FEUR-3AAA
Product Description
Features
•PLCC-3 package.
•Colored diffused resin.•Narrow viewing angle 30deg
•Inner reflector and white package.
•Soldering methods: IR reflow soldering.
•Compliance with EU REACH
•Chip Materials: AlGaInP
Applications
•Backlight: LCD, switches, symbol,
mobile phone and illuminated advertising.
•Substitution of traditional light.
•General applications.
•Optical indicator.
•Automotive

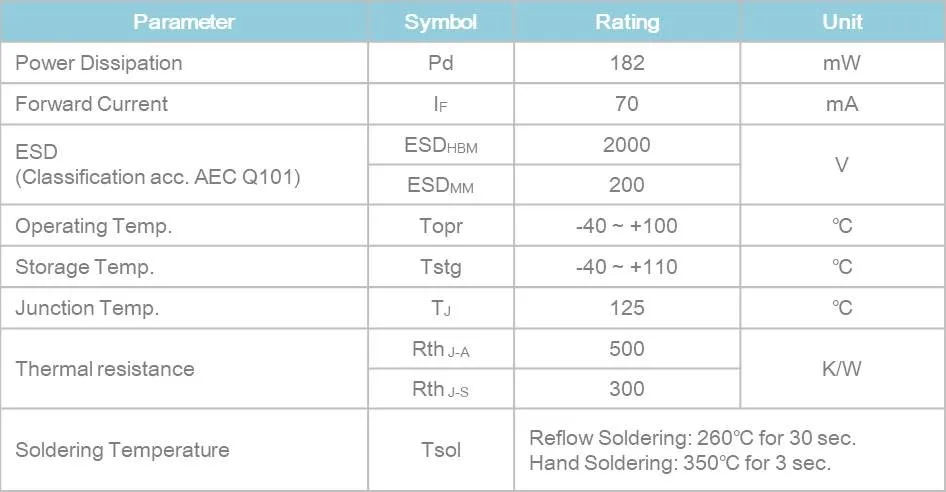

Absolute Maximum Ratings (Ta=25℃)

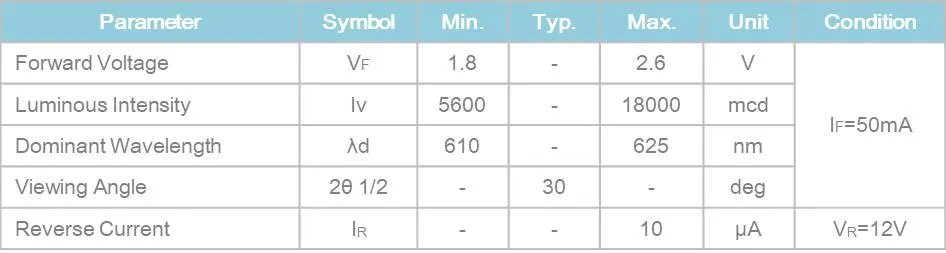

Electro-Optical Characteristics (Ta=25℃)

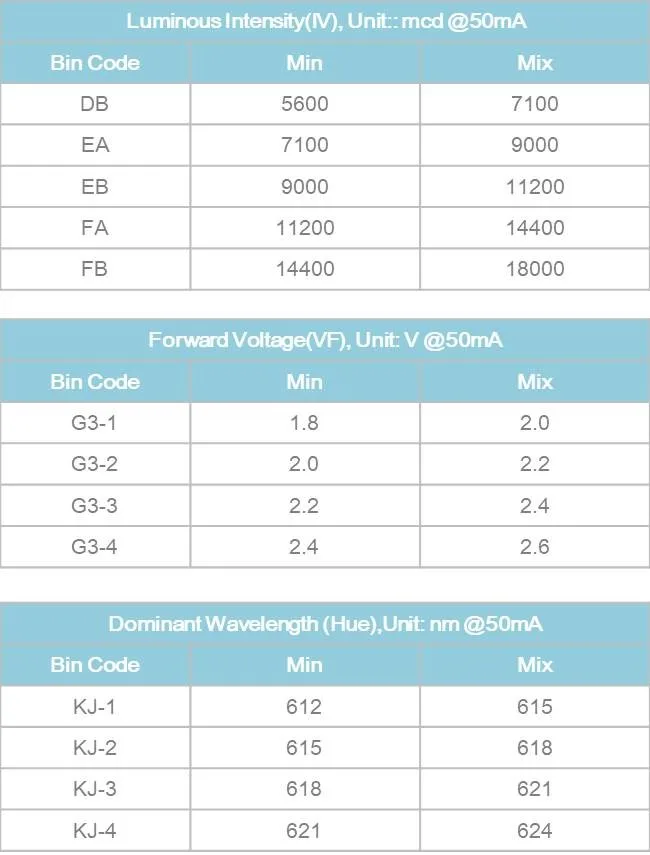

Bin Code List

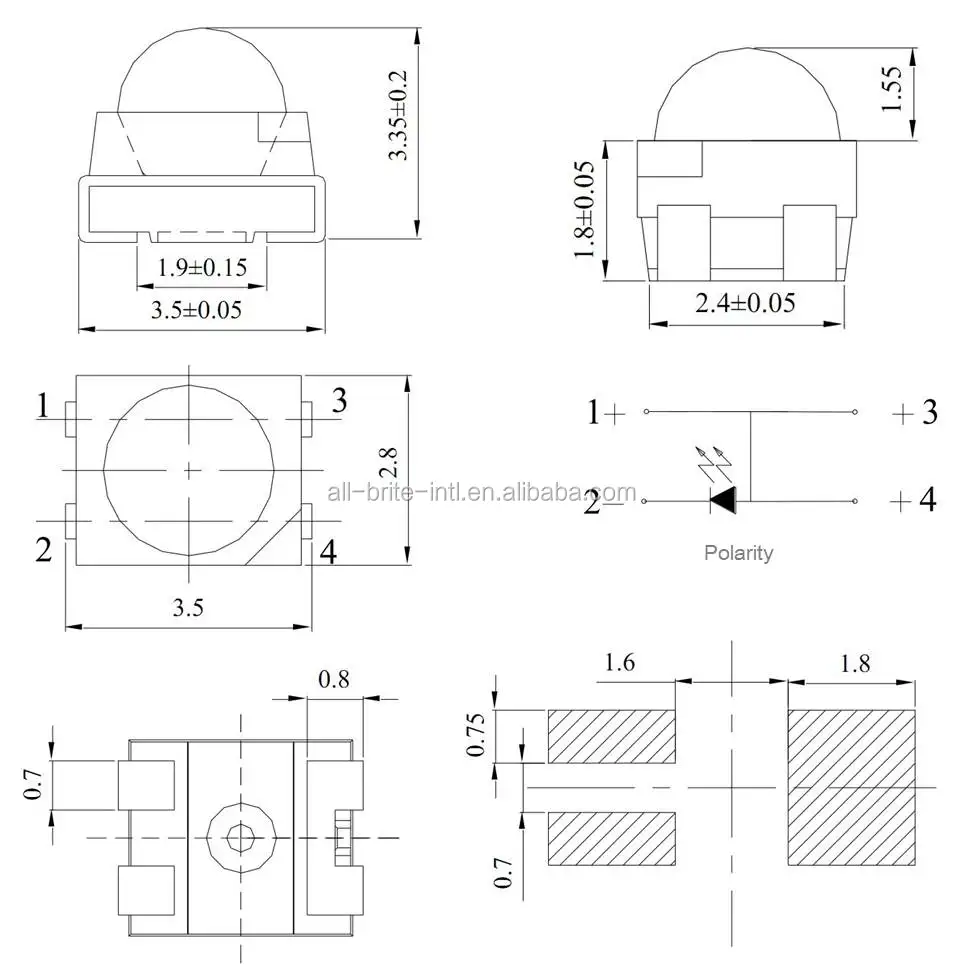

Package Dimension
