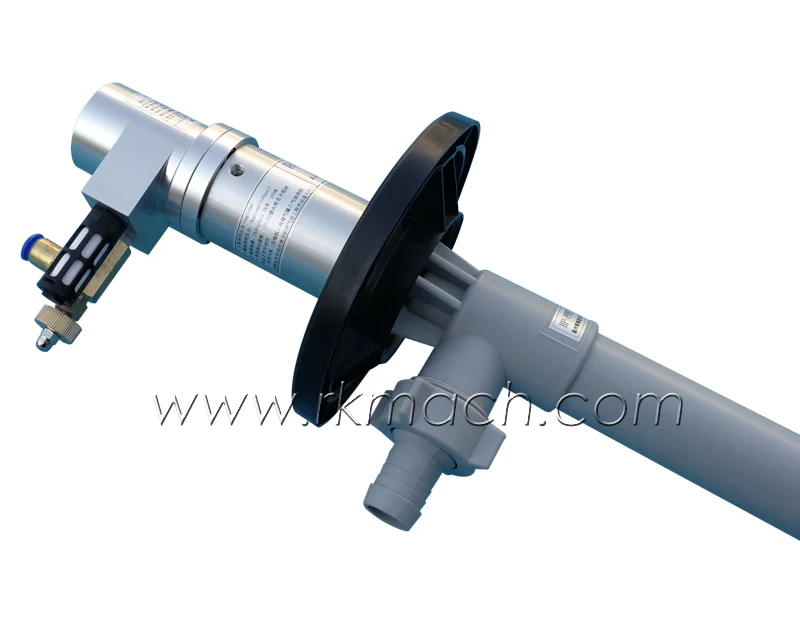

60L/min air driven Barrel pump for ferric oxide and chlorhydric acid
- Category: >>>
- Supplier: Wenzhou Ranking Imp.& Exp. Co. Ltd.
Share on (60713865372):
Product Overview
Description
DRUM / BARREL PUMPS (pneumatic type)
Suitable for low viscosity, neutral, corrosive and highly flammable liquids.
Max 700cps viscosity, 15m lift head
Buyer’s request:
for Cloruro Férrico 30% y Ácido clorhídrico 40%., it must be in polipropilene impeller and pvc or similar pipe, this is 5 mts High, and the Flow is 70 L/min..
Specification
No. | Model | HP-A2-PVDF |
| |
1 | Flow rate | 50 | L/min | |
2 | Lift head | 15 | m | |
3 | Motor type | Pneumatic | ||
4 | Motor power | 640 | W | |
5 | Motor speed | 7500 | rpm | |
6 | Pump tube | 41 | mm | |
7 | Tube length | 1000 | Mm | |
8 | Tube material | PVDF | ||
9 | Shaft material | Hastelloy C276 | ||
10 | Impeller material | PVDF | ||
11 | Max temperature | 100 | ℃ | |
12 | Max viscosity | 700 | Cps | |
13 | Max Specific Gravity | <1.3 | ||
14 | Discharge spout | 3/4“ | Barb | |
15 | Discharge Thread | 25 | mm | |
16 | FOB Ningbo price | |||
17 | Lead time | 3~7 working days | ||
