custom crawler skid steer loader tracked undercarriage from China
- Category: >>>
- Supplier: Zhenjiang Yijiang Chemical Co. Ltd.
Share on (60713871666):
Product Overview
Description

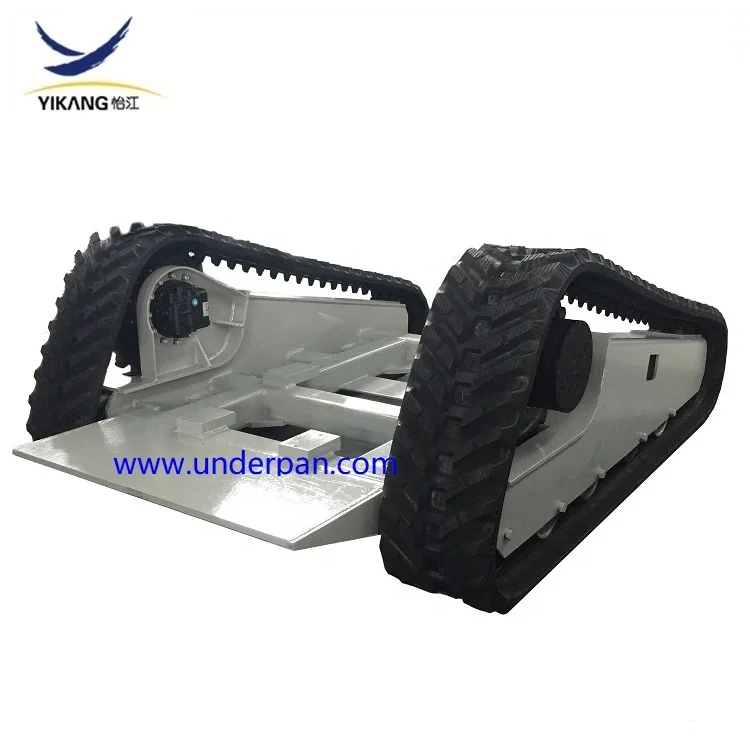

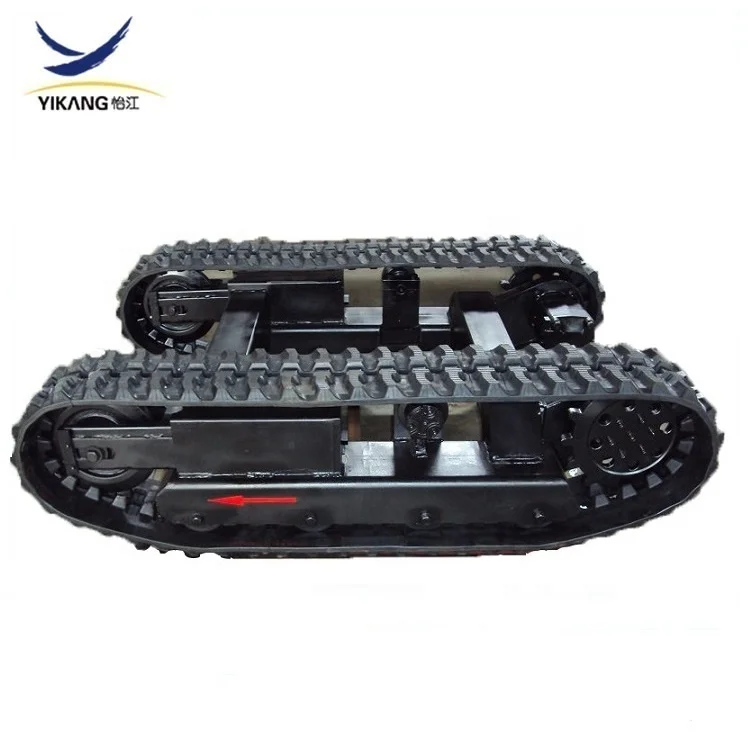

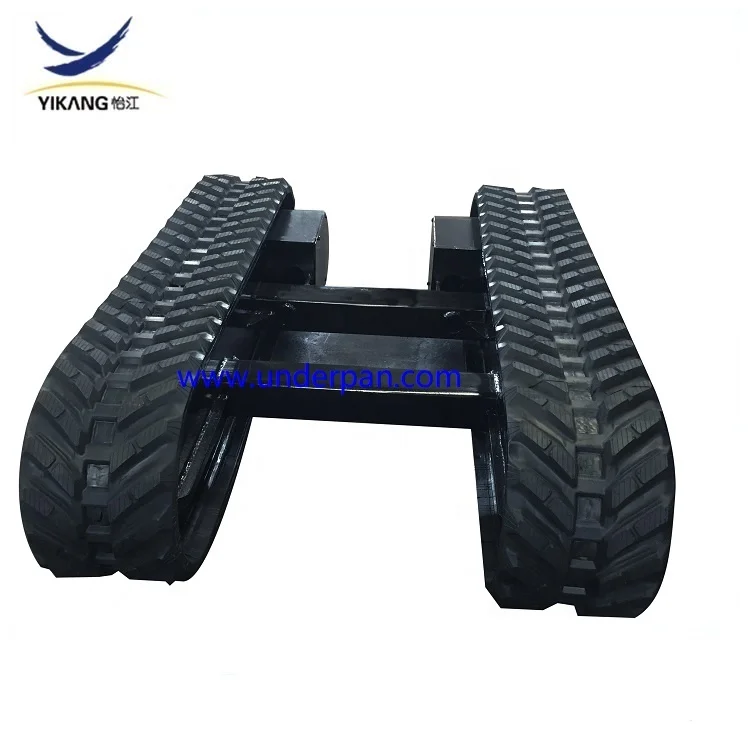

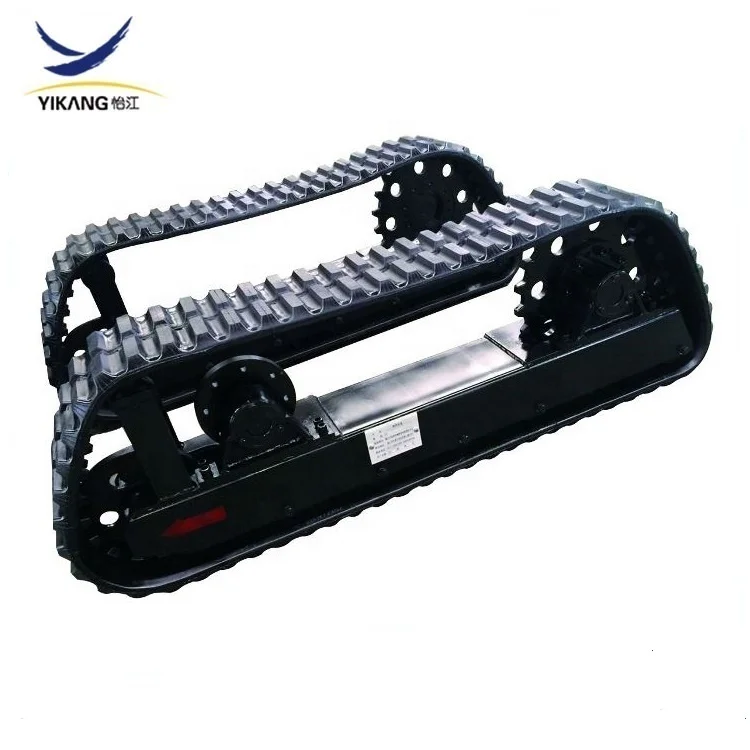

custom track skid steer loader undercarriage
Product Description
1. ISO9001 quality certificate.
2. Complete with steel track,track link , final drive, hydraulic motors,rollers,crossbeam.
3. Drawings are welcome.
4. Loading capacity can be from 0.5T to 120T.
5. We can supply both rubber track undercarriage and steel track undercarriage.
6. The undercarriage can be designad on your requirements.
Parameters
Specifications of undercarriage for skid steer loader parts:
| Type | Parameters(mm) | Track Varieties | Bearing(Kg) | ||||
| A(length) | B(center distance) | C(total width) | D(width of track) | E (height) | |||
| SJ050 | 1200 | 900 | 900 | 150 | 300 | rubber track | 500 |
| SJ080 | 1240 | 940 | 900 | 180 | 300 | rubber track | 800 |
| SJ100 | 1380 | 1080 | 1000 | 180 | 320 | rubber track | 1000 |
| SJ150 | 1550 | 1240 | 1000 | 200 | 350 | rubber track | 1300-1500 |
| SJ200 | 1850 | 1490 | 1300 | 250 | 400 | rubber track | 1500-2000 |
| SJ250 | 1930 | 1570 | 1300 | 250 | 450 | rubber track | 2000-2500 |
| SJ300A | 2030 | 1500 | 1600 | 300 | 480 | rubber track | 3000-4000 |
| SJ300B | 1895 | 1500 | 1700 | 300 | 485 | steel track | 3000-4000 |
| SJ400A | 2166 | 1636 | 1750 | 300 | 520 | rubber track | 4000-5000 |
| SJ400B | 1990 | 1600 | 1800 | 300 | 530 | steel track | 4000-5000 |
| SJ500A | 2250 | 1720 | 1800 | 300 | 535 | rubber track | 5000-6000 |
| SJ500B | 2118 | 1591 | 1800 | 300 | 550 | steel track | 5000-6000 |
| SJ700A | 2812 | 2282 | 1850 | 350 | 580 | rubber track | 6000-7000 |
| SJ700B | 2795 | 2265 | 1800 | 350 | 600 | steel track | 6000-7000 |
| SJ800A | 2880 | 2350 | 1850 | 400 | 580 | rubber track | 7000-8000 |
| SJ800B | 2880 | 2350 | 1850 | 400 | 600 | steel track | 7000-8000 |
| SJ1000A | 3500 | 3202 | 2200 | 400 | 650 | rubber track | 9000-10000 |
| SJ1000B | 3500 | 3202 | 2200 | 400 | 670 | steel track | 9000-10000 |
| SJ1500A | 3800 | 3802 | 2200 | 500 | 700 | rubber track | 13000-15000 |
| SJ1500B | 3800 | 3802 | 2200 | 400 | 700 | steel track | 13000-15000 |
| SJ2000B | 3805 | 3300 | 2200 | 500 | 720 | steel track | 18000-20000 |
| SJ2500B | 4139 | 3400 | 2200 | 500 | 730 | steel track | 22000-25000 |
| SJ3500B | 4000 | 3280 | 2200 | 500 | 750 | steel track | 30000-40000 |
| SJ4500B | 4000 | 3300 | 2200 | 500 | 830 | steel track | 40000-50000 |
| SJ6000B | 4500 | 3800 | 2200 | 500 | 950 | steel track | 50000-60000 |
| SJ8000B | 5000 | 4300 | 2300 | 600 | 1000 | steel track | 80000-90000 |
| SJ10000B | 5500 | 4800 | 2300 | 600 | 1100 | steel track | 100000-110000 |
| SJ12000B | 5500 | 4800 | 2400 | 700 | 1200 | steel track | 120000-130000 |
| SJ15000B | 6000 | 5300 | 2400 | 900 | 1400 | steel track | 140000-150000 |
Related products
Company Information
Zhenjiang Yijiang Chemical Co., Ltd. was founded in 2005,and focus on the manufacture and development of engineering machinery parts, our products are mainly exported to North Americal, Europe, Southeast Asia and other countries and regions. Our main products are construction machinery undercarriage, rubber track, steel track, Morooka parts, skid steer parts, track roller, sprocket, carrier roller,idler etc.
Zhenjiang Shen-ward Machinery Co., Ltd. Is founded in 2007 and is specialized in design and manufacture crawler undercarriage system, which is suitable for construction, mining and agricultural machinery etc.
With the talented engineers, professional staffs and advanced technology and equipment we can supply the whole undercarriage system including hydraulic parts, bearing bracket, gear-box etc. as customer required.
The undercarriage can be installed on customers’ equipment directly without any modification. In order to guarantee the whole undercarriage running smooth and steady, all of our components are produced strictly in tolerance, strength, hardness and wear limits.
We insist on the policy of quality first and good service, create optimum value for customers is our constant pursuit.
Zhenjiang Shen-ward Machinery Co., Ltd. Is founded in 2007 and is specialized in design and manufacture crawler undercarriage system, which is suitable for construction, mining and agricultural machinery etc.
With the talented engineers, professional staffs and advanced technology and equipment we can supply the whole undercarriage system including hydraulic parts, bearing bracket, gear-box etc. as customer required.
The undercarriage can be installed on customers’ equipment directly without any modification. In order to guarantee the whole undercarriage running smooth and steady, all of our components are produced strictly in tolerance, strength, hardness and wear limits.
We insist on the policy of quality first and good service, create optimum value for customers is our constant pursuit.
Packaging & Shipping
rubber track undercarriage system packing: steel pallet with wrapping film.
Exhibition
We sincerely welcome clients from worldwide to cooperate with us for win - win business.
Cooperation Case
We can supply the whole track undercarriage system including hydraulic parts, bearing bracket, gear - box etc. as customer required.
FAQ
Q1. If your company a trader or manufacturer?
A : We are the manufacturer & trader .
Q2. Can you supply customize undercarriage?
A : Yes. We can customize the undercarriage according to your requirements.
Q3. How is your price?
A : We guarantee the quality while providing the right price for you.
Q4. How is your after – sale service?
A : We can give you one year after sales warranty, and any quality problem caused by manufacturing defects can be unconditionally maintained.
Q5. What is your MOQ?
A : 1 set.
Q6. How will you place your order?
A : In order to recommend a suitable drawing and quotation to you , we need to know:
a. Rubber track or steel track undercarriage, and need the middle frame.
b. Machine weight and undercarriage weight.
c. Loading capacity of the track undercarriage ( the weight of the whole machine excluding of track undercarriage.
d. Undercarriage’s length, width and height
e. Track’s Width.
f. Height
g. The max speed (KM/H).
h. Climbing slope angle.
i. The machine’s apply range , working environment.
j. Order quantity.
k. Port of destination.
l. Whether you require us to purchase or collocate relevant motor and gear box or not, or other special request.
