Specification:
UD LC serial Eco solvent printer feature:
1.Printhead:dx5 printhead
2.Printing media: Vinyl, Polyester,Flex,Back-lit film, PS Board, KT Board, PVC Foam Board, etc
3.Printing Width 1.6m,Other size 1.8m,2.1m,2.5m,3.2m are available.
Model | UD-161LC | |
Print Head | DX5 | |
Number of Print Head | 1 Head | |
Max Printing Width | 1,600mm | |
Print Speed (m2/h) | Print mode | Standard output(m2/h) |
Draft | 4 PASS 15 | |
Standard | 6 PASS 10 | |
Quality | 8 PASS 8 | |
High Quality | 8 PASS 8 | |
Backlit | 12 PASS 4 | |
Ink | Type | Waterbase |
Color | 4 Color (C,M,Y,K) | |
Capacity | 1L per Main Tank of Each Color | |
Ink Supply System | Auto Ink Supply System | |
Media | Width | Maximum 1,680mm |
Type | Water based PP, Photopaper, Back-Lit Film, etc | |
Auto Media Feeding System | Equipped Max media weigh 25kg | |
Auto Cleaning System | Anti-clogged flash function and capping system | |
Pre-heating & Drying System | Equipped | |
Clamp | Equipped | |
Print Interface | USB2.0 | |
Print Head Height | 2-6mm from media | |
Rip Software | Ultraprint, Maintop, Photoprint, Shiraz, Wasatch | |
Input Power | AC220v, 50HZ/60HZ | |
Machine Dimension | L2,820 x W990 x H1,260mm / 200KG | |
Package Dimension | L2,860 x W1050 x H685mm / 377KG | |
Requirement | Temperature: 20-28 degree, Humidity: 40% - 60% | |

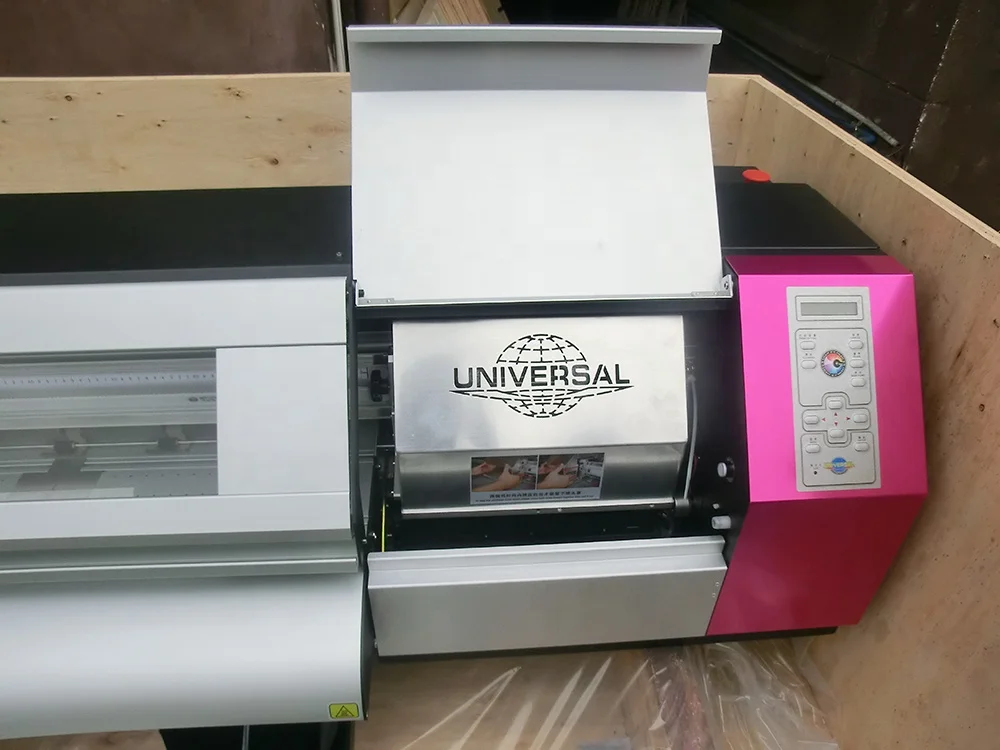

Photos Reference:

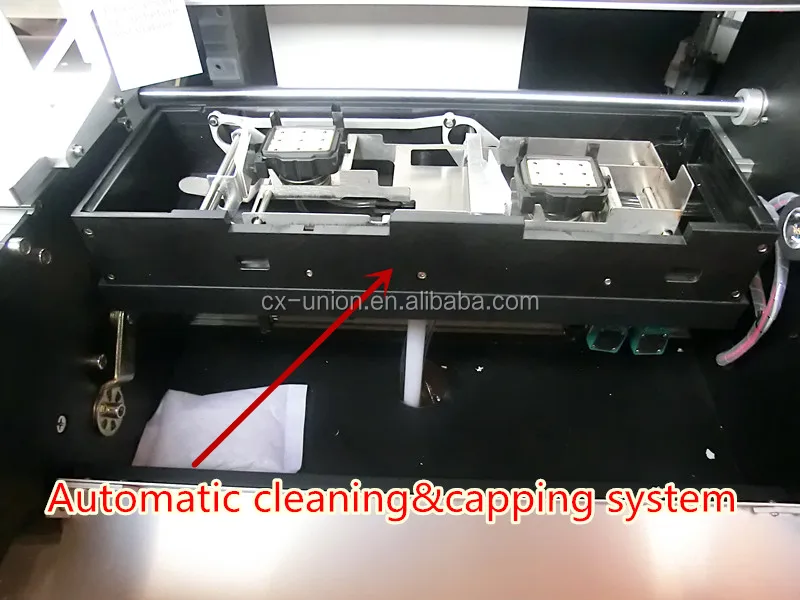

Self-developed automatic cleaning&capping system.

fully alloy-aluminum platform.

strong&accurate media feeding&take-up system.

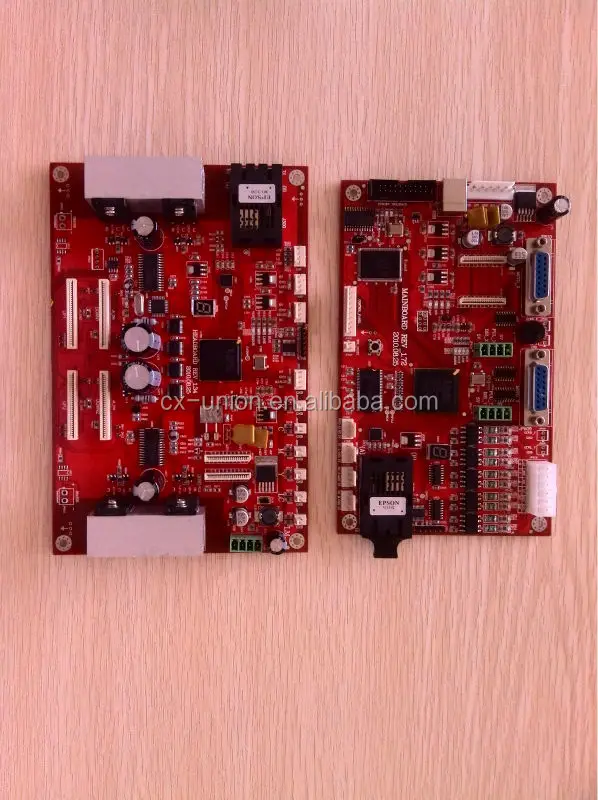

Boards

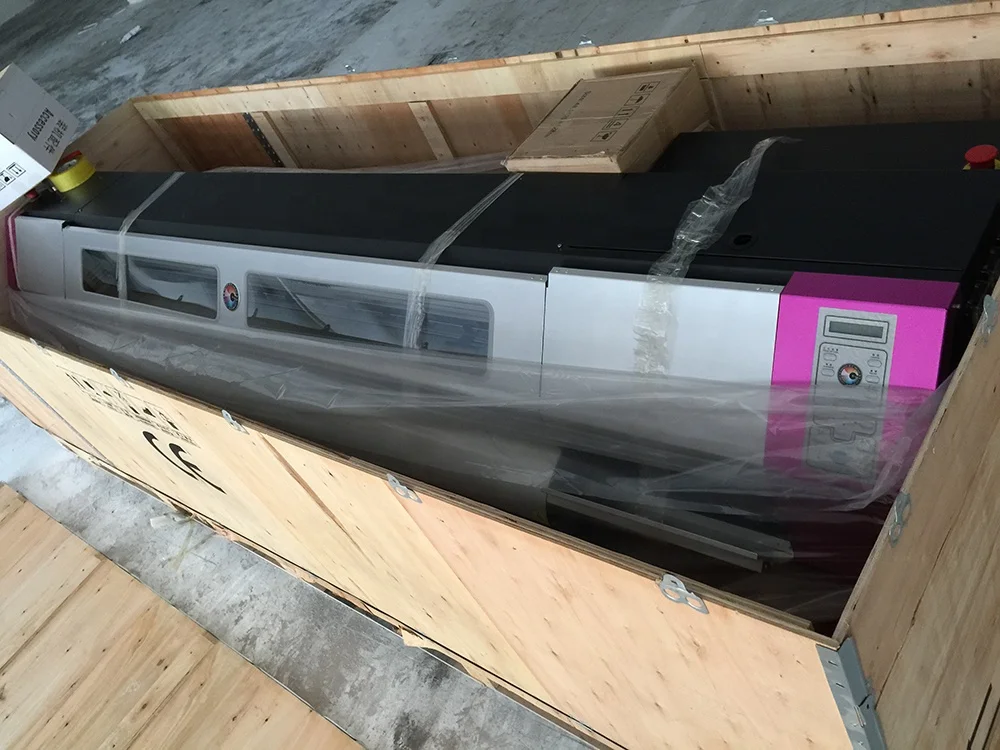

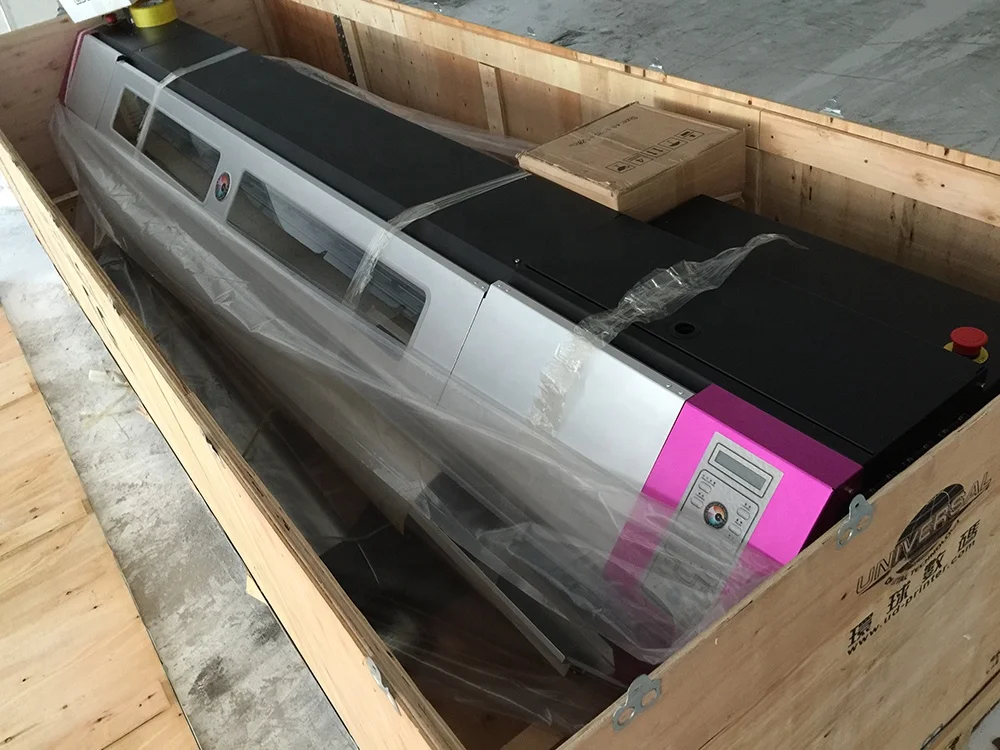

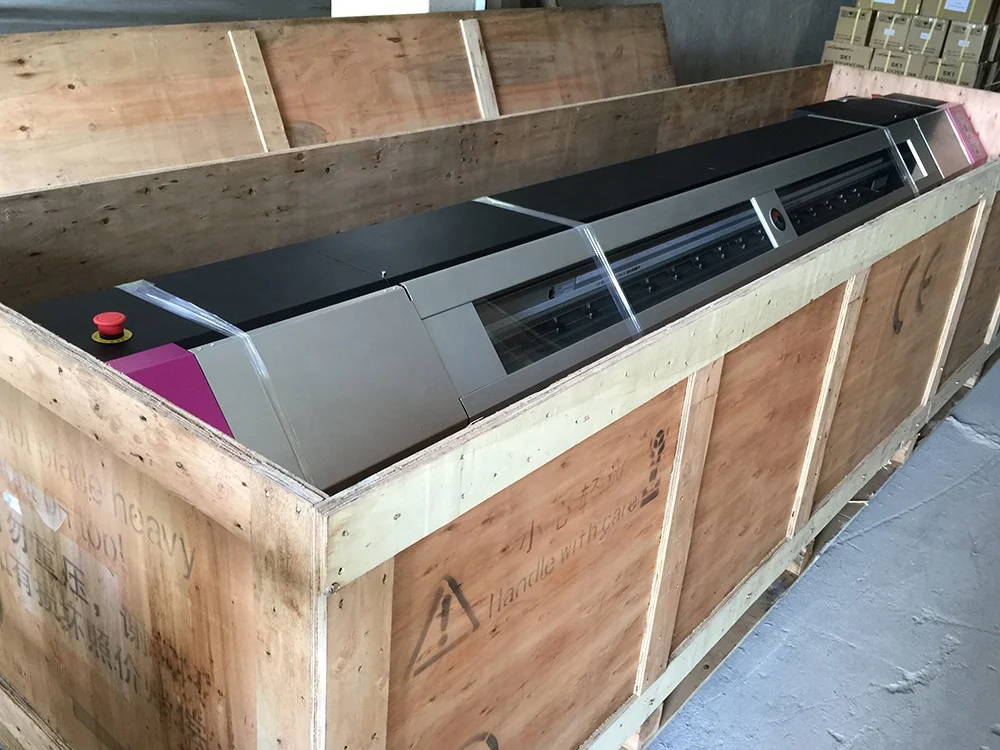

Packing
The wooden case holds one machine,and it is some space left for extra 120L inks.
Recommendation:It is suggested to order some inks for the new machine,both for daily uses and save shipping costs.

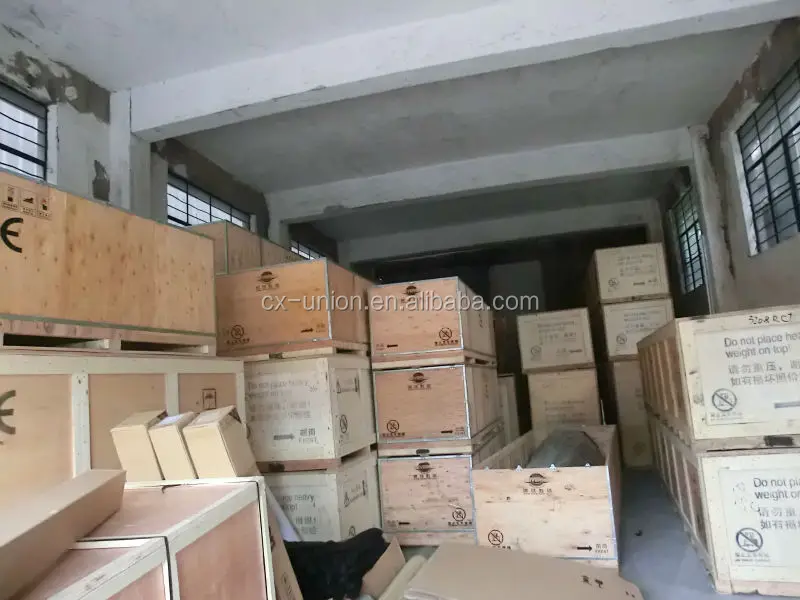

Delivery
All machines are guarantee to deliver within 7 days after payment confirmed!
Machines are in sufficient stock in the warehouse.

We supply all kinds of hot sale and stable machine in good price ! Welcome your inquiry ! .

You may interesting in this print heads . We provide 100% original and brand new products.



Technical Support :
1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on . We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .
2. All kinds of original spare parts for the machine to ensure your machine running smoothly .
What is more , all the printers have one year warranty . During the warranty, if any problems of the parts , you can send us back to repair or exchange .
This month our company has discount for the machine . And the shipping cost will be 30% off. Please feel free to contact us .
