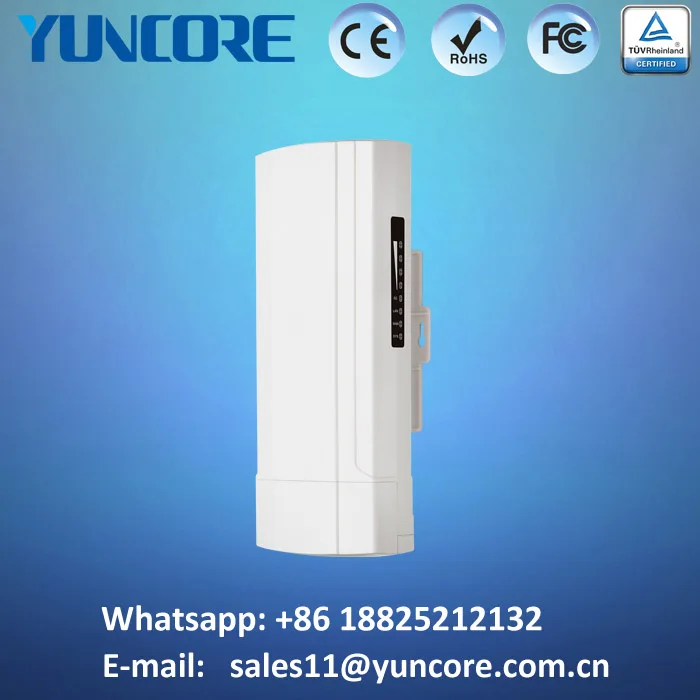

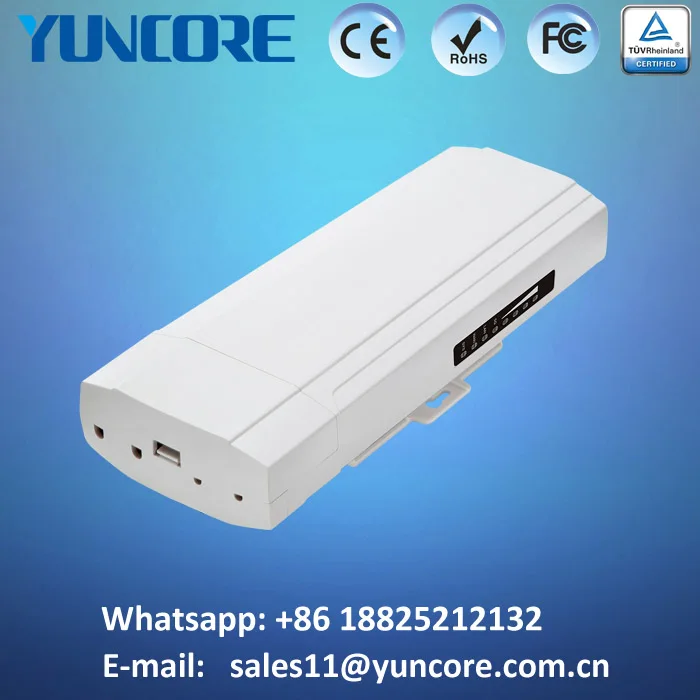

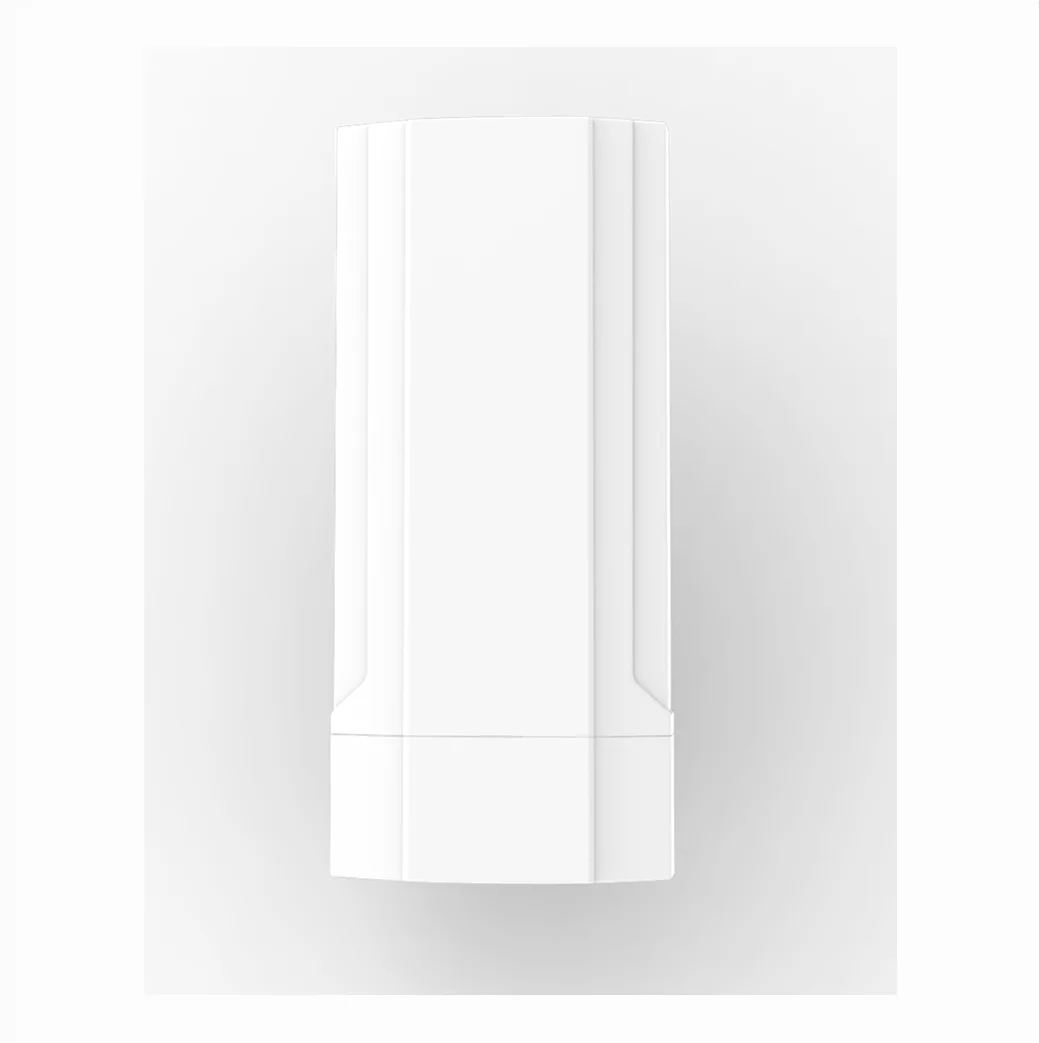

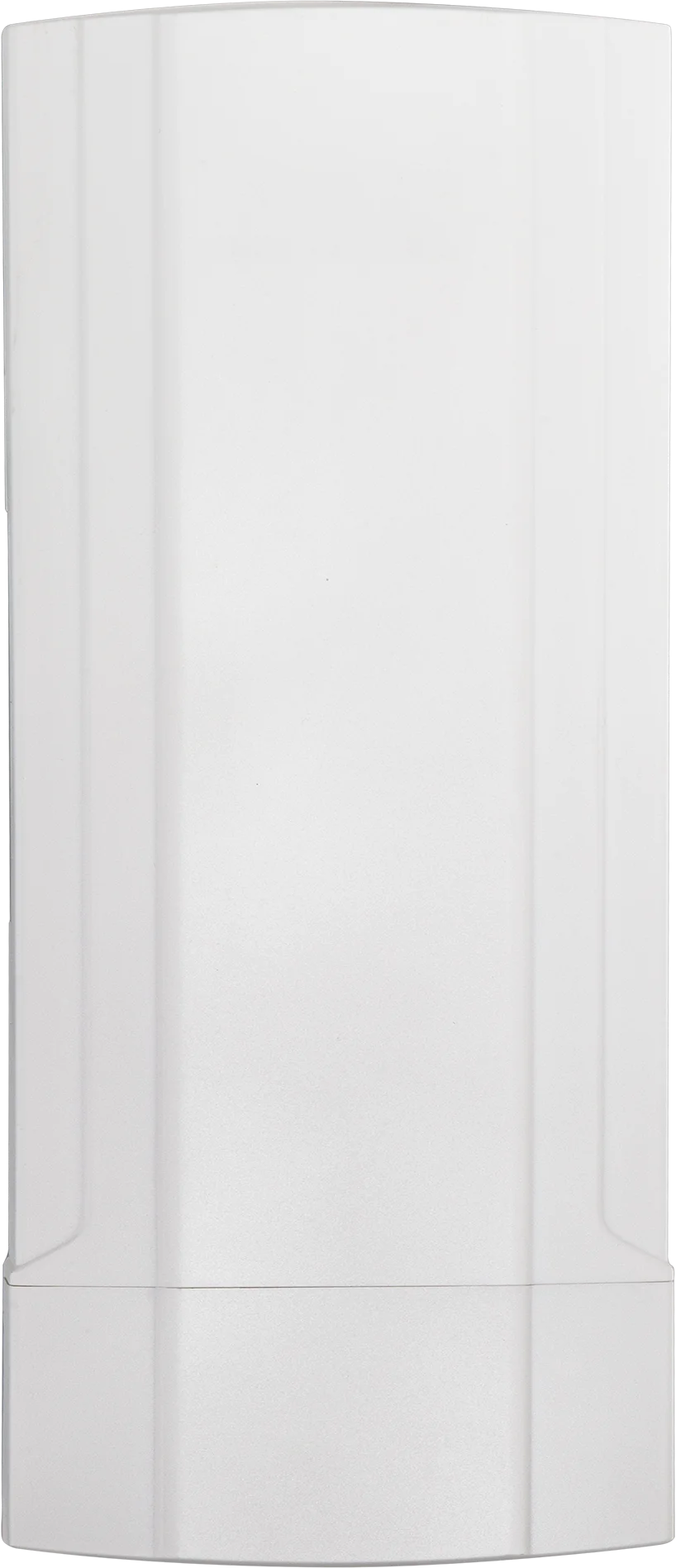

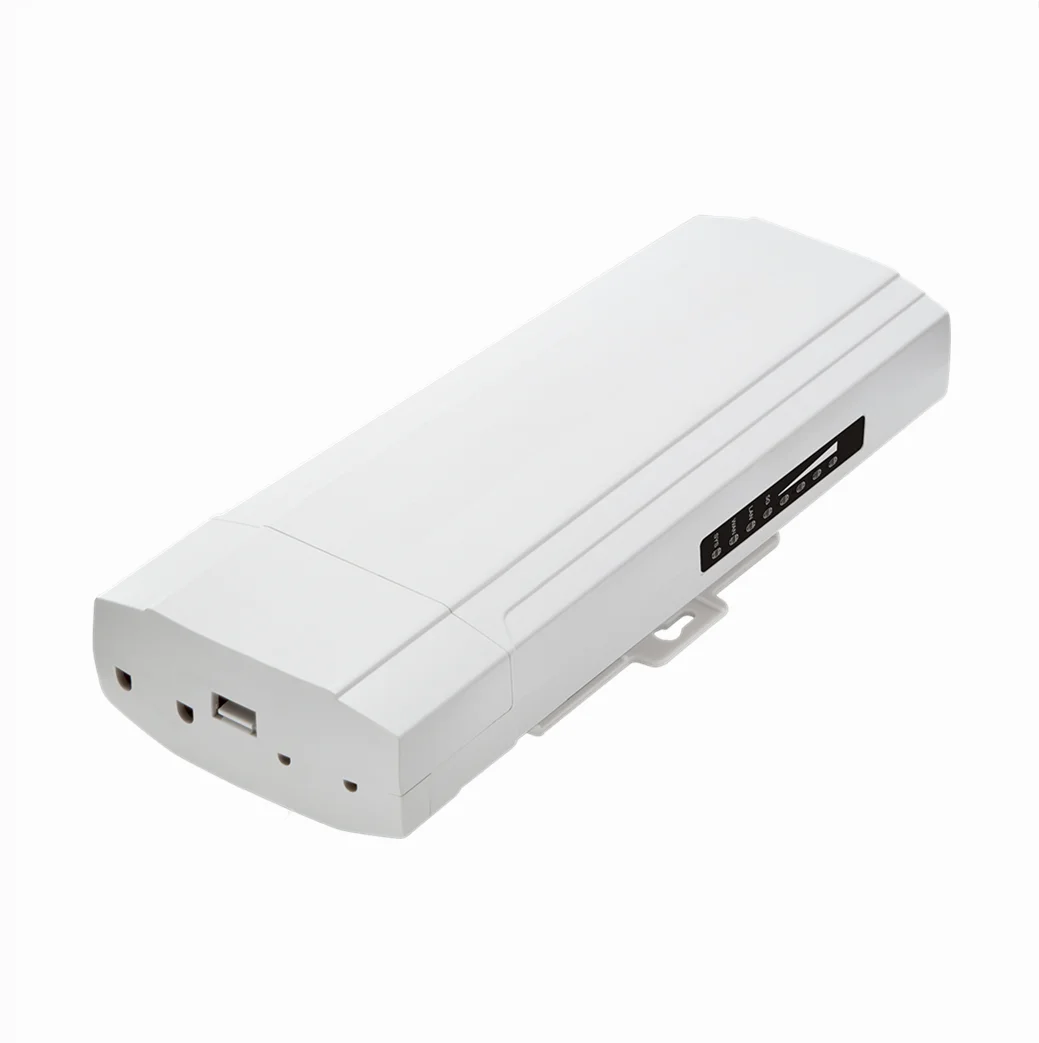

Outdoor design 900Mbps 5.8GHZ wireless outdoor cpe, long range for 10km wifi antenna wireless outdoor cpe, PTP/PTMP
- Category: >>>
- Supplier: Shenzhen Yunlink Technology Co. Ltd.
Share on (60713941665):
Product Overview
Description
Product Description
Outdoor design 900Mbps 5.8GHZ wireless outdoor cpe, long range for 10km wifi antenna wireless outdoor cpe, PTP/PTMP
Main Features:
l Comply with IEEE 802.11ac/a/n, 5G,900Mbps Data Rate
l 1*10/100/1000Mbps WAN Port, 1*10/100/1000Mbps LAN Port
l 500mW high power, build in 18dBi MIMO panel antenna, stronger signal strength, more wireless coverage
l Support passive PoE, 24V
l Support SSID broadcasting, Muiti SSID up to 4, then support tag VLAN based on SSID.

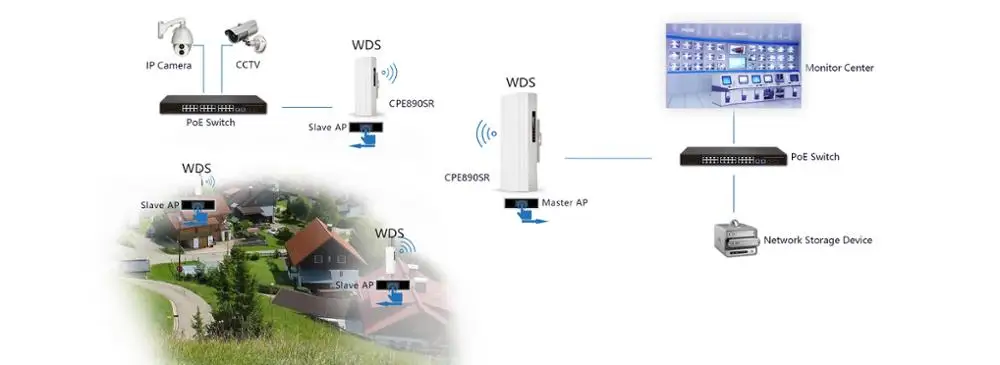

l Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP, WDS operation mode
l With function of build in firewall, IP filter, URL filter and MAC filter
l Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
l Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
Specifications
Hardware: | |
Chipset | Qualcomm QCA9563 |
Standard | 802.11ac/a/n, MIMO technology |
Memory | 128MB DDR2 RAM |
Flash | 16MB |
Interface | 1 * 10/100/1000Mbps RJ45 WAN Port |
1 * 10/100/1000Mbps RJ45 LAN Port | |
1 * WDS switch button, press it to do WDS PTE/PTMP connection | |
1 * Reset button, press 15 seconds to revert to default setting | |
Antenna | Build in 18dBi MIMO Panel Antenna |
Power consumption | 24V PoE, <8W |
Size | 315mm * 145 mm * 80mm |
RF Data | |
Frequency | 5GHz: 802.11a/ac |
5GHz: 5180~5825MHz | |
Throughput | 900 Mbps |
Country code | FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Receive Sensitivity& RF Power | |
RF Power | 802.11a:54M 23±2DB,6M 26±2DB. 802.11n HT20:MCS7 23±2DB, MCS0 26±2DB. 802.11n HT40:MCS7 22±2DB, MCS0 25±2DB. 802.11ac HT80:MCS9 20±2DB, MCS0 23±2DB. |
Receive Sensitivity | 802.11a: -72dbm@54Mbps; -90dbm@6Mbps. 802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 . 802.11n HT40: -66dbm@MCS7, -90dbm@MCS0 . 802.11ac HT80:-60dbm@MCS9, -86dbm@MCS0 . |
EVM | 802.11n: ≤-28 DB 802.11a: ≤-25 DB |
Firmware Features: | |
Operation mode | Wireless AP, Gateway, WISP, WiFi Repeater, WDS |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
SSID | Multiple SSID up to 4 |
Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter |
Protocols | IPv4 |
Others: | |
Package Contents | 900Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
Environment | Operating Temperature: -44~55 ℃ Storage Temperature: -40~70 ℃ Storage Humidity: 5%~90% non-condensing |
Management | Firmware GUI ,Remote Management, WLAN Controller, Cloud Management System |
Company Information
Shenzhen Yunlink Technology Co., LTD is a professional wireless networking equipment manufacturer and solution provider. With excellent technology, high quality and perfect service, It supply OEM & ODM products and solutions for world-wide clients..

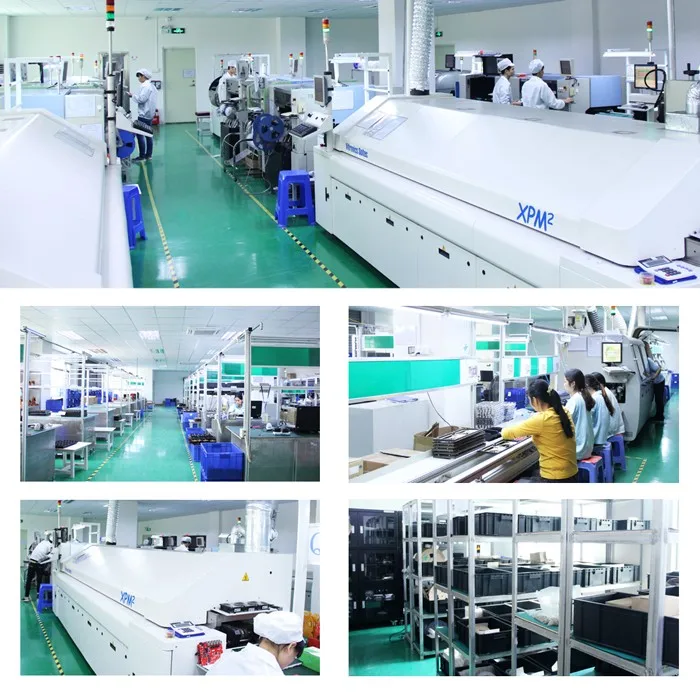

Focused on WiFi Technology, Shenzhen Yunlink Technology Co., Ltd develop and produce Wireless Networking equipment mainly, such as 11ac serials & 11n serials Ceiling Wireless Access Point, Outdoor CPE, In wall Access Point, Wireless Router & WiFi Repeater; Ethernet (PoE) Switch, Access Controller System, WLAN Adapter, 3G/4G Router, Etherprise Router, Cloud Server.
Certificates
Related Products

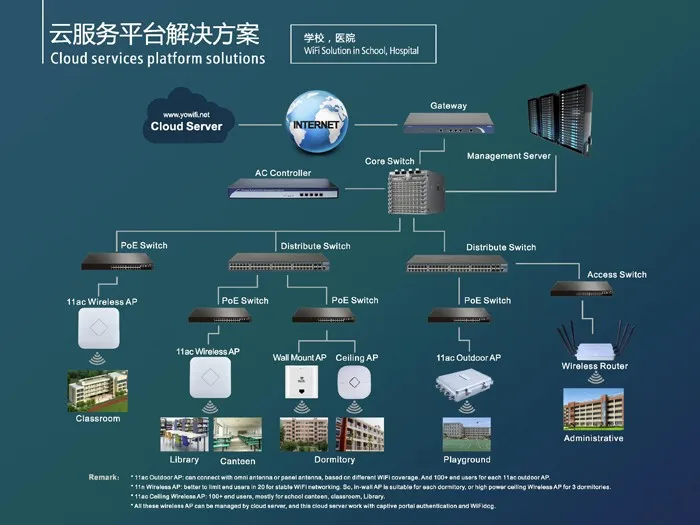

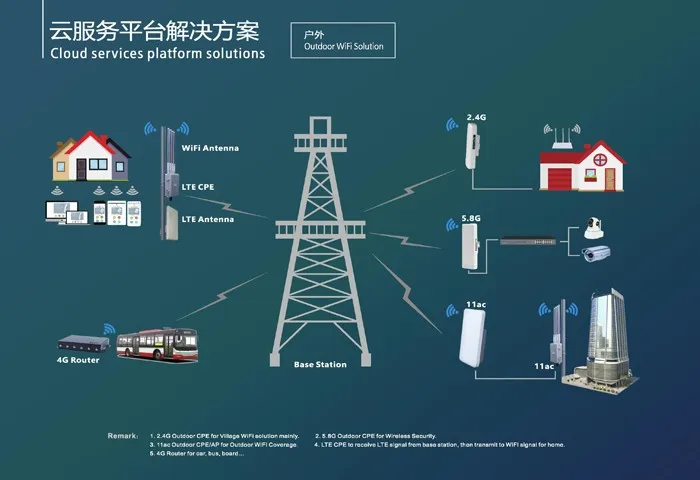

Applications
