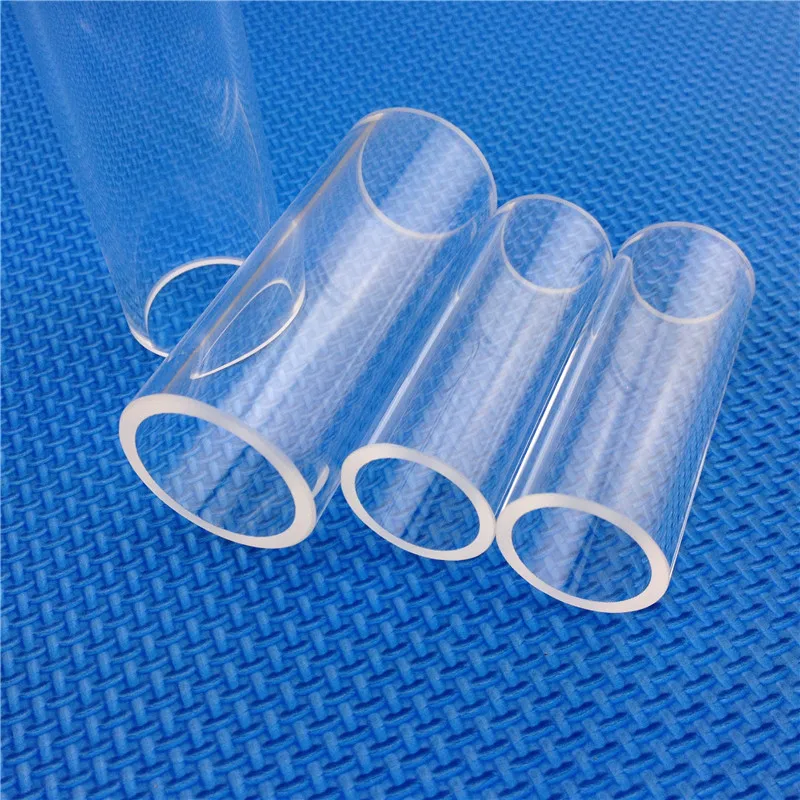

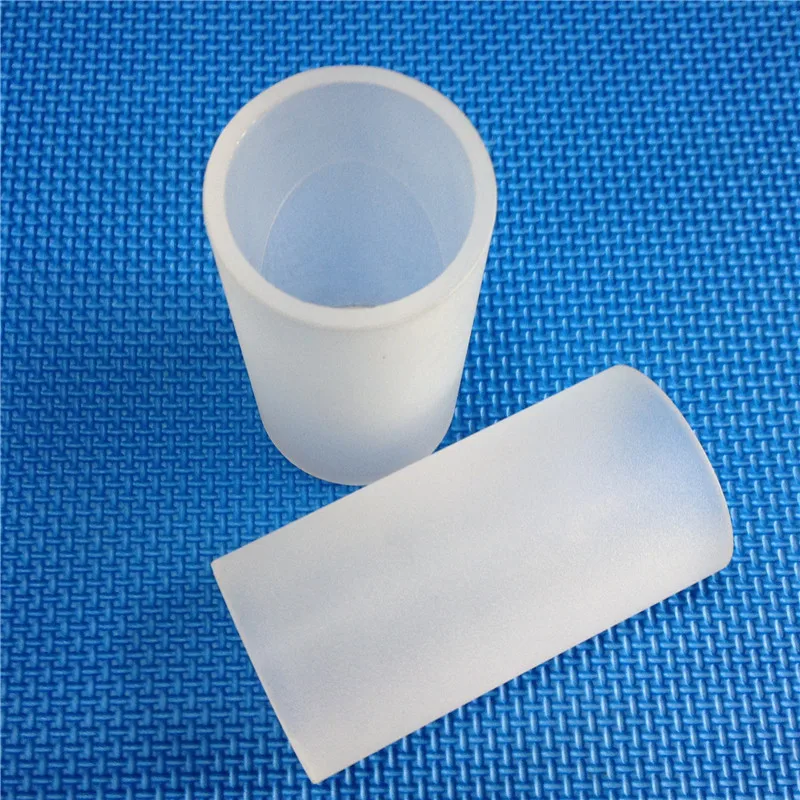

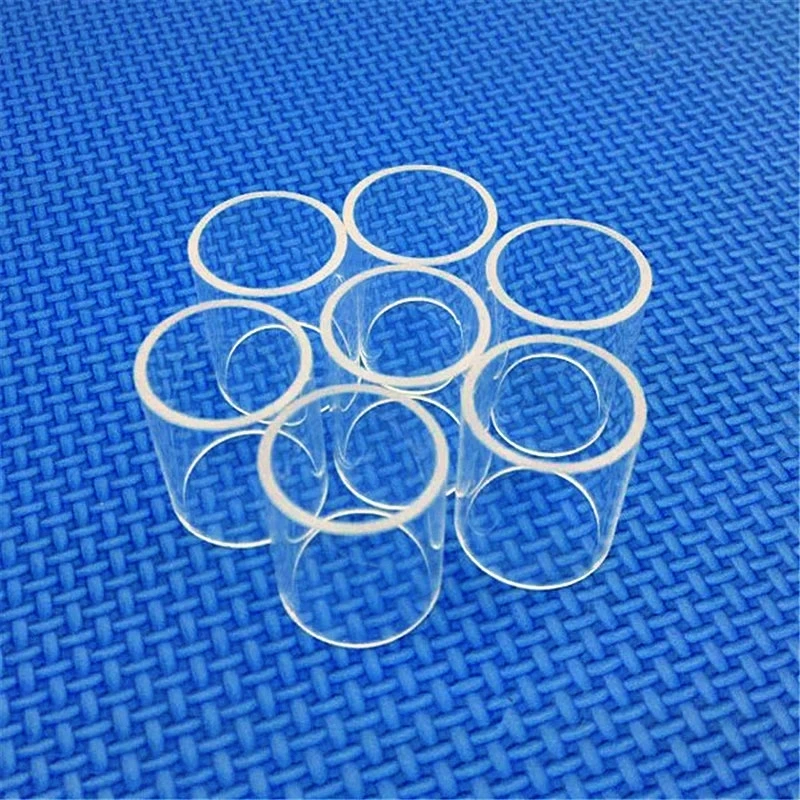

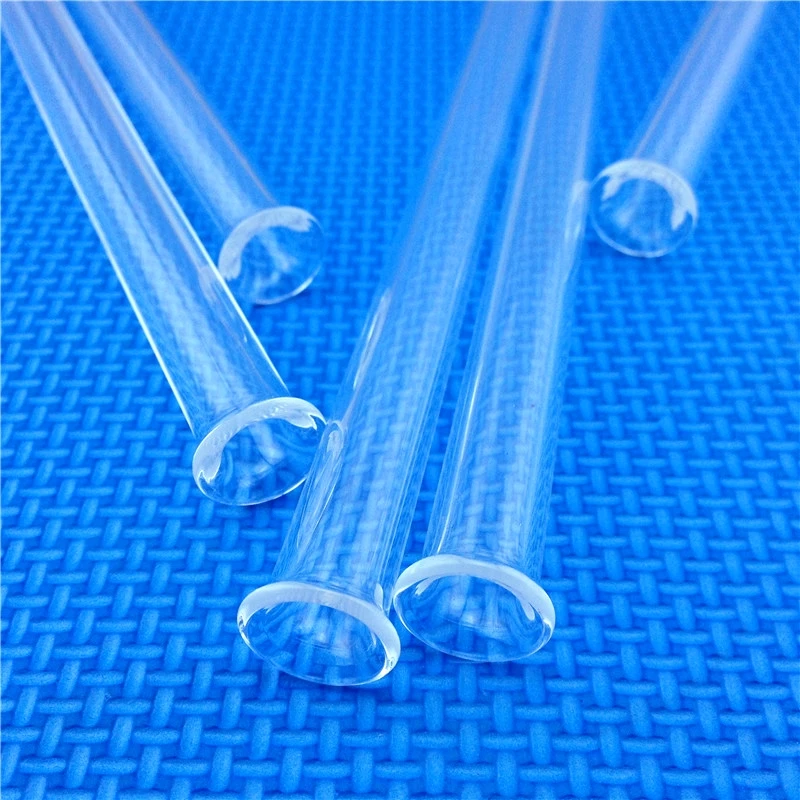

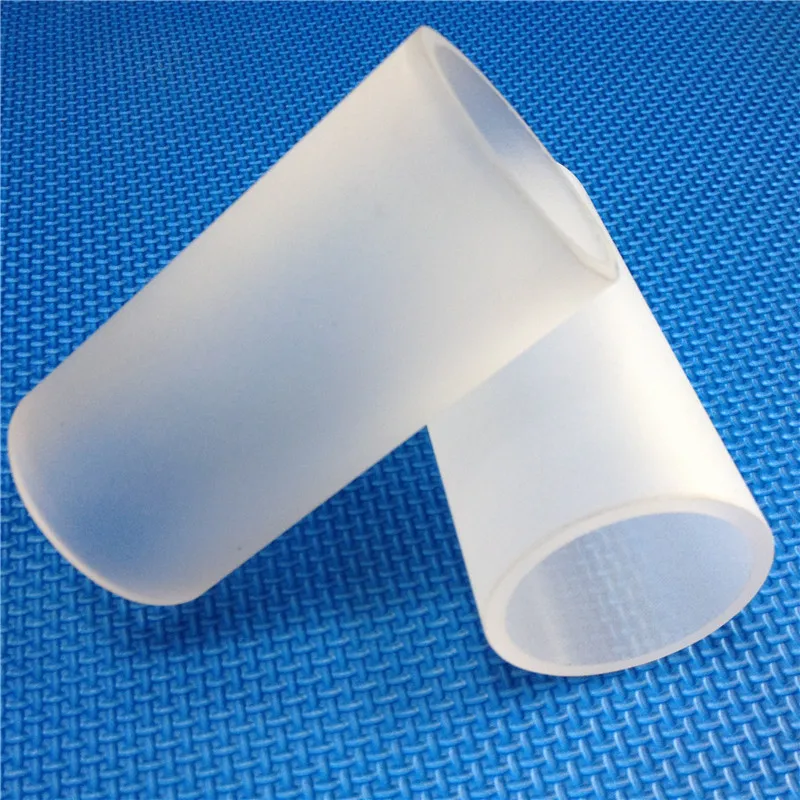

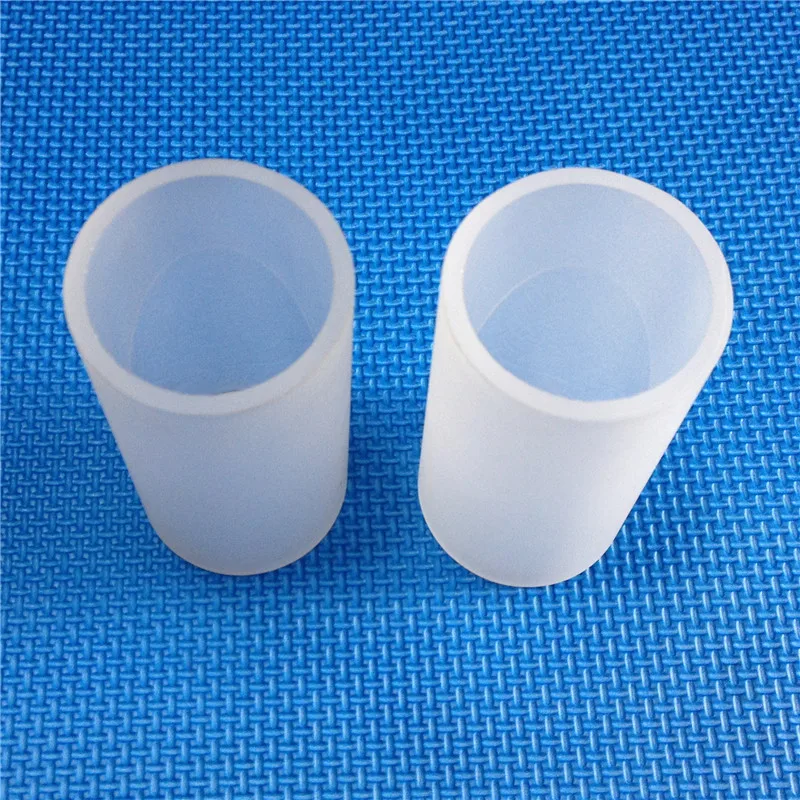

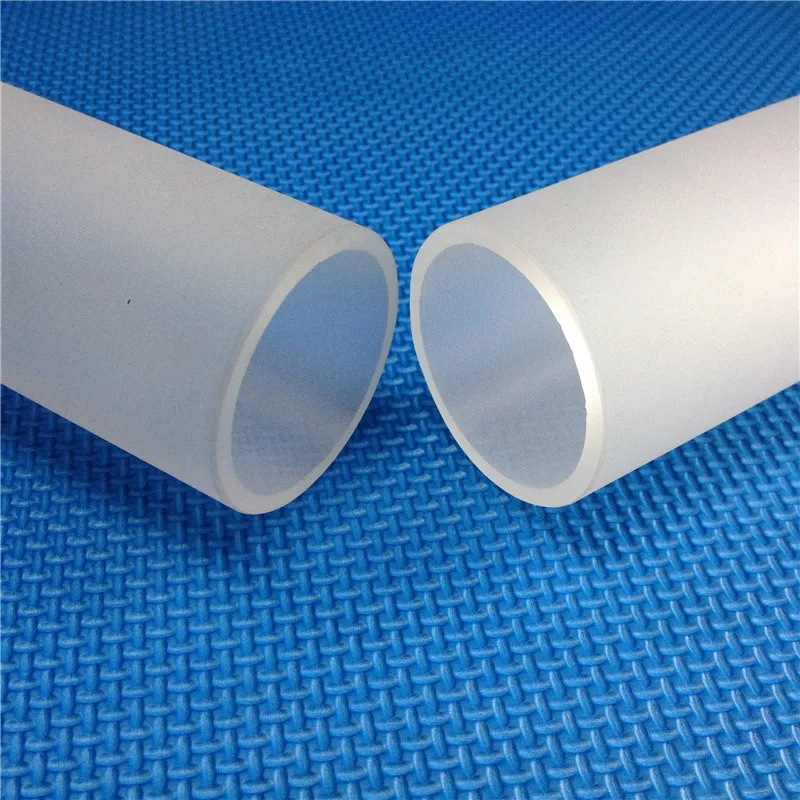

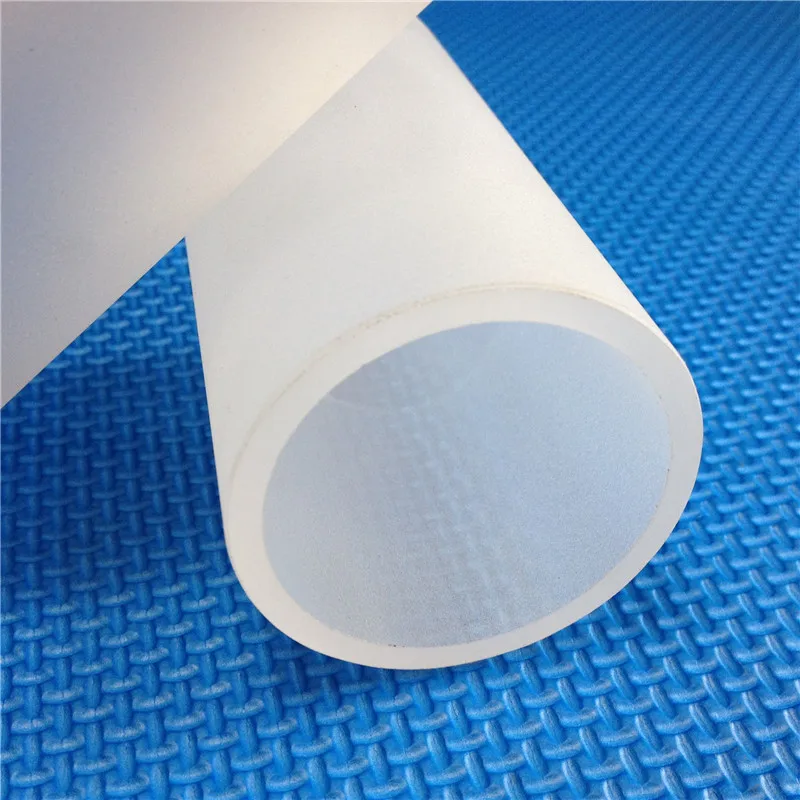

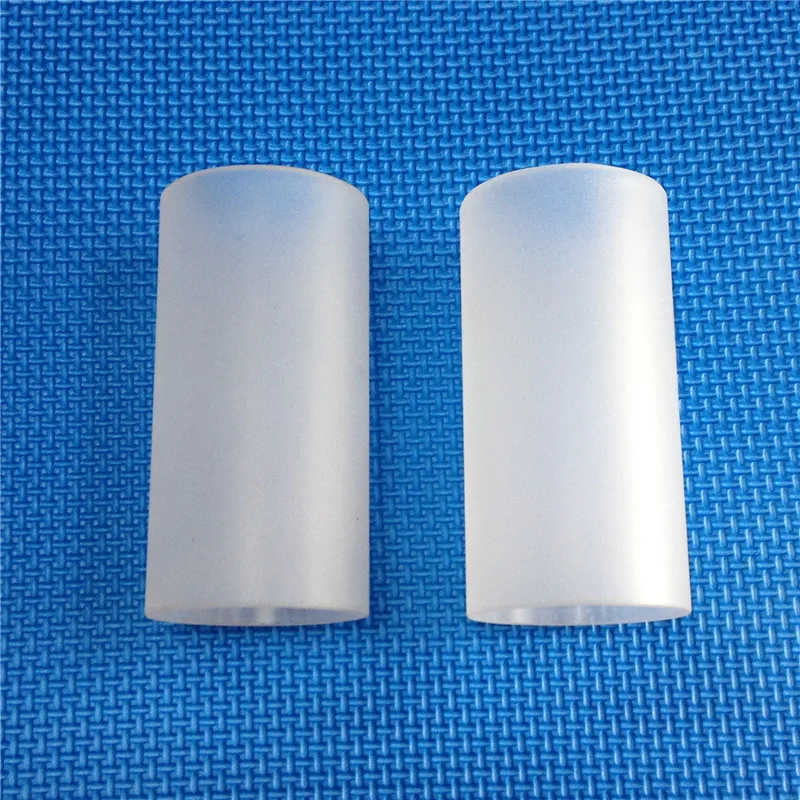

HM heat resistant frosted customized glass quartz tube

HM heat resistan frosted customized glass quartz tube led tube

1. high temperature resistance glass can work under 1200°C continuously,and in short time can even work under 1450°C, its softening point is 1650°C,and the melting point is 1650-1800°C.
2.Corrosion resistant, Except hydrofluoric acid, Quartz tube do not react with any acid and base except hydrofluoric acid.the stability is 30 times of the ceramic,and 150 times of stainless steel .
3.Excellent thermal shock stability
4.High transmission to 85%
5.Electric insulation ,it is 10000 times of usual glass.

Features

Density	2.2x103 kg/m3	Dielectric Properties	(20°C and 1 MHz)
Hardness	5.5 - 6.5 Mohs' Scale 570 KHN 100	Constant	3.75
Design Tensile Strength	4.8x107 Pa (N/m2) (7000 psi)	Strength	5x107 V/m
Design Compressive Strength	Greater than 1.1 x l09 Pa (160,000 psi)	Loss Factor	Less than 4x10-4
Bulk Modulus	3.7x1010 Pa (5.3x106 psi)	Dissipation Factor	Less than 1x10-4
Rigidity Modulus	3.1x1010 Pa (4.5x106 psi)	Index of Refraction	1.4585
Young's Modulus	72GPa (10.5x106 psi)	Constringence (Nu)	67.56
Poisson's Ratio	0.17	Velocity of Sound-Shear Wave	3.75x103 m/s
Coefficient of Thermal Expansion	5.5x10 -7 cm/cm·°C (20°C-320°C)	Velocity of Sound/Compression Wave	5.90X103 m/s
Thermal Conductivity	1.4 W/m·°C	Sonic Attenuation	Less than 11 db/m MHz
Specific Heat	670 J/kg·°C	Permeability Constants(700°C)	(cm3 mm/cm2 sec cm of Hg)
Softening Point	1683°C	Helium	210x10-10
Annealing Point	1215°C	Hydrogen	21x10-10
Strain Point	1120 °C	Deuterium	17x10-10
Electrical Resistivity	7x107 ohm cm (350°C)	Neon	9.5x10-10

Parameter/ Value	JGS1	JGS2	JGS3
Maximum Size	<φ200mm	<φ300mm	<φ200mm
Transmission Range (Medium transmission ratio)	0.17~2.10um (Tavg>90%)	0.26~2.10um (Tavg>85%)	0.185~3.52um (Tavg-85%)
OH- content	1200ppm	150ppm	5ppm
Fluorescence (ex254nm)	Virtually Free	Strong V-B	Strong V-B
Impurity Content	5ppm	20-40ppm	40-50ppm
Birefringence Constant	2-4nm/cm	4-6nm/cm	4-10nm/cm
Melting Method	Synthetic CVD	Oxy-Hydrogen melting	Electrical melting
Applications	Laser substrate: window, lens, prism, mirror	Semiconductor and high temperature window	IR & UV substrate

Application

Packing & Delivery

Packing & delivery quartz glass tube

1.plastic bubbles
2.polystyrene foam sheet
3.carton
4.wooden case
5.delivery by shipping or Express, such as EMS/DHL/TNT/UPS/Fedex within 3-5 working days.

Certifications

Our Company

Services

1. After-sales service
We promise that we can change or Refund the products if there is any quality problem.
2. Sample:
We would like to give suitable suggestions about the HM quartz glass tube, as required within 2-5days, are usually delivered by EMS/DHL or SF-express. So, you can receive them within 4-10days.
3. OEM: Accept OEM orders
