staple needle punched polypropylene geotextile fabric 200gsm
- Category: Geotextiles >>>
- Supplier: Shandong Shouguang Ruihua Non-Woven Fabrics Co. Ltd. [Shandong China]Shandong
Share on (60714008577):
Product Overview
Description
Advantages
l Needle punching system increase flexibility in the fabric, filter better.
l Polypropylene material offers a high resistance to UV exposure, rotting and other chemicals.
l Uniform and consistent strength with high performance.
l Large range of thickness could allow different allows water flow speeds.
l Large variety of roll sizes and weight make installation faster and easier in a lot of different area.
l effective separation
l Durable and Reliable
Product Description
Overview

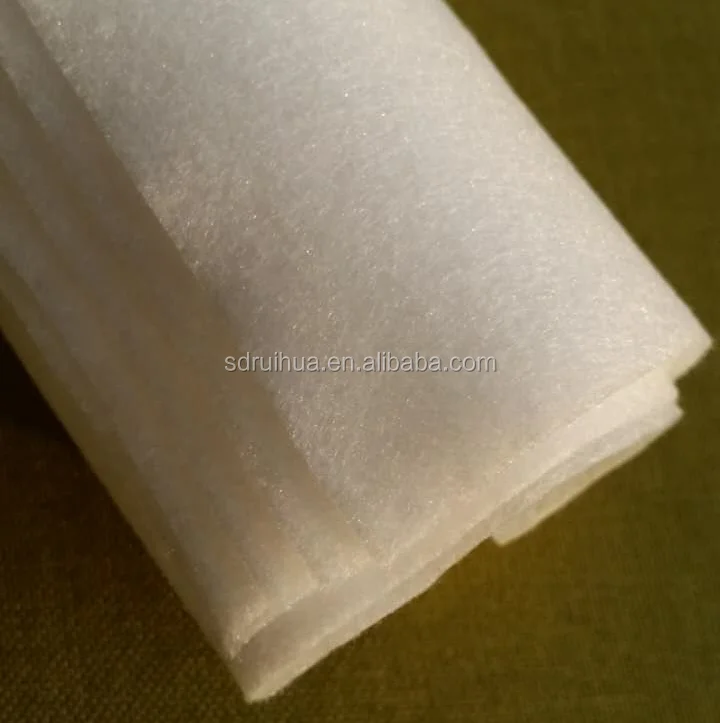

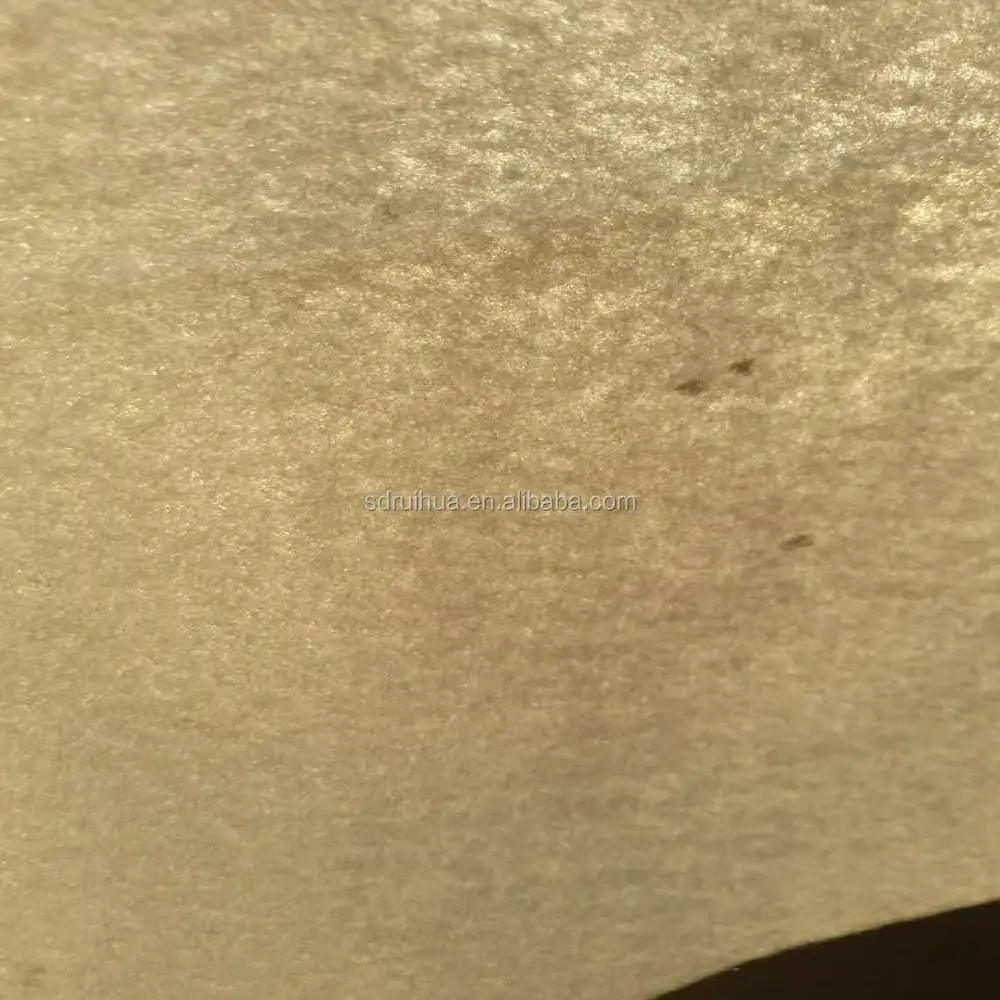

Top quality polypropylene nonwoven geotextile fabrics are manufactured from staple/recycle fiber polypropylene with needle punching technique process, which could be produced in different densities, roll sizes and type. The geotextile fabric suit lot of area applications, such as civil engineering, road construction, ground stabilization and waterproofing system.
Application
l Drainage
l Heavy Erosion Control
l Separation
l Filtration Systems
l Stabilization
l Asphalt Overlay
Technical Date
Needle Punched Staple Polypropylene Nonwoven Geotextile Fabrics | ||||||||
PROPERTY | Techinical Indicator | |||||||
Mass per unit Area(g/m2) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
mass coefficient of variation per unit area% | 10% | 10% | 10% | 10% | 10% | 10% | 10% | 10% |
Thickness(mm) | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 |
Breaking strength(KN) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 |
CBR bursting strength(KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 |
Tearing strength (KN) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 |
Elongation at break % | 50% | 50% | 50% | 50% | 50% | 50% | 50% | 50% |
UV Resistance % | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
Permittivity (s) | 1.2 | 1.5 | 1.4 | 0.8 | 0.8 | 0.8 | 0.7 | 0.7 |
Water Flow Rate(l/m/m2) | 5700 | 4500 | 4200 | 3000 | 2600 | 2300 | 2000 | 1800 |
Width (m) | 0-6 customized | |||||||
Packaging & Shipping
Two layer,the outer layer is plastic film to protect wear and tear, and the inner layer is PE film to seal for water.
Strong packed, and ease for long distance transport and shipment.
Our Services
Continuous Improvements and Innovations
High quality and Low cost
Enhance Customer Satisfactions
Hou, Shanghui
Phone:0086 18612276638
Skype ID:rh_nonwoven
You are always welcome!
