Product Overview

Description


Product Description

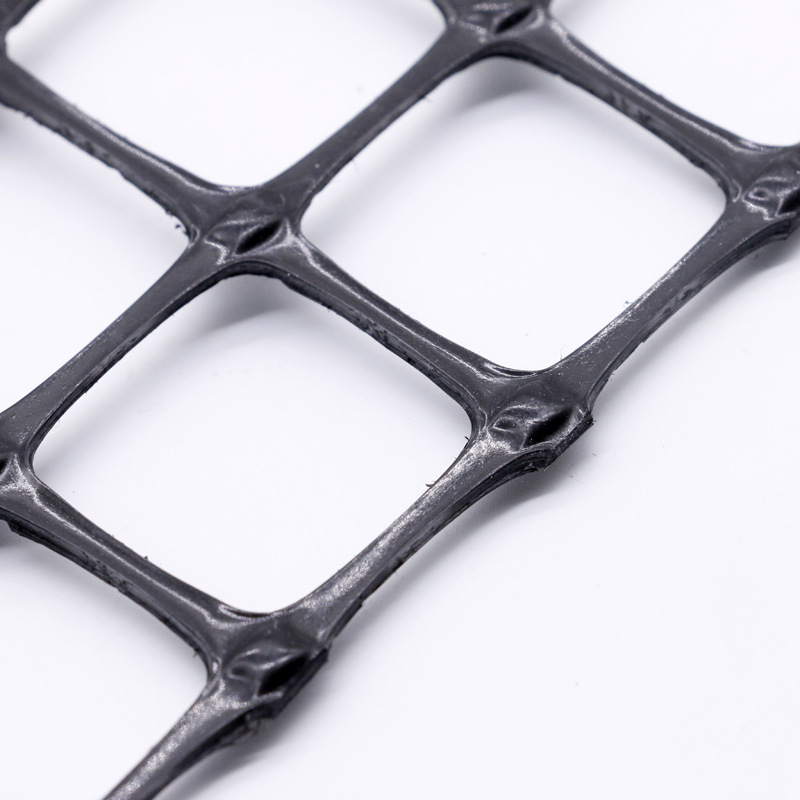

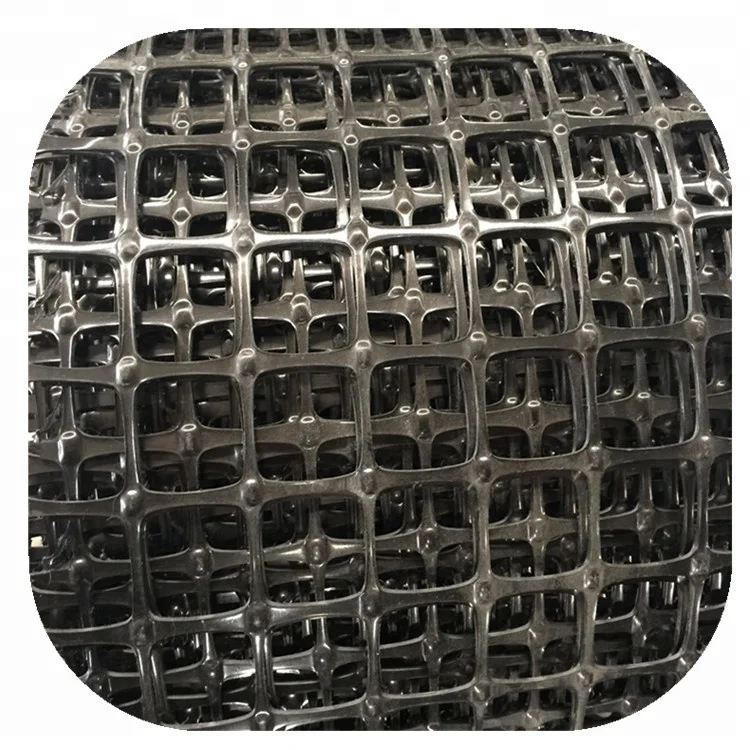

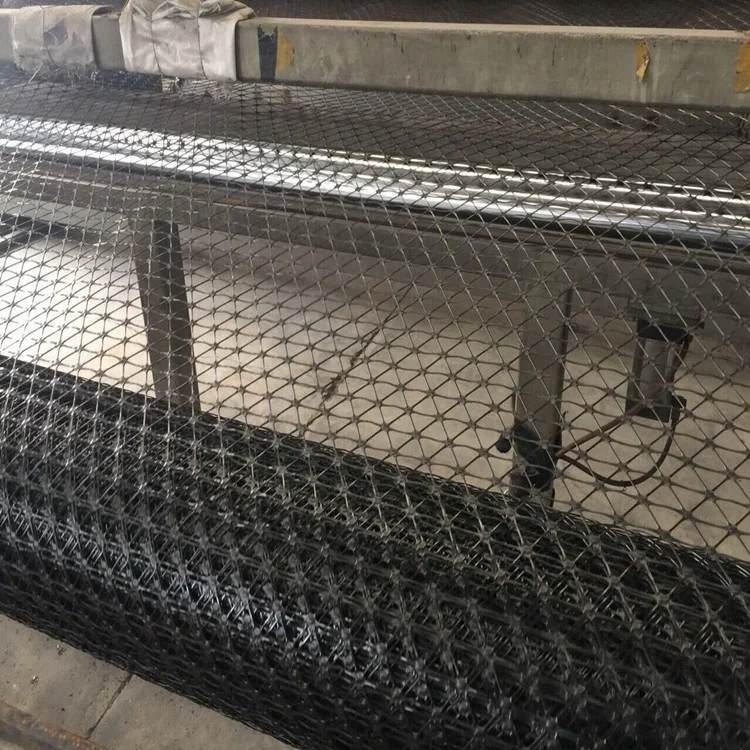

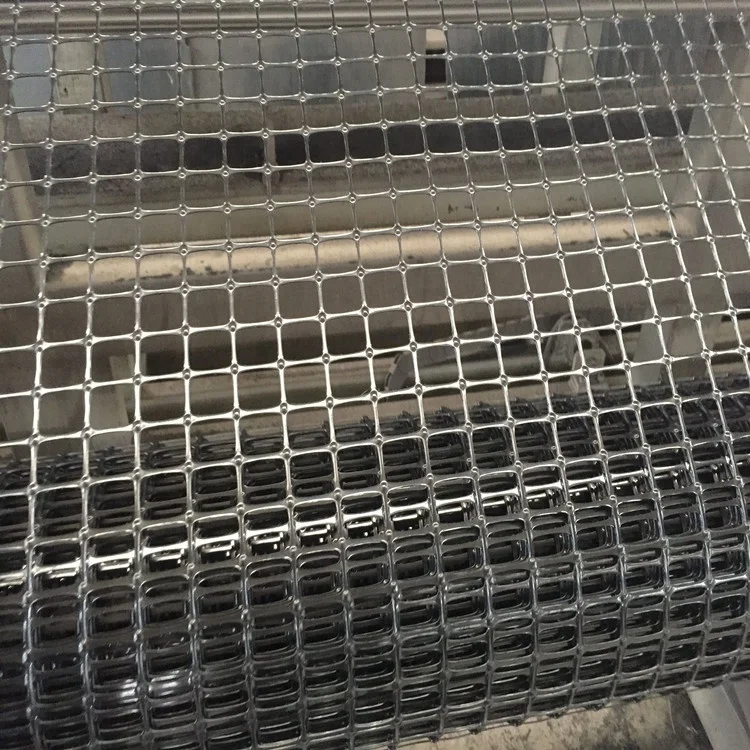

PP biaxial composite geogrid

Plastic PP geogrid composite geotextile is a compound product made of PP geogrid and PET geotextile,

especially designed for soil stabilisation and reinforcement applications. The composite geogrids are manufactured by bonding a biaxial geogrid to a nonwoven polyester geotextile.

Lab test for Tensile Strength


            Lab test for Creep


       Approved by TRI Austin Lab


Specifications
\t
Index for PPBG C 30-30
\t
Test method
\t
Units
\t
MD values
\t
TD values
\t
Polymer
\t
-
\t
-
\t
PP
\t
-
\t
Minimum carbon black
\t
ASTM D4218
\t
%
\t
2
\t
-
\t
Tensile strength @ 2% Strain
\t
ASTM D6637
\t
kN/m
\t
10.5
\t
10.5
\t
Tensile strength @ 5% Strain
\t
ASTM D6637
\t
kN/m
\t
21
\t
21
\t
Ultimate Tensile Strength
\t
ASTM D6637
\t
kN/m
\t
30
\t
30
\t
Strain @ Ultimate Strength
\t
ASTM D6637
\t
%
\t
13
\t
13
\t
Structural Integrity
\t

\t

\t
\t
\t
Junction Efficiency
\t
GRI GG2
\t
%
\t
90
\t
90
\t
Overall Flexural Rigidity
\t
ASTM D1388
\t
mg-cm
\t
3,930,000
\t
\t
Aperture Stability
\t
COE Method
\t
mm-N/deg
\t
1432
\t
\t
Dimension
\t
\t

\t
\t
\t
Aperture Dimensions
\t
-
\t
mm
\t
36
\t
34
\t
Minimum Rib Thickness
\t
ASTM D1777
\t
mm
\t
2.1
\t
1.8
\t
Roll width
\t
\t
m
\t
3.95
\t
\t
Roll length
\t
\t
m
\t
50
\t
\t
Geotextile physical properties
\t
Long filament PET needle punched nonwoven geotextile
\t
Mass per unit area g/m2
\t
ASTM D 5261
\t
g/m2
\t
150/200
\t
Opening size mm
\t
ASTM D 451
\t
mm
\t
0.07
Application

1,It can widely apply in the water conservation, the municipal administration,

2, The building,the transportation, the subway,the tunnel,

3, The environmental protection and so on.

Funcation

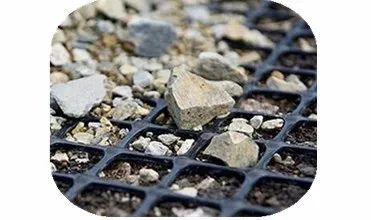

1, Improving bearing capacity of road foundation and  prolong its service life.
2, Preventing road surface from subsiding and cracking.
3, Be convenient for construction, reducing cost and maintaining expense for the project.
4, Providing stability for slopes and avoid the losing of the water and soil.

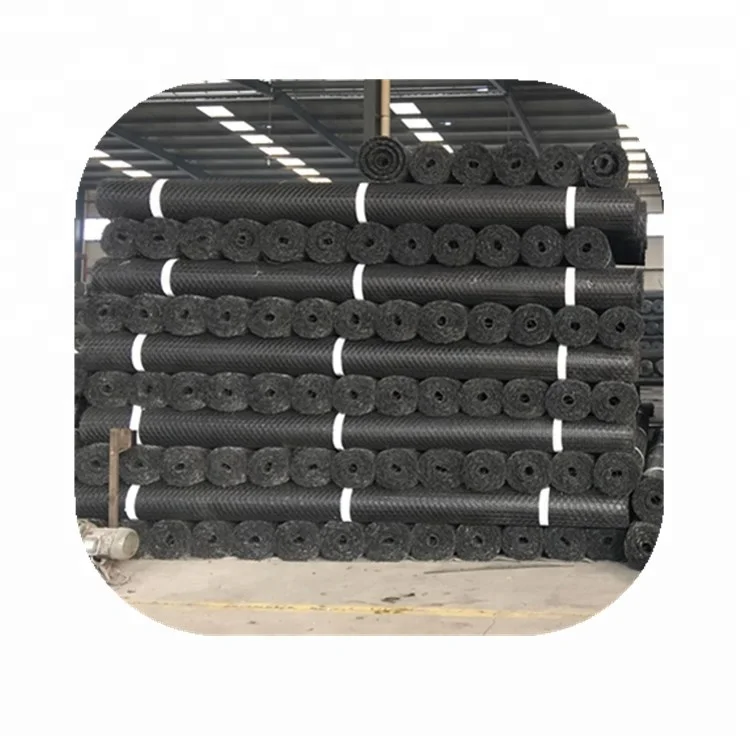

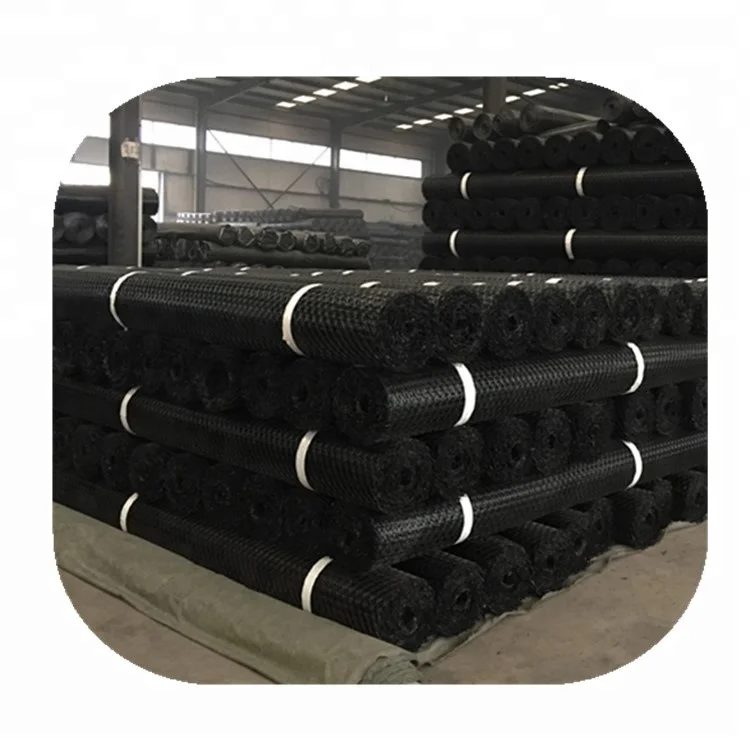

Packing & Delivery
\t
PP Biaxial Geogrid
\t
Width (M)
\t
Length (M)
\t
Quantity per 40`HQ (M2)
\t
PPBG C 15-15
\t
3.95
\t
50
\t
about36735 (186 rolls)
\t
PPBG C 20-20
\t
3.95
\t
50
\t
about26070 (132 rolls)
\t
PPBG C 25-25
\t
3.95
\t
50
\t
about17775 (90 rolls)
\t
PPBG C 30-30
\t
3.95
\t
50
\t
about11850 (60 rolls)
\t
PPBG C 40-40
\t
3.95
\t
50
\t
about9875 (50 rolls)
Related Products

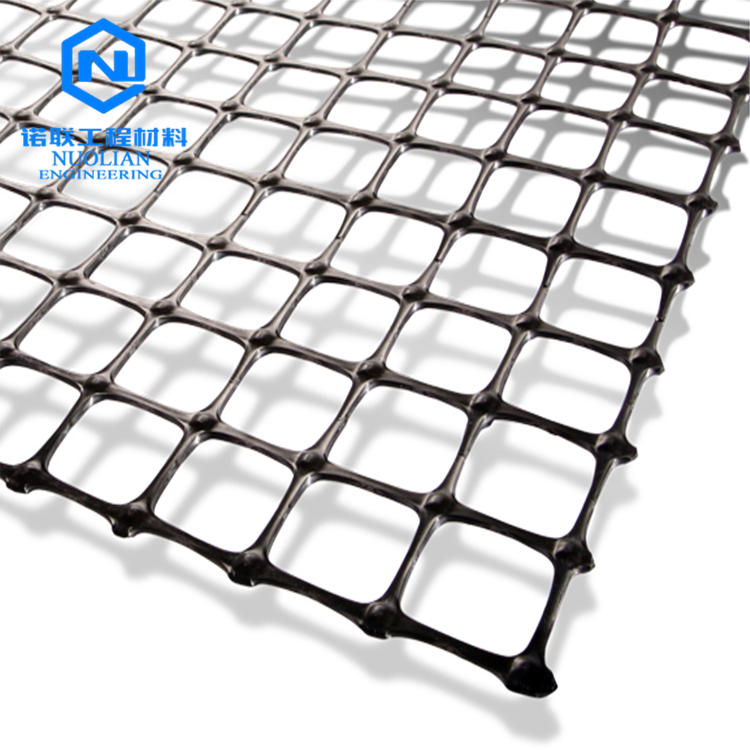

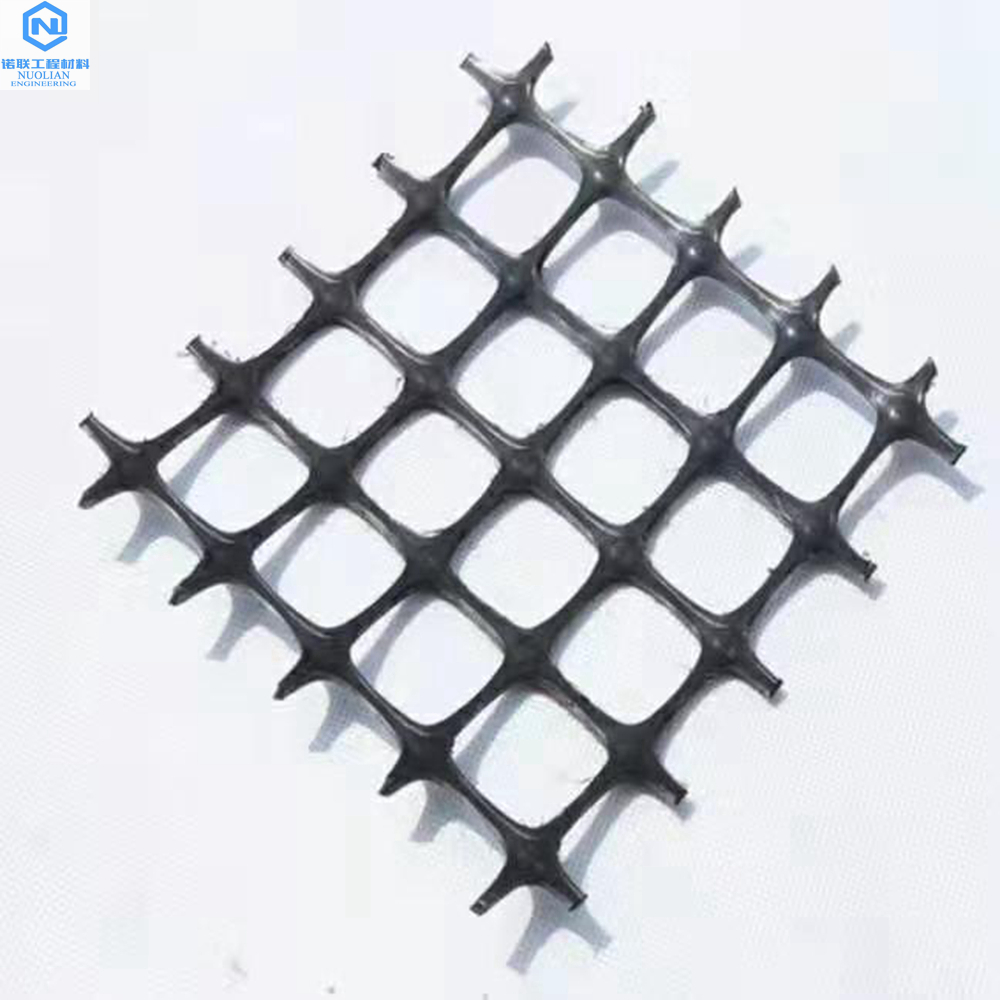

PP Biaxial Plastic Geogrid

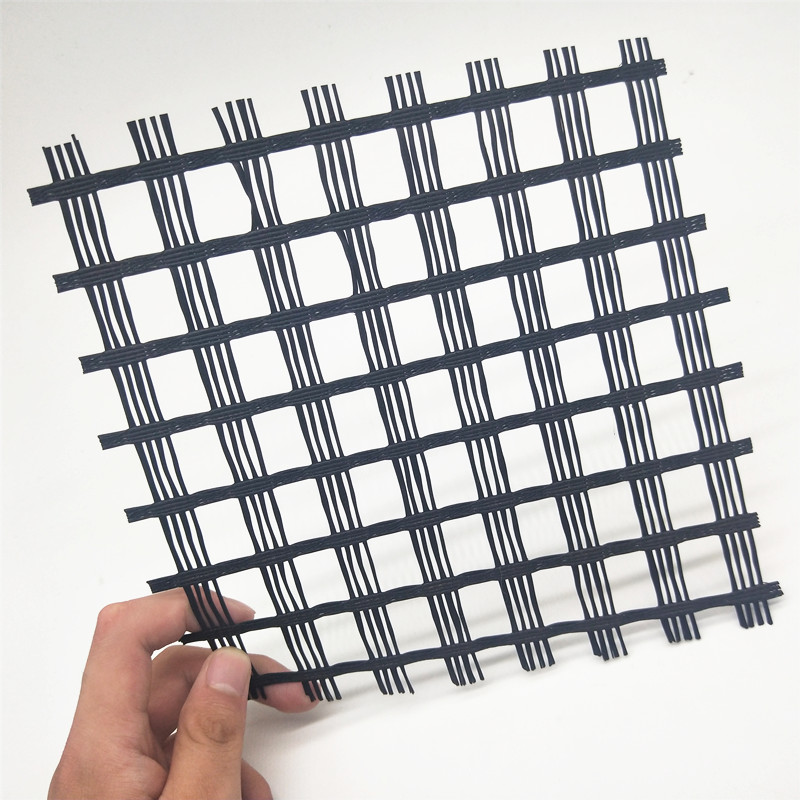

Fiberglass Geogrid
